Enable you to unleash more core resources, focus on your core business, reduce supply chain management pressure, and enhance core competitiveness.
We will try our best to use a professional quality control system to ensure product quality for you and provide compliance certification and qualification support.
| Product Name | Single-phase Power supply cabinet |
| Material options | SPCC, galvanized sheet, Schneider, ABB, Chint, Delixi |
| Color | RAL7035 Or customized according to customer requirements |
| Protection Level | IP54 |
| Type | Distribution Electric Control Enclosure |
| Service | Drilling, installation, spraying, design, OEM/ODM services, etc. |
| Rated voltage and current | Medium and low voltage, 100A-630A |
| Thickness of shell material | Door panel material thickness 2.0mm, box body 1.5mm, installation plate 2.5mm |
| Application Scenarios | Production and processing workshops, mechanical equipment power supply, medium-sized factory power distribution, production line power supply, data center terminal power distribution, commercial buildings |

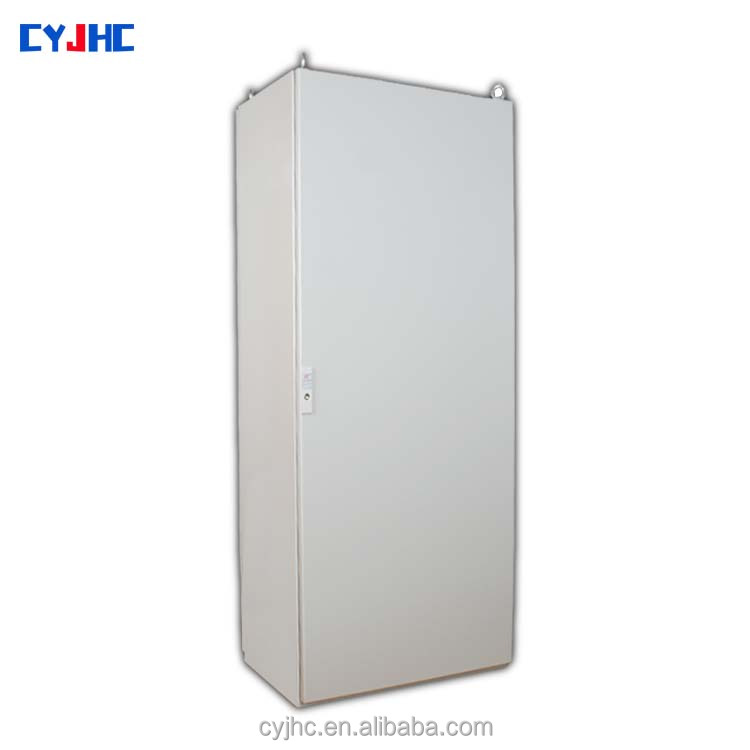

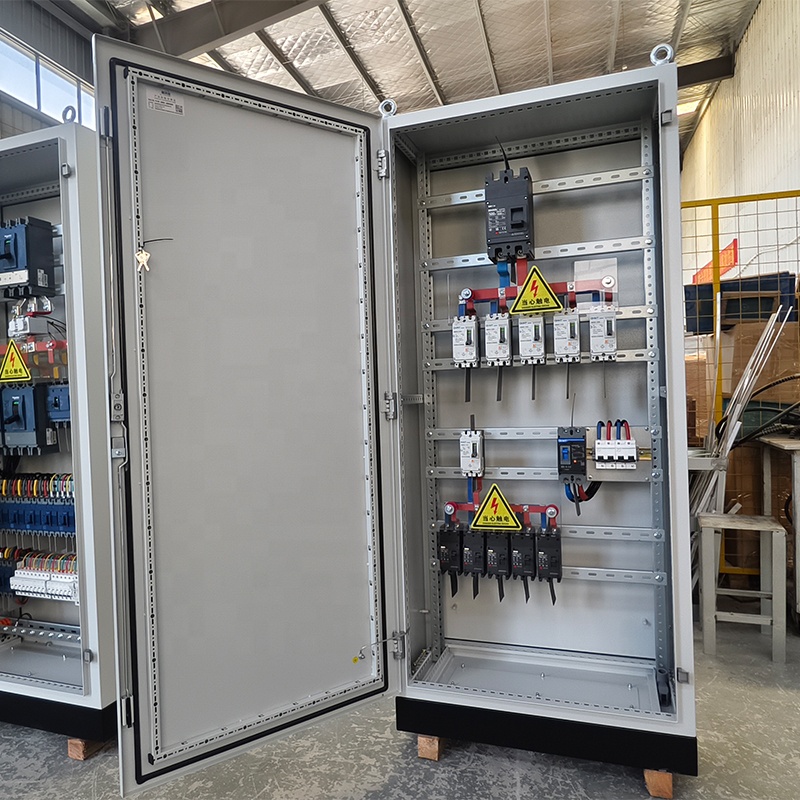

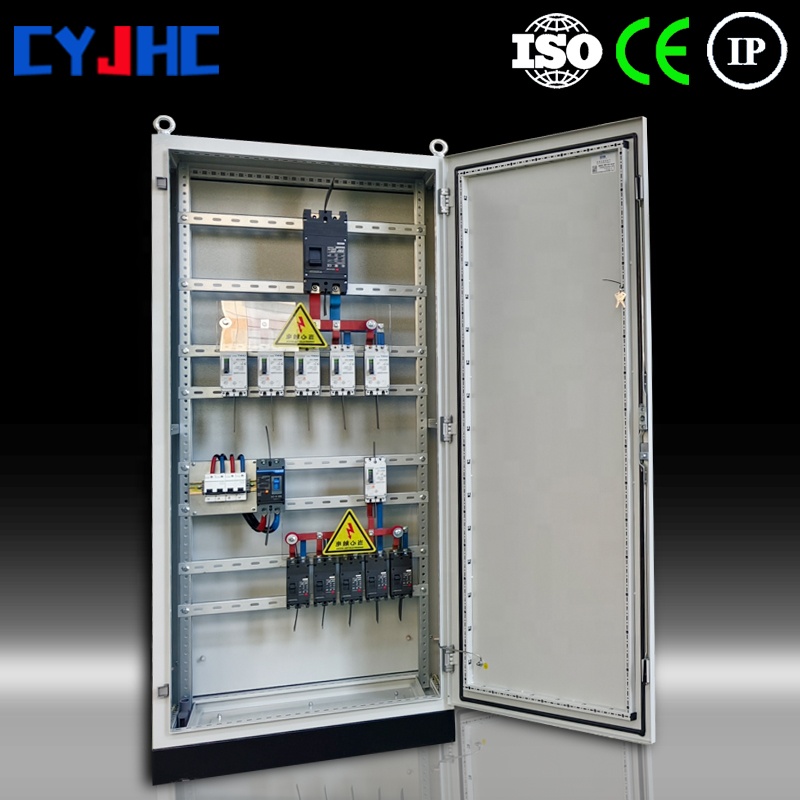

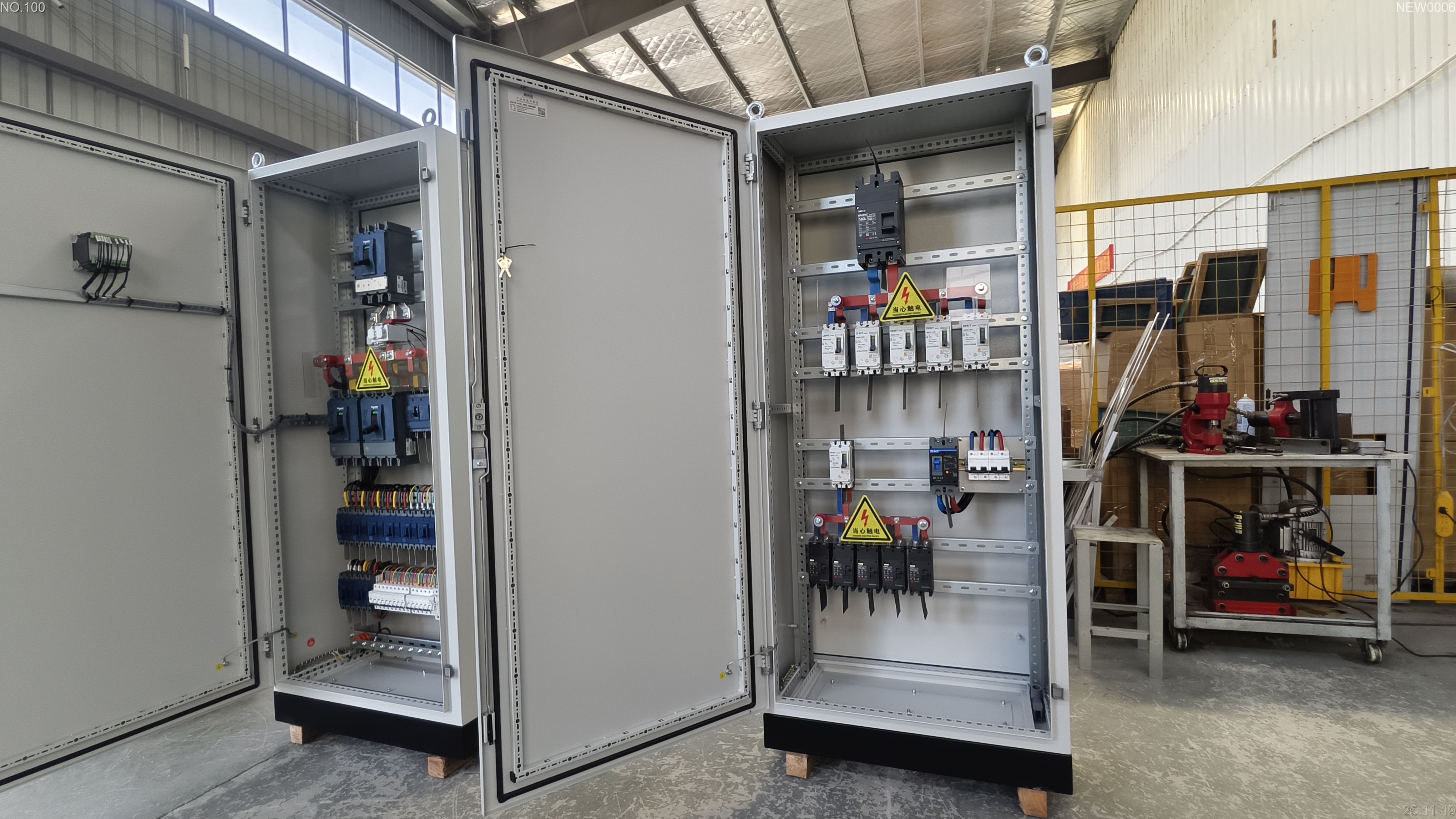

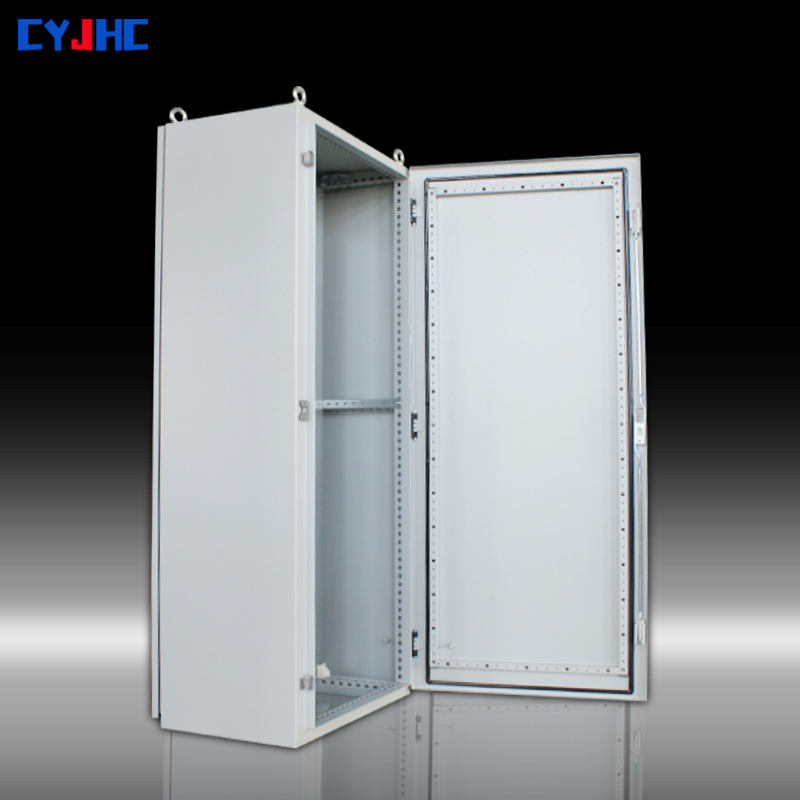

Our single-phase distribution control cabinet uses our own MS-SY type product for the industrial casing. It has a beautiful appearance, moderate strength, and easy installation, fully meeting customers' high-quality and budget-friendly needs. (At the same time, luxury alternatives are also available.)

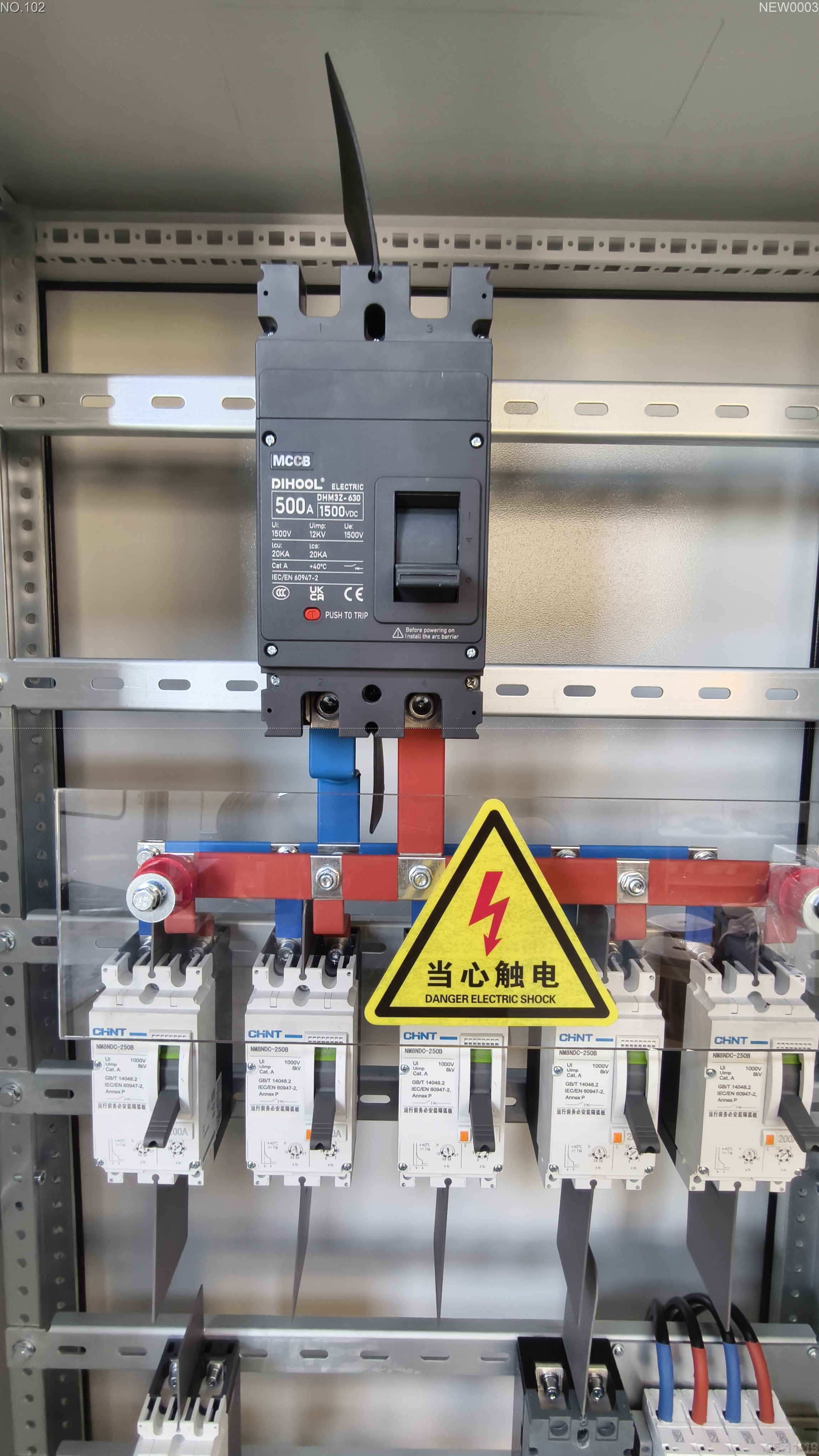

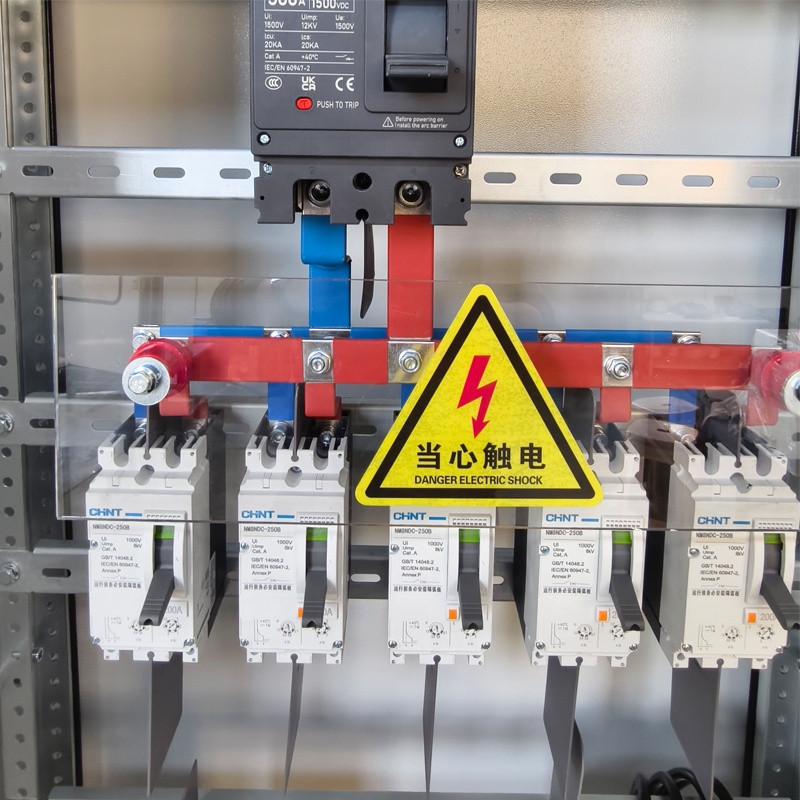

In this scheme, we have selected DIHOOL brand molded case circuit breakers (MCCBs) produced in Zhejiang, China, with a rated current of 500A, for circuit protection and on/off control.
In this scheme, we have chosen CHNT brand molded case circuit breakers (MCCBs) produced in Zhejiang, China, with a rated current of 200A, to provide reliable overload, short circuit, and undervoltage protection for each branch. Copper bars are used to connect the main circuit breaker to the branch circuit breaker.

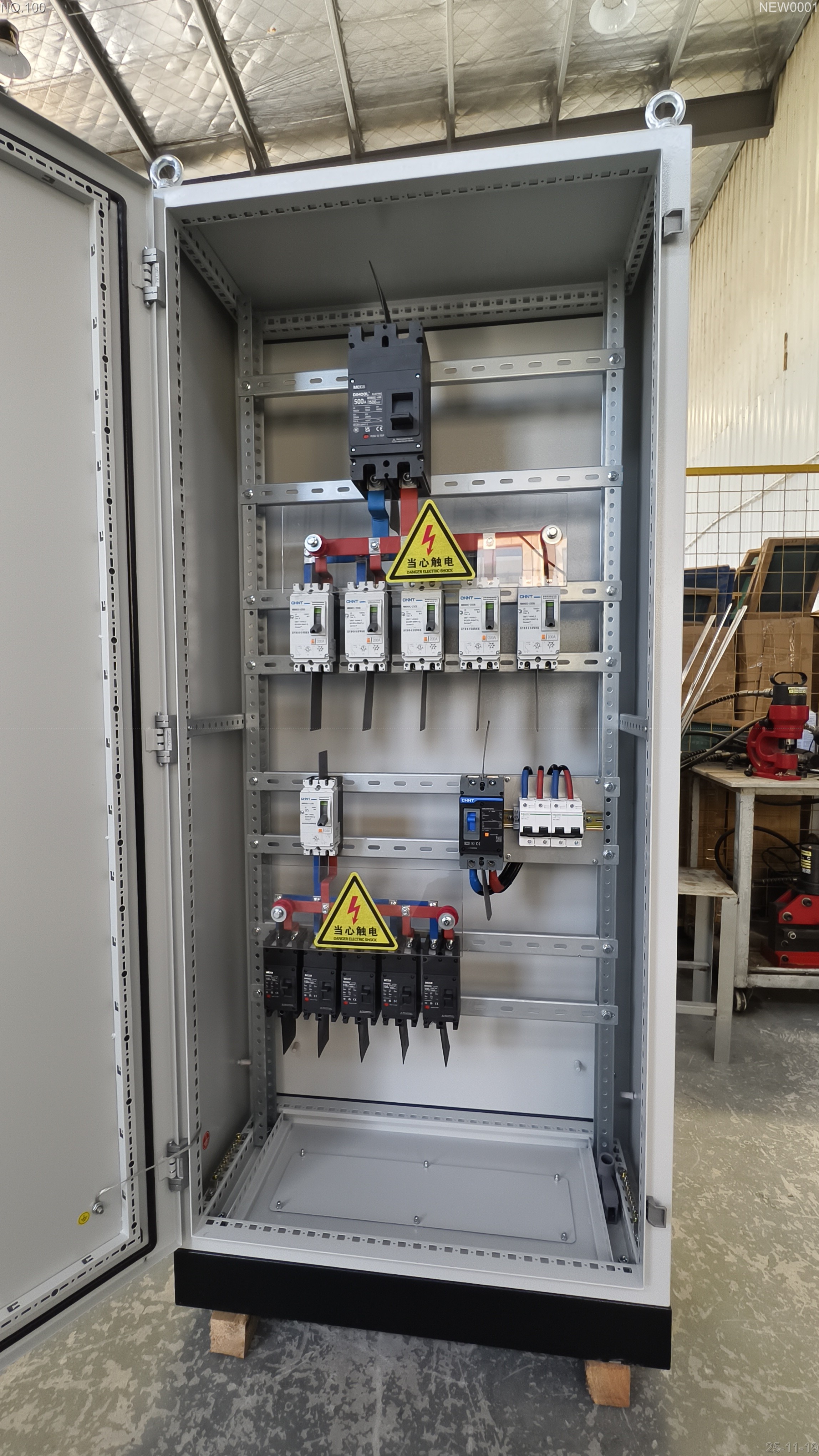

At the same time, we have configured other auxiliary and backup circuits according to customer requirements to ensure fully operational control systems.
The lower part of the cabinet is equipped with access holes sealed with cover plates. Customers can easily remove the cover plates to route cables in and out through the bottom of the cabinet and the trench.

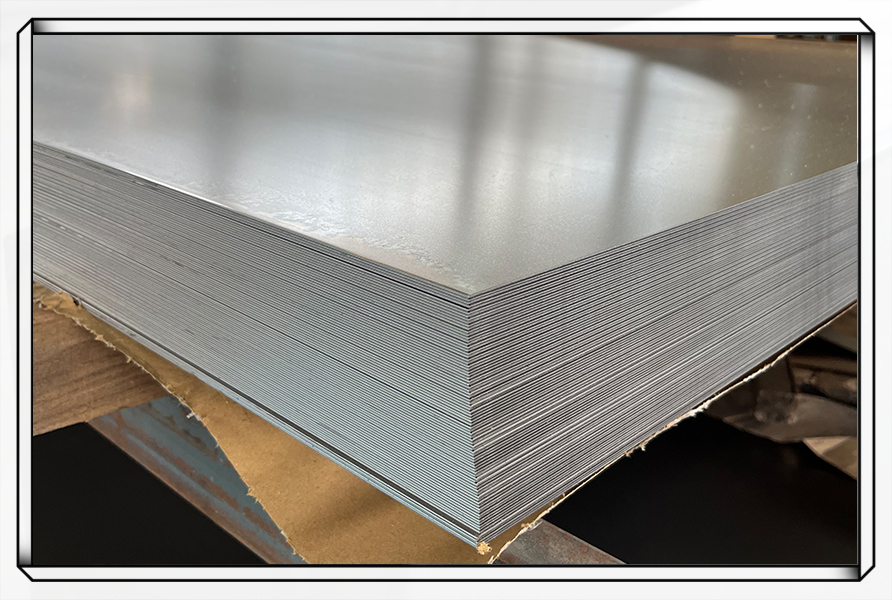

In order to ensure the material processing strength, bending rebound coefficient, and welding deformation index, the steel plate raw materials used by our company are all purchased from top domestic manufacturers to ensure the quality of our products.

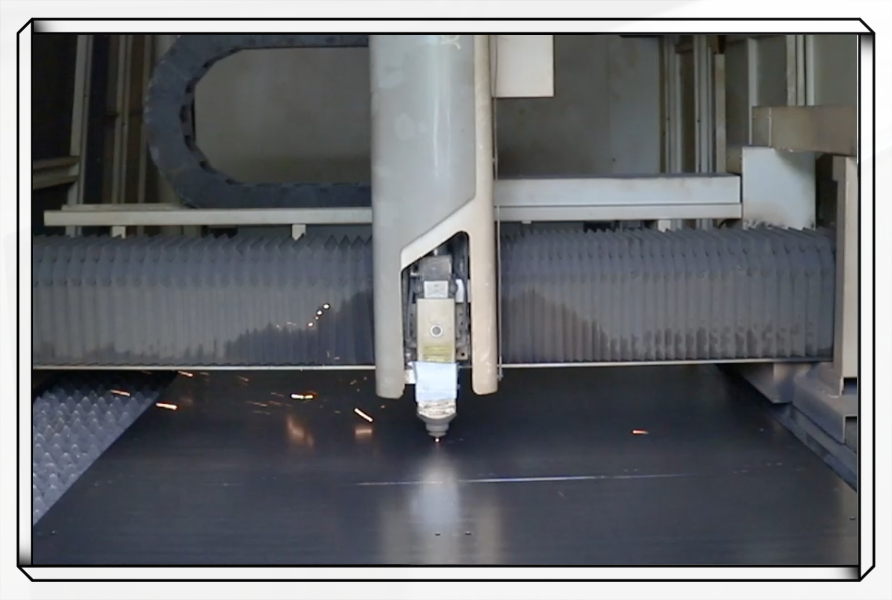

We use advanced laser cutting machines to cut the steel plates into the desired sizes and to create the required complex hole shapes.

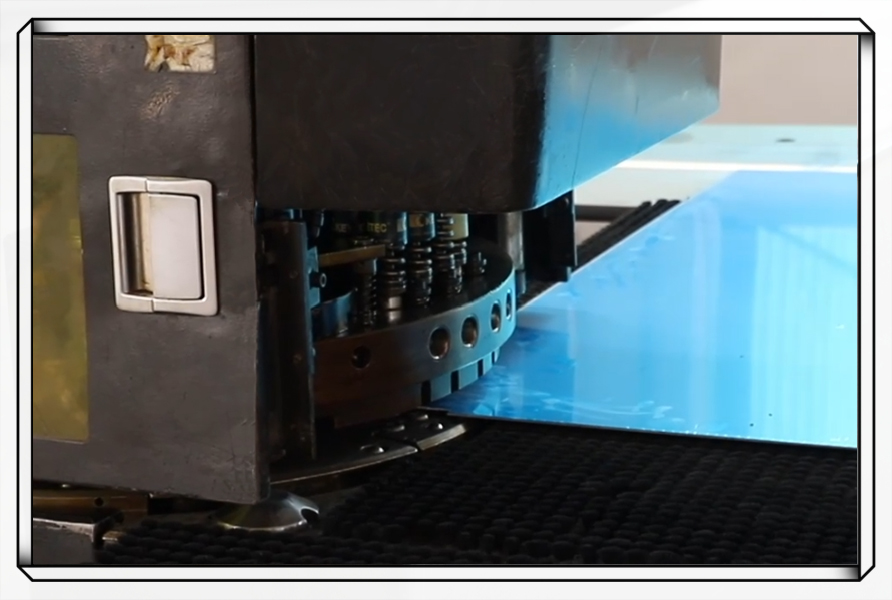

The holes that require precise perforation or have special shapes are placed on the CNC brick tower punching machine for processing. These include protruding perforations, louvers, and punching marks.

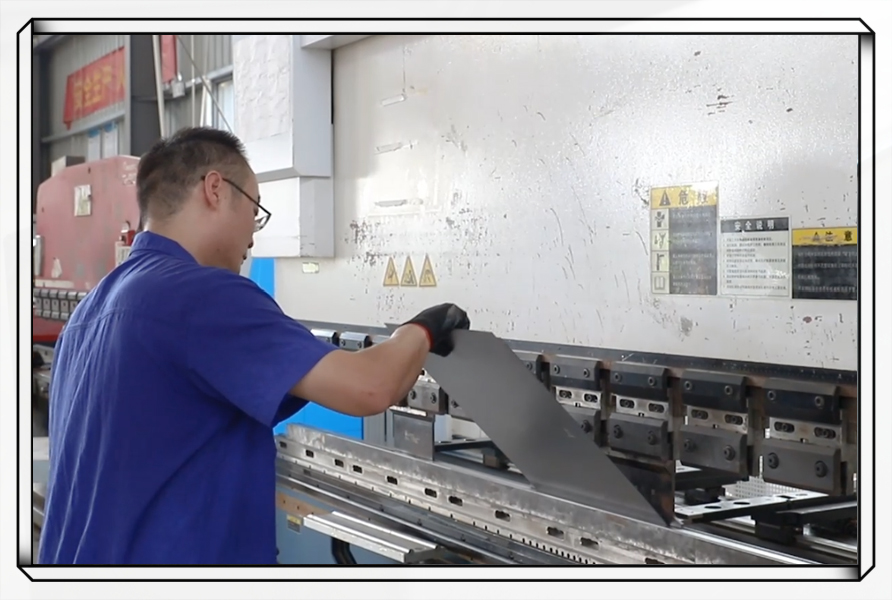

The sheets cut and pre-drilled are sent to the bending machine. The operator programs the machine according to design drawings and bends the sheets into the desired shapes.

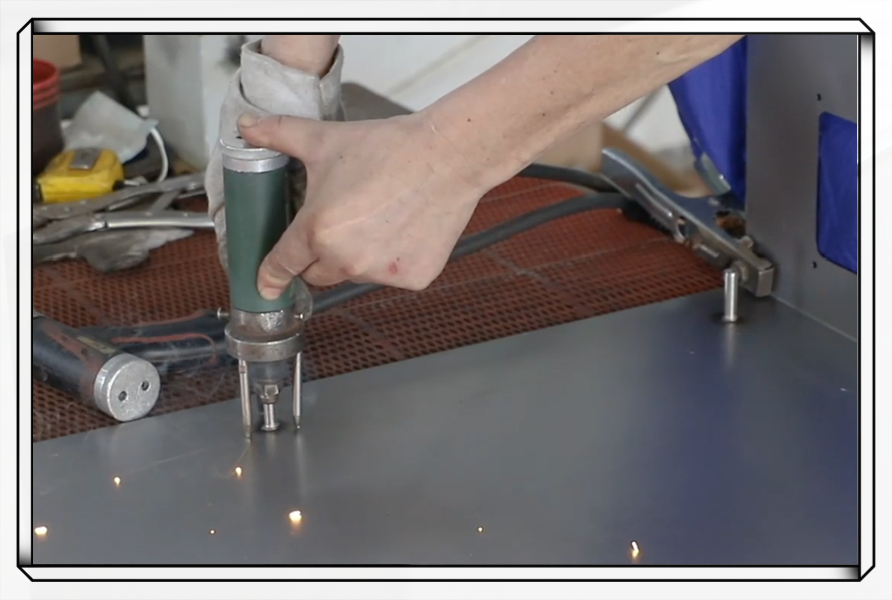

The semi-finished products bent and shaped will have studs of various sizes welded onto them according to technical drawings to fix the accessories in place.

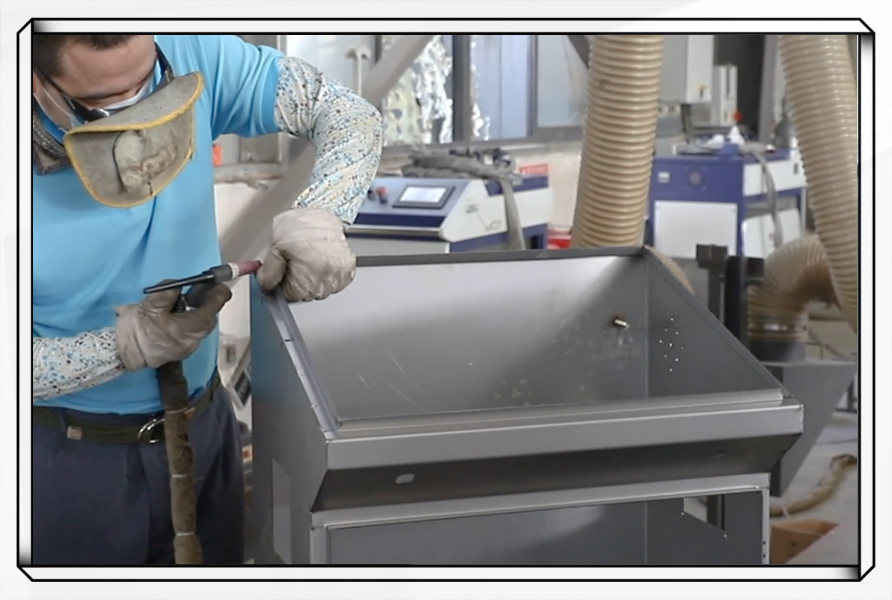

Here, individual components are assembled by the operator, forming structure-critical three-dimensional enclosures.

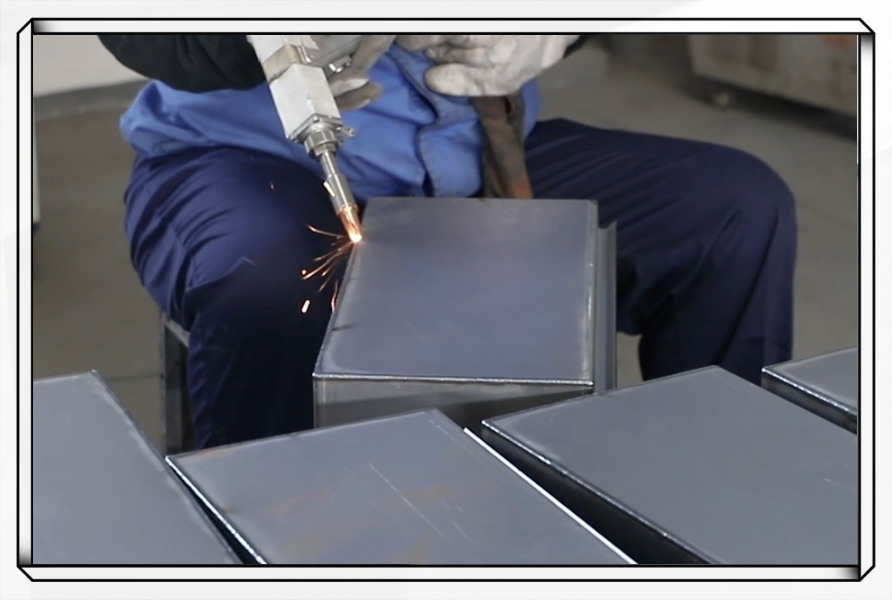

The operator fills and seals each weld on the assembled product carefully, ensuring no gaps remain. This is a crucial step in achieving a high level of IP protection.

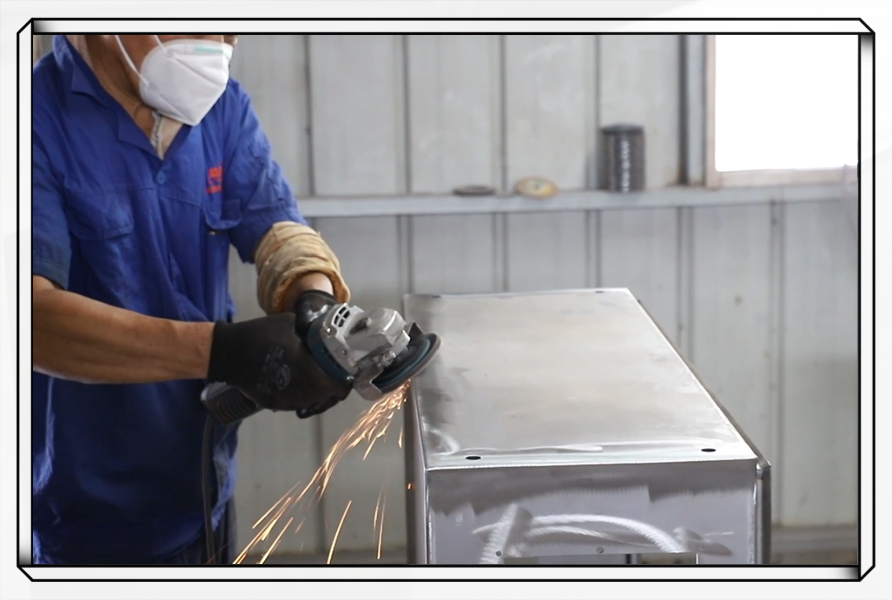

The operator polishes the welded products, ensuring that the welds remain aesthetically pleasing and smooth while maintaining their structural strength.

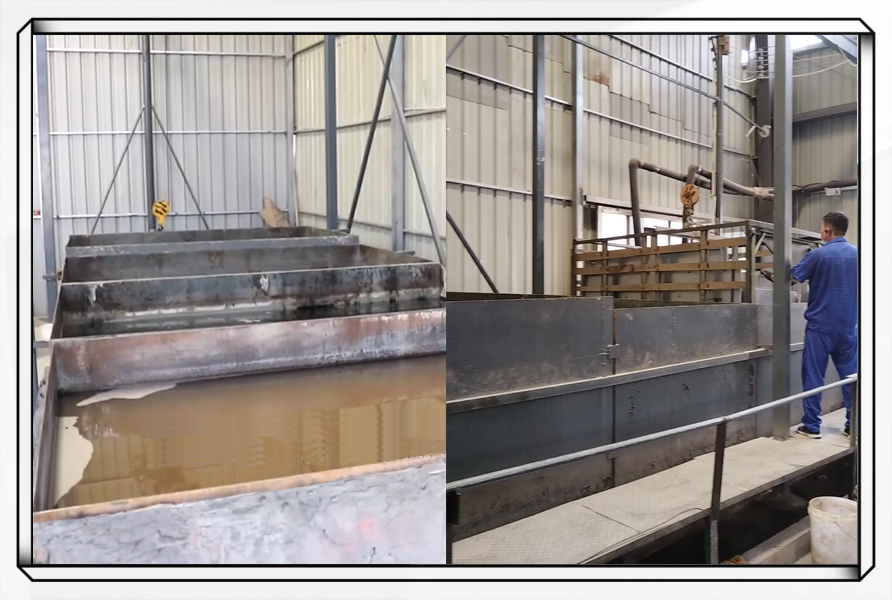

Immersion in a pool filled with solutions: 1. Degreaser to remove oil stains; 2. Water to thoroughly clean the product; 3. Silane coating to form a dense protective layer, enhancing adhesion between steel and powder.

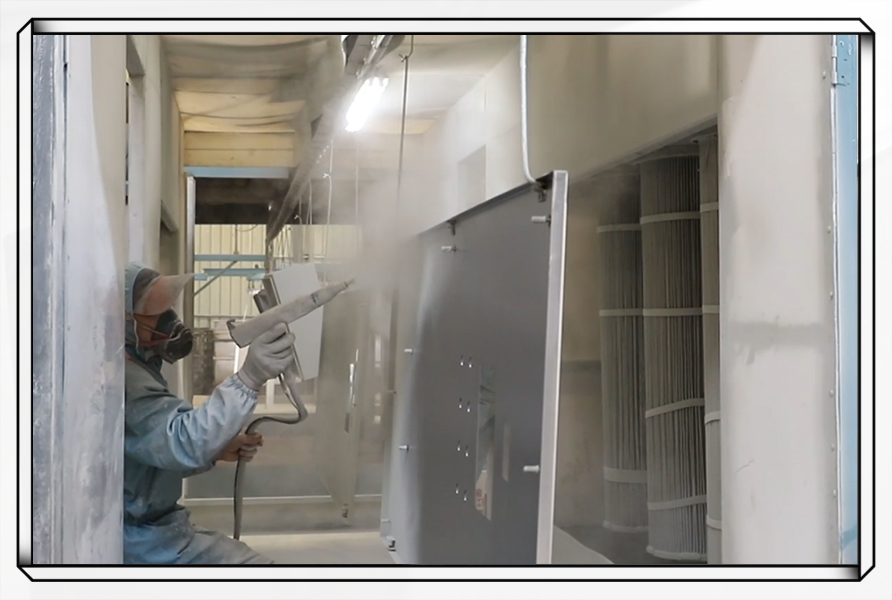

We select epoxy resin powder designed for outdoor use for spraying treatment, preventing corrosion and enhancing UV resistance. Our standard color is RAL7035, customizable per request.
Sprayed products are automatically transported into an oven heated to 200°C by a chain conveyor. They undergo preheating, powder liquefaction, leveling, drying, and final shaping.

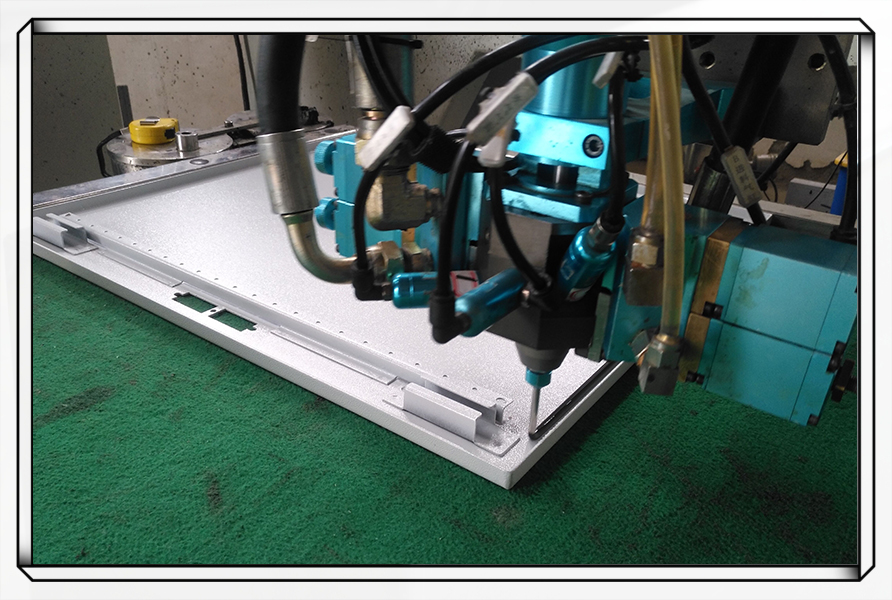

Black sealing strips made by specialized CNC equipment are pasted around the door. They have excellent elasticity and match the waterproof folding edge, with protection levels reaching up to IP66.

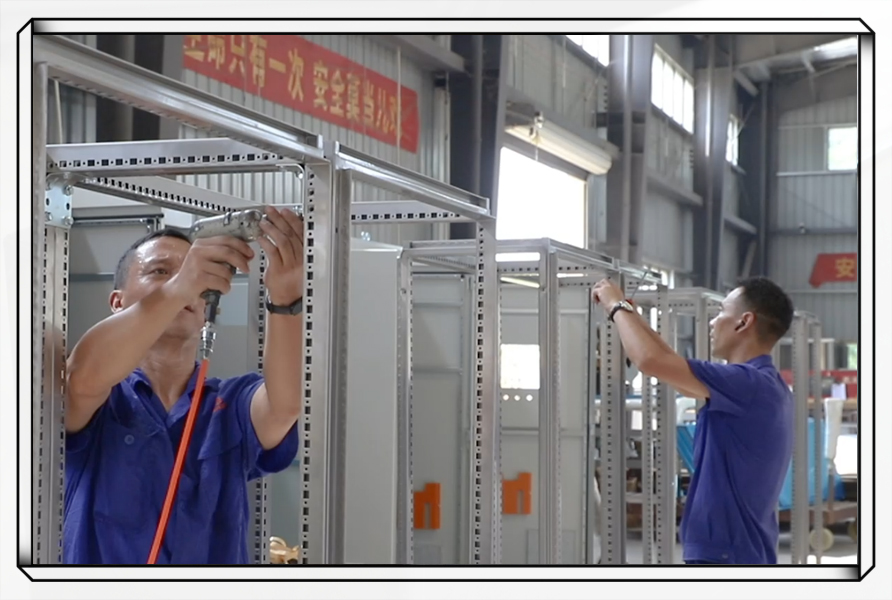

We assemble all the remaining semi-finished mechanical components and tighten all fixing screws to achieve structure integrity.

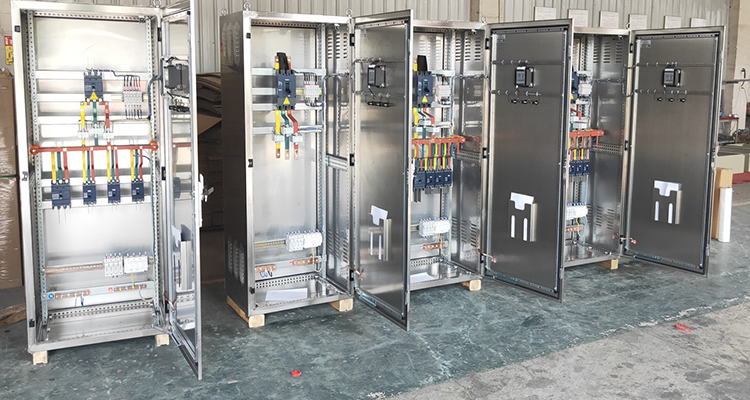

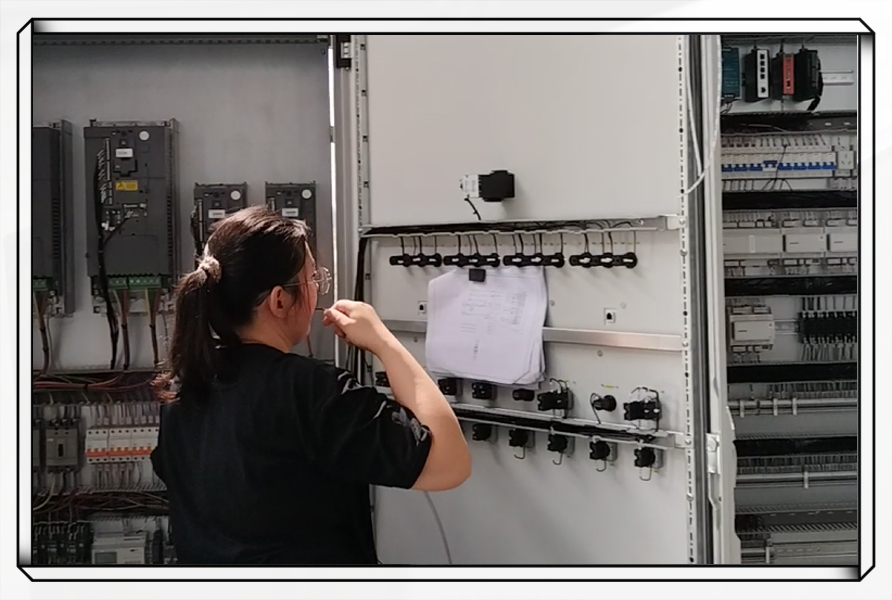

Upon request, we will design and install all necessary electrical components, execute full wiring integration, and configure the control systems.

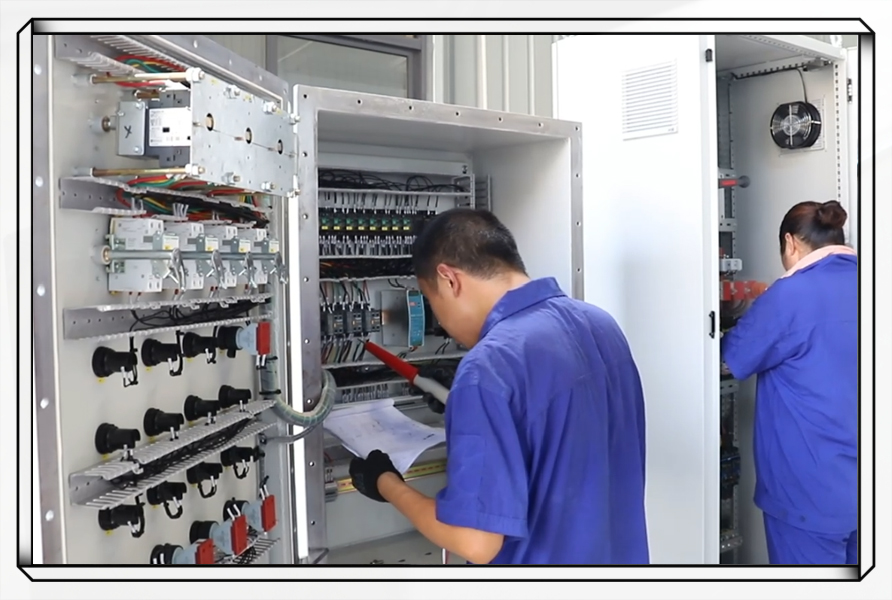

After integration, we use specialized testing equipment to evaluate the performance of the product, ensuring that it meets strict international quality standards.

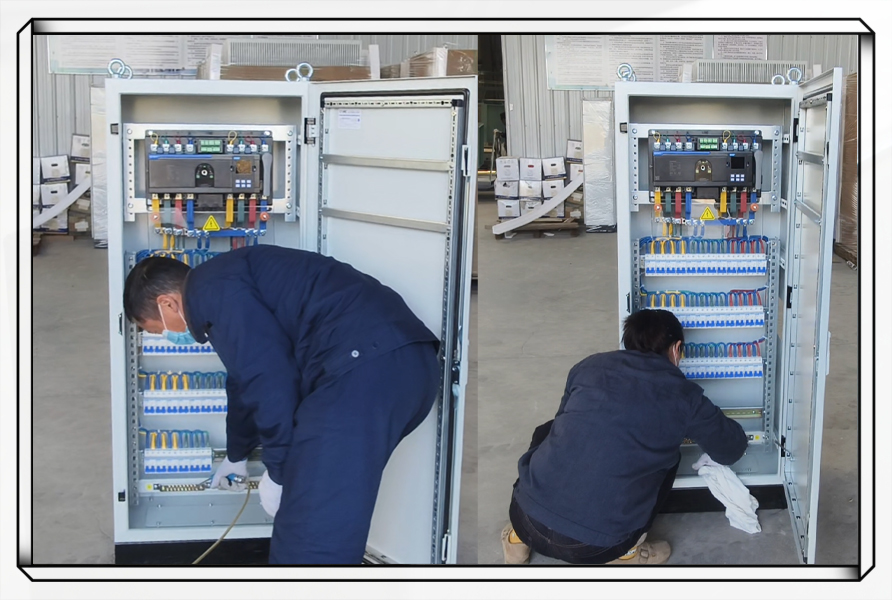

Once all structural, assembly, and testing processes are complete, we clean the product thoroughly to ready it for packaging.

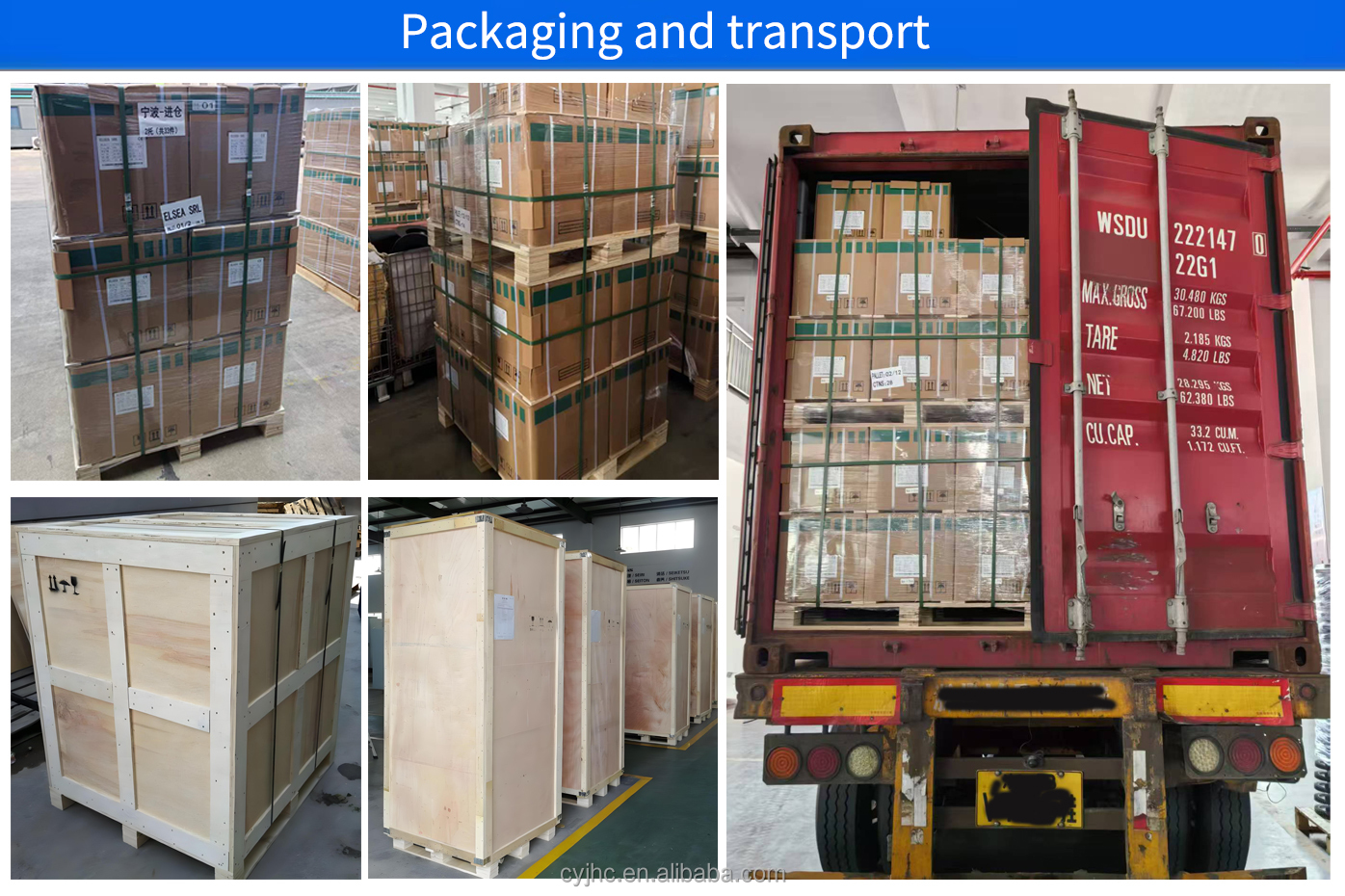

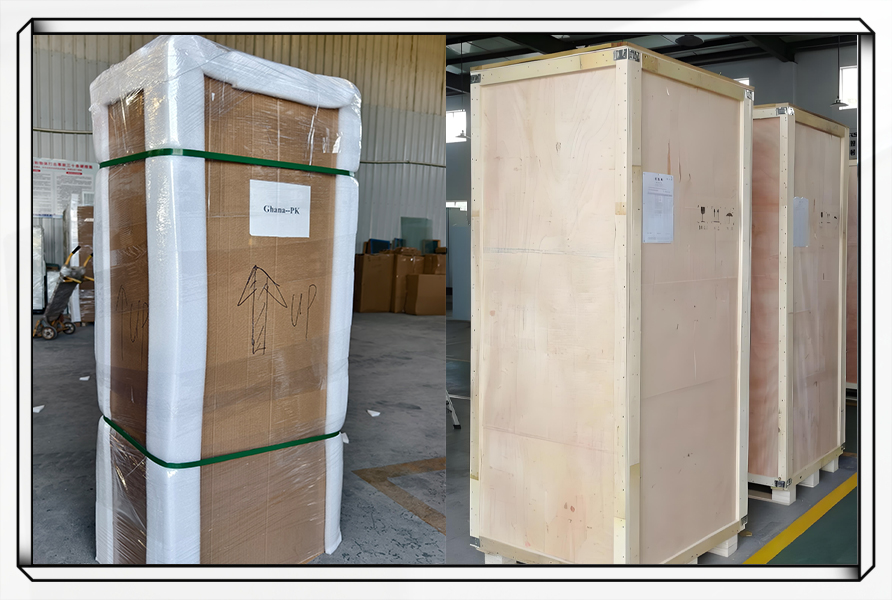

Finally, the product is packaged. Our standard packaging methods include wrapping the product with cardboard and foam, as well as packing it in wooden boxes. You can choose the packaging method that best suits your needs.

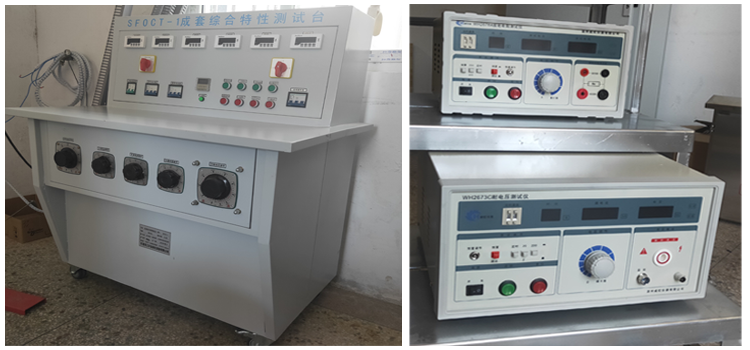

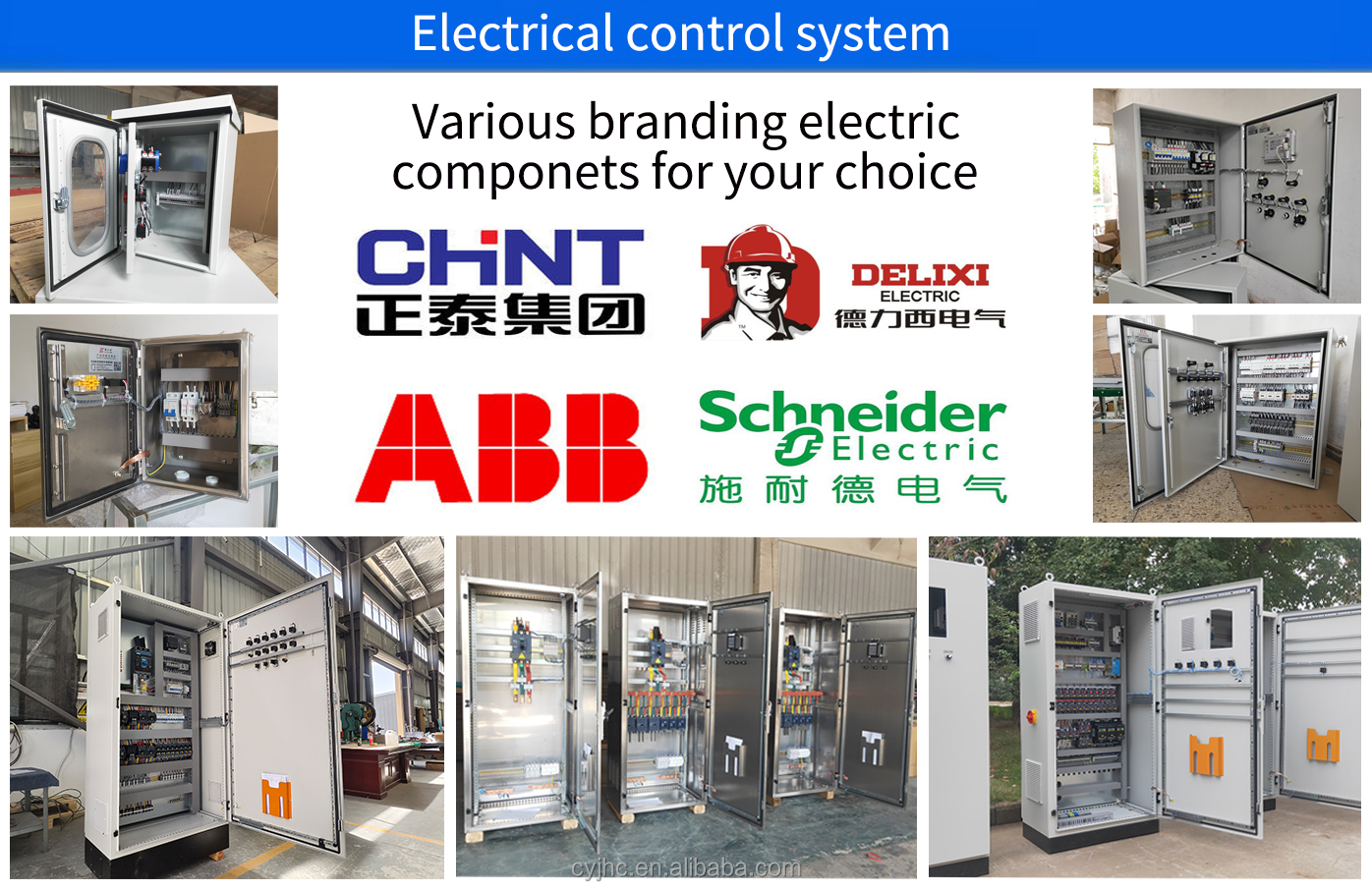

All electrical components are made of brands such as Schneider, ABB, Siemens, Chint, and Delixi, and we have a complete set of electrical performance testing equipment to safeguard them.

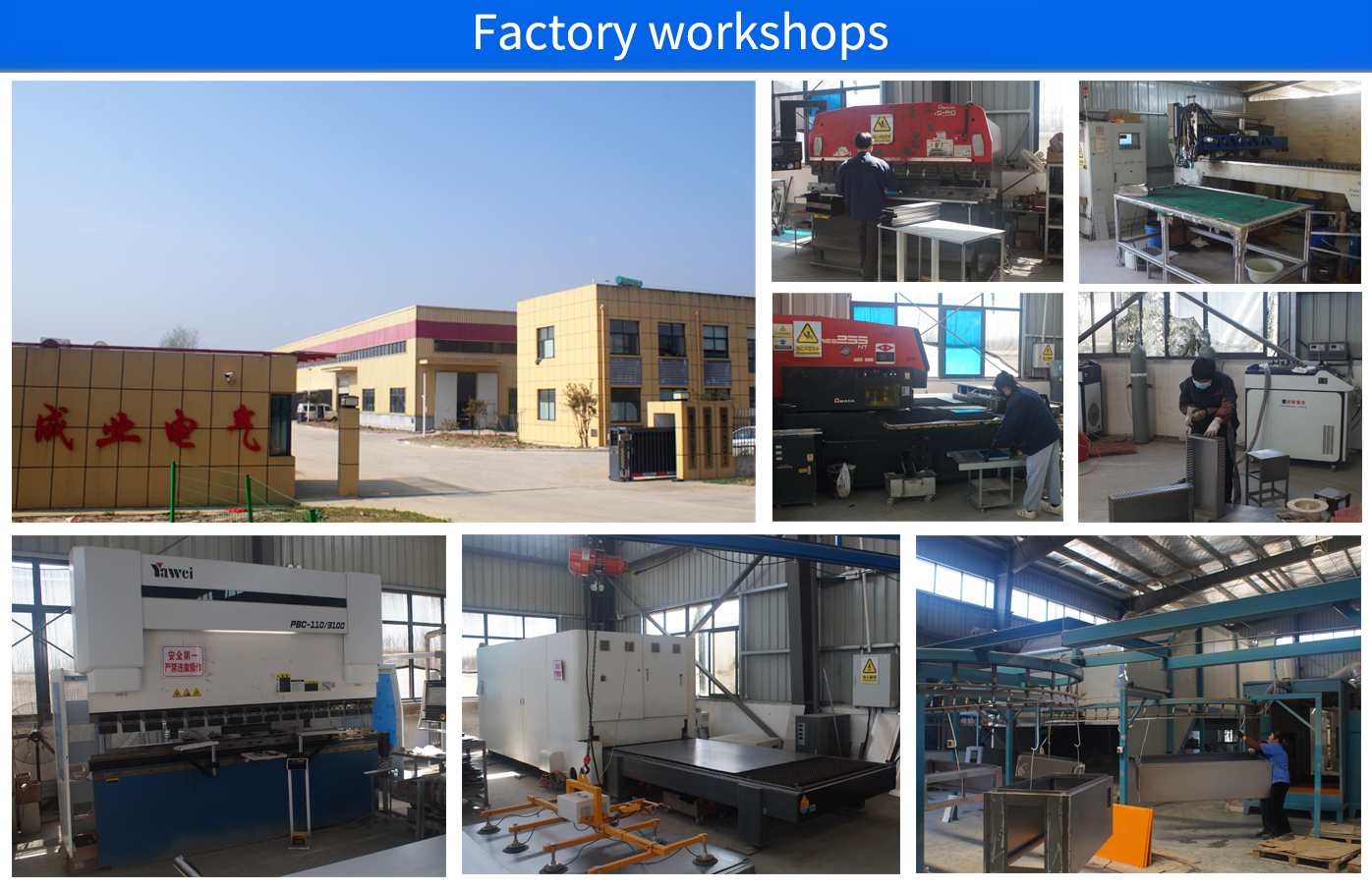

Our facility includes a 2500 square meter factory building and a 400 square meter comprehensive building in the first phase, and will have a 5000 square meter factory building and a 700 square meter office building put into use in the second phase. The factory features a complete set of equipment, including steel plate laser cutting, CNC punching, bending forming, laser welding, surface degreasing coating, epoxy resin spraying, overall assembly, electrical component installation, and performance testing, to fully ensure end-to-end production control.
Our products have obtained IP protection level certification, CE certification in accordance with the EU IEC61439 standard, and ISO9001:2015 quality management system certification.
