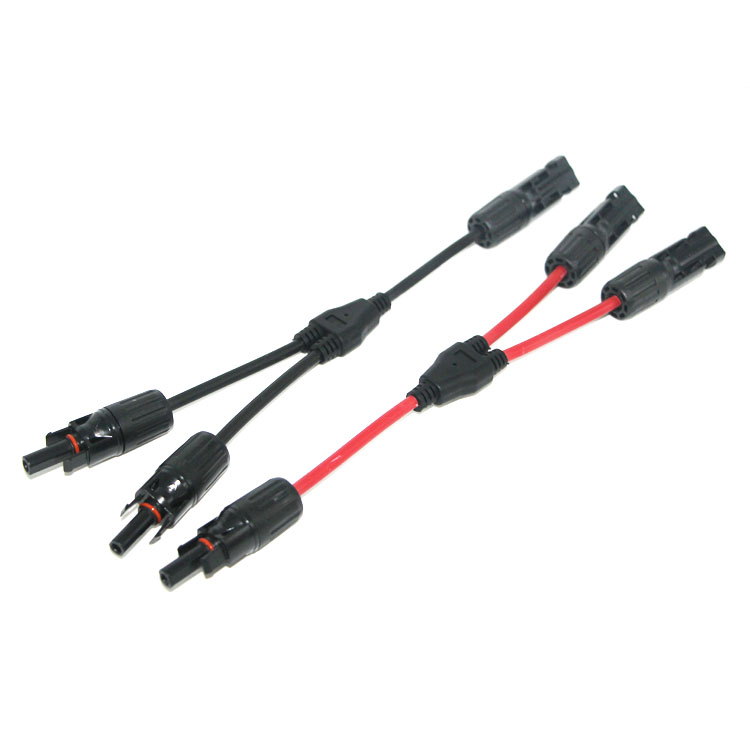

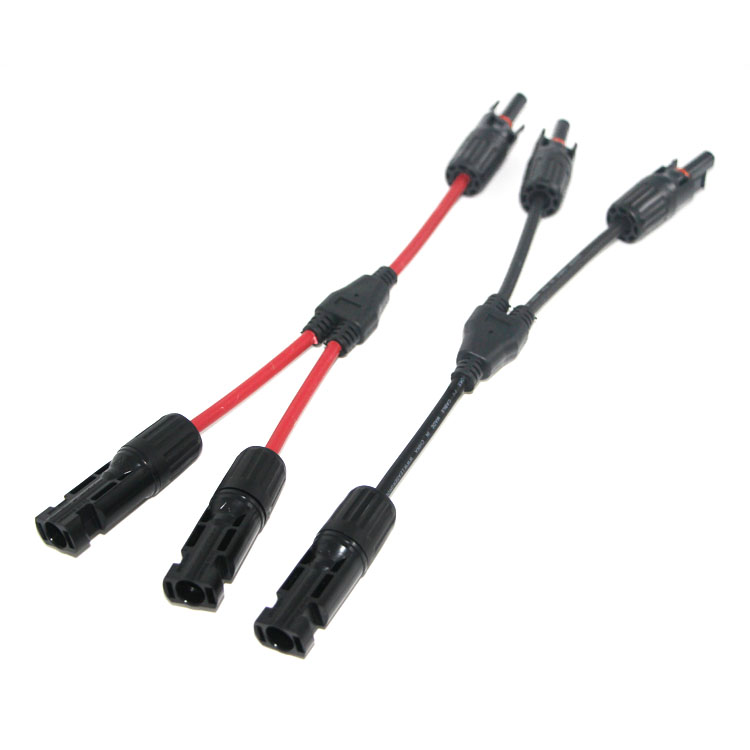

1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 / 5
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel

1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel

Send Inquiry

Product Description

Solar Connectors Banner
Y Branch Parallel Adapters
Solar Panel Connectors Y Branch
Product Description
Product Name 1 Pairs Solar Connectors Y Branch Parallel Adapters 12AWG Cable for Solar Panel
Solar connectors Insulation Material PPO
Connector Solar Panel Male/Female PV Connector
PV Connector Contact material Copper, Tin plated
Test Voltage 6000V
Rated Voltage 1000V/1500V DC
Rated Current 30A(2.5mm2), 50A(4mm2, 6mm2)
Flame Class UL94V-0
Waterproof protection IP68
Application Solar Energy System
Package Bulk Pack

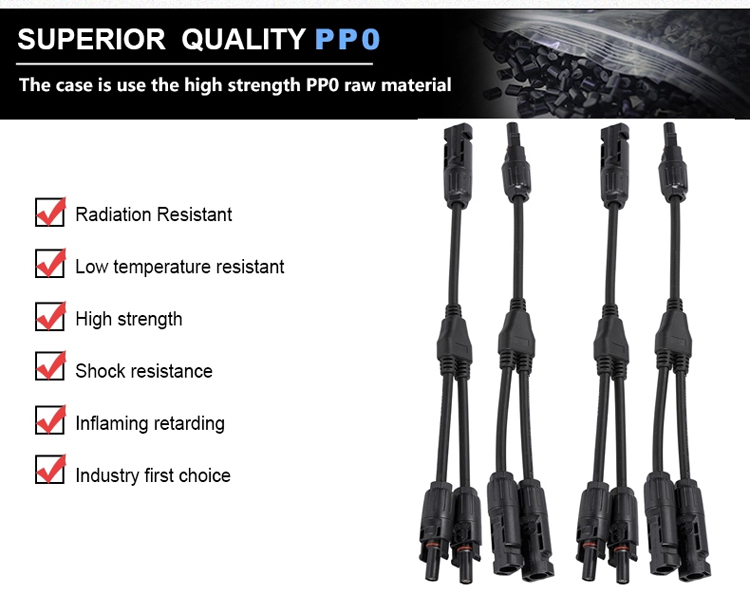

Solar Y Branch Connector Details 1

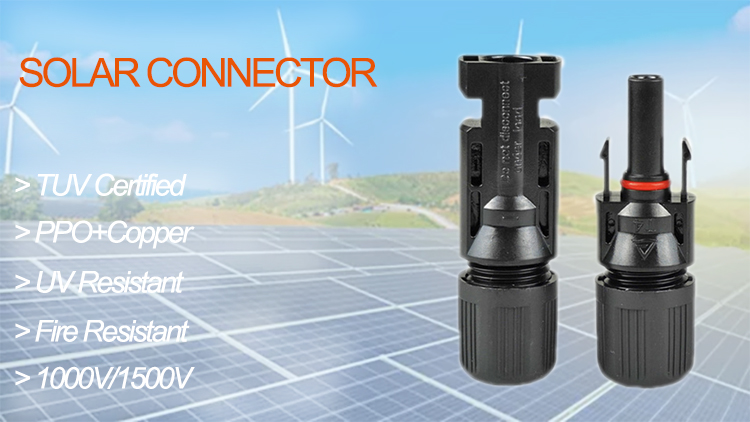

Solar Y Branch Connector Details 2

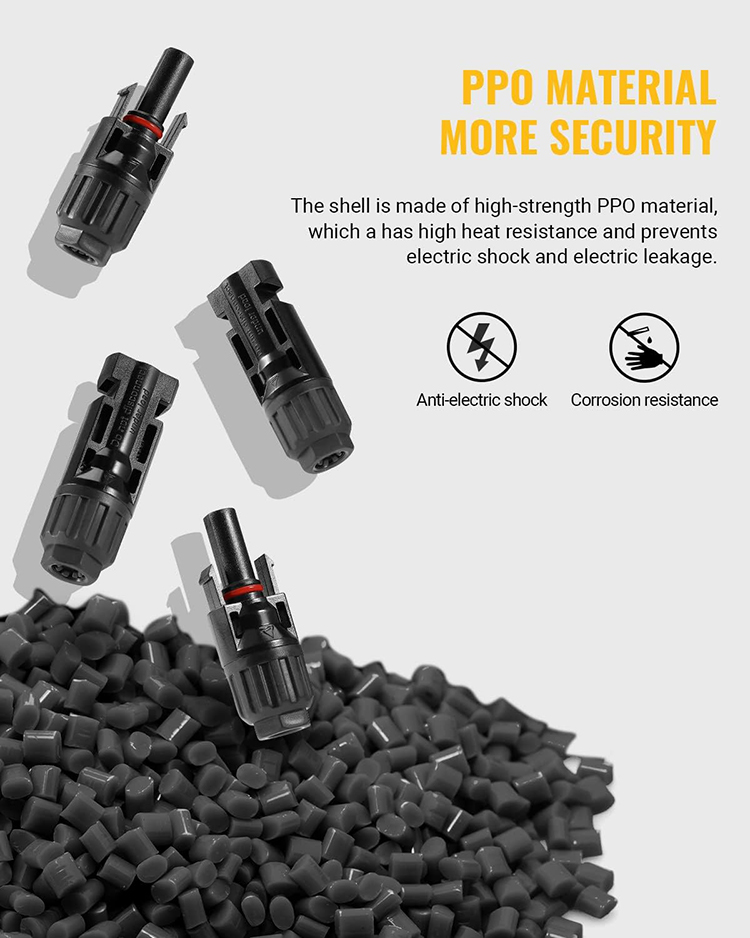

Solar Y Branch Connector Details 3

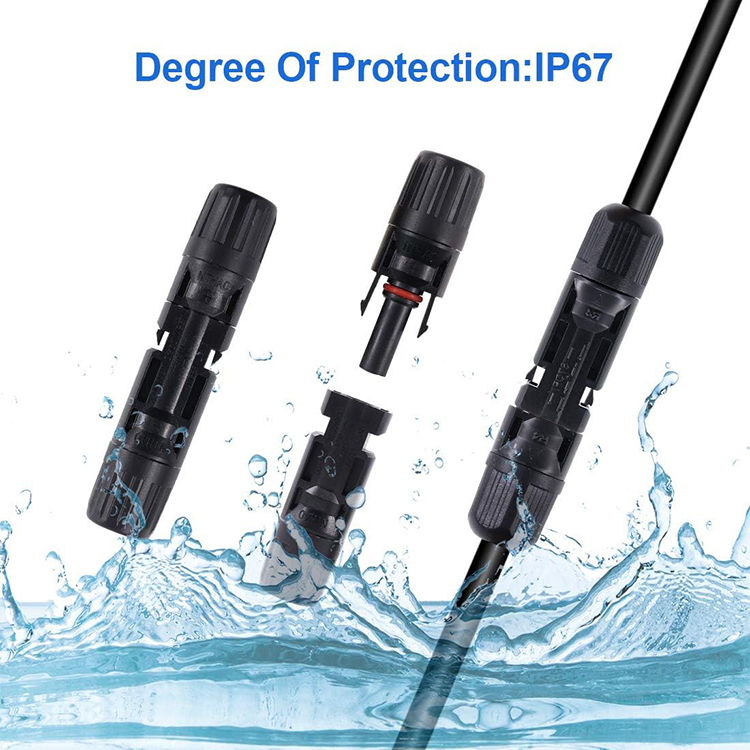

Solar Y Branch Connector Details 4
Solar Y Branch Connector Details 5

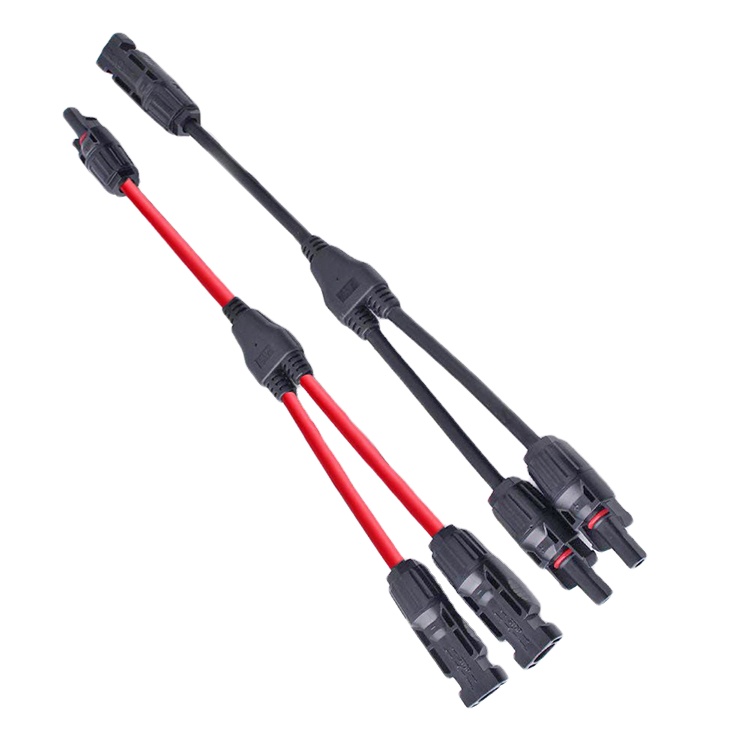

Solar Y Branch Connector Details 6

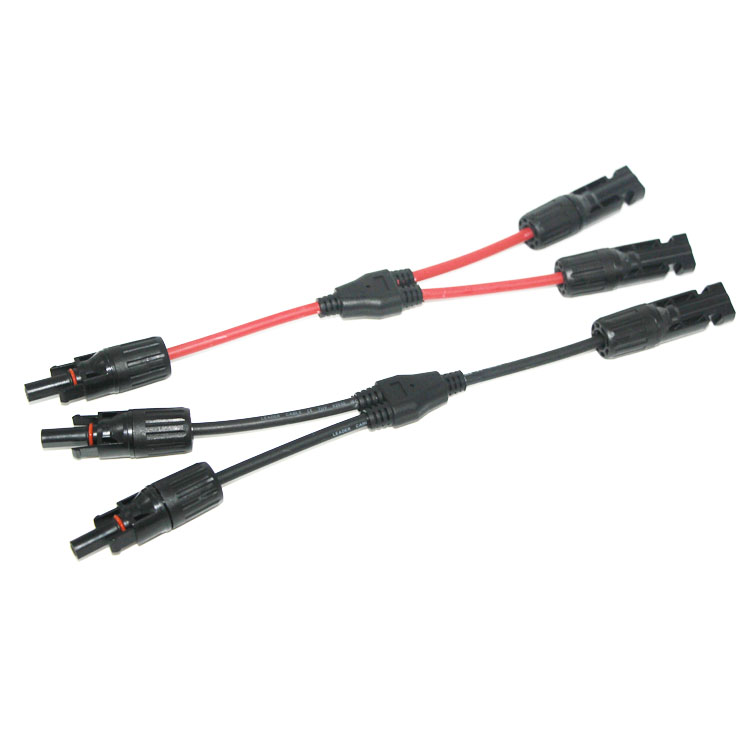

Solar Y Branch Connector Details 7

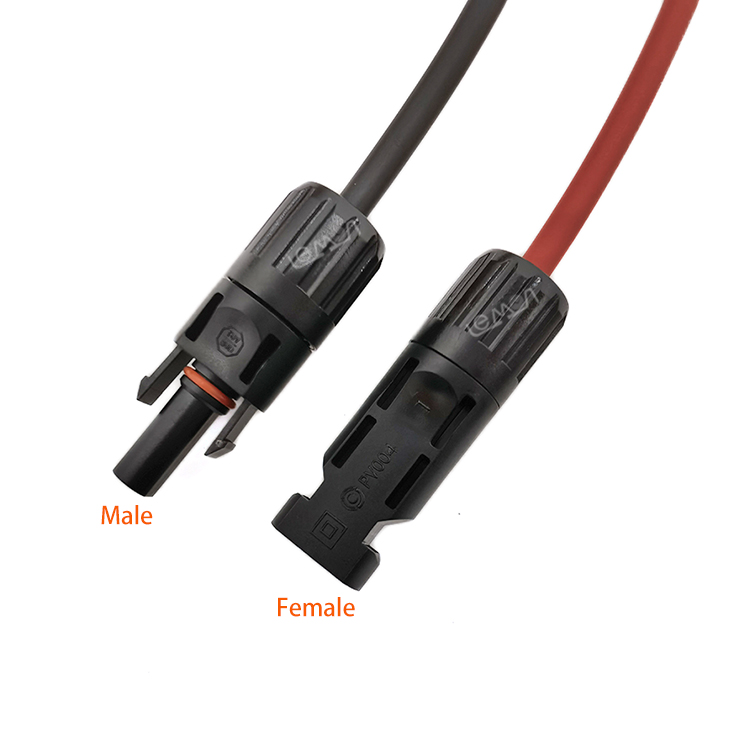

Solar Y Branch Connector Details 8

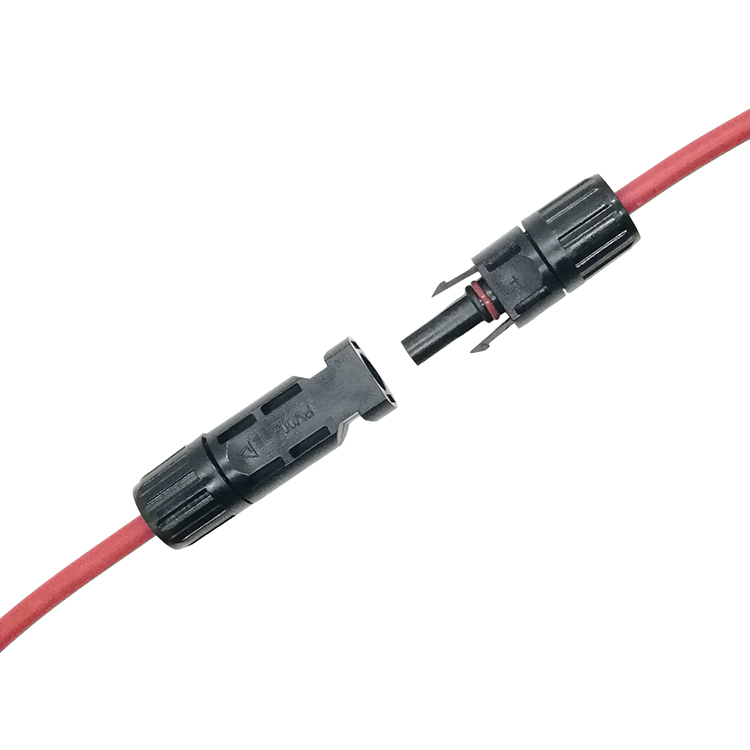

Solar Y Branch Connector Details 9

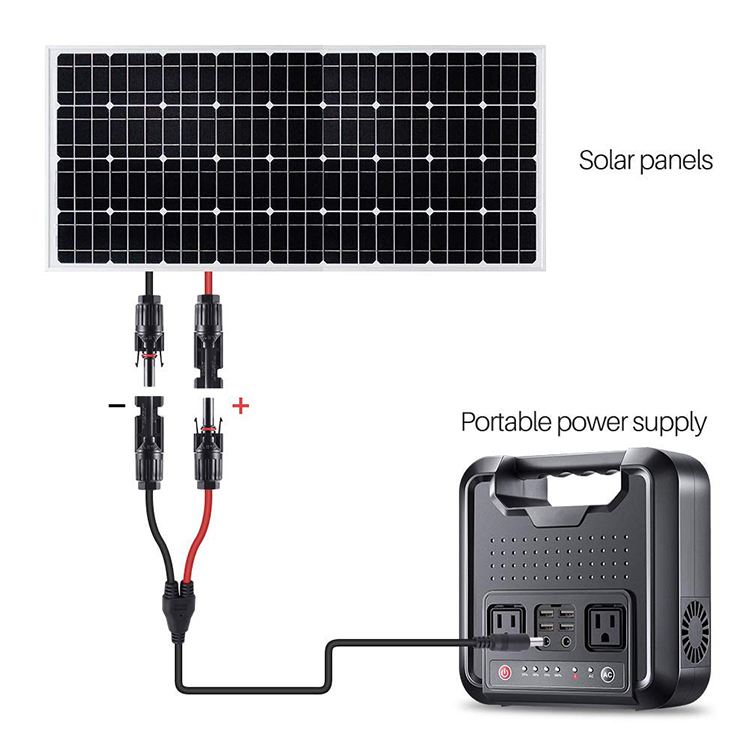

Solar Y Branch Connector Details 10

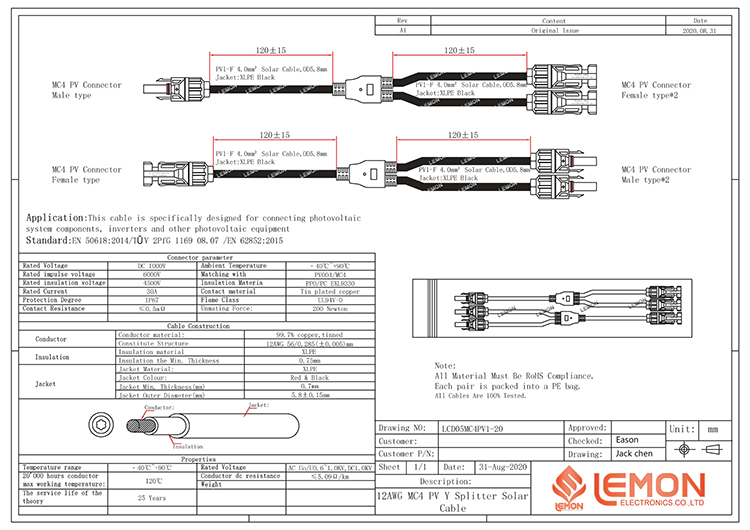

Y Branch Parallel Adapters Specifications
Customer Feedbacks
Solar Y Branch Connectors Feedbacks
Packing & Shipping
Solar Connectors Packing and Shipping
Company Introduction
Factory Overview 1

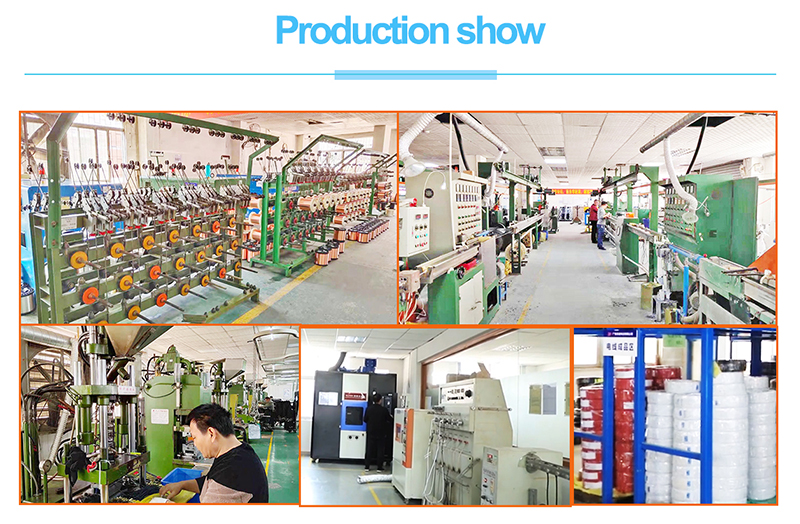

Factory Overview 2

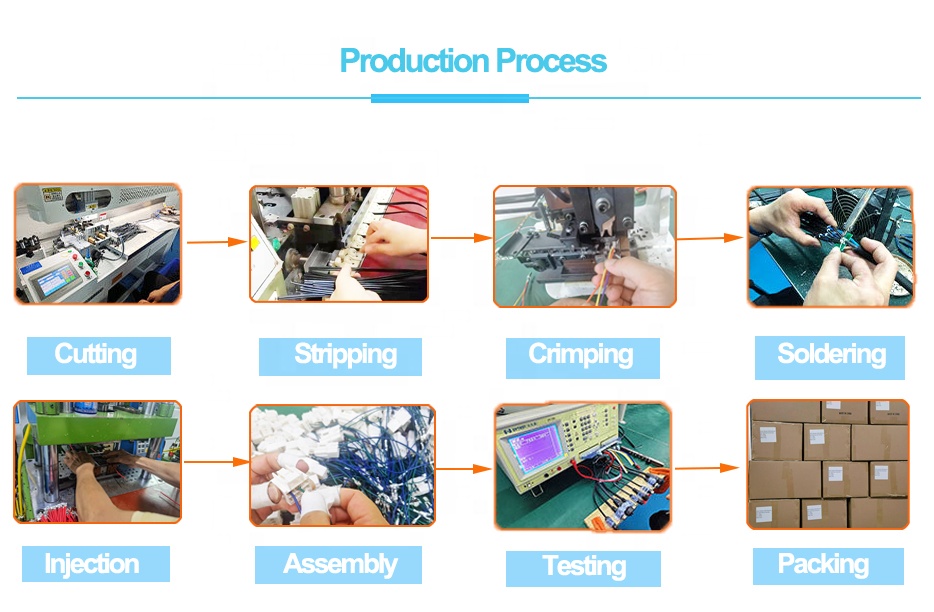

Production Process
Quality Control Testing
Manufacturing Capability
Certifications
Solar Connectors Quality Certifications
FAQ
Frequently Asked Questions Overview
What is the main application of the Y Branch Solar Connectors?
They are designed to connect solar panels in parallel (specifically in 1-to-2 configuration) to ensure stable current distribution and efficient energy flow within the solar power system.
Are these solar connectors waterproof for outdoor use?
Yes, they carry an IP68 waterproof rating. This delivers excellent resistance to dust, water ingress, and harsh outdoor environments, maintaining electrical connection safety over long-term usage.
What type of insulation material is used?
The connectors utilize high-grade PPO (Polyphenylene Oxide) insulation. This material exhibits exceptional flame-retardant properties (UL94-V0) and high resistance against UV rays and extreme temperatures.
What are the electrical ratings for this Y Branch adapter?
They are rated for a system voltage of 1000V/1500V DC. The rated current is 30A for 2.5mm² cables, and 50A for larger 4mm² and 6mm² copper conductors.
What material is used for the conductive contact pin?
The contact core pins are made of premium copper with a tin-plated surface. Tin plating provides superior anti-oxidation, anti-corrosion qualities and keeps contact resistance extremely low.
How is the cable package shipped?
The adapters are packaged in bulk packs to ensure maximum shipping density and component protection during transit. They are ready to install directly out of the box.
