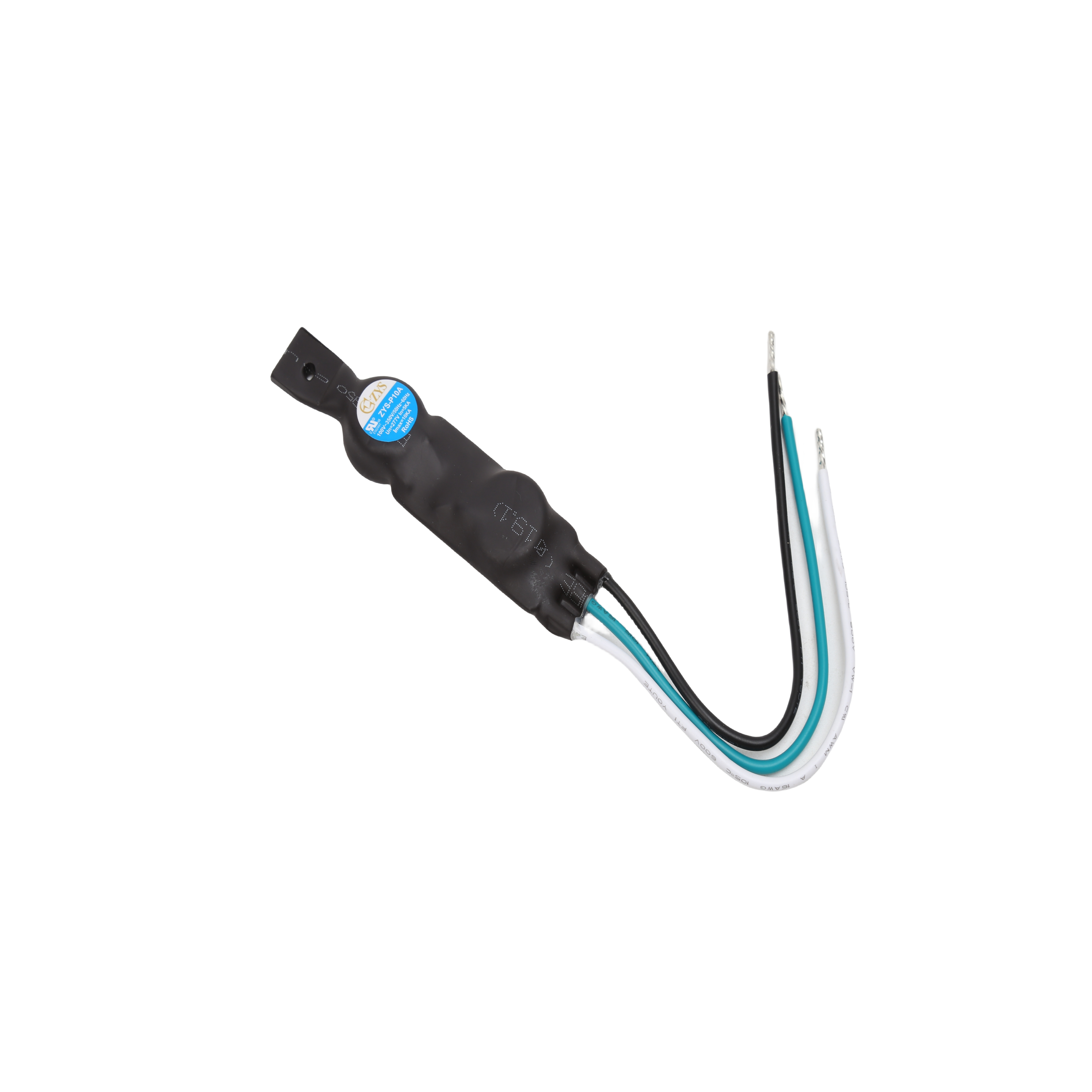

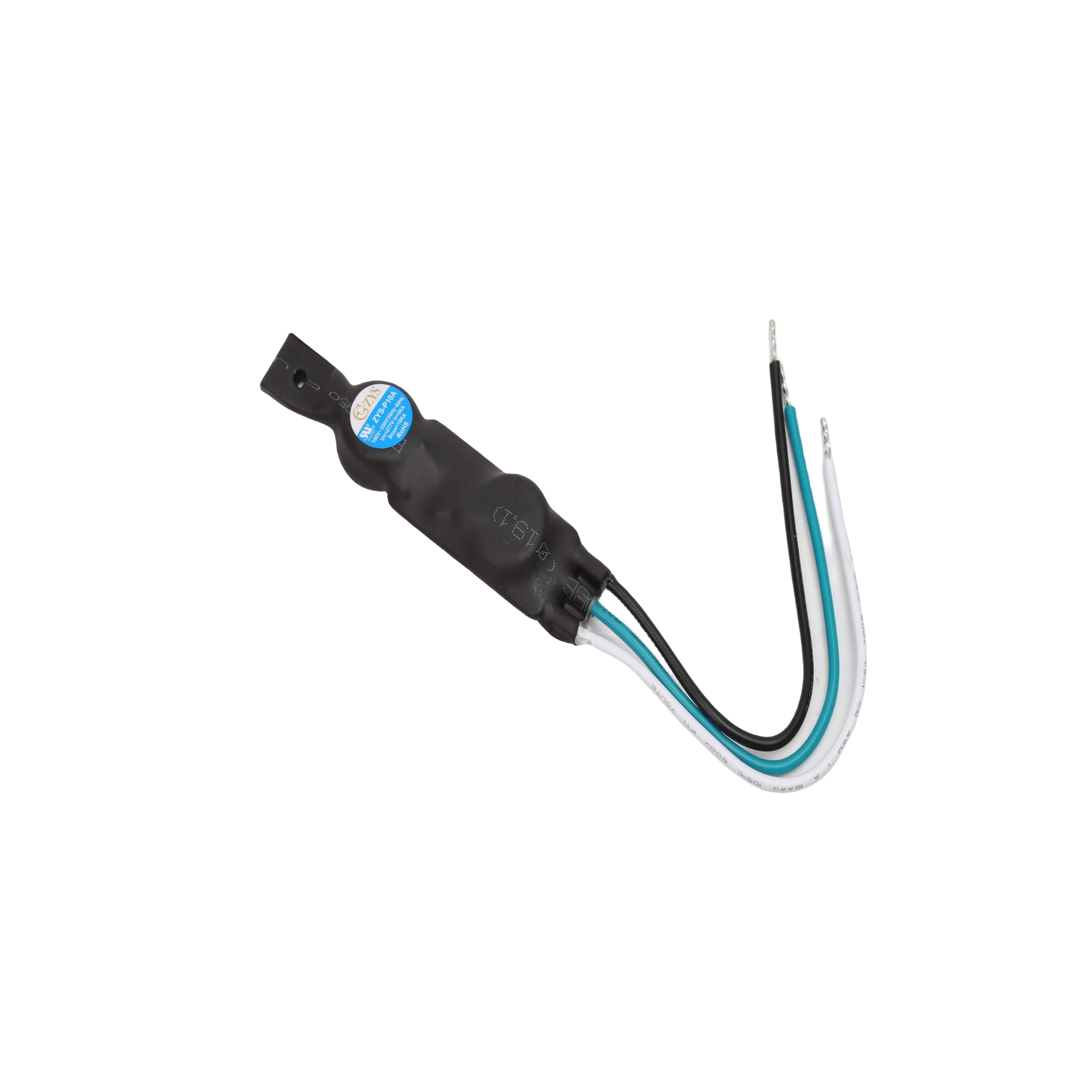

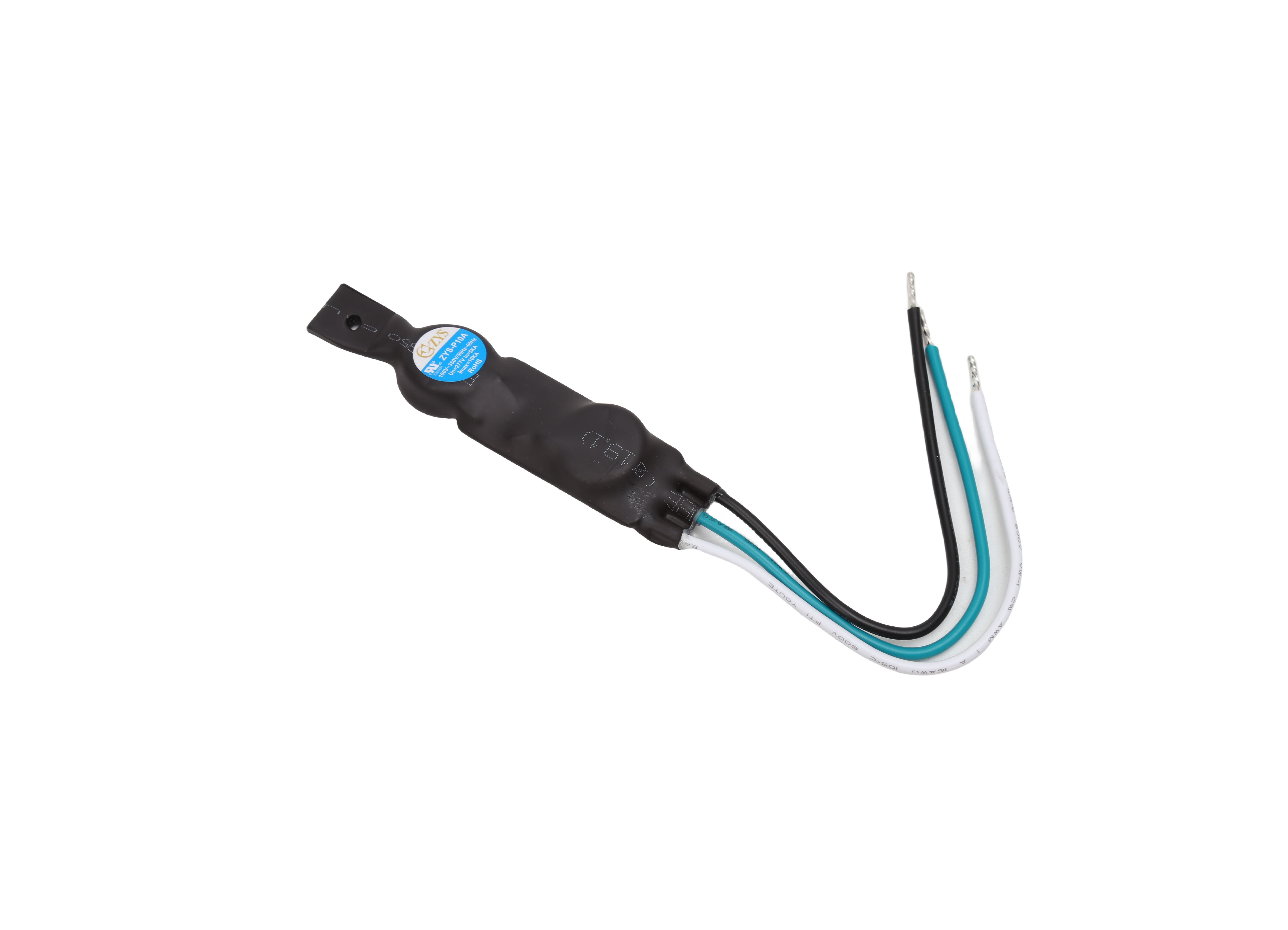

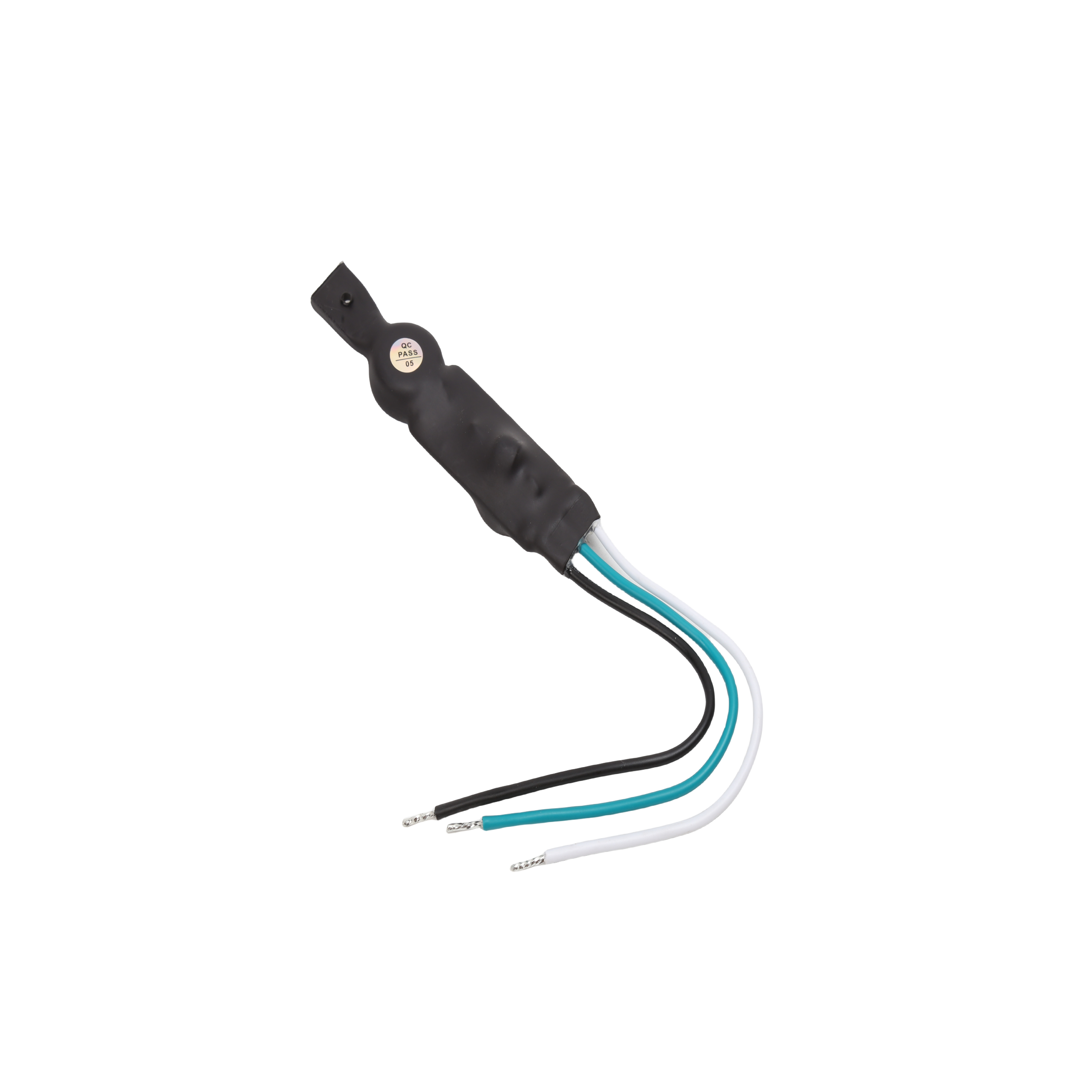

10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
1 / 5
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector
10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector

10KV 10KA Outdoor LED Street Lighting Surge Protection Device 220v Dustproof 220VAC Whole House LED Surge Protector

Send Inquiry

Product Description

Product Description

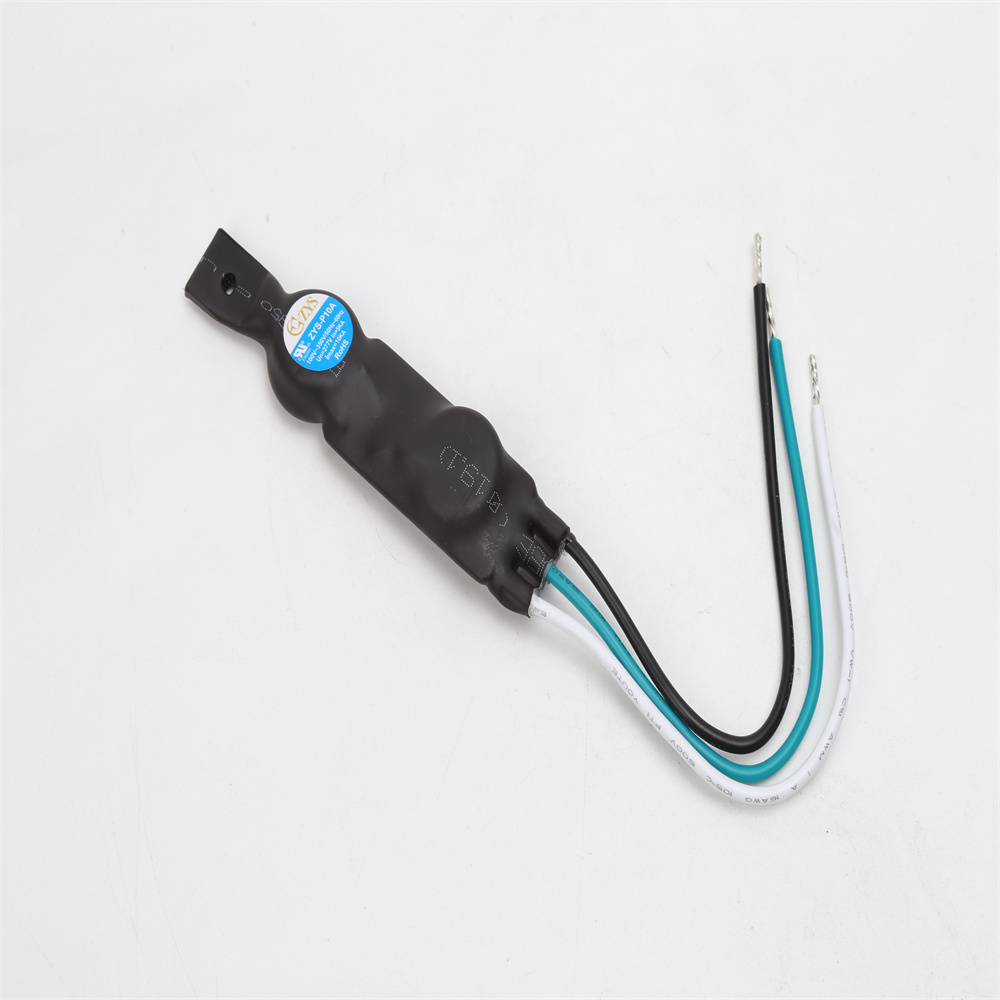

ZYS-P10A Surge Protector Overview
Overview
ZYS-P10A series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.
Product Parameters
Features
  • Applicable to class I or II lamps
  • Built in protection mode: L-N, L-PE, N-PE
  • Built in thermal separation function for higher security
  • Parallel isolation design, excellent protection performance
  • Excellent surge resistance and very low residual voltage
  • Double green cable and wire
  • The product is small and convenient for embedded installation
  • IP62 dust proof and waterproof grade

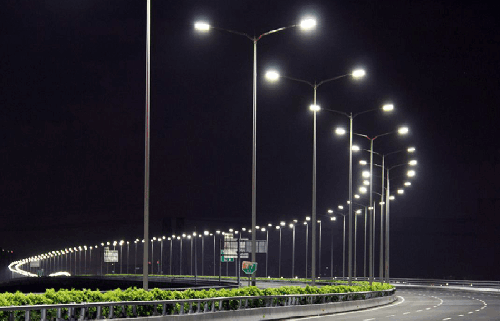

Feature Highlight 1

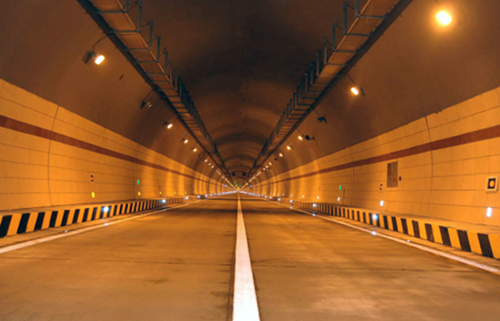

Feature Highlight 2
Feature Highlight 3
Specification

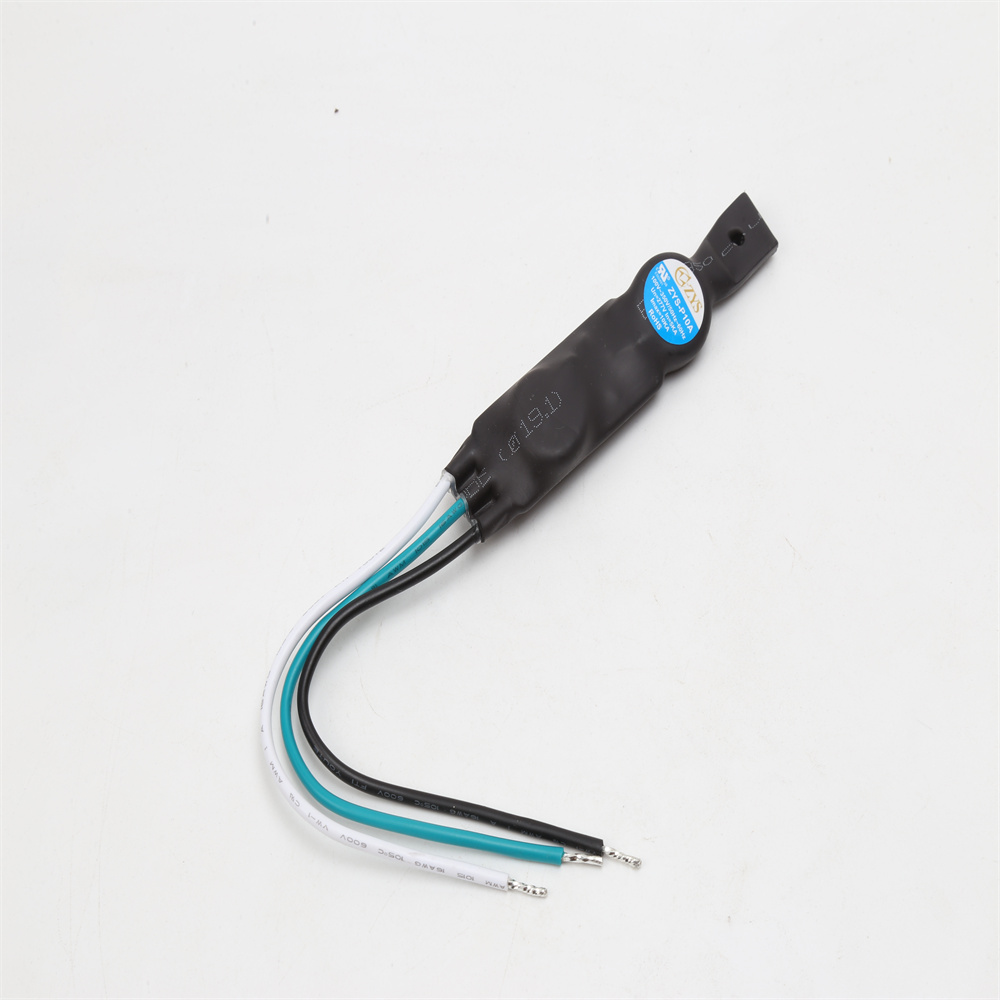

Specification Diagram
Rated working voltage / Un (VAC) 90-350V
Maximum continuous working voltage / MCOV / Uc (VAC) 350V
Rated load current / IL (A) 5A
Nominal discharge current / In (kA) 8/20μs 5KA
Maximum discharge current / Imax (kA) 10KA
Surge impulse voltage / Uoc (KV) 10KV
Voltage protection level / Up (V) L-N, L-G/PE, N-G/PE ≤ 1.5KV
Power supply system TN
Waterproof grade IP62
Work environment -40℃ ~ +85℃
Technical Diagrams & Wiring Details

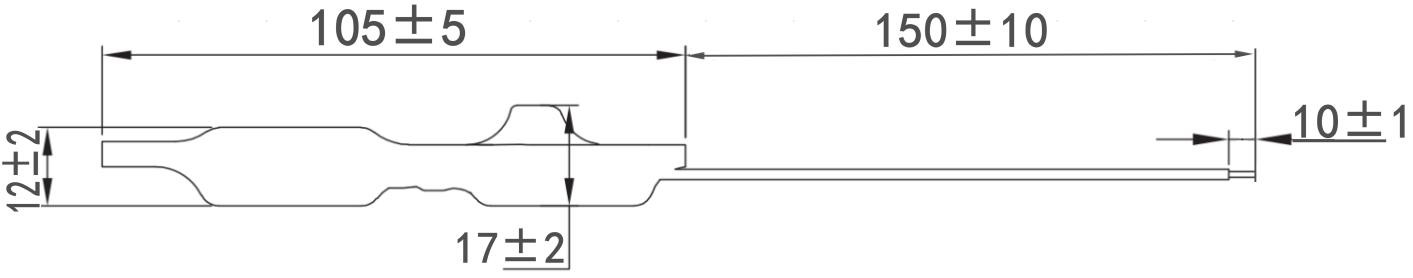

Technical Diagram 1

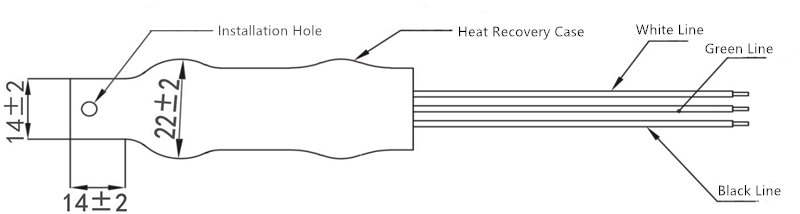

Technical Diagram 2

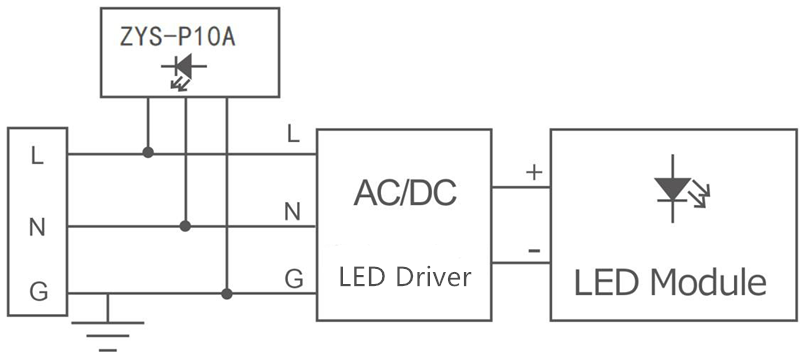

Technical Diagram 3
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging Box Option 1
Packaging Box Option 2
Manufacturing Facility

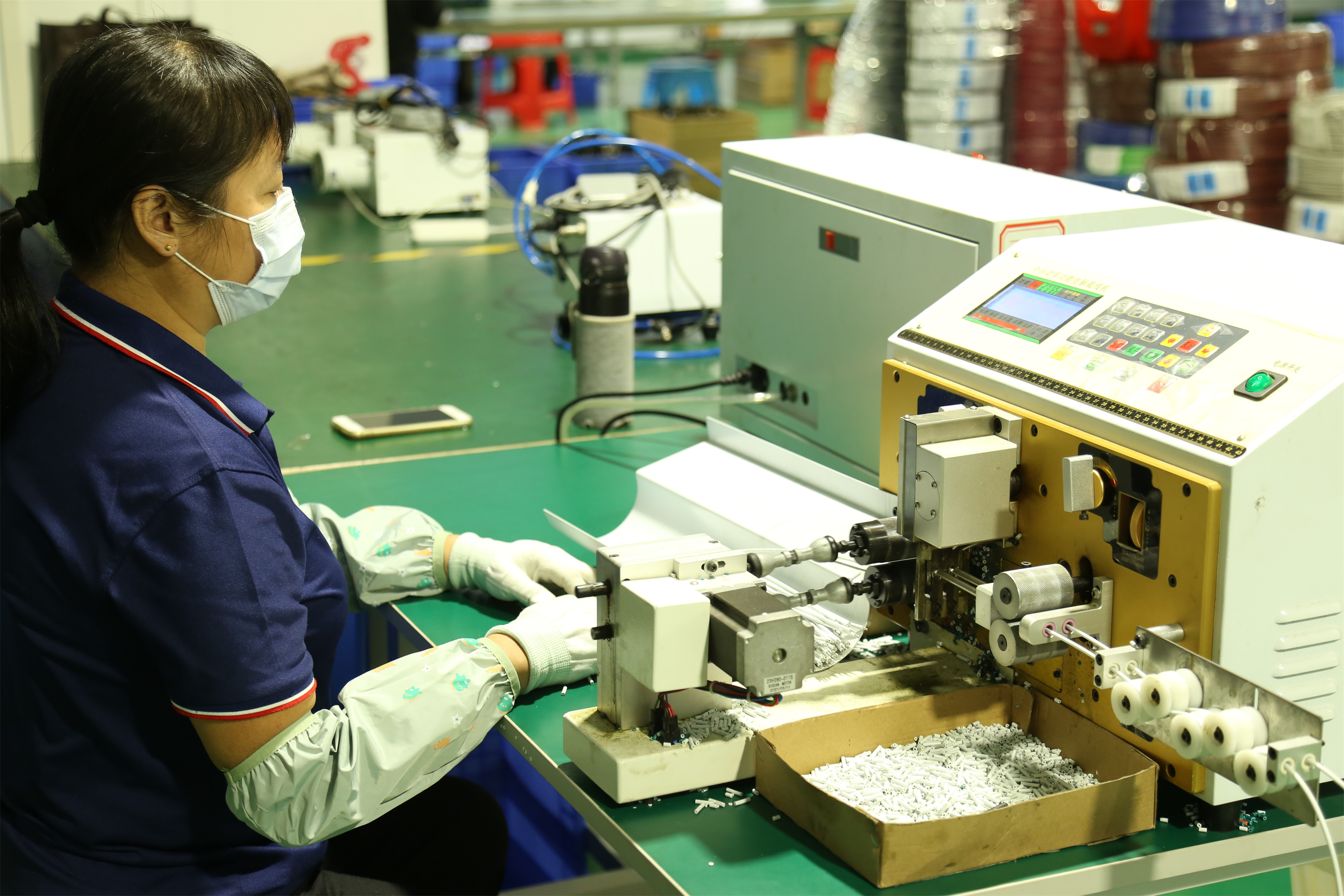

Production Workshop

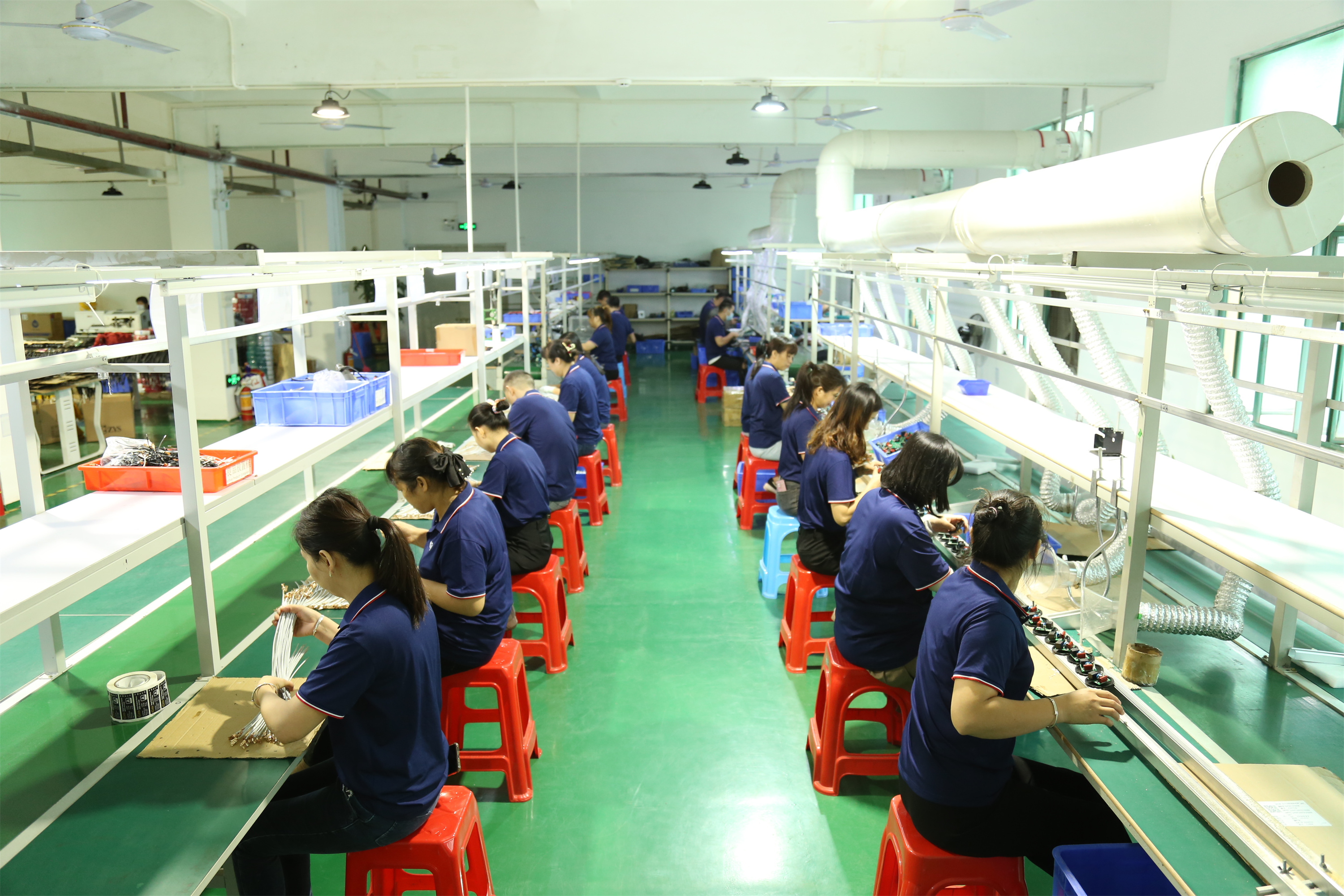

Assembly Line
Quality Control Center
Certifications

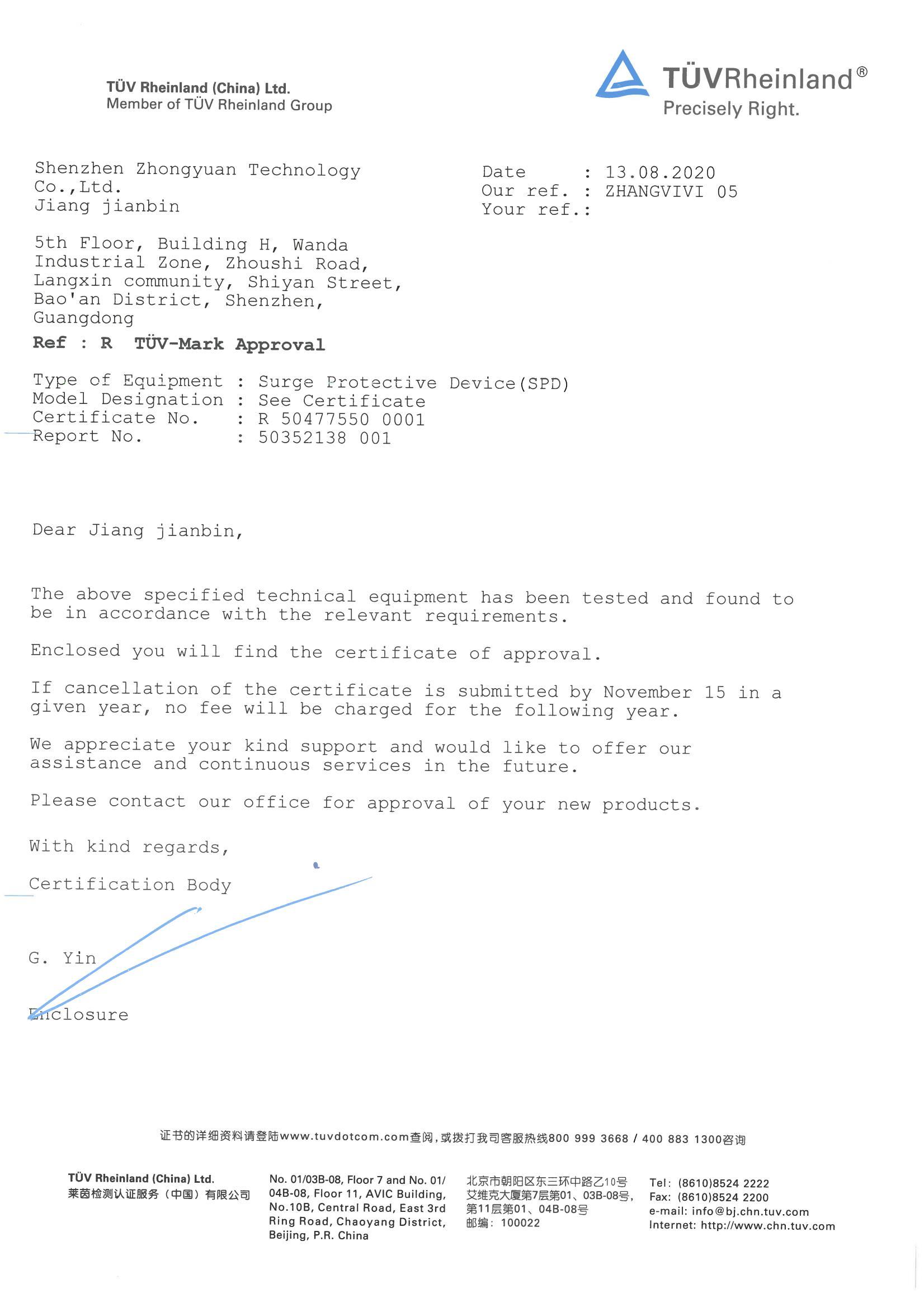

Certification CE/TUV/UL 1

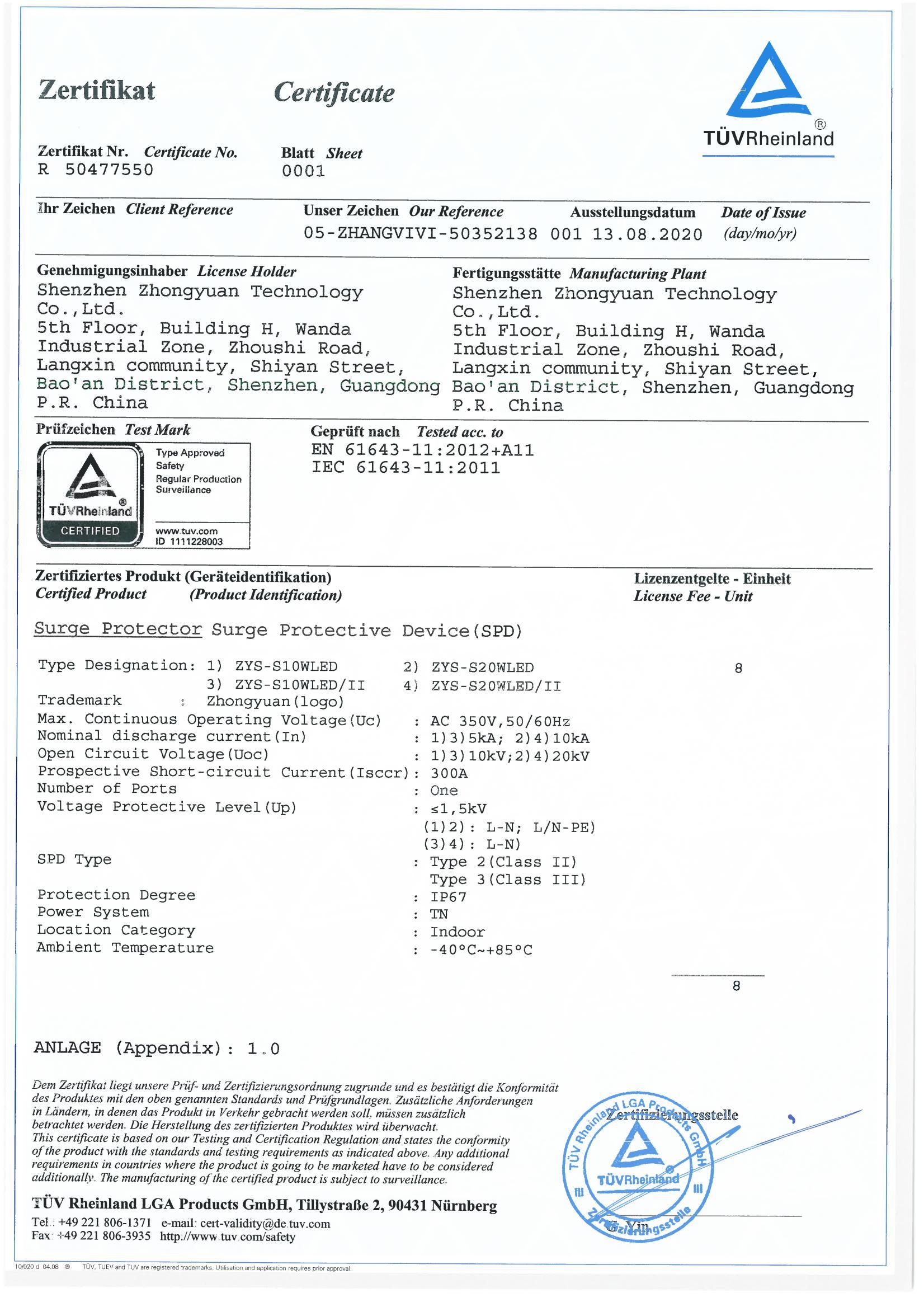

Certification CE/TUV/UL 2

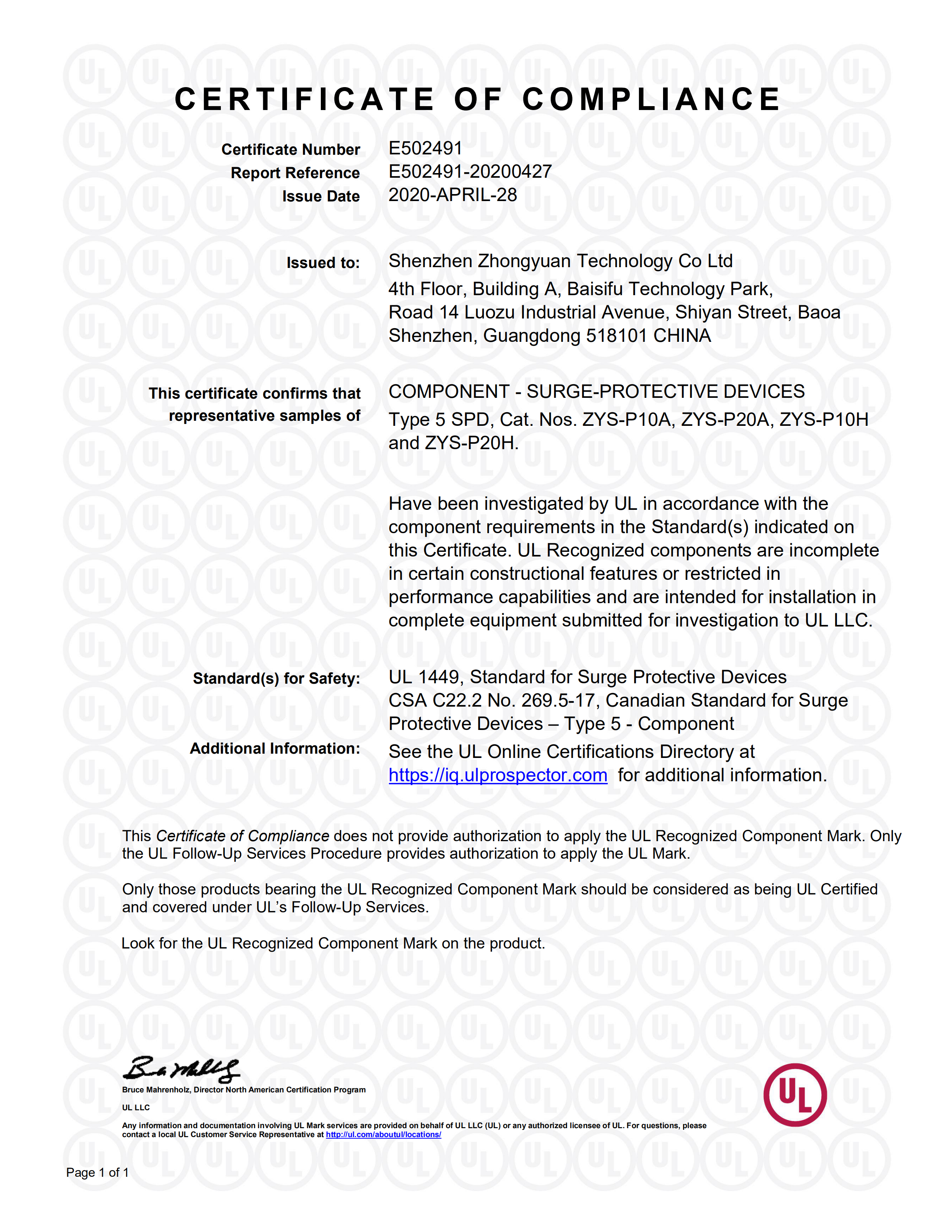

Certification CE/TUV/UL 3
Frequently Asked Questions
Q1: How to install the surge protector?
The product can be installed inside the lamp or inside the lamppost. The product features reserved screw mounting holes to facilitate quick installation and secure fixation.
Q2: Do you accept customized orders?
Yes, we have a professional R&D team that provides customized products and services to clients, including OEM and ODM foundry solutions.
Q3: What is the delivery time?
Our standard product production cycle is one week, with a monthly manufacturing capacity of approximately 150 thousand units.
Q4: What are the terms of payment?
We accept payment upon delivery, or a 50% deposit in advance with the remaining 50% balance cleared before shipment.
Q5: What is the quality warranty period?
The product warranty period is three years. If any quality issues occur during this time, new products will be replaced free of charge. Extended warranty services are also available upon request.
Q6: What modes of transportation are available?
We provide both ocean freight shipping and air transportation depending on customer requirements.
