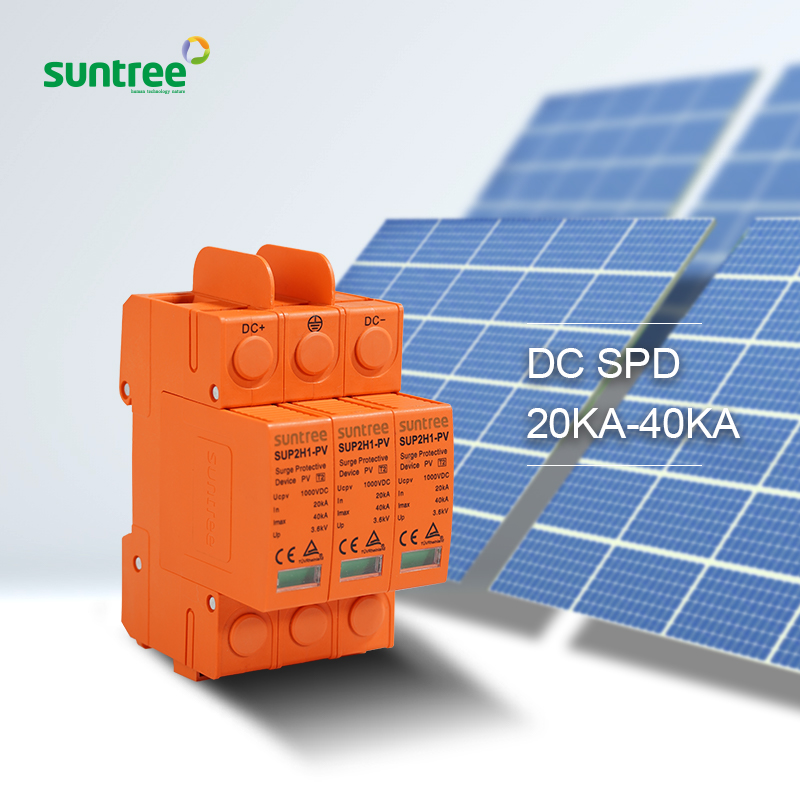

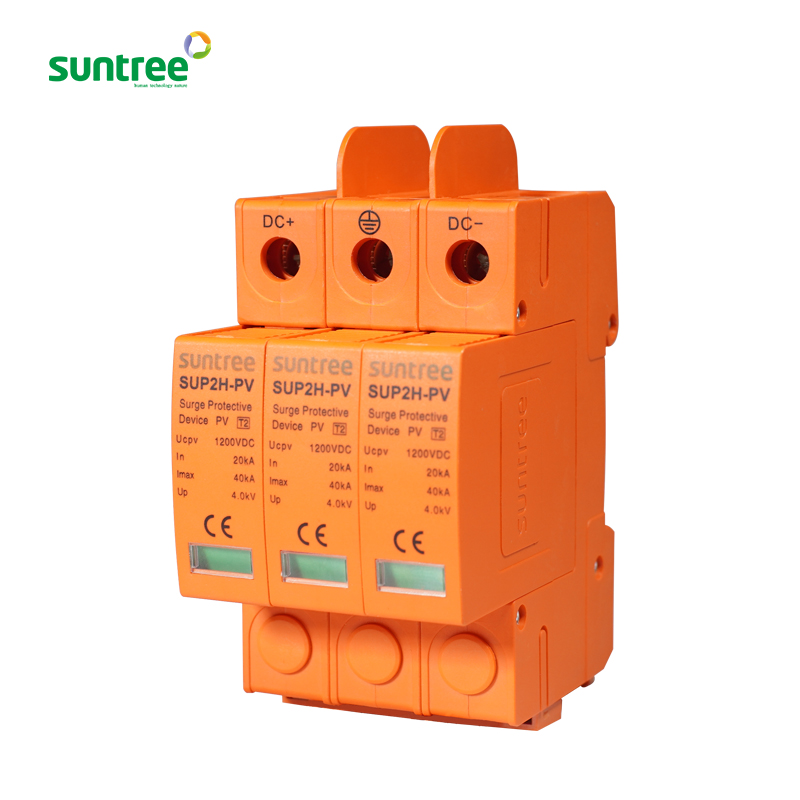

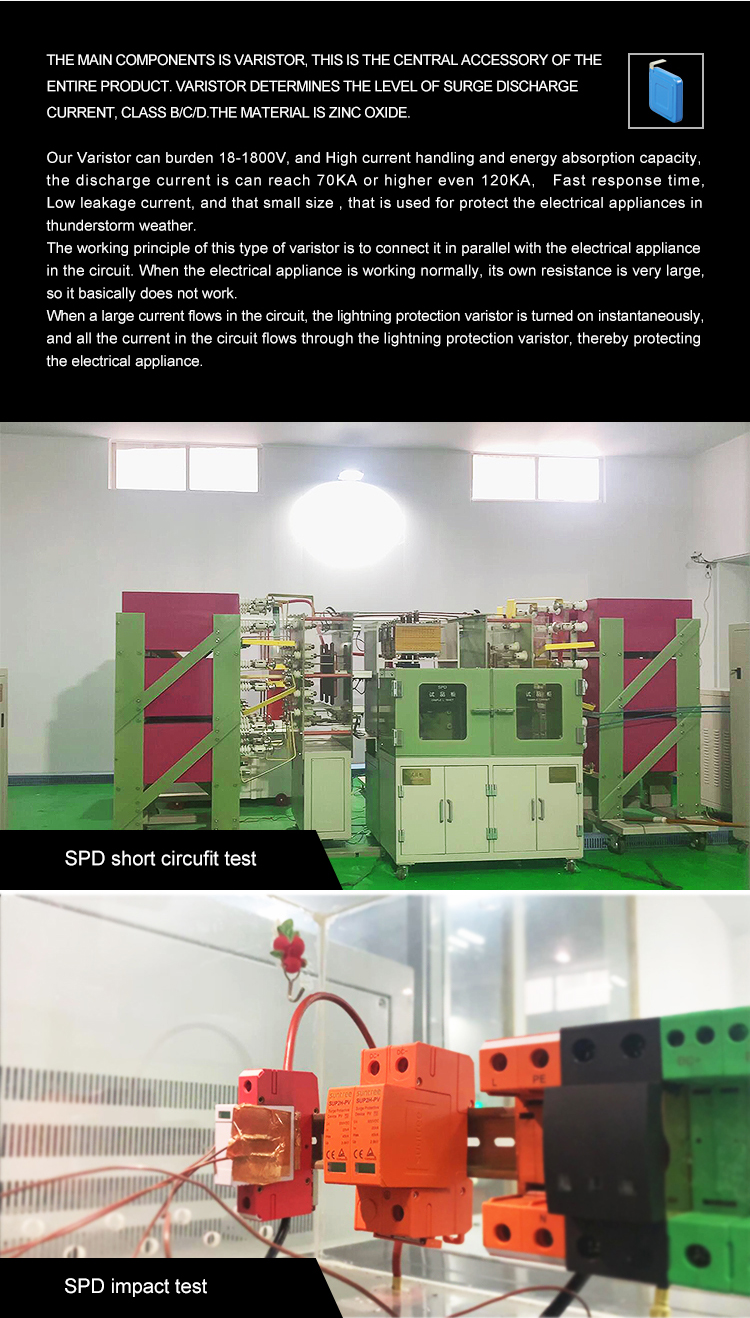

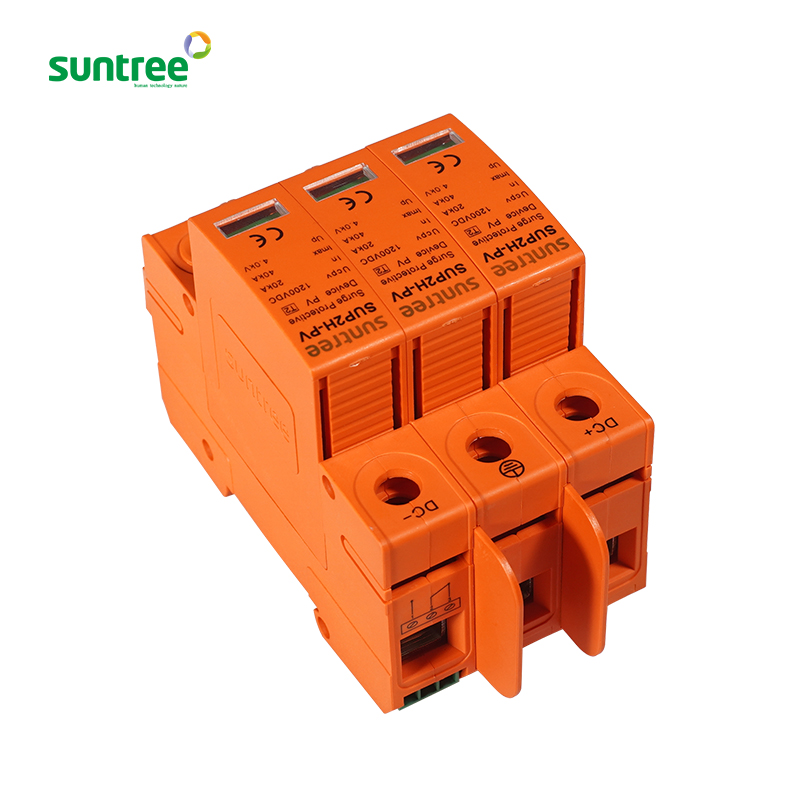

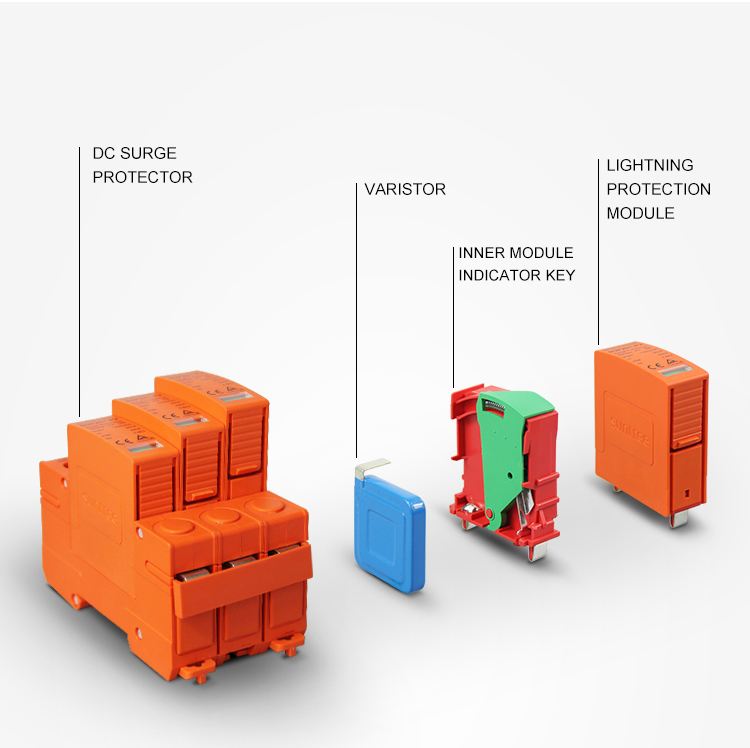

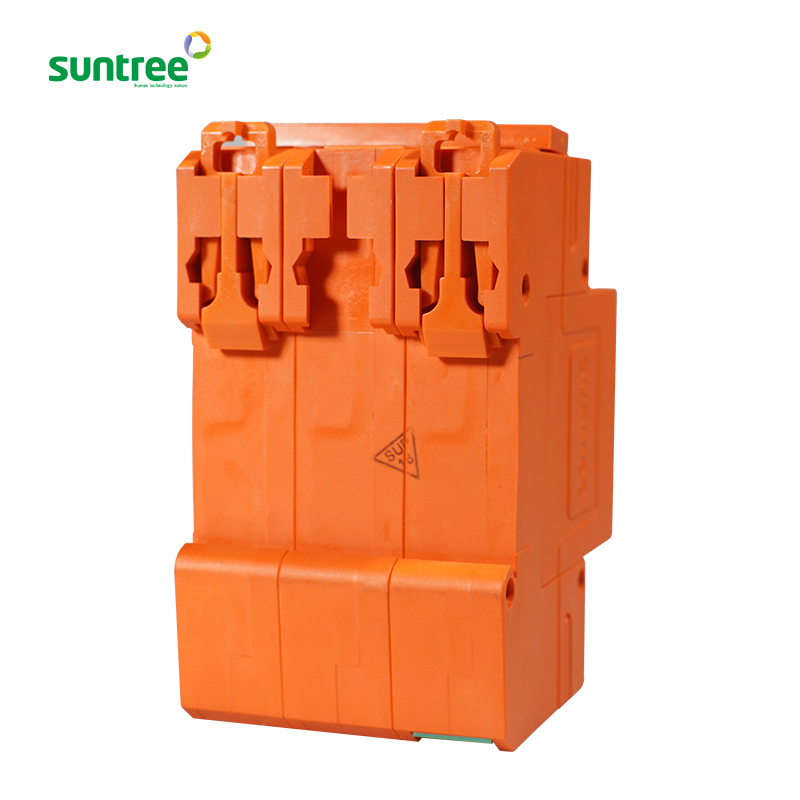

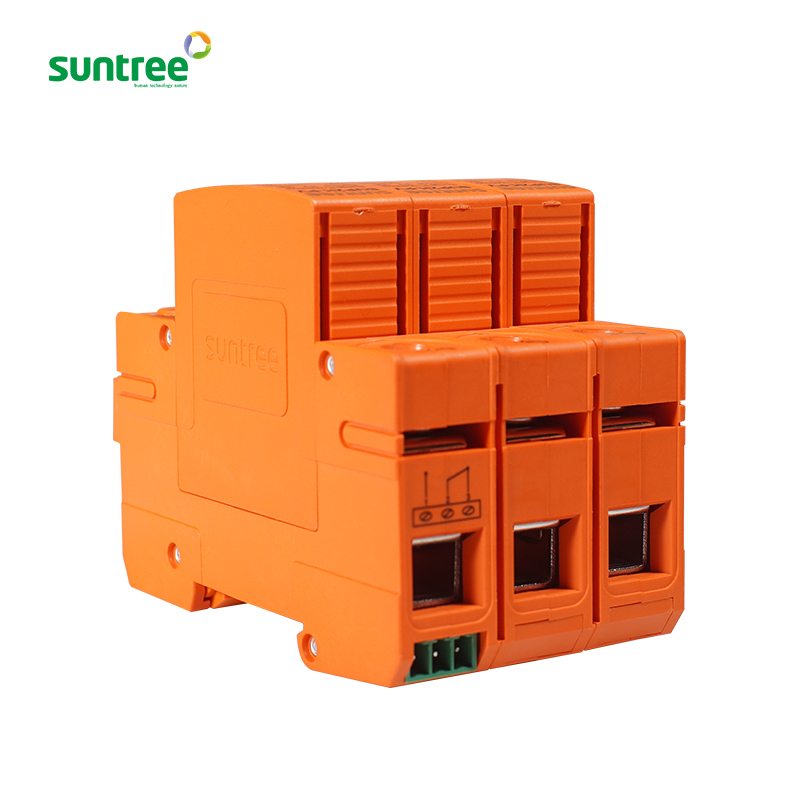

| SUP2H-PV Series Surge Protector | SUP2H1-PV | SUP2H1-PV | SUP2-PV | |
| UCPV (V DC) | 1000V | 1200V | 1500V | |
| Max System Discharge Current (8/20 μs) [Imax] | 40kA | 40kA | 40kA | |
| Voltage Protection Level [UP] | ≤4.0kV | ≤4.5kV | ≤4.5kV | |
| Voltage Protection Level at 5kA [UP] | ≤3.6kV | ≤4.0kV | ≤5.0kV | |
| Integrated Fuse Breaking Capacity/Interrupting Rating | 40kA/1000Vdc | 40kA/1200Vdc | 40kA/1500Vdc | |
| Technology | Short-Circuit Interruption (SCI) Overcurrent Protection | |||
| Operating Temperature Range [TU] | -40°C to +80°C | |||
| Nominal Discharge Current (8/20 μs) [(DC+/DC-) --> PE] [n] | 20kA | |||

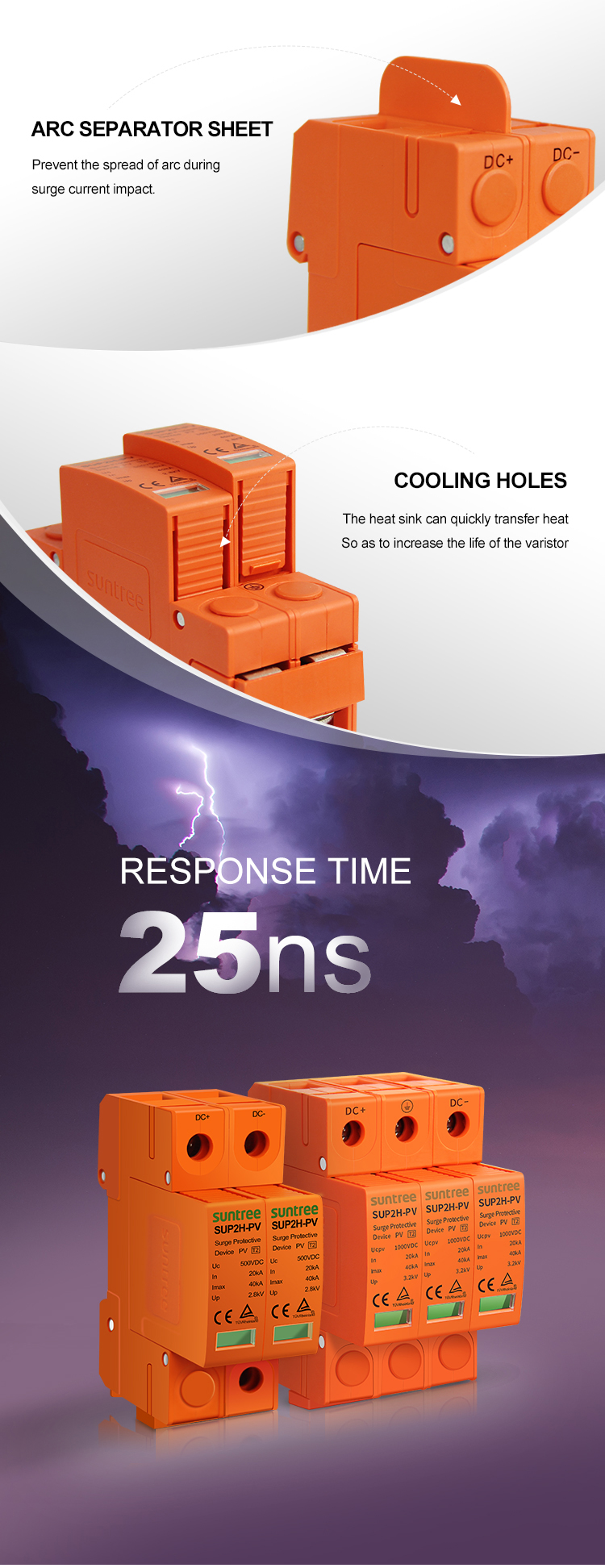

| Response Time [tA] | <25ns | |||

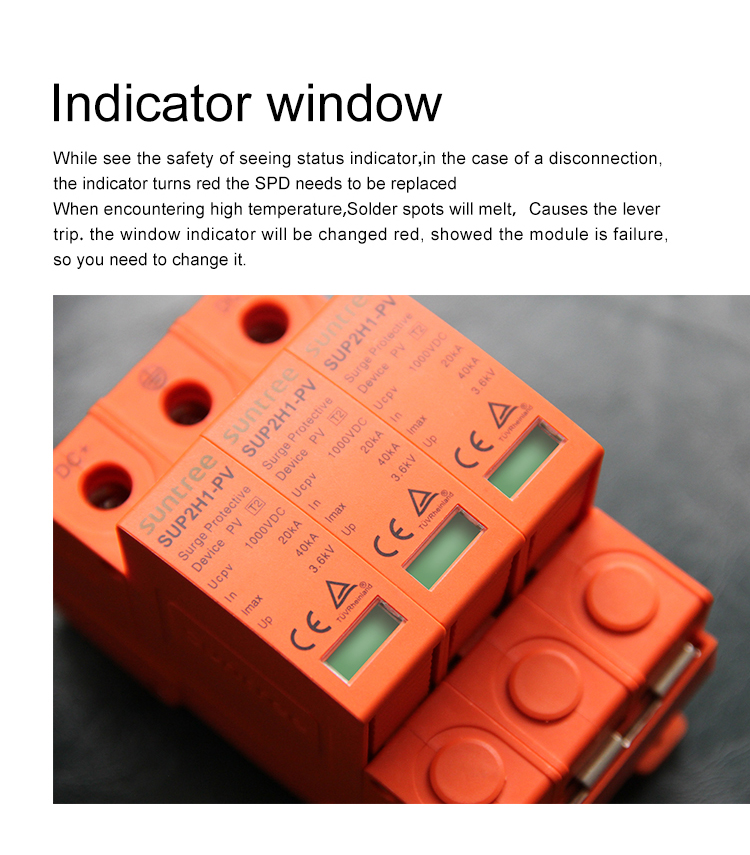

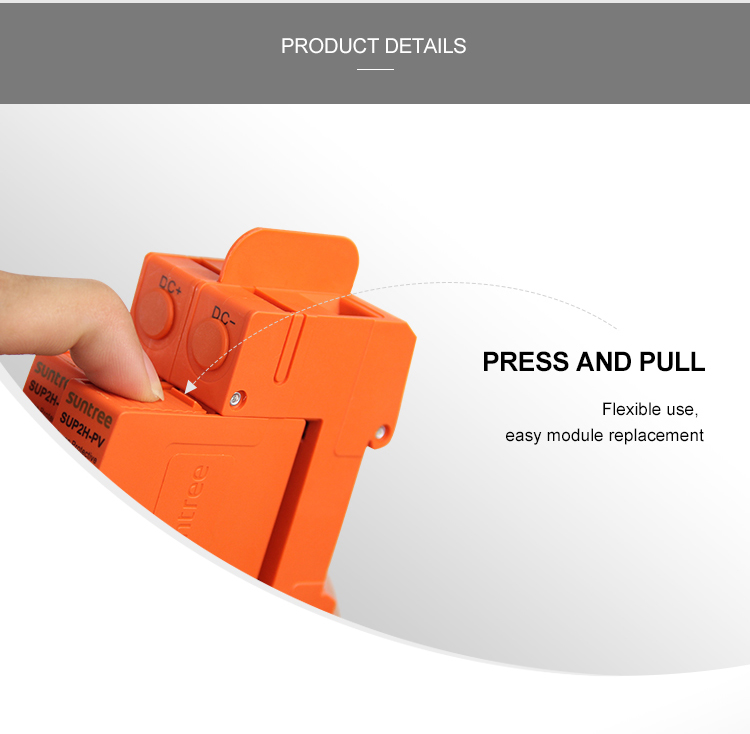

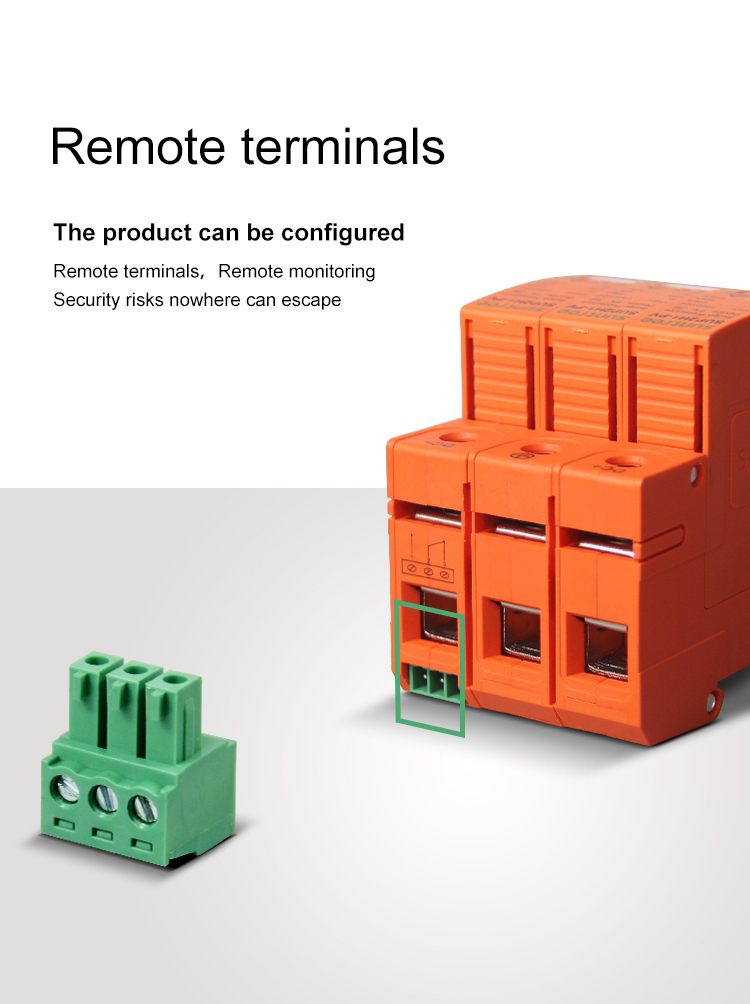

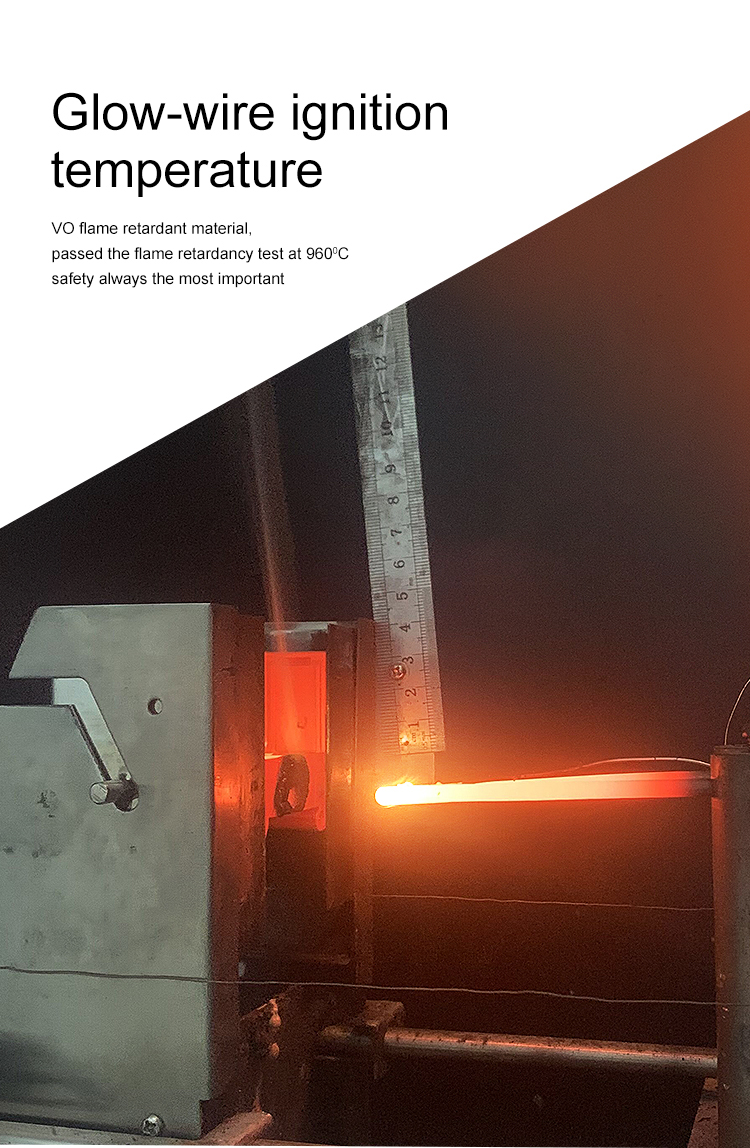

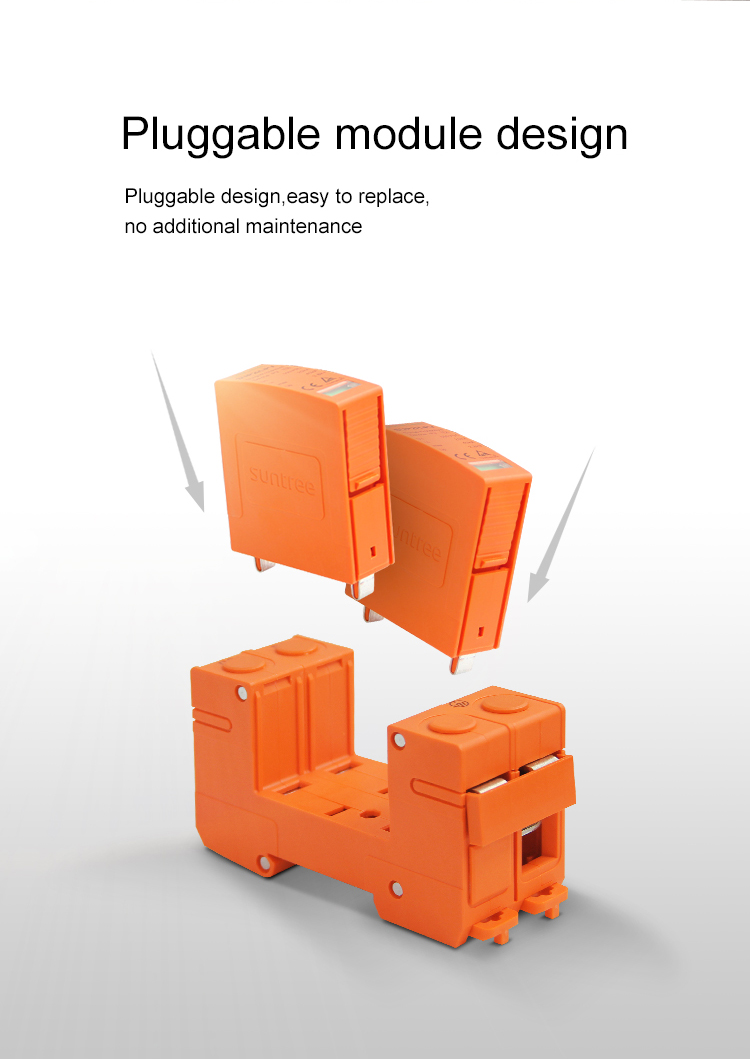

| Operating State/Fault Indication | Green (good)/Red (replace) | |||
| Conductor Ratings and Cross-Sectional Area | Min | 60/75°C 1.5mm2/14AWG Solid/Flexible | ||
| Max | 60/75°C 35mm/2AWG Stranded/25mm2/4AWG Flexible | |||
| Mounting | 35mm DIN Rail per EN 60715 | |||
| Enclosure Material | UL 94V0 Thermoplastic | |||
| Degree of Protection | IP20 | |||
| Capacity | 3 Modules, DIN 43880 | |||
| Standards Information | IEC 61643-31 Type 2, IEC 61643-1 Class II | |||
| Product Warranty | Five Years** | |||
