| Electrical Parameters | |

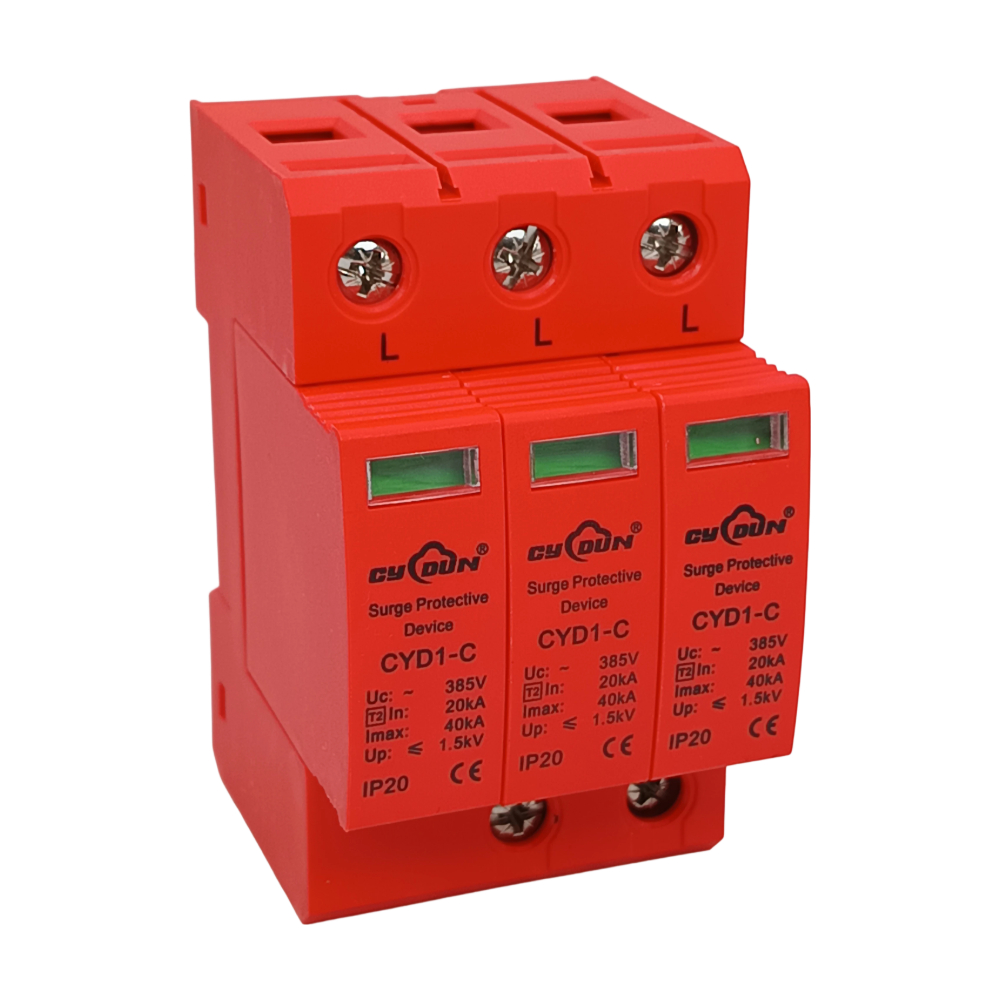

| Model | CYD1-C40 |
| SPD Type | Type 2 |
| Technology | MOV (Metal Oxide Varistors) |
| Max. continuous operating voltage [Ucpv] | 385Vac |
| Nominal discharge curent(8/20us) [ln] | 20kA |
| Max.discharge current (8/20us) [lmax] | 40KA |
| Voltage Protection level [Up] | ≤1.8kV |
| Short-circuit current rating [Isccr] | 25kA |
| Response time [tA] | ≤25ns |
| Thermal Disconnection Device | Insertion |
| Max. Backup Fuse | 63A gPV FUSE |

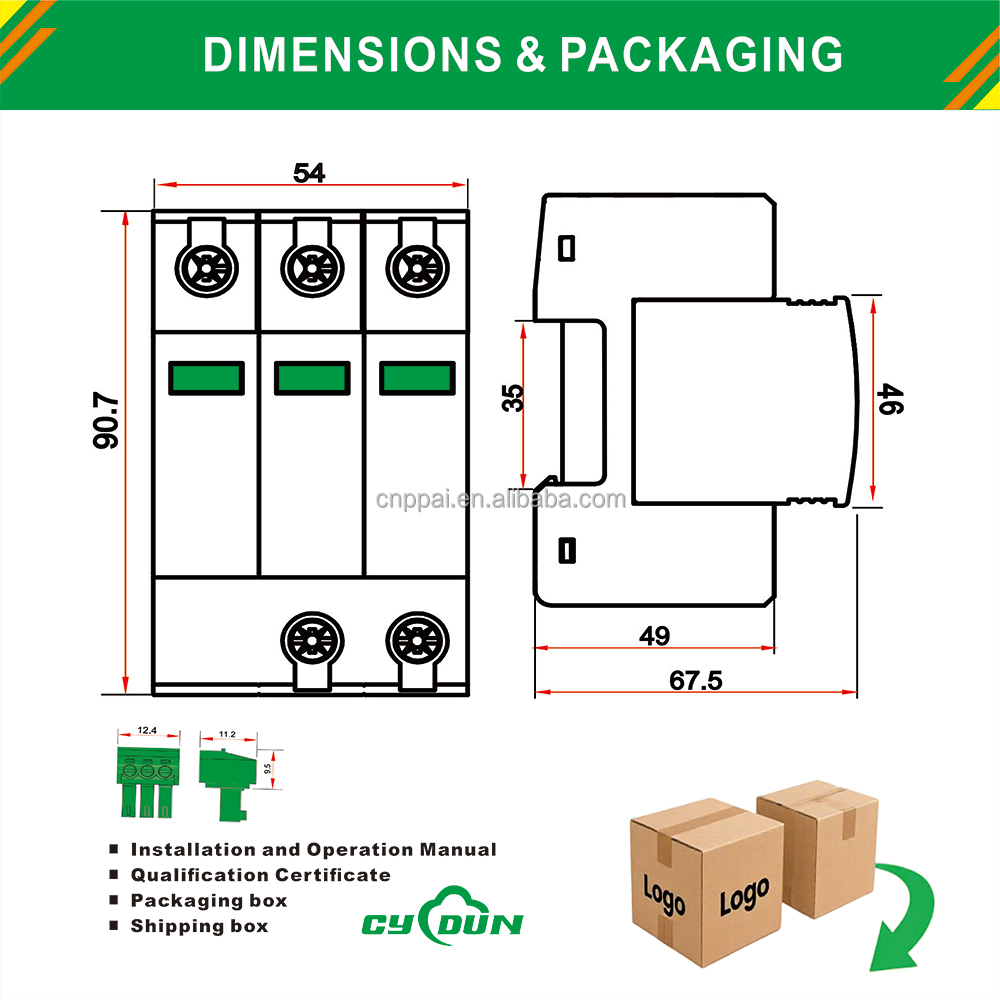

| Mechanical Data | |
| SPD configuration | AC system |
| Plugable | Available |

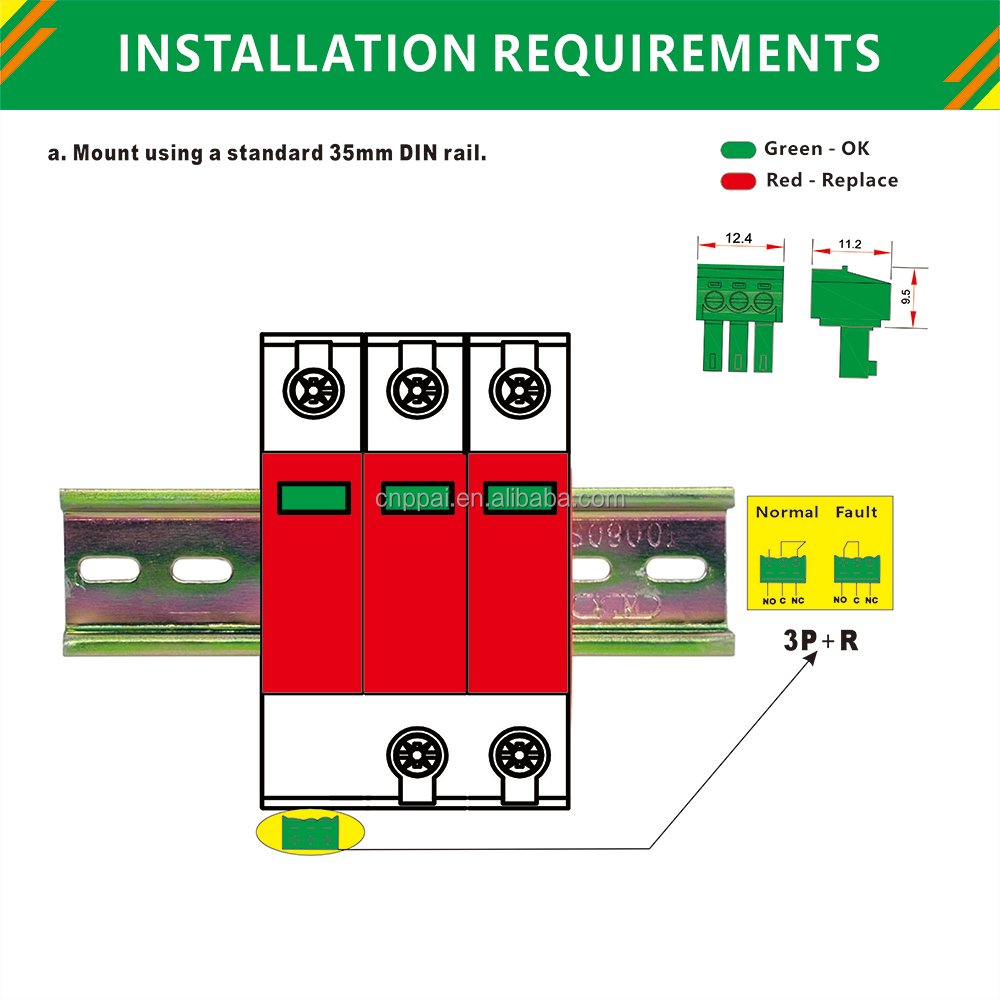

| Mounting | 35mm DIN rail |
| Enclosure Material | Thermoplastic, conform to UL94 V-0 |
| Operating Temperature Range | -40°C...-80°C |
| Protection rating | IP20 |

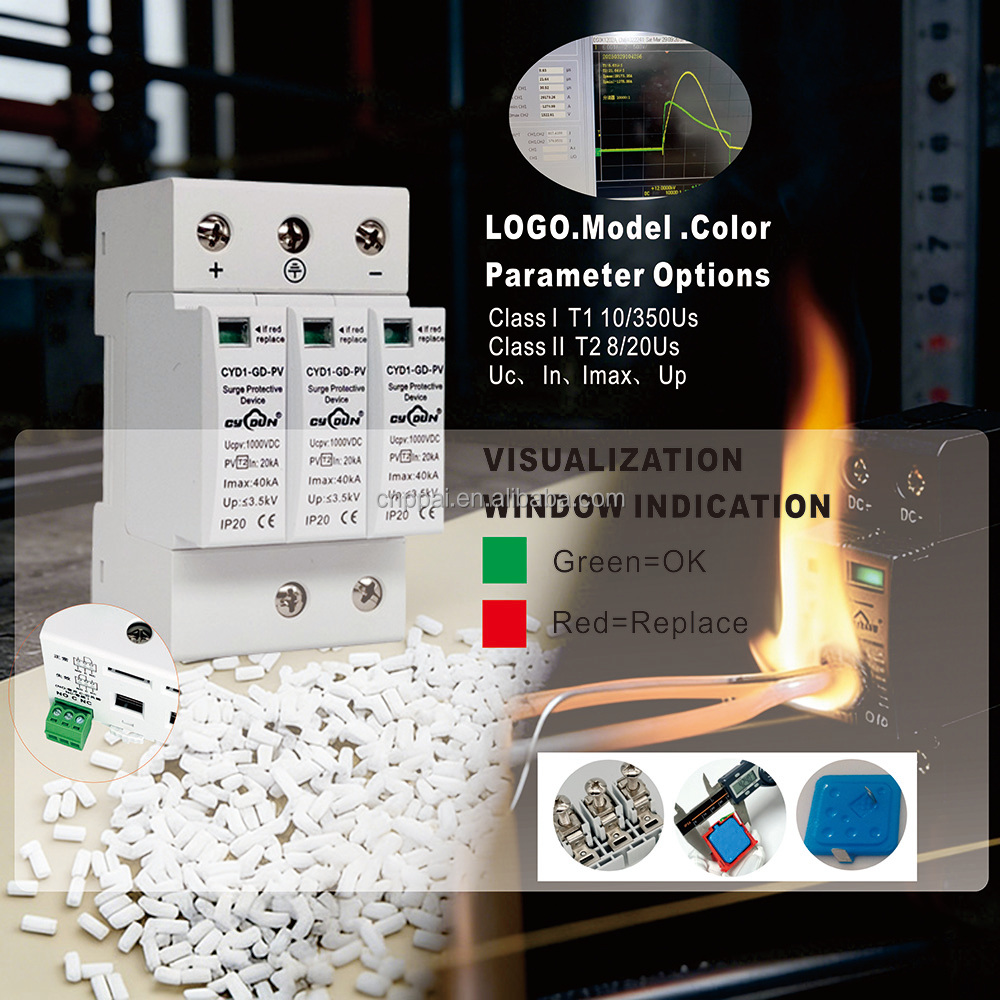

| Normal/fault Display | Green / Red |
| Remote Signal | Optional |
| Wiring for remote signaling | Max.1.5mm solid/flexible |
| Max.Voltage / Current for remote signaling | 250V/0.1A;125V/0.2A;75V/0.5A |
| Certificate | CQC, CE, IEC, ISO9001 |
Factory main power distribution room, production line control cabinets, large motor (such as pumps, fans) drive systems.
Power distribution systems for sewage treatment plants, water supply pumping stations, airports, train stations, and subway stations.
AC combiner boxes and inverter output terminals for photovoltaic power plants; converter systems for wind turbines.
Main power distribution rooms and floor-level power distribution rooms for large office buildings, shopping malls, and hotels.
Main input power distribution cabinets in computer rooms, providing primary power protection for servers and switches.
Power distribution centers for important public buildings such as hospitals, schools, and stadiums.
