| Technical Data | ||||||
|---|---|---|---|---|---|---|

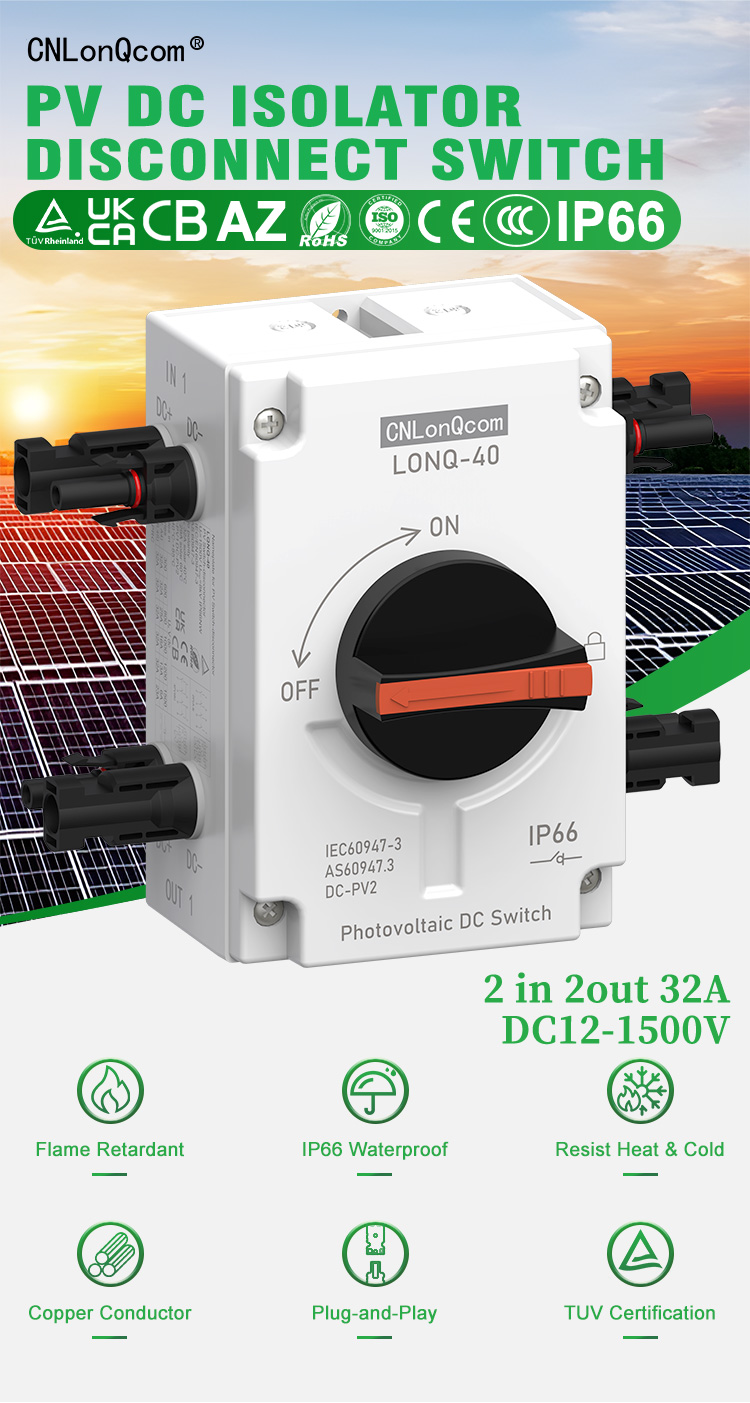

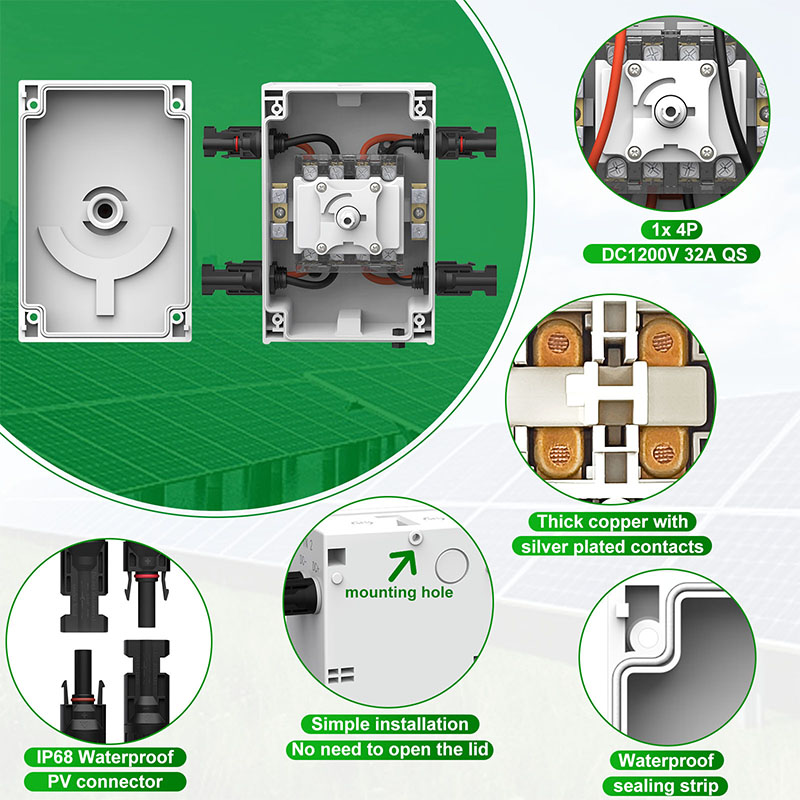

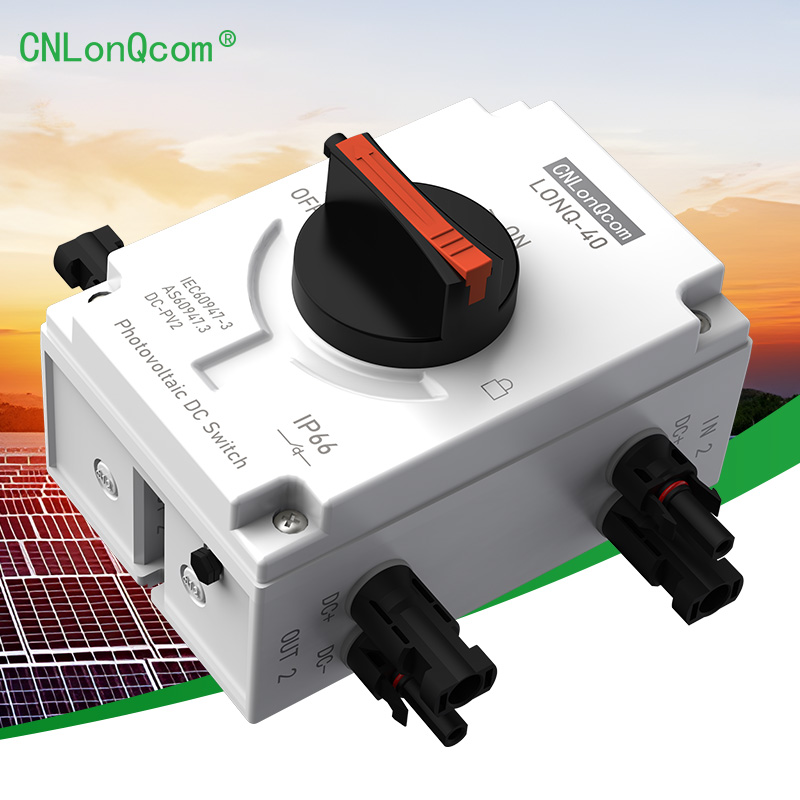

| Type | PV DC Disconnect Isolator Switch | |||||

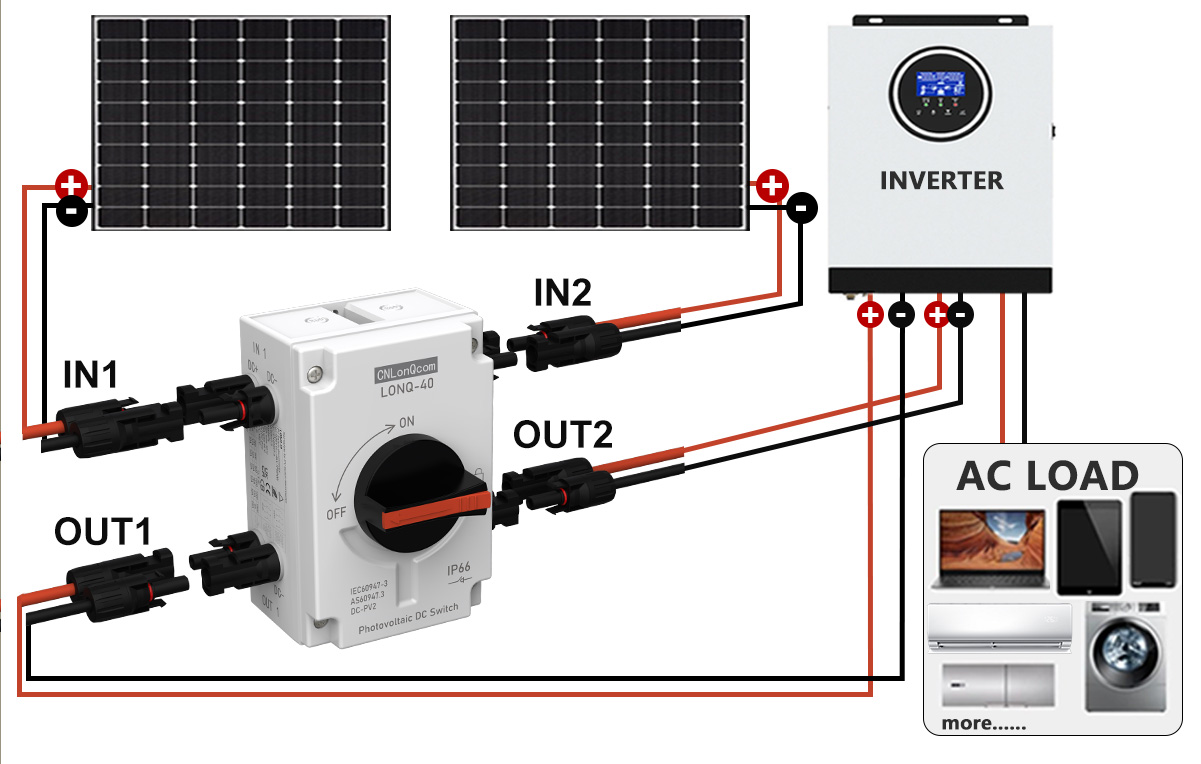

| String | 2 input 2 output | |||||
| Rated Current In(A) | 32 | 32 | 32 | 32 | 32 | 23 |
| Rated Working Voltage Ue (V) | 300 | 600 | 800 | 1000 | 1200 | 1500 |
| Rated Insulation Voltage Ui (V) | 1500V | |||||
| Pole | 4 | |||||
| Rated Impulse Withstand Voltage Uimp (kV) | 8 | |||||
| Short-Time Withstand Current Icw (kA) | 1 | |||||
| Standard | IEC/EN60947-3 GB/T 14048.3 | |||||
| Insolation Feature | Yes | |||||

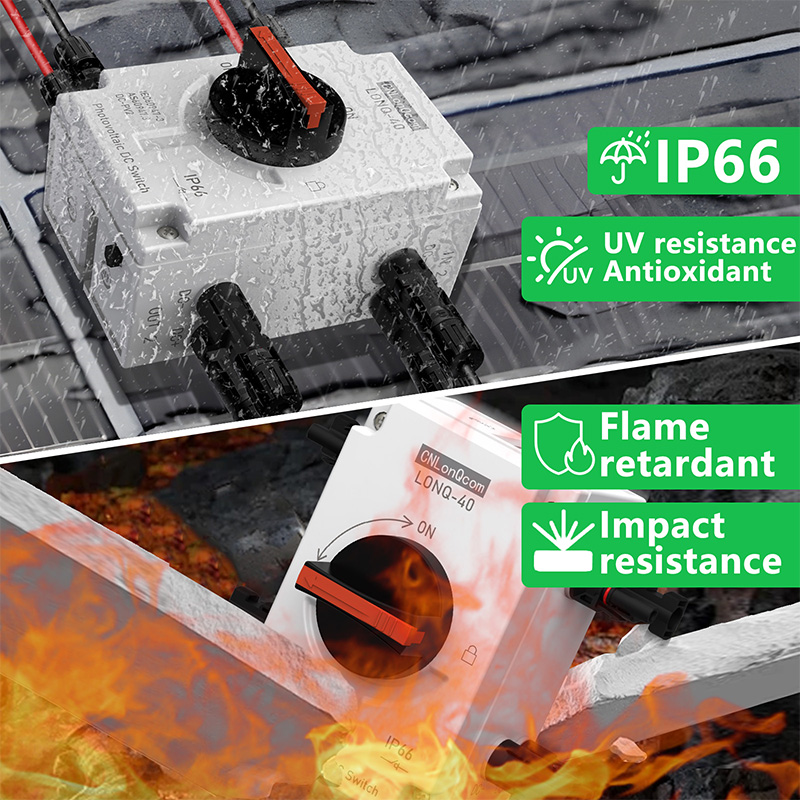

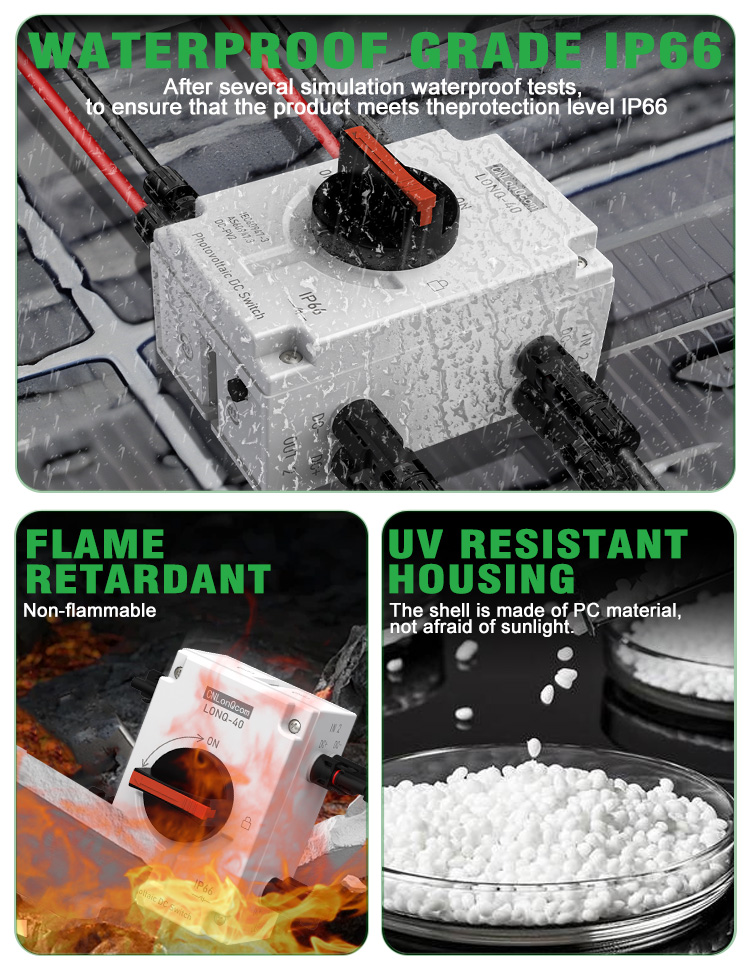

| Levels of Protection | IP66 | |||||
| Housing Material | PC | |||||

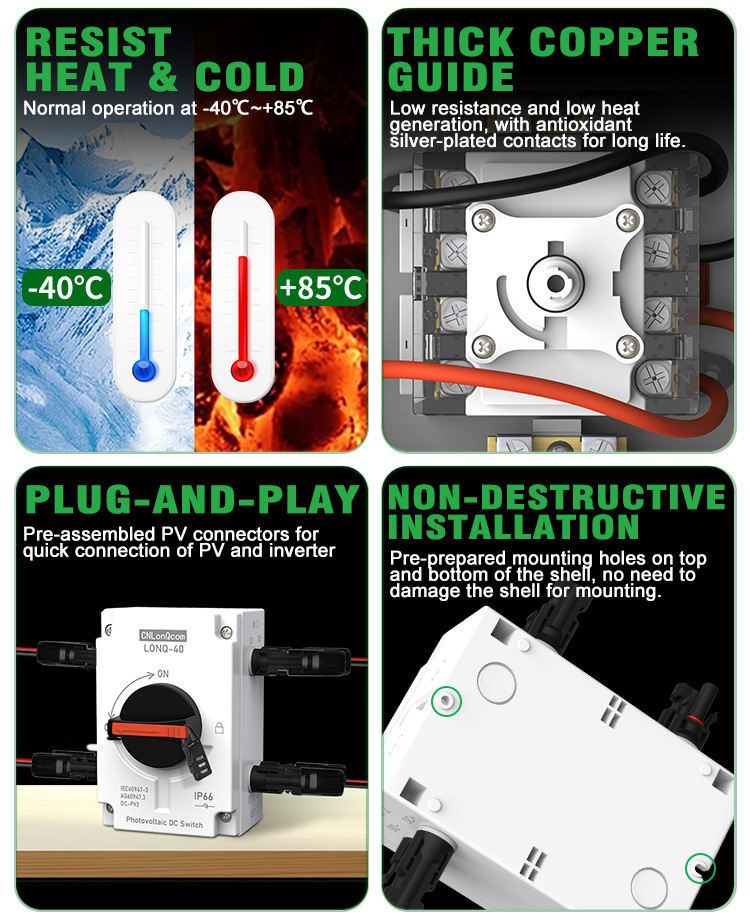

| Conductor Material | Copper | |||||
| Quality Certificate | TUV, CE, CB, UKCA, AZ, CCC, ISO9001, ROHS | |||||
| Mechanical Life (times) | 20000 | |||||
| Electrical Life (times) | 6000 | |||||
| Knob Positions | OFF at 9 hr, ON at 12 hr | |||||
| Operating Temperature | -40°C to +85°C | |||||
| Humidity | 95% | |||||
| Altitude | 2000m | |||||
| Installation | Wall Mounting | |||||

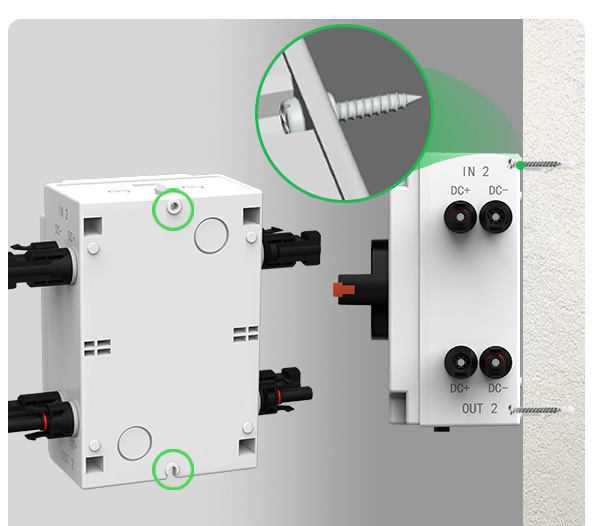

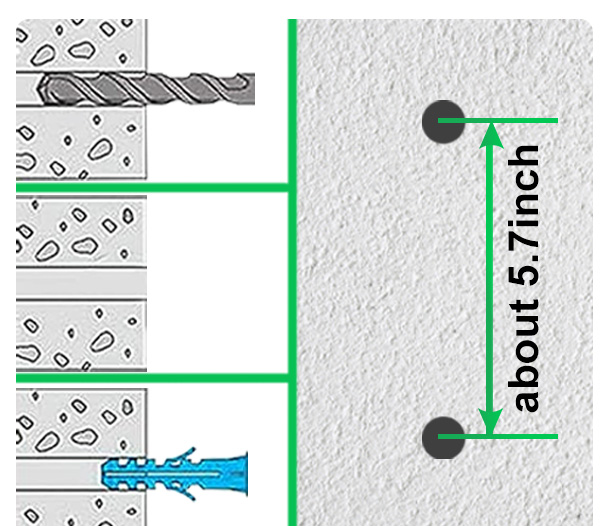

Cutting holes in the wall with a drill and inserting expansion tubes.
Screw into the pre-drilled holes at the top and bottom of the case without dismantling or damaging the case.
Push the red part above the handle to the right to expose the hole.
Snap the combination lock into the hole.
Installation complete. Mess up the password.
This lock is set to open at '000' during production. You can customise the reset to a new combination.
To reset your password:
1. Rotate the passcode to the correct position, then press and hold the bottom round button.
2. Turn the password to change it to the desired password and finally release the button.

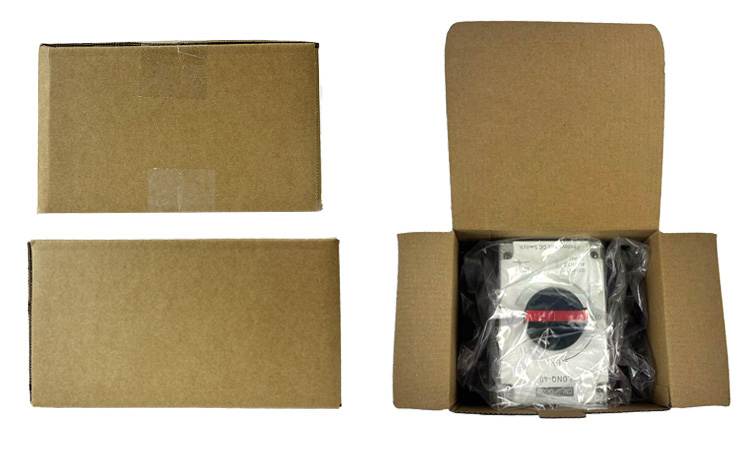

Each product is packed in an independent kraft paper box, which is resistant to pressure and drop without deformation, and can well protect the product from damage.
As an excellent enterprise in China's intelligent electrical industry, we have more than 20 years of manufacturing and development experience. We possess strong independent innovation abilities, hold multiple core technologies, and have obtained numerous patents. Our products hold certificates including ISO, ROHS, CE, TUV, IEC, UKCA, AZ, CB, IP67, and more.
Our PV power distribution system (disconnect switches, DC MCCBs, DC MCBs, DC surge protectors, DC fuses, PV combiner boxes, etc.) and AC power distribution system (AC MCCBs, AC MCBs, AC surge protectors, AC fuses, distribution boxes, etc.) complete the comprehensive protection of DC and AC systems. The rich product line makes us the preferred one-stop service purchasing centre for customers. Our aim is to get 100% customer satisfaction.
Covering an area of 3500m², with professional large-scale production machines and production lines
Strict inspection, qualified rate ≥99.99%
Covering an area of 3,000m² warehouse with sufficient stock
Professional customer service team to solve any problem you have
Deep ploughing 30 years of technicians constantly research and development

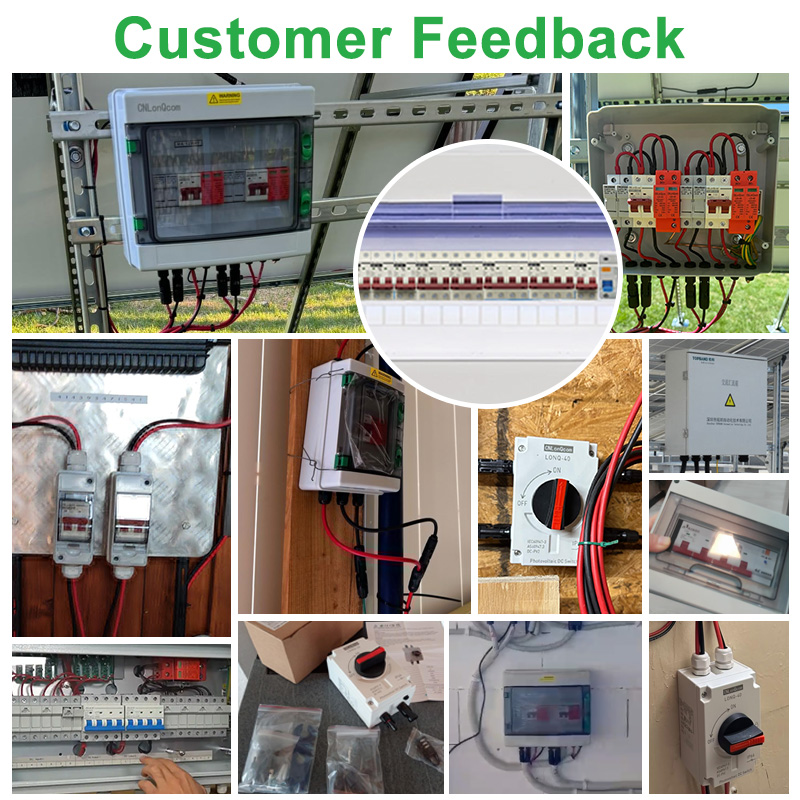

International partners have bought back many times and sold worldwide
Monthly shipments of millions of RMB
Free design options for photovoltaic solutions
