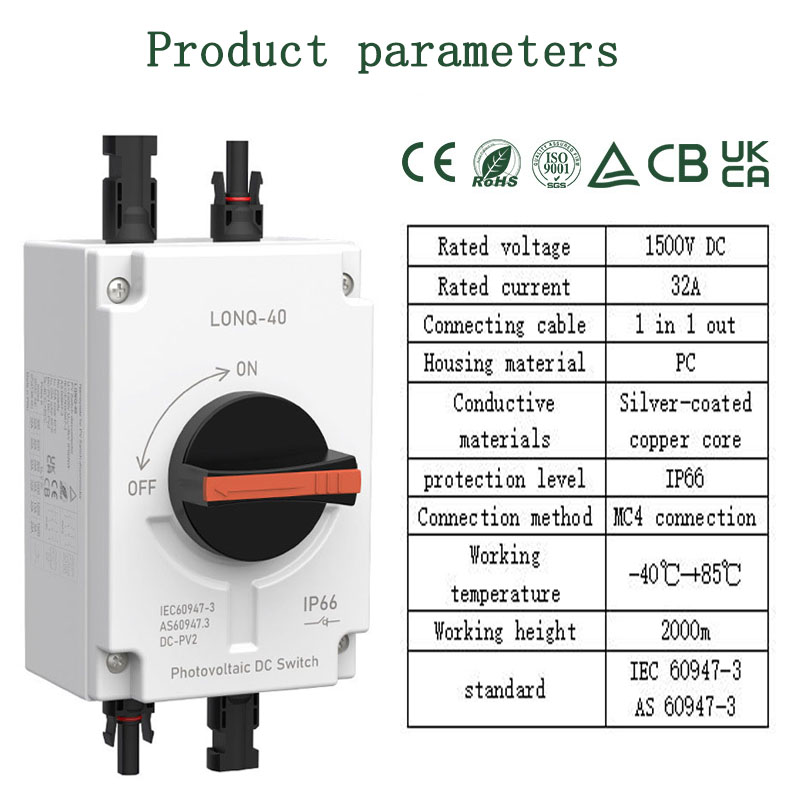

| Parameter | Value |
|---|---|

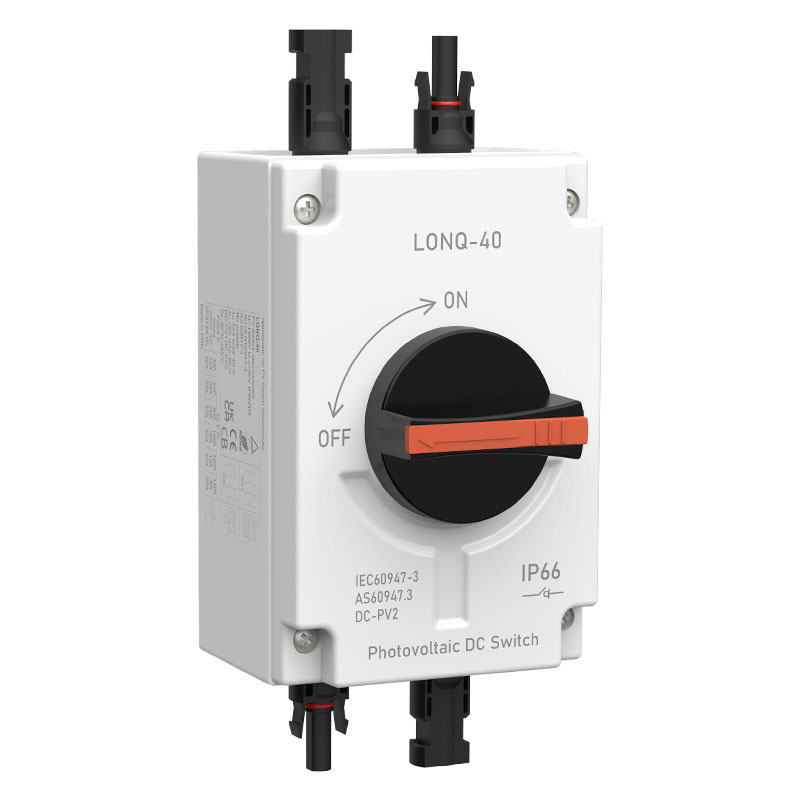

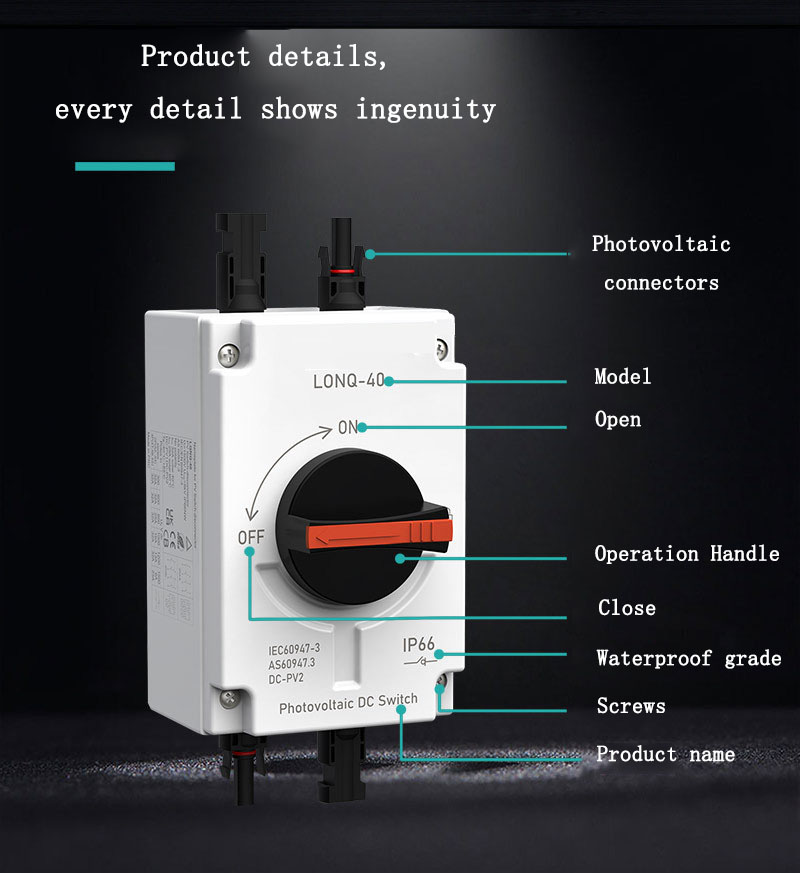

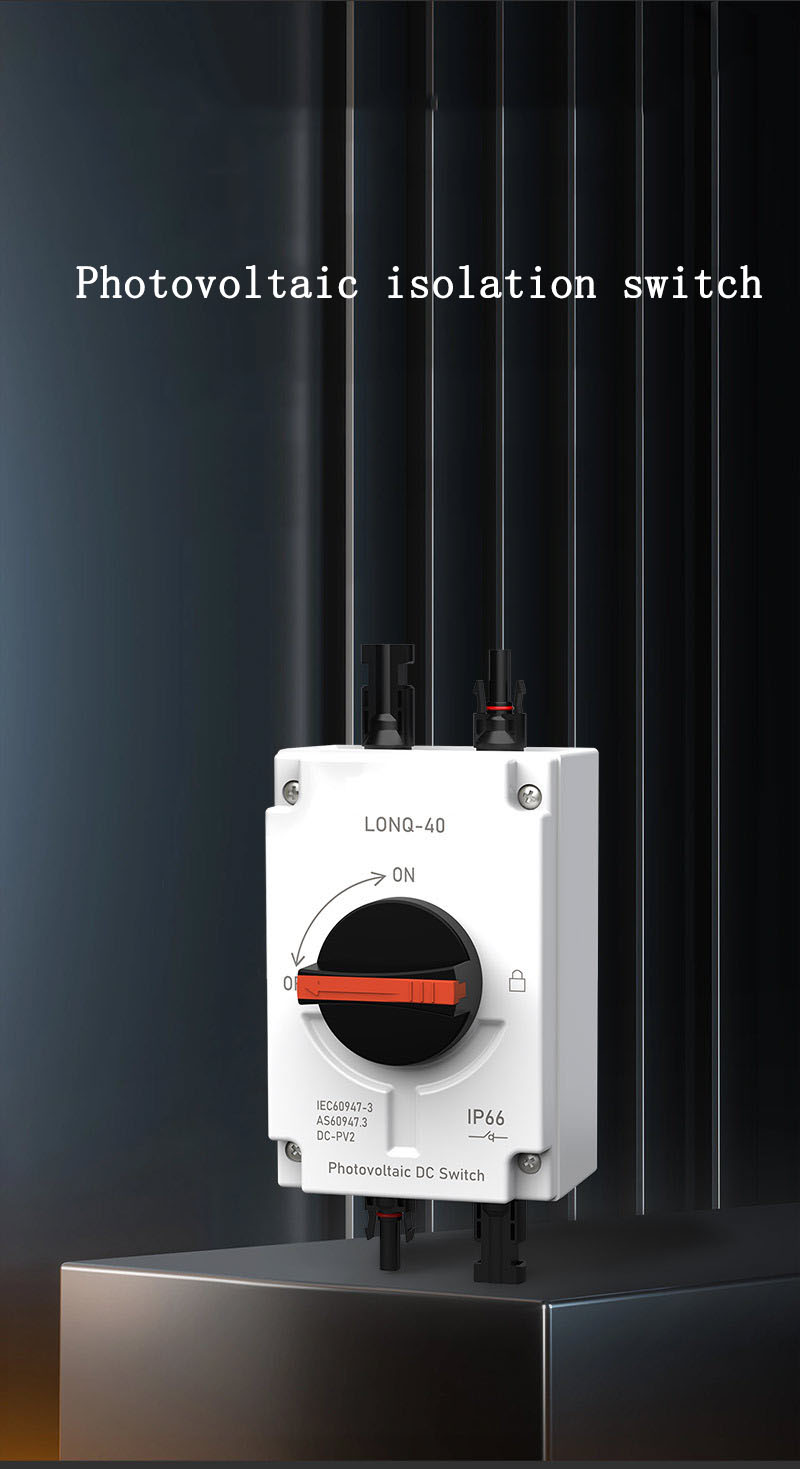

| Model | LONQ-40 |

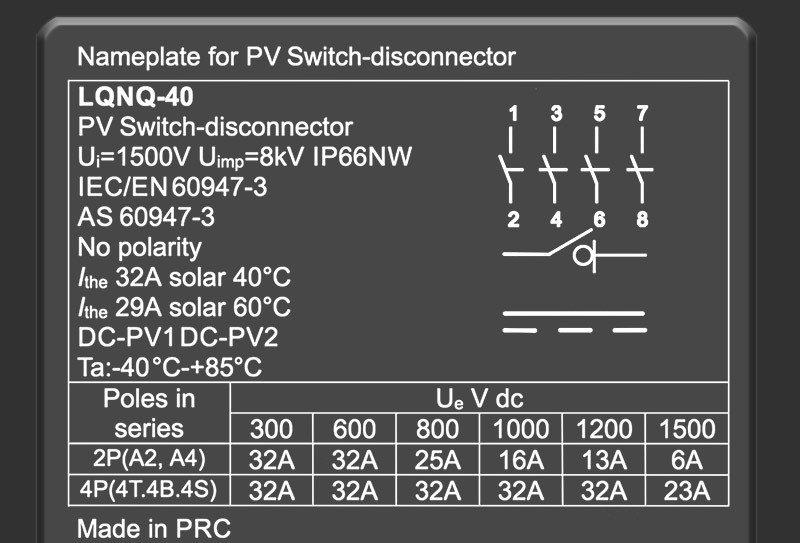

| Insulation voltage | DC 1500V |
| Rated Current | 32A |
| Rated voltage | MAX 1500VDC |
| Standards | IEC60947-3 |

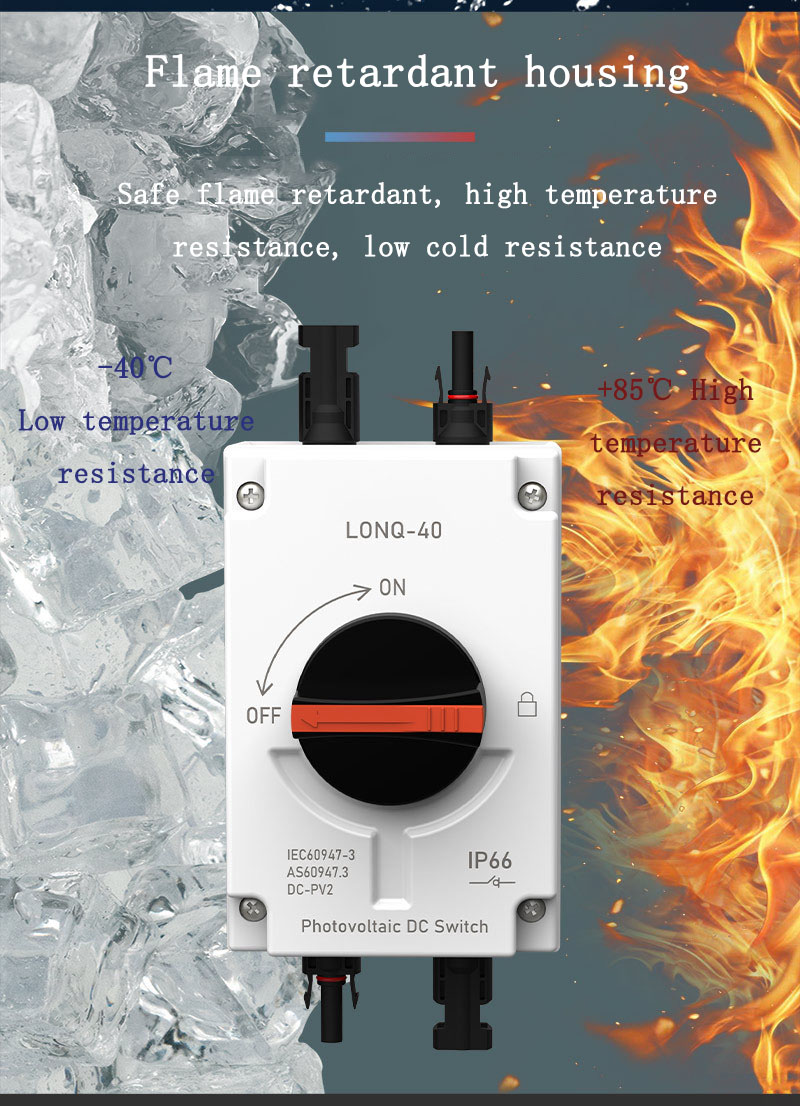

| Ambient temperature | -40°C - +85°C |

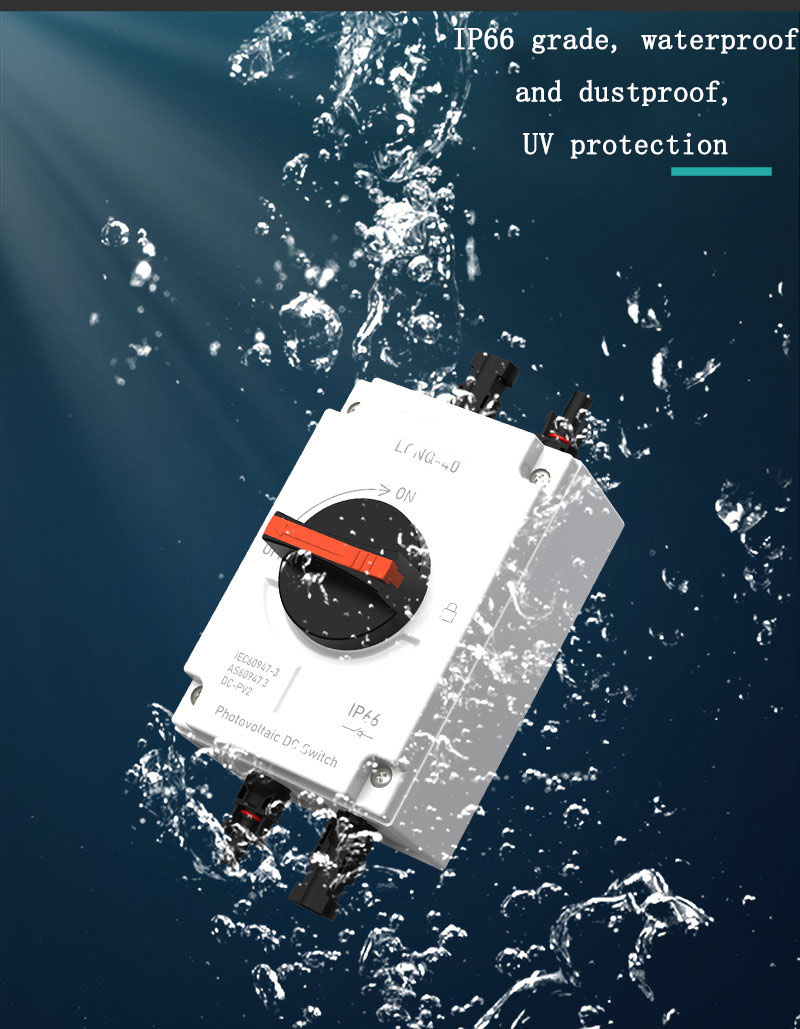

| Waterproof grade | IP66 |
| The type of connection | MC4 connectors |

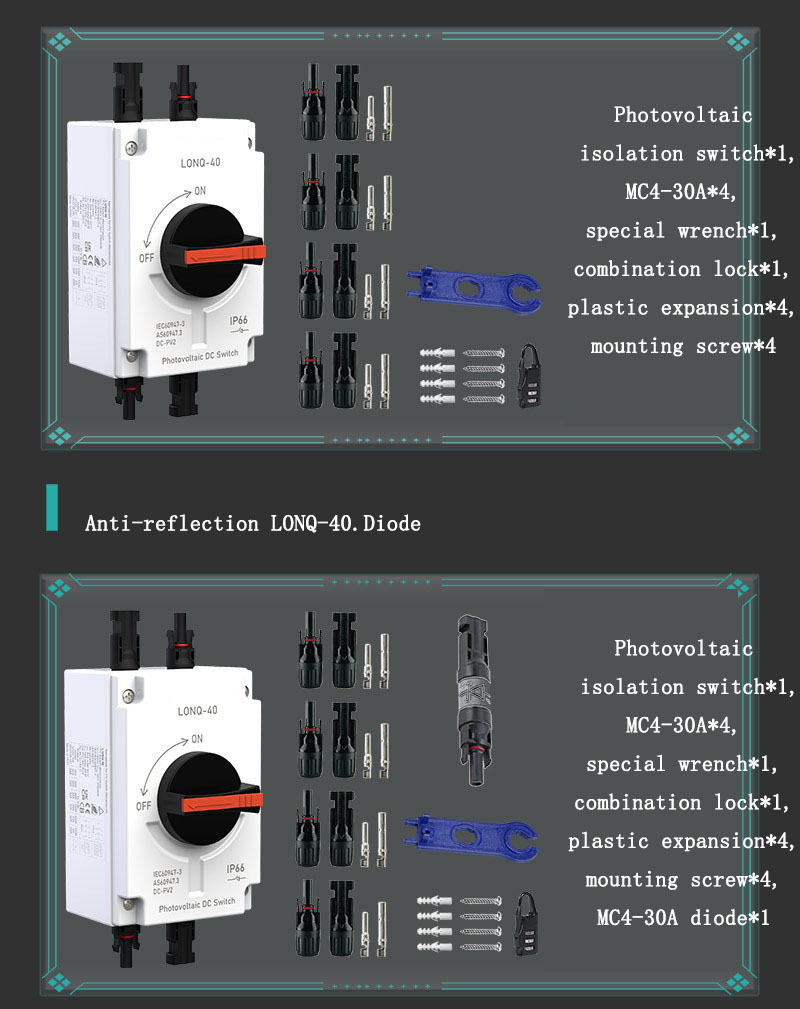

| Model number | Package included |
|---|---|

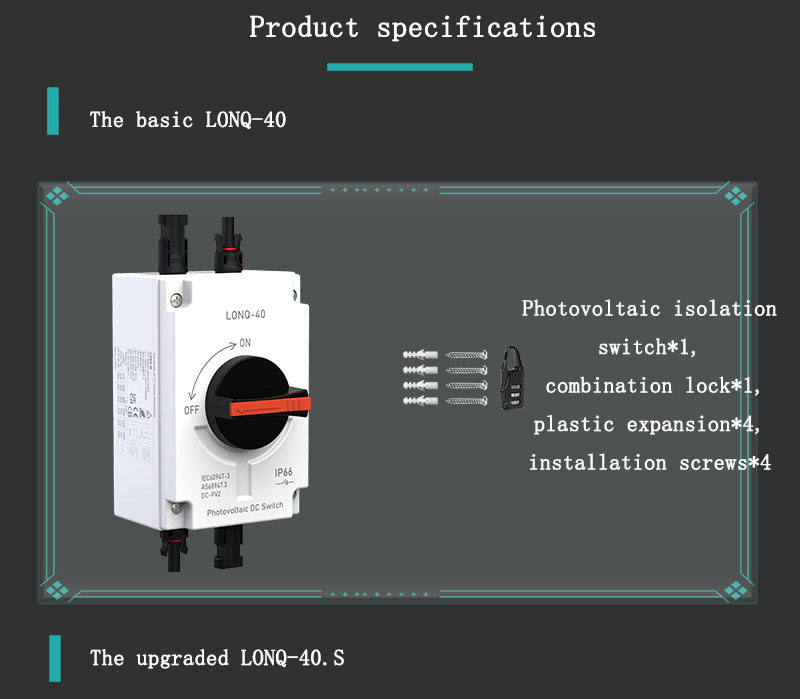

| Basic | Isolation Switch*1, screw*4, expansion pipe*1, combination lock*1 |

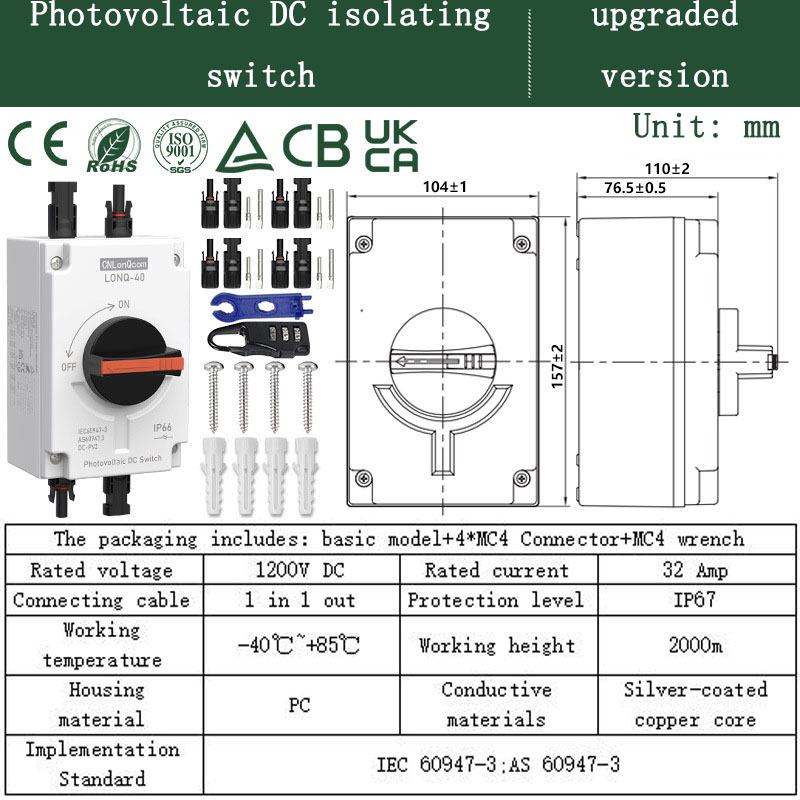

| upgrade | Basic+MC4 connectors*4+MC4 wrench |

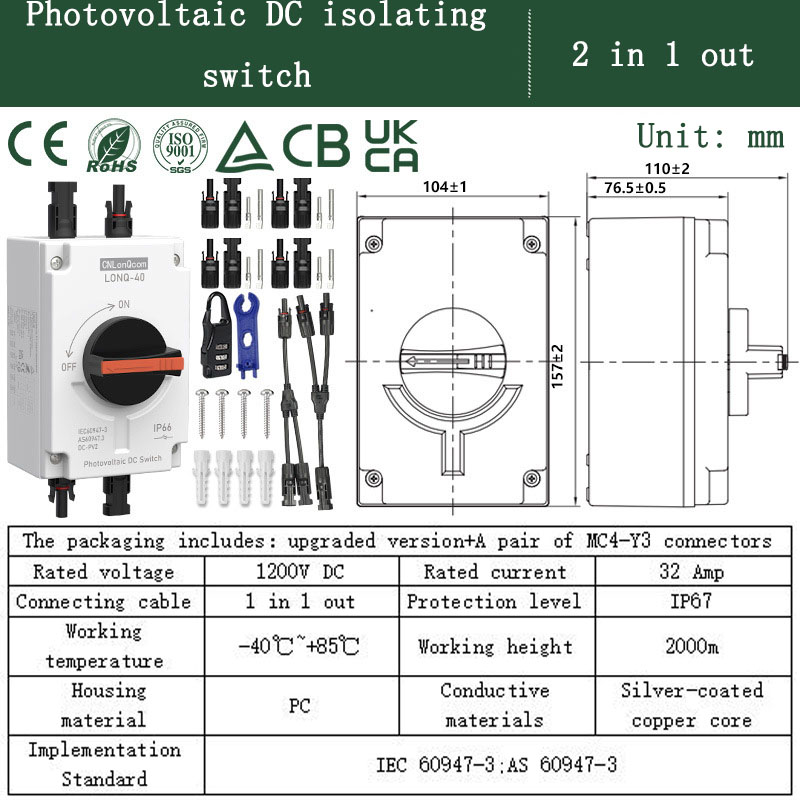

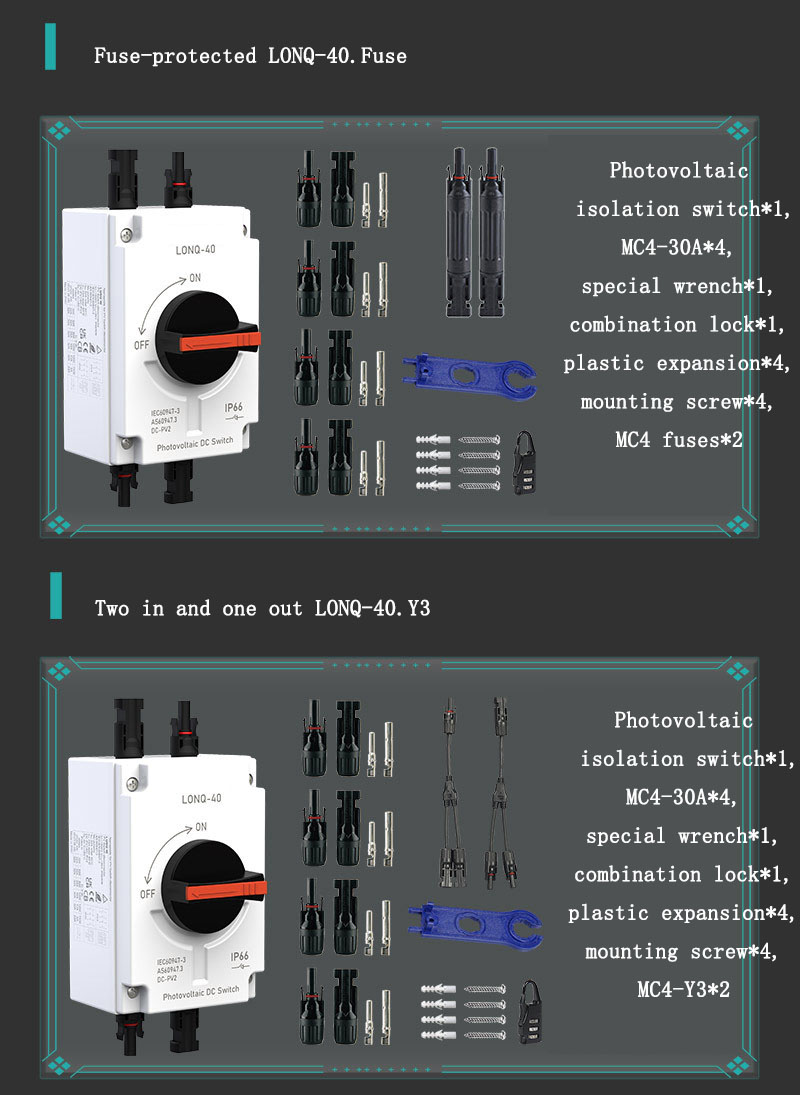

| 2 in 1 out | Upgrade+A pair of MC4-Y3 connectors |
| circuit breaker | Upgrade+A pair of fusing protection connectors |
| diode | Upgrade+Diode connector |
| Specification Detail | Value / Standard |
|---|---|
| Protection function | waterproof. Anti-dust |
| application scope | new energy |
| shell material | plastic |
| special function | anti-misoperation |
| wiring connection mode | screw pressure wire |
| product certification | TUV/CE/ROHS/UKCA/CB |
| protection grade | IP66 |

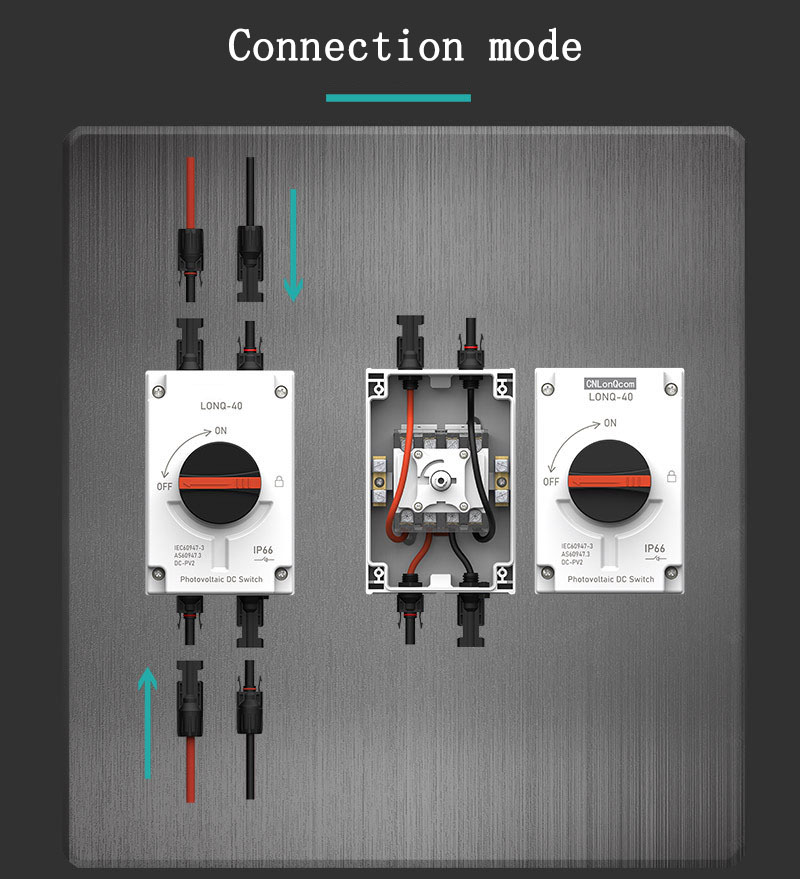

| Connect the cables | One in, one out |
| Ambient temperature | -40°C - +85°C |
| Working height | 2000m |
| Shell material | PC |
| Conductor material | Silver plated copper core |
| contact material | silver contact |
| 3C rated voltage range | 440V or above |
| rated voltage V | DC 1200 |
| rated heating current A | 32 |

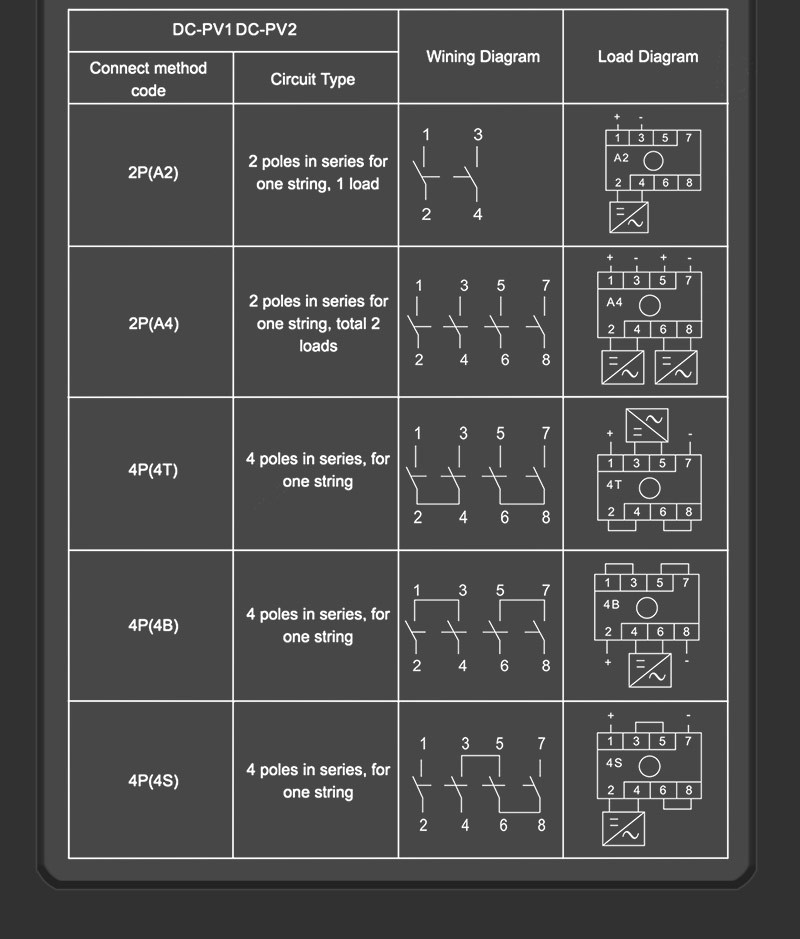

| Poles P | 2 |
| rated frequency | 50/60HZ |
| Rated Current | 32A |
| installation mode | Din Rail installation |

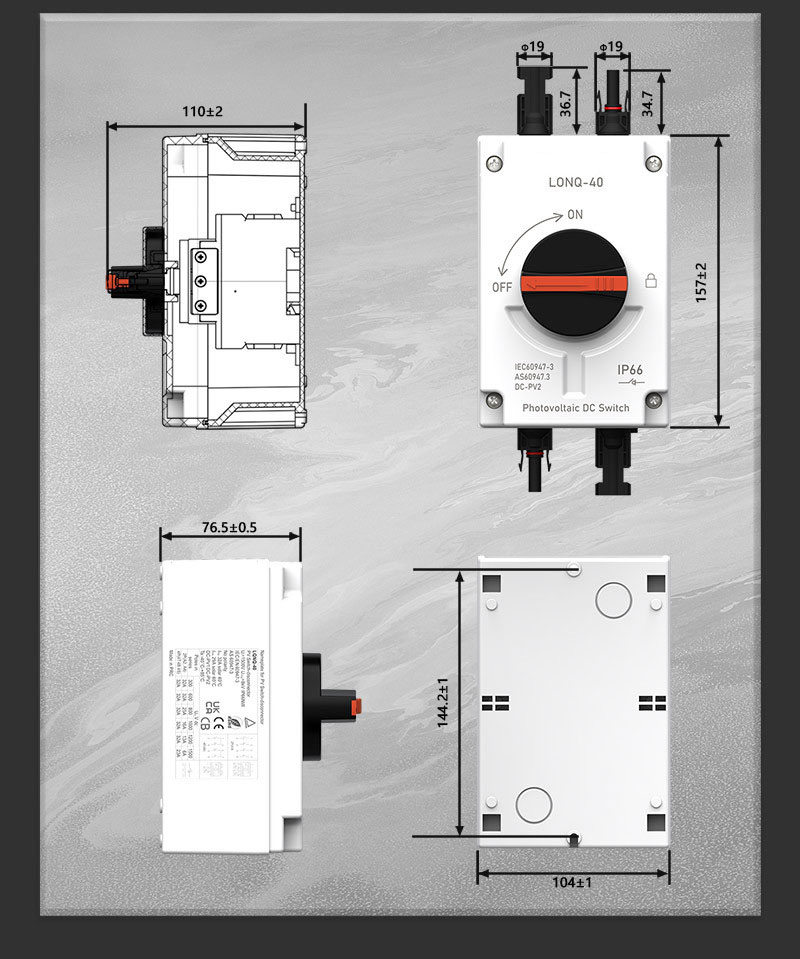

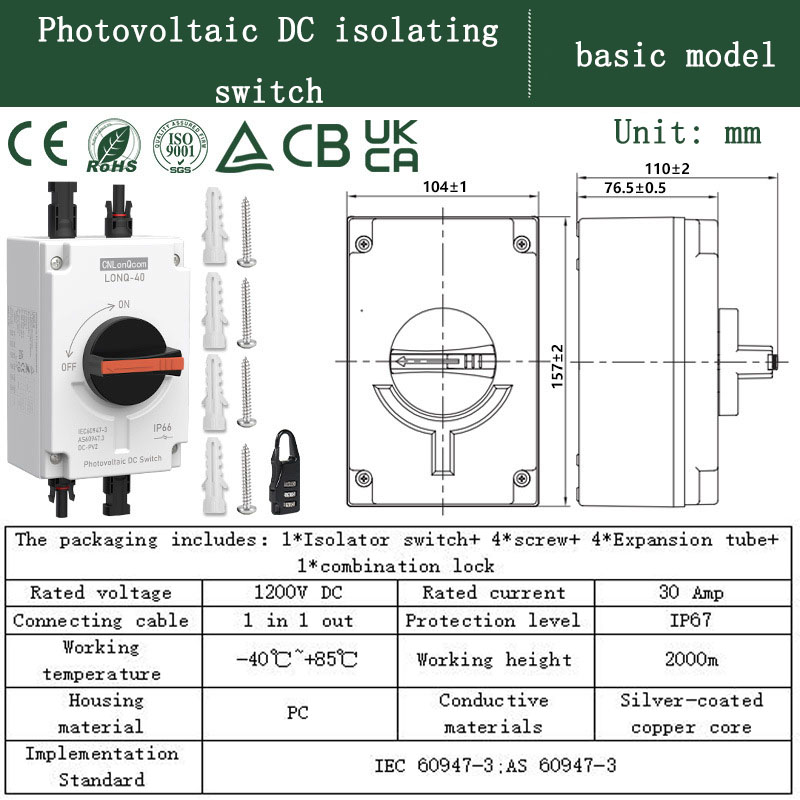

| profile size | 278 * 163 * 140mm |
| installation size | 100 * 140 |
| color | black and white |
| weight | 750 |
| product type | DC isolating switch |
| base plate type | plastic plate |
| operating mechanism | ordinary operating mechanism |
| auxiliary contact form | No |
| Fuse body and auxiliary switch | No |

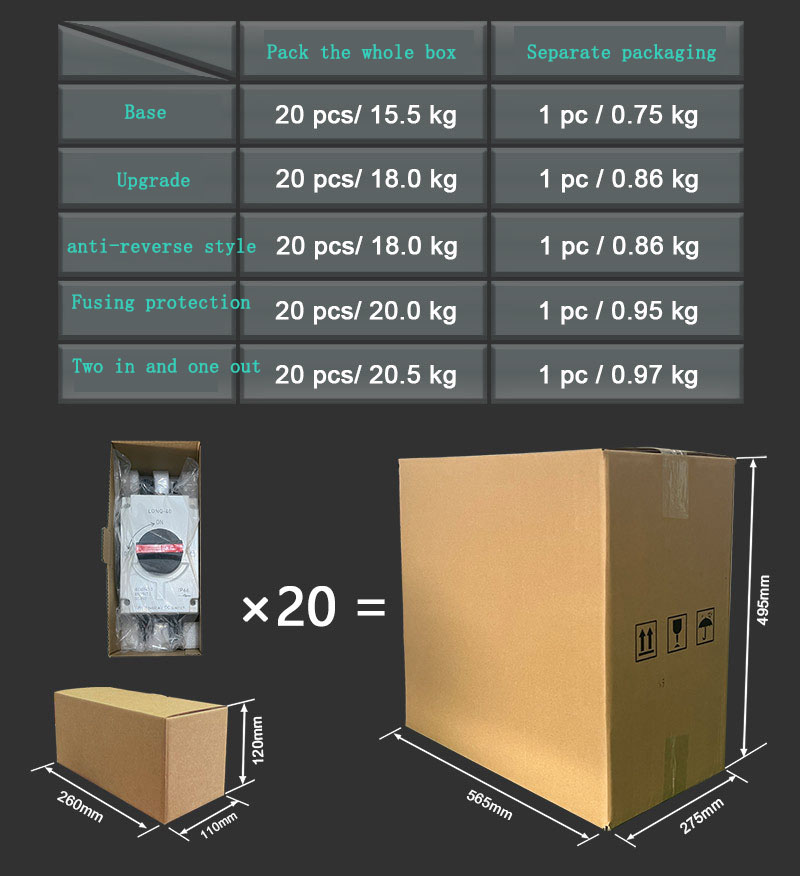

| Specifications | Long (cm) | Wide (cm) | High (cm) | Volume (cm³) | Weight (g) |
|---|---|---|---|---|---|
| Basic | 26 | 11 | 12 | 3432 | 750 |
| upgrade | 26 | 11 | 12 | 3432 | 850 |
| 2 in 1 out | 26 | 11 | 12 | 3432 | 970 |
| circuit breaker | 26 | 11 | 12 | 3432 | 950 |
| diode | 26 | 11 | 12 | 3432 | 900 |
