Product Name: Factory Pv Combiner Box Dc 4 In 1 Out 4 String 1000v Pv Array Combiner Box For Solar Panel Power System
Model: SPL-4/1
Rated Current: 15A/16A/20A/25A/32/40A/50A/63A
Material: PC+ABS
Protection Grade: IP65
Output switch current: 16A/20A/25A/32/40A/50A/63A
Voltage: DC 1000V-1500V
Warranty: 3years
Voltage protection level: 2.8KV/3.8KV
Permissible relative humidity: 0-95%, no condensation
Included accessories:
  • MCB*1 (2 Poles)
  • SPD*1 (2 Poles)
  • DC Fuse Holder*4 (1000V)
  • Waterproof box*1

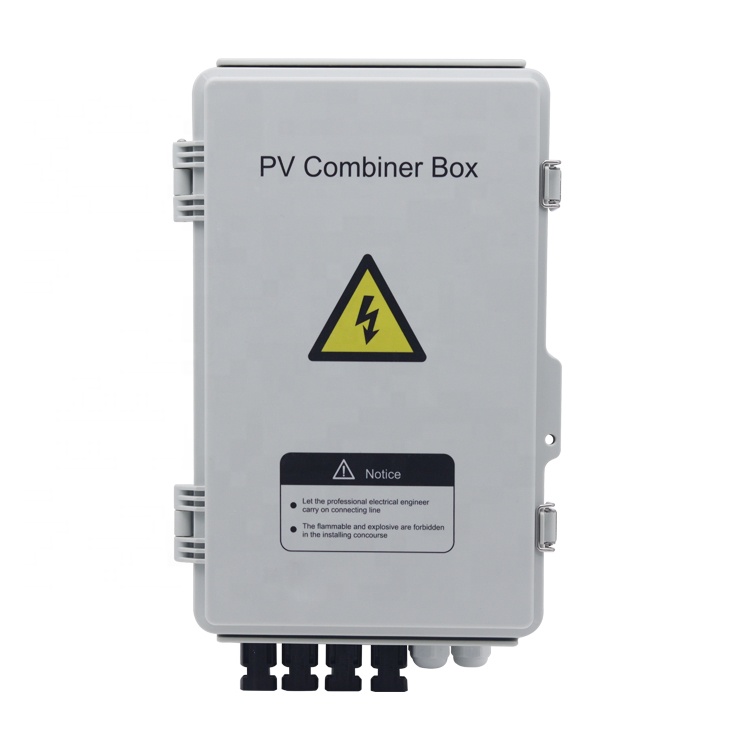

Product Technical Diagram

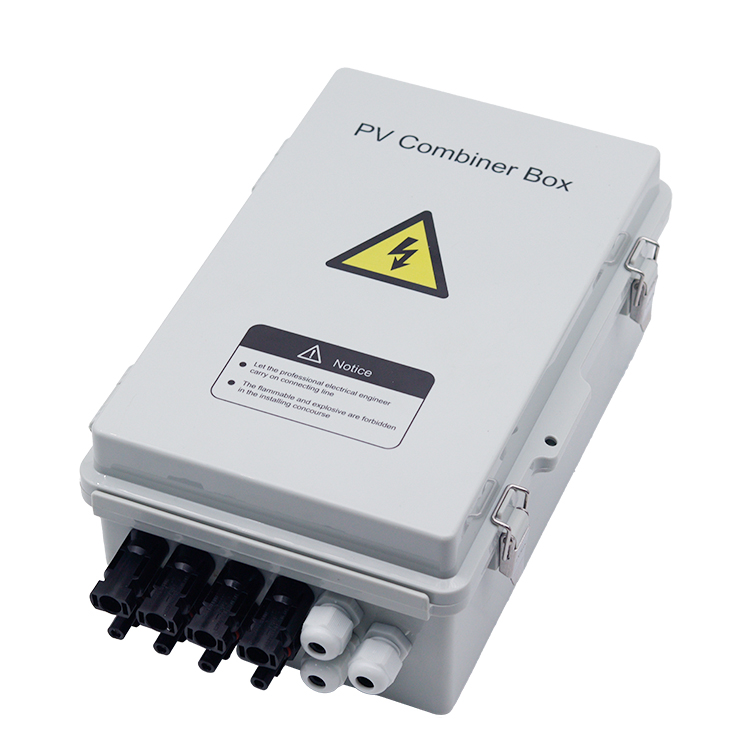

Detailed Component View 1 Detailed Component View 2 Detailed Component View 3 Detailed Component View 4 Detailed Component View 5 Detailed Component View 6

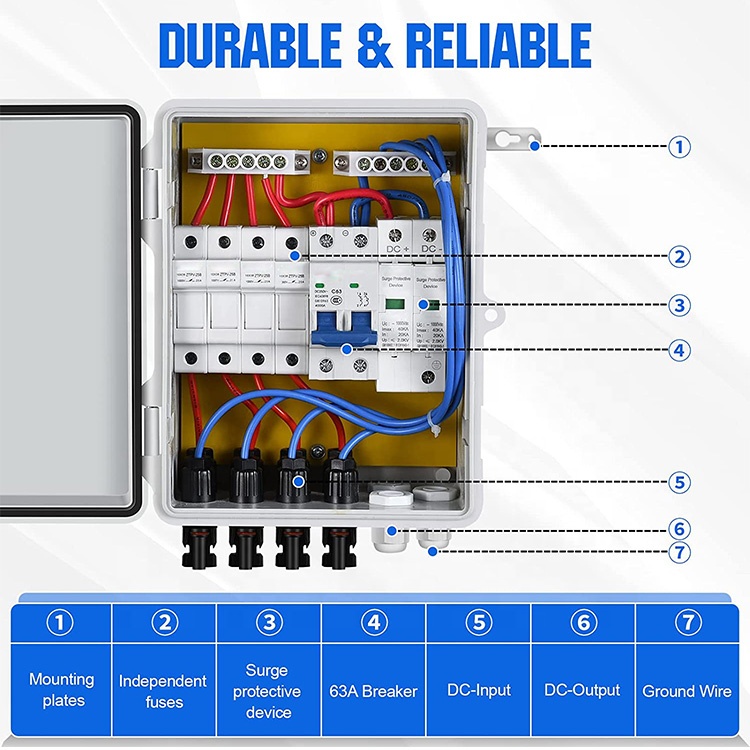

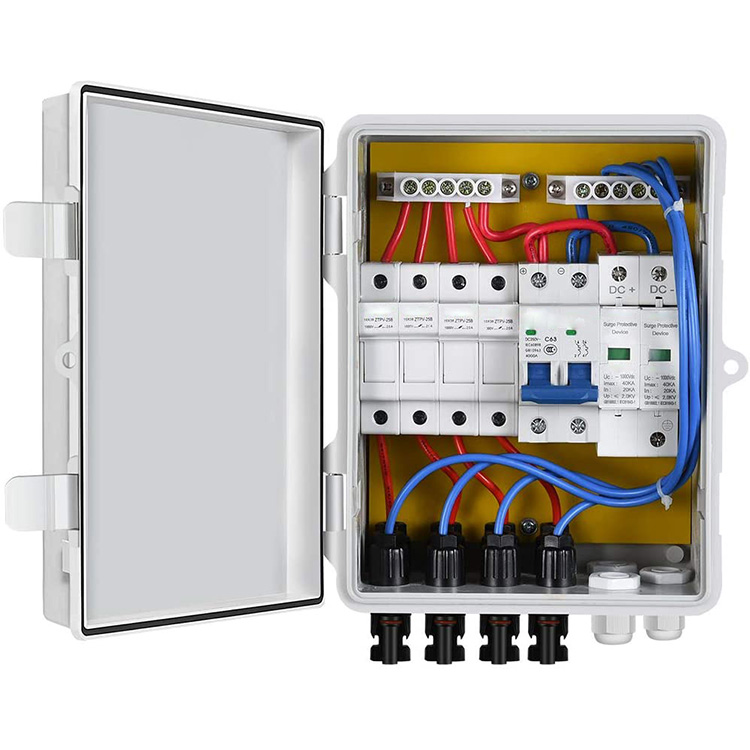

Internal Wiring Layout
Quality Standard Verification
Assembly Process Display
Industrial Production Standards
Operational Environment Testing
Technical Specifications Matrix
Product Quality Verification Details
Security Standard Certifications
FAQ Graphic Overview
Product Support Info
Additional System Configuration Details
Frequently Asked Questions
Q1: What is the main function of the PV Combiner Box?
A1: The PV Combiner Box brings together the DC output of multiple solar string arrays into a single consolidated output. This simplifies the wiring process and provides essential overcurrent, short circuit, and lightning surge protection.
Q2: Does this combiner box support outdoor installation?
A2: Yes, this combiner box is built with an IP65 protection grade waterproof and dustproof PC+ABS enclosure, making it ideal for reliable outdoor operation.
Q3: What internal accessories are included in this model?
A3: The model includes 1 set of Miniature Circuit Breakers (MCB 2Poles), 1 Surge Protective Device (SPD 2Poles), 4 sets of 1000V DC Fuse Holders, and the waterproof protective outer enclosure.
Q4: What is the maximum voltage rating for this PV combiner box?
A4: This PV array combiner box is rated to handle operating voltages between DC 1000V and 1500V, making it highly compatible with modern solar power systems.
Q5: How many solar strings can this box handle?
A5: This model features a 4-string input and 1-string output configuration (4 In 1 Out), meaning it can process and merge inputs from up to 4 separate solar panel strings.
Q6: What warranty does this product carry?
A6: This factory-grade PV array combiner box is backed by a 3-year warranty, ensuring lasting performance and product reliability.
