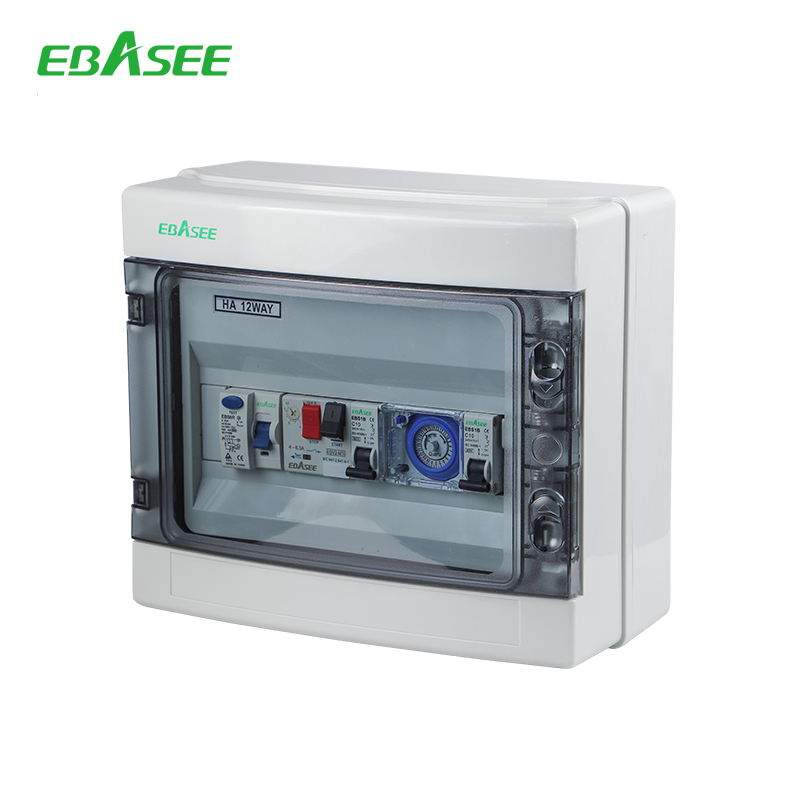

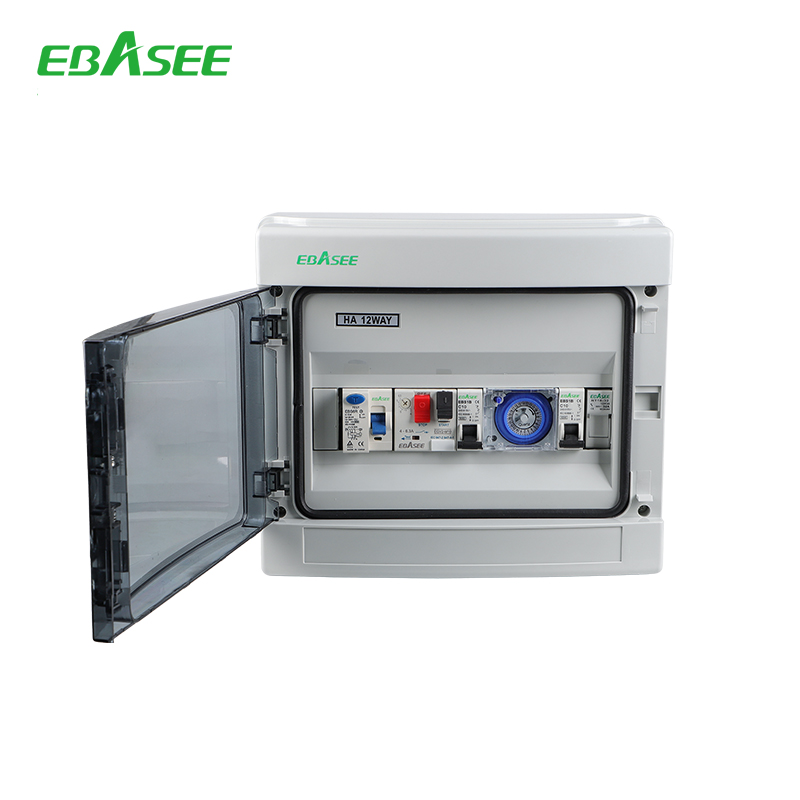

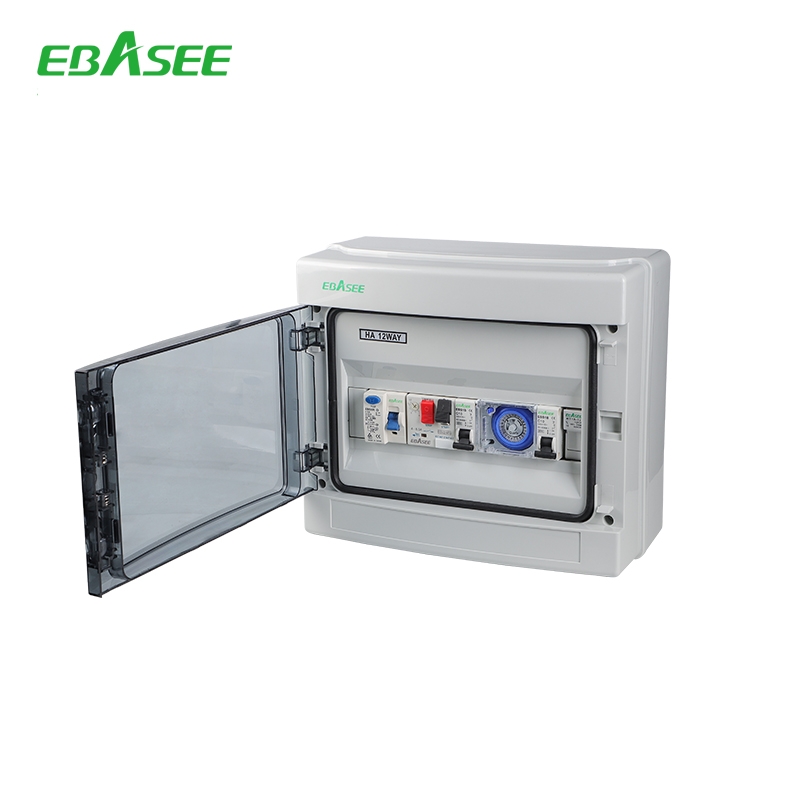

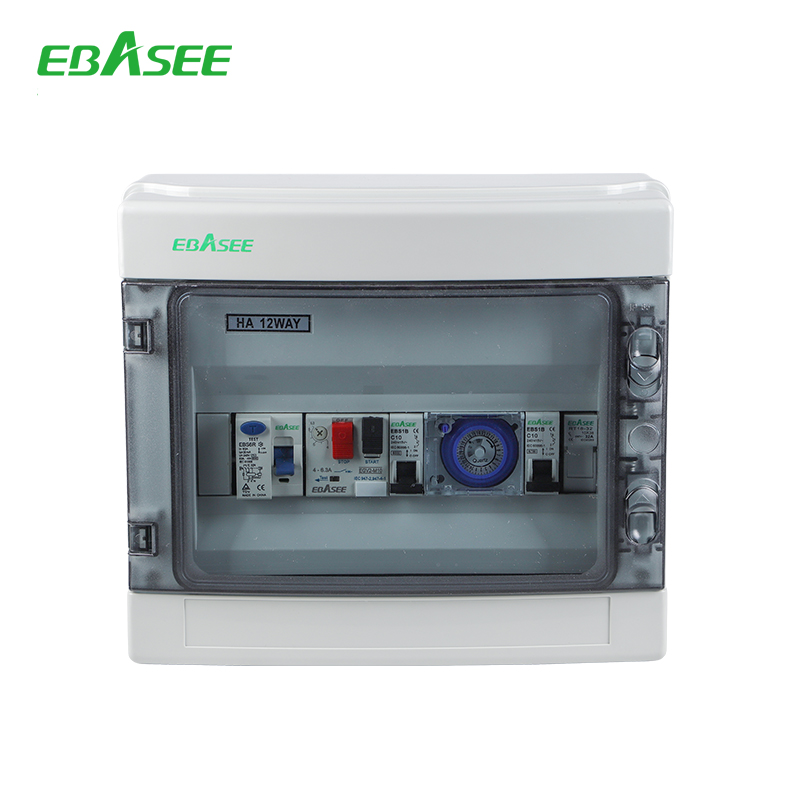

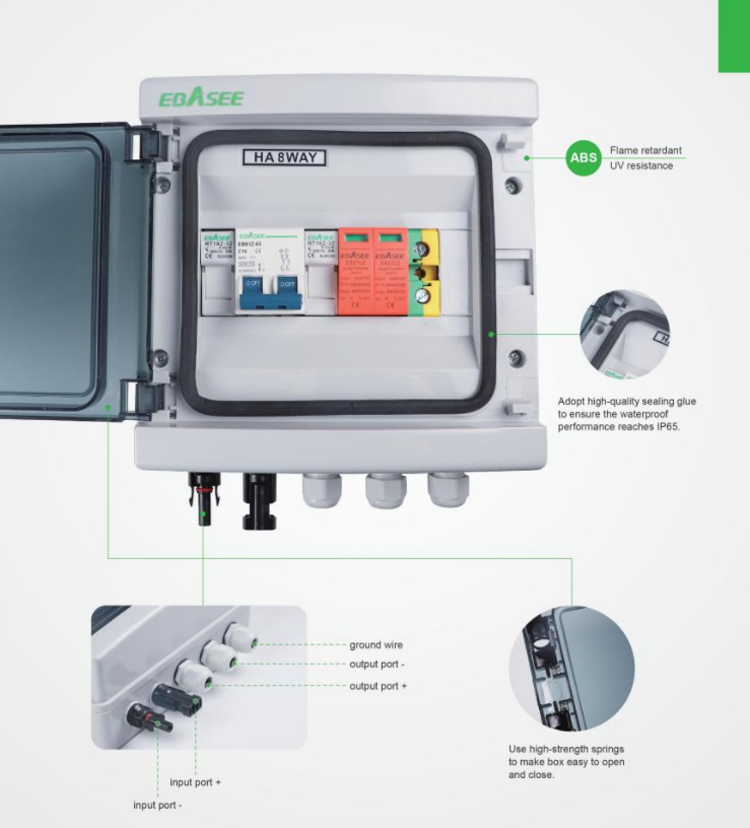

The BX-P-03 series PV combiner box can be flexibly organized with 1 to 6 inputs. It is specifically designed to provide robust overcurrent and overvoltage protection, significantly enhancing the safety and operational reliability of solar inverters within systems running at maximum input voltages of DC 550V and DC 1000V.
Built strictly in compliance with the CGC/GF 037:2014 standard, this combiner box features an ABS bottom and PVC cover. It delivers an IP65 waterproof rating, along with proven flame retardancy, low temperature rise, high impact resistance, and UV protection. Every unit undergoes rigorous testing before shipment.
Customization options are available to meet specific project configurations and user requirements.
| Model | 1/1, 2/1, 4/1, 4/2, 6/1 |
|---|---|
| Number of Inputs Strings | 1 string, 2 strings, 4 strings, 6 strings |
| Max. Rated Voltage DC | 500V, 1000V |
| Material of Box | ABS / PVC |
| Voltage Protection Level Up | 2.8kV, 3.8kV |
| Protection Grade | IP65 |
| Installation Method | Surface mounting type |
| Ambient Temperature Range | -25°C ~ +55°C |
