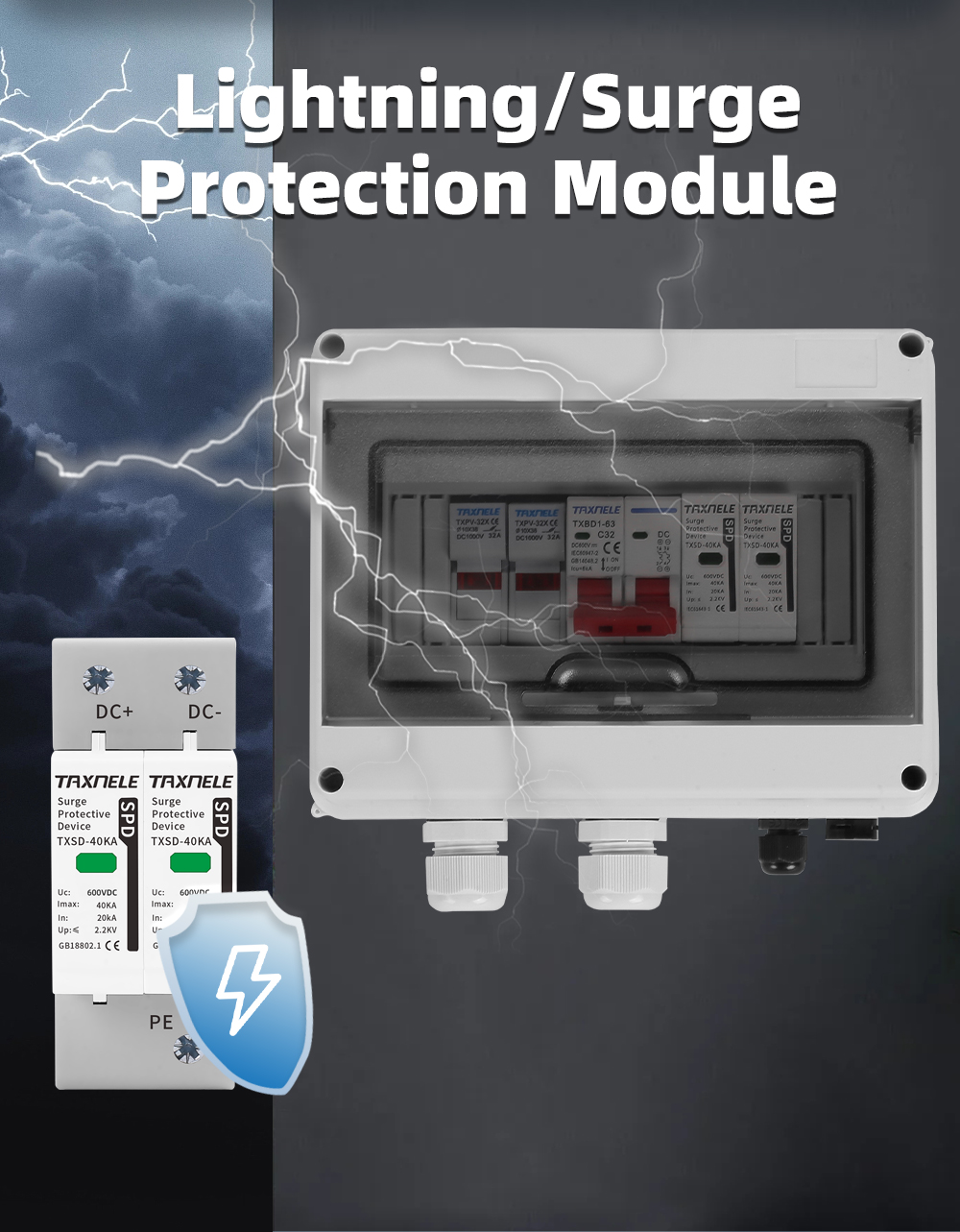

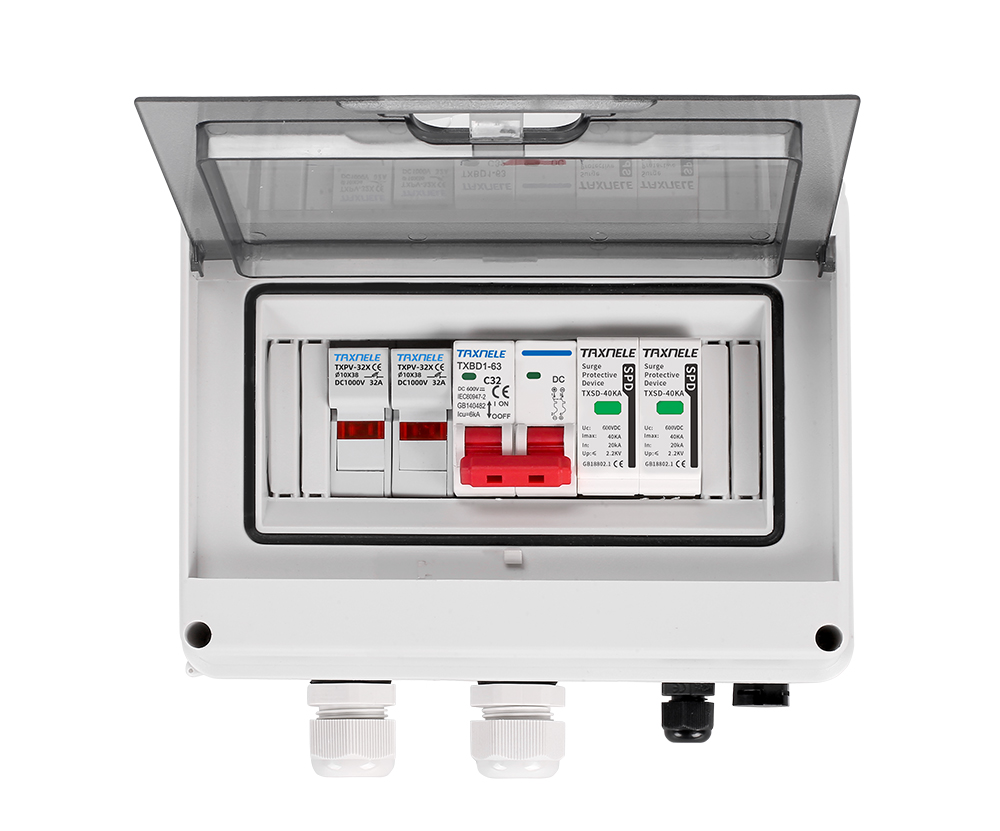

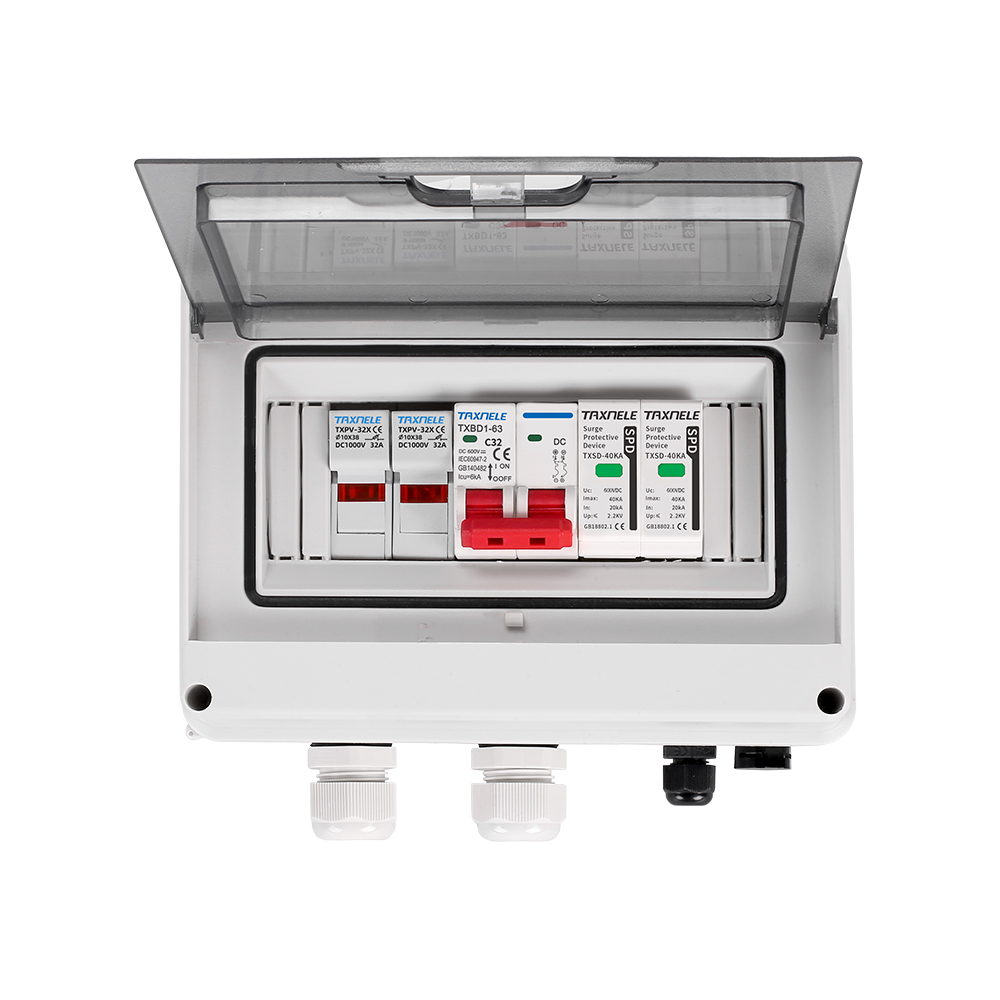

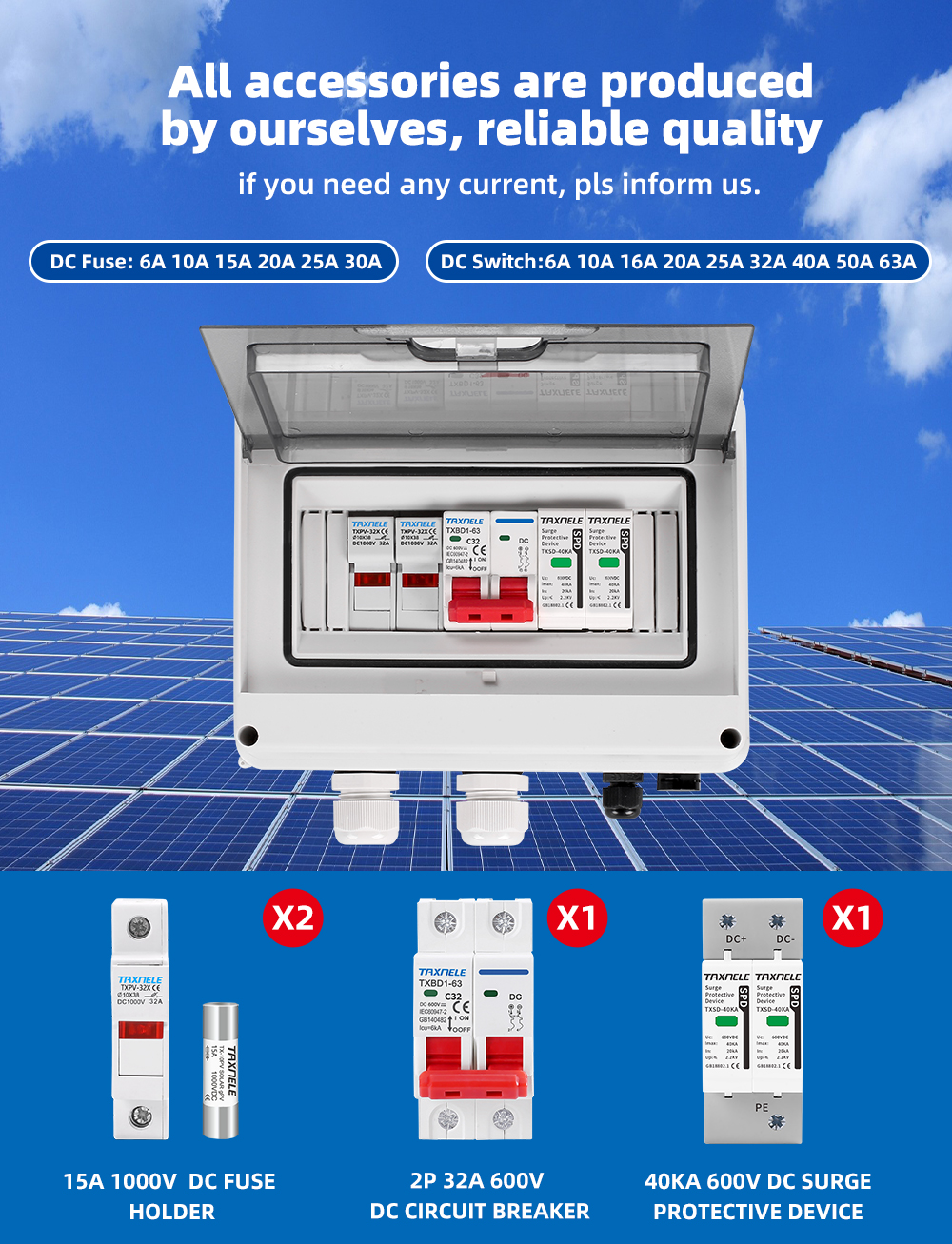

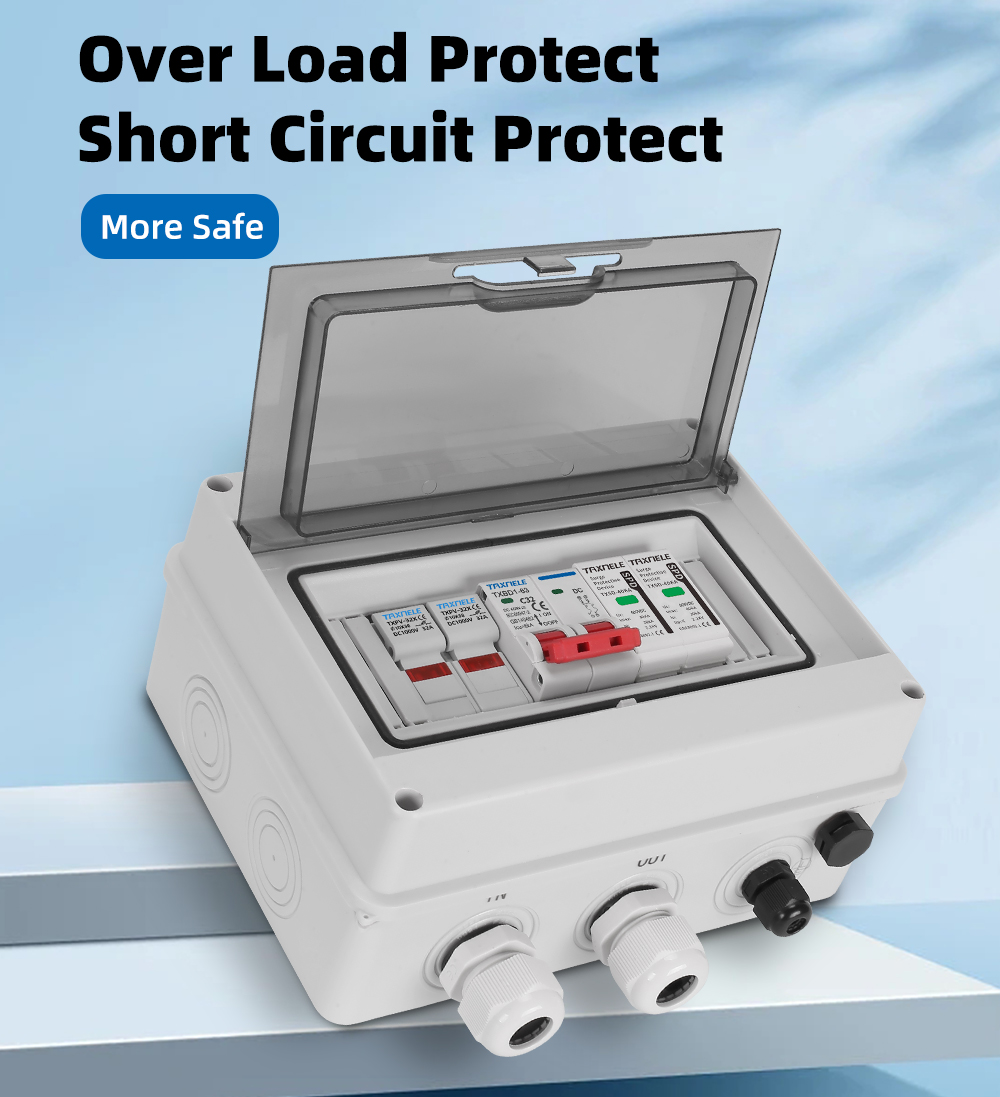

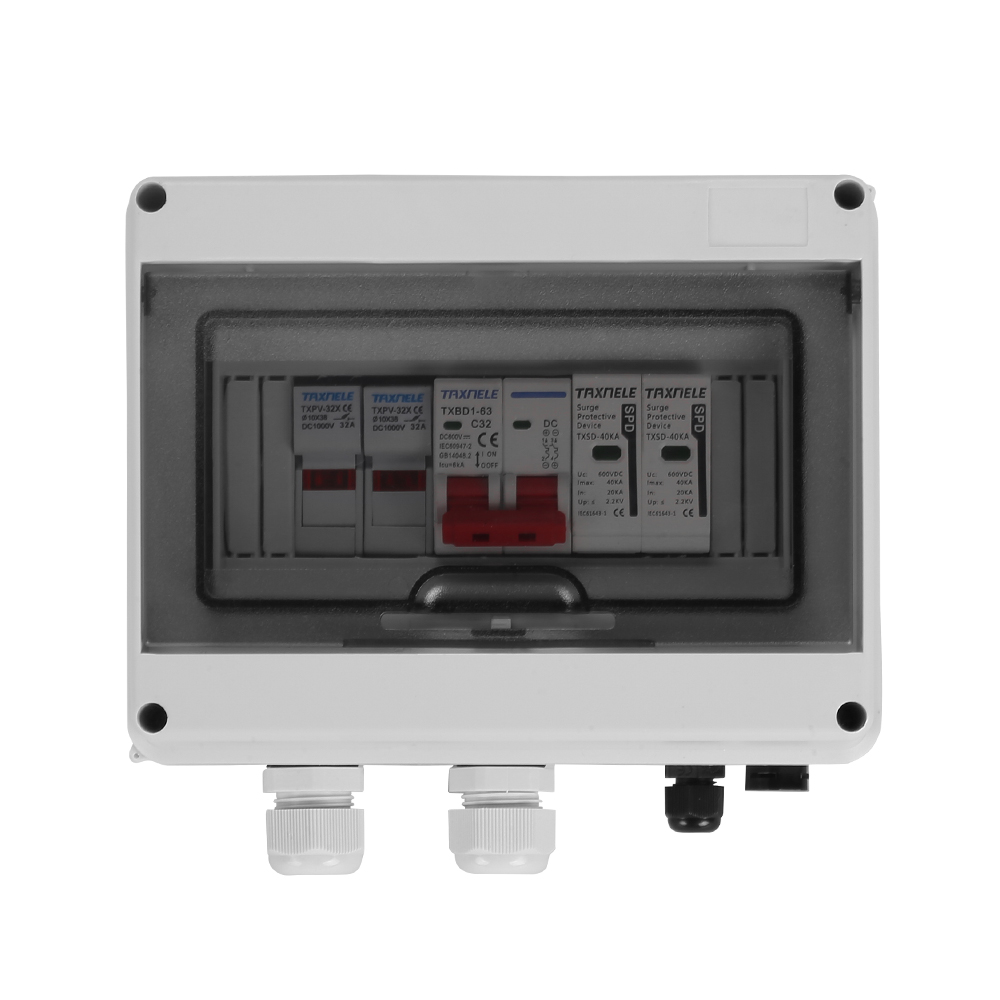

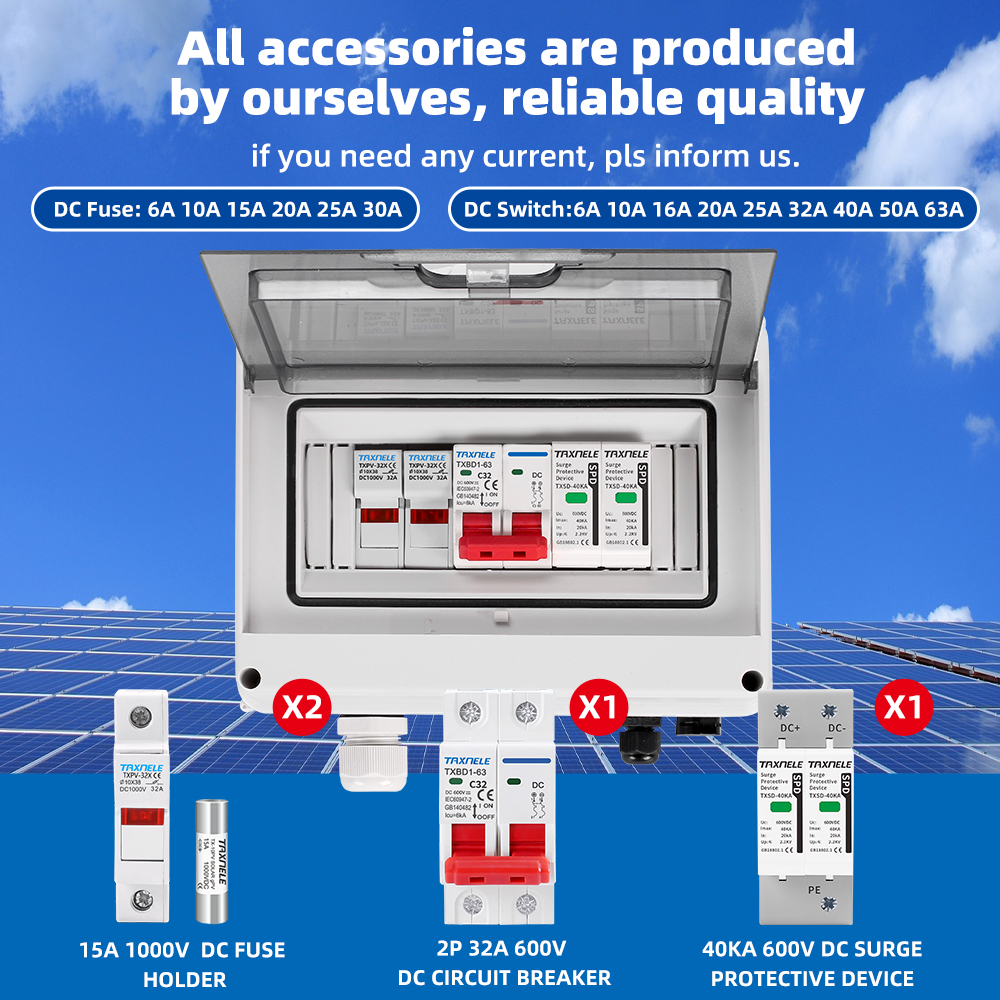

Designed for solar photovoltaic systems, this 1 in 1 out combiner box features reliable surge lightning protection, high-safety fuses, and an MCB housed in a heavy-duty IP65 waterproof enclosure.
| Photovoltaic System Parameters | |
|---|---|
| Rated Voltage | DC 600V |
| Max Input Amp (each string) | 15A |

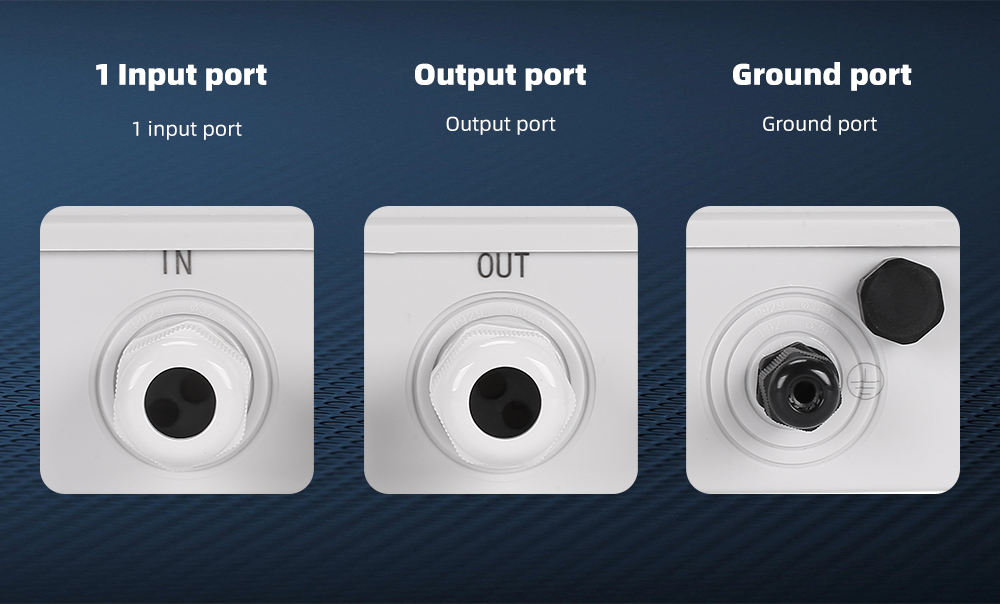

| Input / Output Strings | 1 Input / 1 Output |
| Surge Protection Category | II Grade Protection |
| Nominal Discharge Amp (In) | 20KA |
| Max Discharge Amp (Imax) | 40KA |
| Voltage Protection Level (Up) | 3.2KV |
| SPD Max Operation Voltage | DC 600V |
| Poles / Structure | 2P / Plug push module |

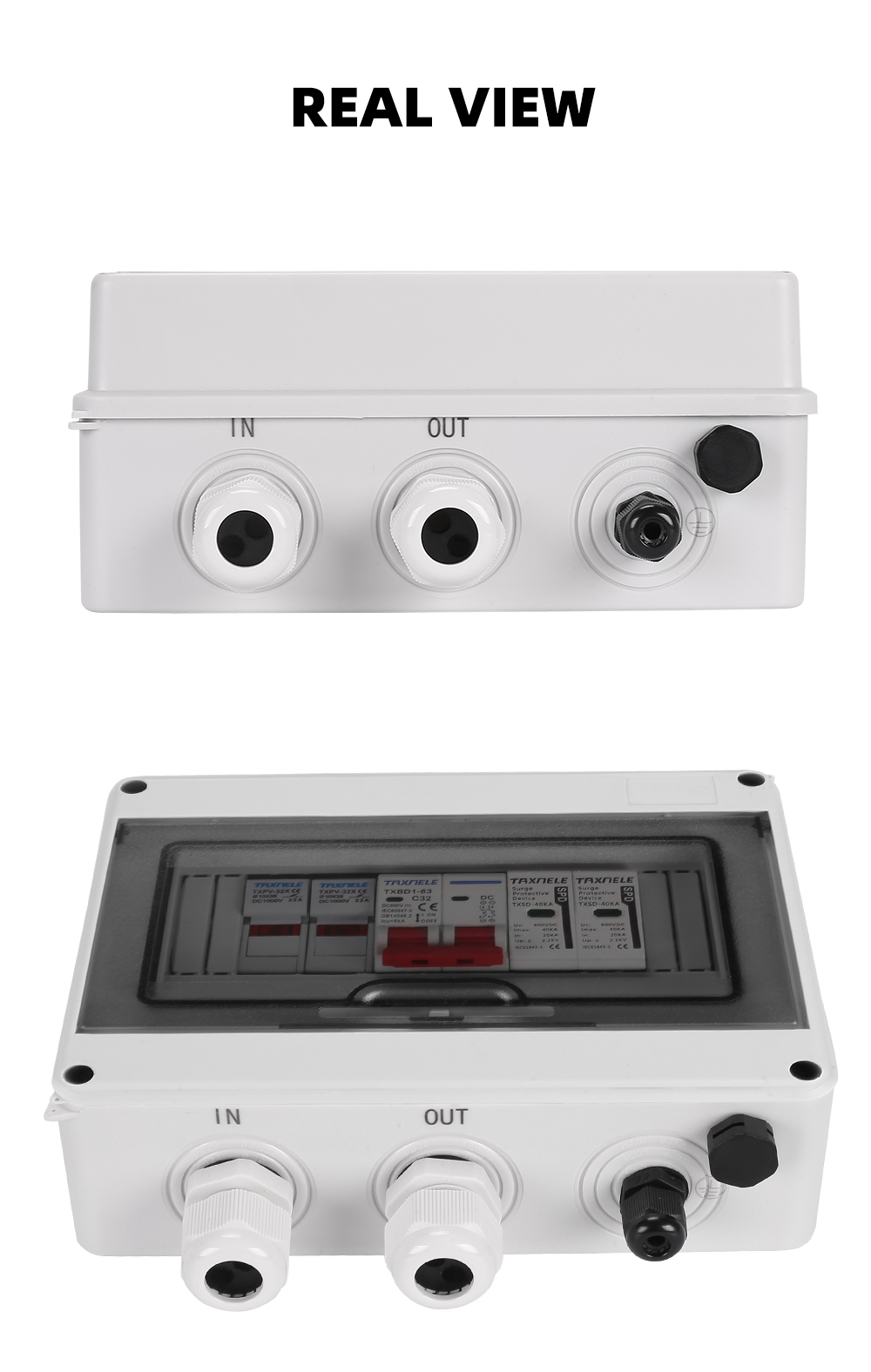

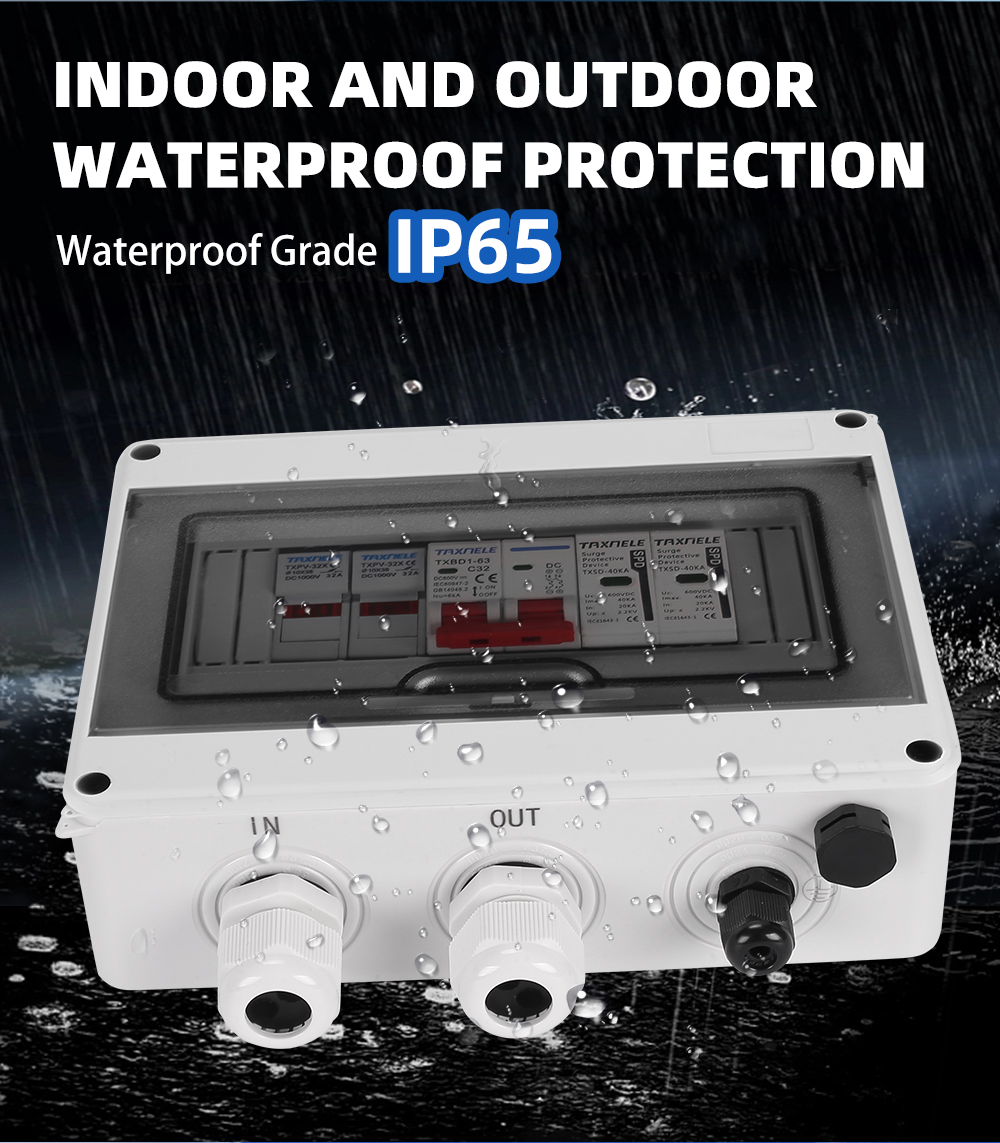

| Protection Grade | IP65 |
| Output Switch | DC circuit breaker |
| Box Material | PVC |
| Operating Temperature | -25℃ to +60℃ |
| Installation Type | Wall mounting (Indoors/Outdoors) |

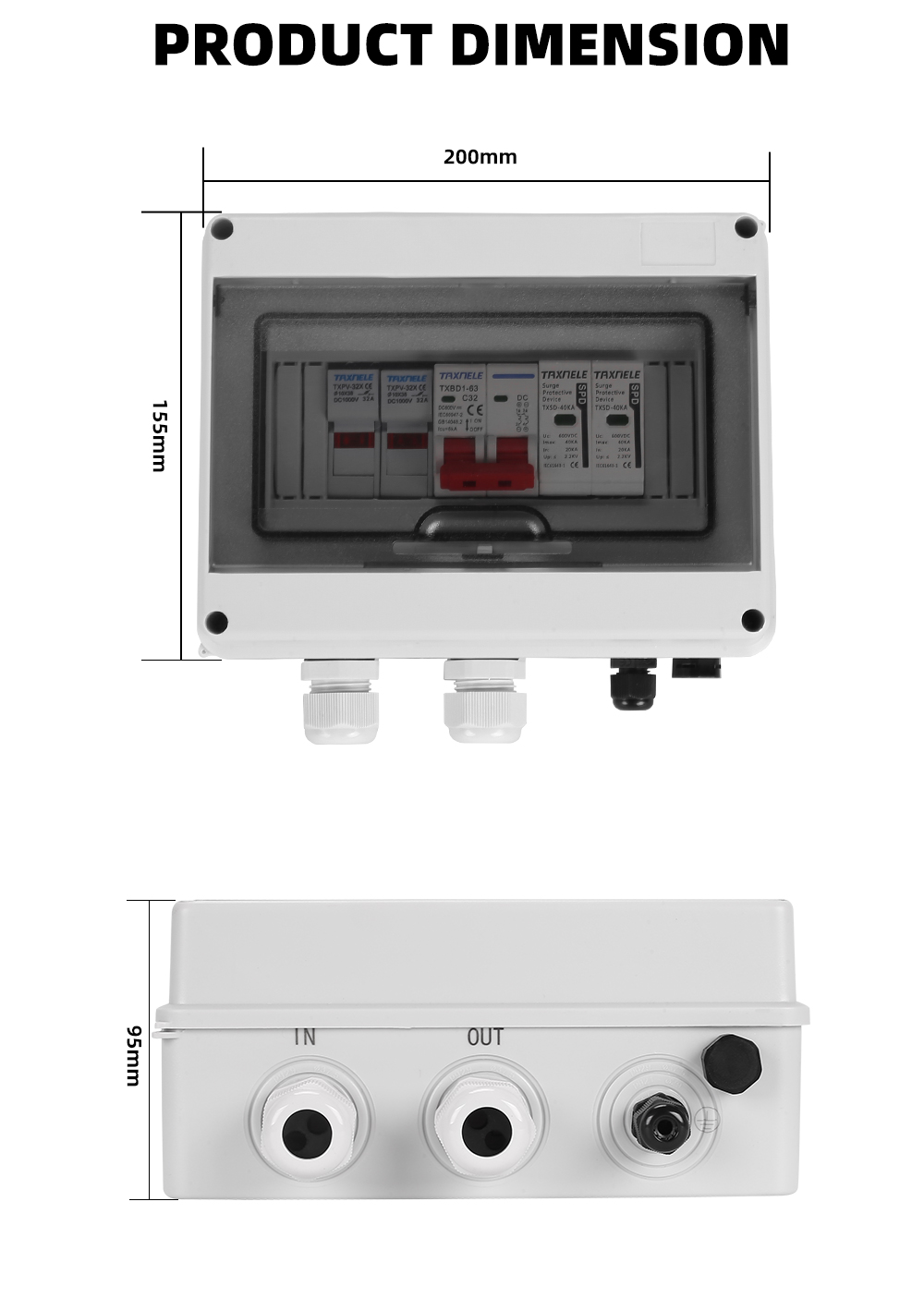

| Dimensions (W*H*D) | 200mm * 155mm * 95mm |
