| Technical Data | |||||
|---|---|---|---|---|---|

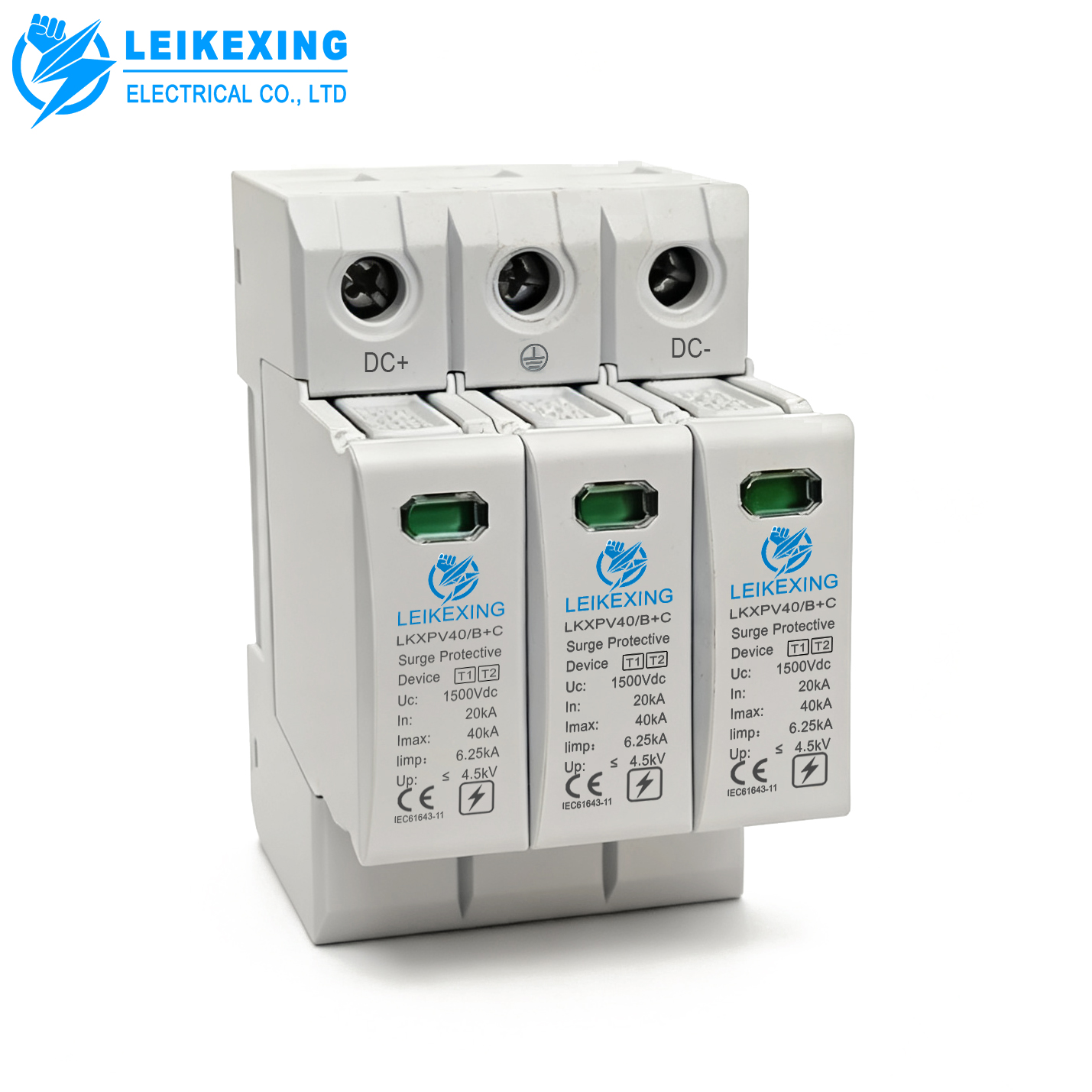

| Model | LKXPV40/B+C-DC600 | LKXPV40/B+C-DC800 | LKXPV40/B+C-DC1000 | LKXPV40/B+C-DC1200 | LKXPV40/B+C-DC1500 |
| SPD Type | Type 1+2 | ||||

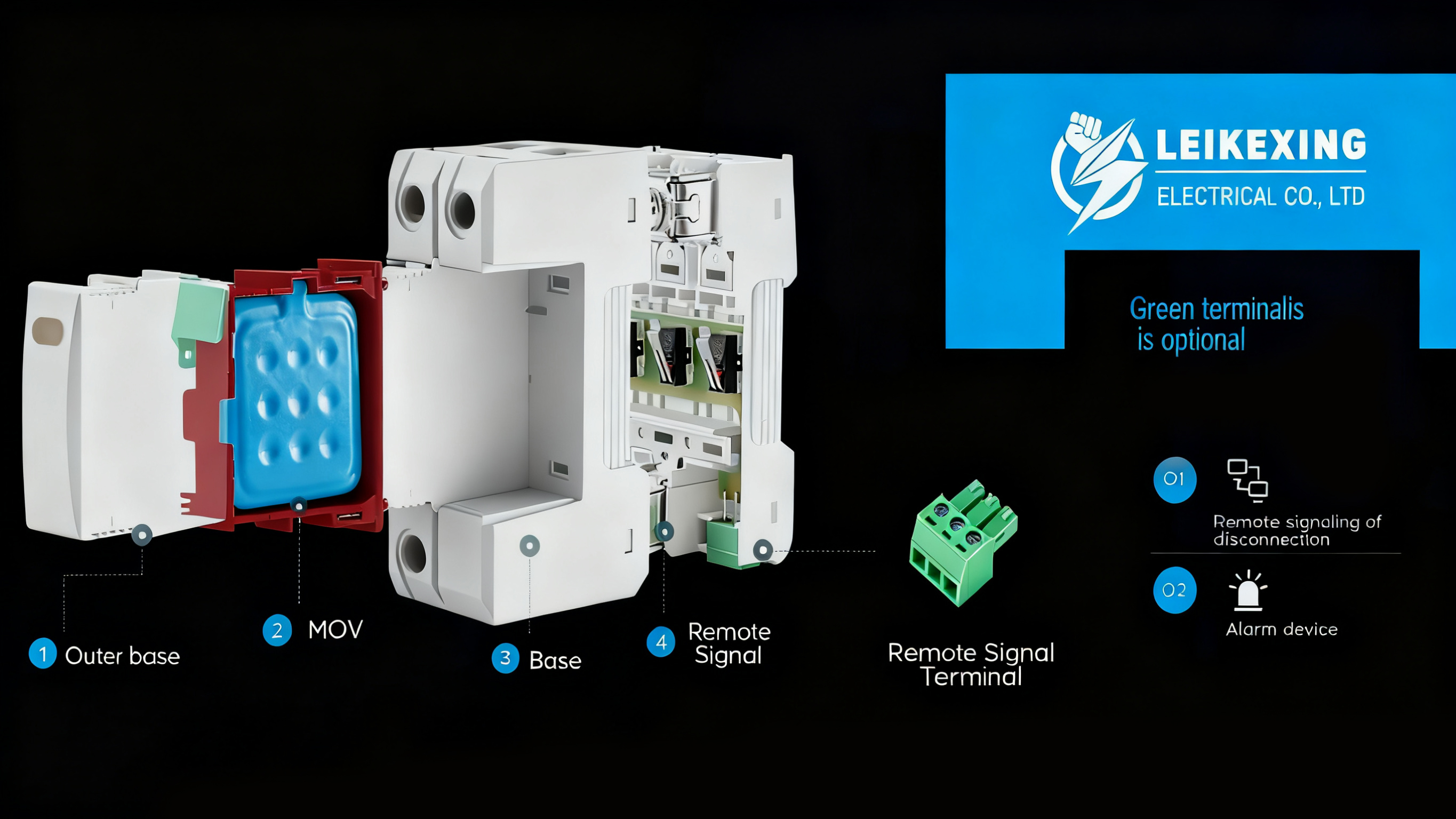

| Technology | MOV (Metal Oxide Varistors) | ||||
| Max. continuous operating voltage [Ucpv] | 600Vdc | 800Vdc | 1000Vdc | 1200Vdc | 1500Vdc |
| Nominal discharge current (8/20us) [In] | 20kA | ||||
| Max. discharge current (8/20us) [Imax] | 50kA | ||||
| Impulse Discharge Current (10/350us) [Iimp] | 6.25kA | 6.25kA | 6.25kA | 5kA | 3kA |
| Impulse Discharge Current (10/350us) [Itotal] | 12.5kA | 12.5kA | 12.5kA | 10kA | 6kA |
| Voltage Protection level [Up] | ≤2.6kV | ≤3.2kV | ≤3.8kV | ≤4.5kV | ≤5.2kV |
| Short-circuit current rating [Iscpv] | 20A | ||||
| Response time [tA] | ≤25ns | ||||
| Thermal Disconnection Device | Insertion | ||||
| Max. Backup Fuse | 125A gPV FUSE | ||||
| Mechanical Data | |||||
| SPD configuration | DC system | ||||
| Pluggable | Available | ||||
| Mounting | 35mm DIN rail | ||||
| Enclosure Material | Thermoplastic, conform to UL94 V-0 | ||||
| Operating Temperature Range | -40°C...+80°C | ||||
| Protection rating | IP20 | ||||
| Normal/fault Display | Green / Red | ||||
| Remote Signal | Optional | ||||
| Wiring for remote signaling | Max. 1.5mm² solid/flexible | ||||
| Max. Voltage / Current for remote signaling | 250V/0.1A; 125V/0.2A; 75V/0.5A | ||||
| Standards | IEC/EN 61643-11, GB/T 18802.31 | ||||
| Certificate | TUV, CE, UKCA, CB, IEC | ||||
| Packing Data | |||||
| 3Pole | 3+0/3P | ||||
| Weight (1 piece) | 400g | ||||
| Package Quantity | 48 PCS/CTN | ||||
| CTN Size | 41*39*15cm | ||||
