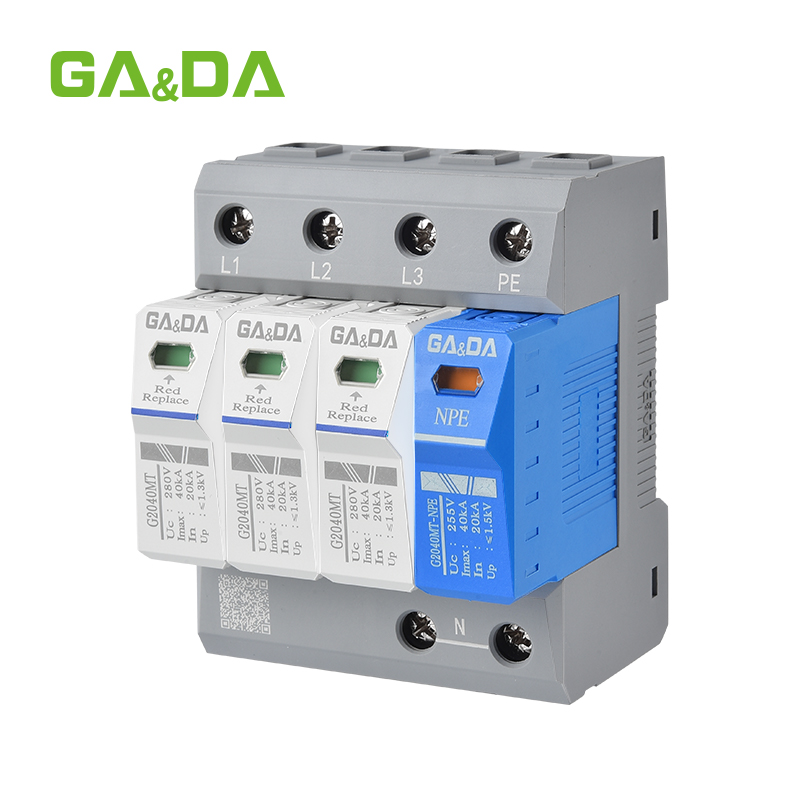

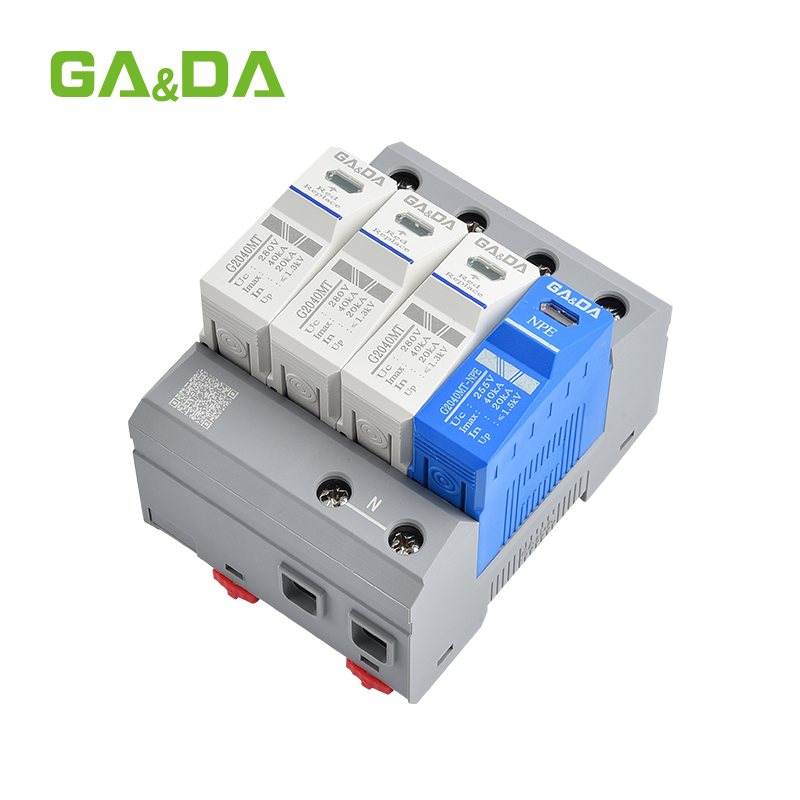

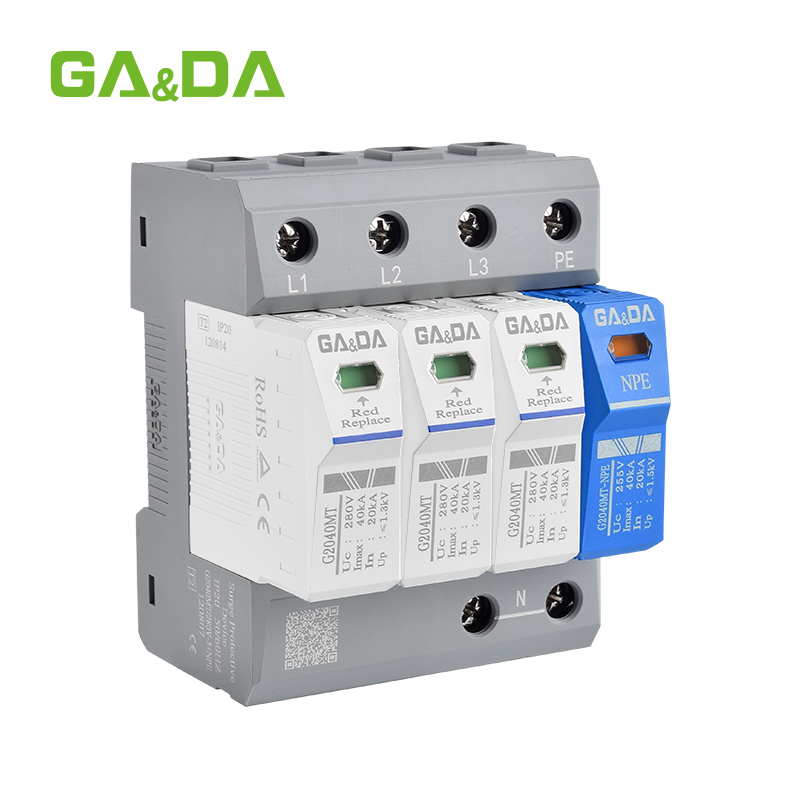

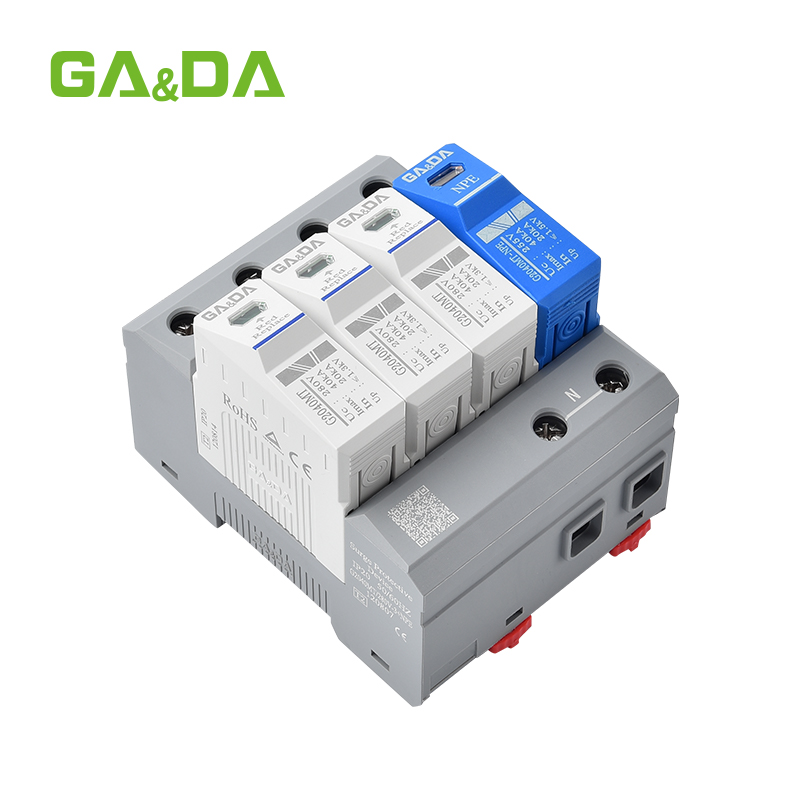

Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
1 / 5
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified
Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified

Whole House 3P+N AC Surge Protector 20-40kA 280V DIN Rail Mount T2 Power Guard Lightning Protection CE Certified

Send Inquiry

Product Description

Product Introduction
Surge protection device to prevent lightning surge voltage in low-voltage electrical system or solar energy system (photovoltaic power supply system). These devices must be installed in parallel on the low-voltage distribution system or DC power supply system to be protected, and provide common and different modes of protection. Its installation location is recommended to be located at the front end of the household side of the distribution system or at both ends of the DC power line (solar panel side and inverter/converter side), and equipped with matching circuit breakers or fuses.
Product Features
T2, T1+T2 surge protection devices are available for photovoltaic/low-voltage power system.
Module design, easy installation, and replaceable.
The color of the visible window indicates the running status: green indicates normal, red indicates abnormal.
No leakage, no working current.
Remote signal or intelligent monitoring module (optional).
Technical Specifications
Parameter Specifications (G2040MT)
Test standards EN/IEC61643-11 (Type 2 / Class 2 / T2 / Class C)
Max operating voltage (AC) Uc 150V 280V 320V 385V 440V NPE: 255V
Nominal discharge current (8/20us) In 20kA
Max discharge current (8/20us) Imax 40kA
Total lightning current (8/20us) L1/N→PE Itotal 1P: 40kA, 2P: 80kA, 3P: 120kA, 4P: 160kA
Voltage Protection Level Up ≤1.0kV ≤1.3kV ≤1.4kV ≤1.6kV ≤2.2kV ≤1.5kV
Response time ta < 25ns
Degree of protection IP20
Operating temperature range -40°C ~ +80°C
Failure indication Green: normal | Red: invalid
Approvals & Certification TUV / CB / CE / IEC / ROHS
Pole Configuration 1P / 2P / 3P / 4P / 1+NPE / 3+NPE
Remote signal interface option Available
Protection Class IP20
Product Architecture

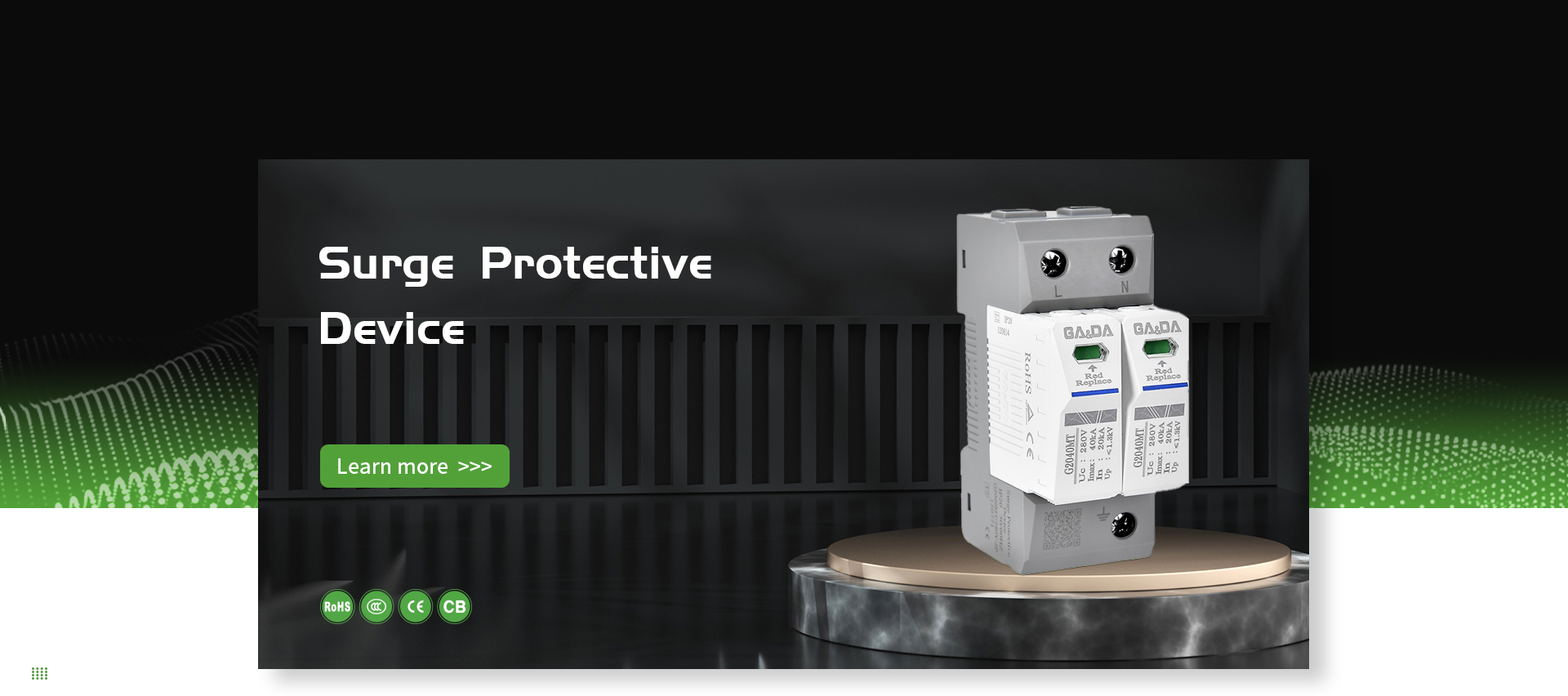

Product Parameters Overview
Detailed Advantages

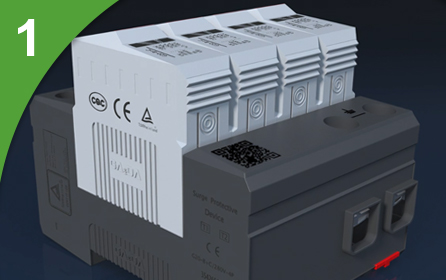

Structural Design
New Exterior & Structural Design
A brand new exterior structural design, novel and unique, with good contact performance and large flow capacity. The maximum lightning protection capacity of a single module can reach (8/20us) 80kA, (10/350us) 12.5kA.

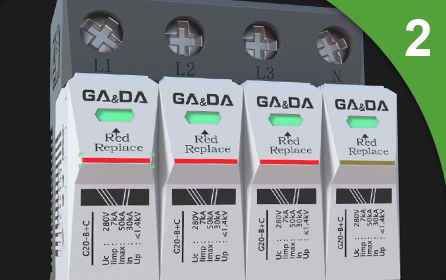

Color Recognition
Color Recognition System
A brand new color recognition system with a strip recognition system on the surface of the product, facilitating quick differentiation of various product types.

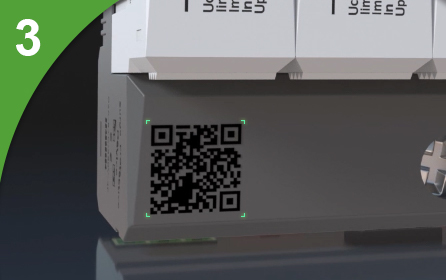

Quality Traceability
Quality Traceability System
Products achieve visual tracking. Each base is equipped with a QR code recognition system. Scanning with a mobile phone traces factory test data, model, date, and batch, strictly controlling consistency.

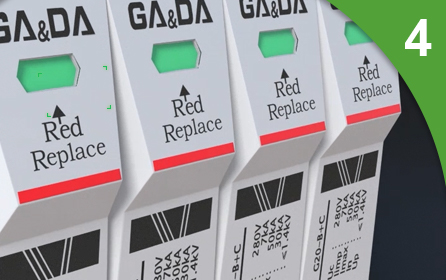

Thermal Release
Thermal Release Technology
No external detachment device is required. The detachment device provides reliable interruption, complete isolation after tripping, and self-extinguishing of the arc, avoiding wire drawing.
Plug and Drop

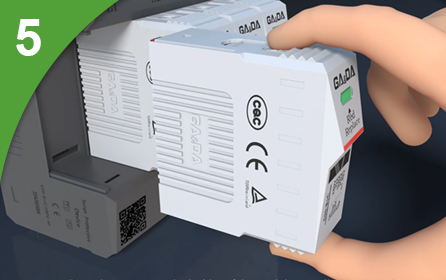

Hot Plug & Drop Design
Replacement can be carried out without interrupting system operation. Pressing the contacts on both sides of the module allows for easy insertion and removal with self-locking functionality.

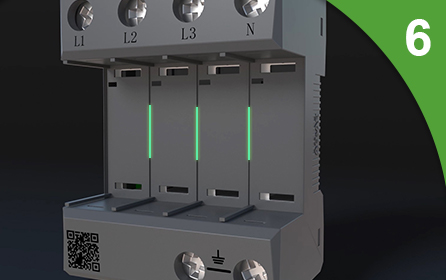

Arc Insulation
Arc Insulation Board Design
Arc insulation plates installed between each phase and wiring connection prevent arc pulling and flying between phases, ensuring ultimate stability and reliability.

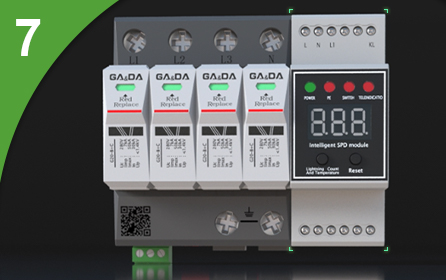

Remote Monitoring
Remote Recording Function
Add remote signaling terminals or intelligent monitoring modules to monitor current and working status, recording and displaying operations via mobile phones or computers.

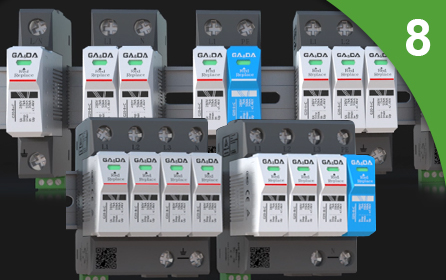

Installation Options
Multiple Installation Options
Different combination methods can be selected according to varying power distribution systems. Compact design supports four-wire products usable as dual two-wire products.
Product Certifications
Certificates Matrix
Manufacturing & Laboratory Excellence
Laboratory Setup

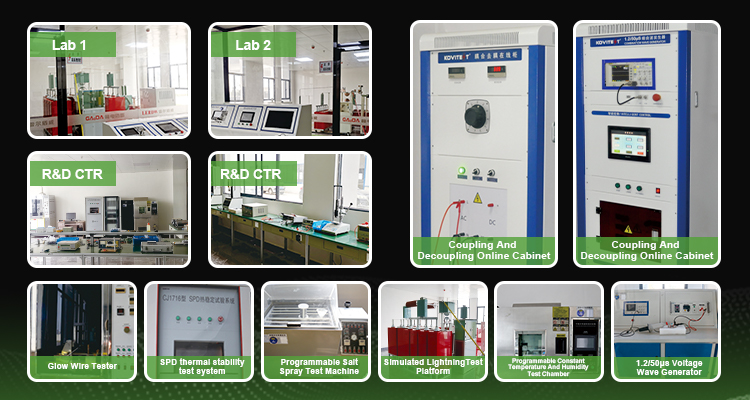

Professional Electrical Laboratory
Our facilities gather a highly skilled technical team committed to ensuring product stability and innovation:
• Lightning Impact Test Room: wave impact tests (8/20, 10/350, 1.2/50us).
• Safety Lab: Thermal stability & TOV fault tests (1A-300A).
• Environmental Lab: Salt spray, vibration, high & low temp tests.
• Physical/Chemical Lab: Metallographic, spectral, and RoHS analysis.
Production Process

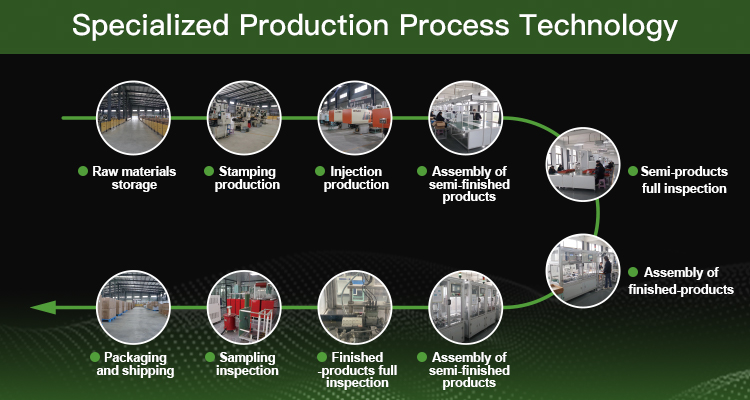

Specialized Production Technology
Advanced automatic production lines including plastic injection molding, hardware stamping, and multiple assembly lines. Integrates automatic gluing, soldering, film pressing, laser marking, and automatic data uploading to form a fully automated line ensuring lean production management.
Company Capabilities

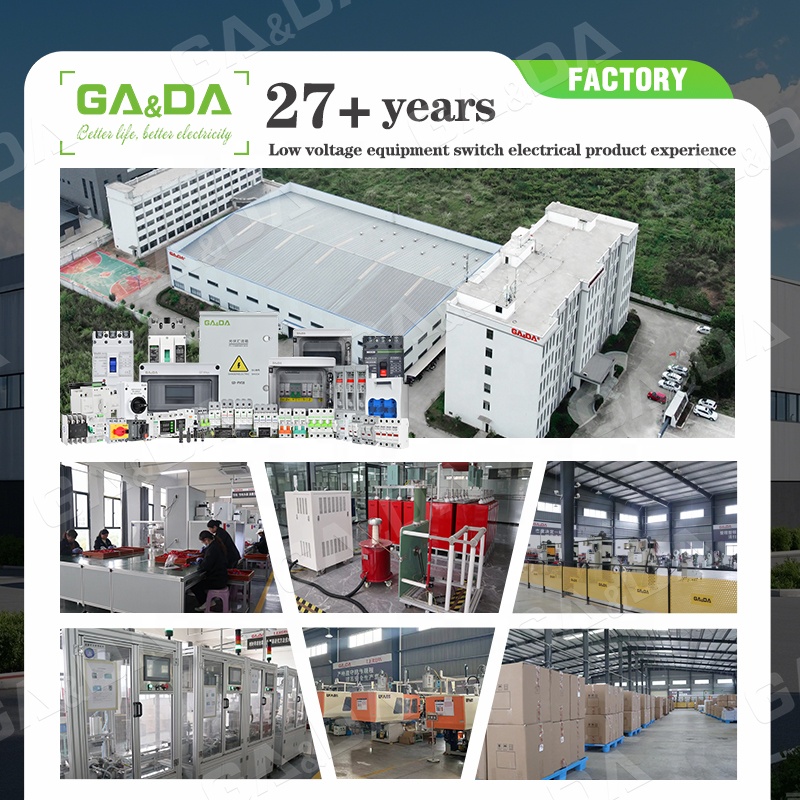

Carrying the mission of "not letting down every share of electricity and letting electricity do its best", our organization has developed into a professional lightning protection technology enterprise that integrates product research and development, manufacturing, and overall electrical product solutions over the past 10 years. With a factory area of over 30,000 square meters and a dedicated team of over 200 people, we are committed to the development and enhancement of new energy electrical products. Adhering to the path of technological innovation, we strive to build automated electrical equipment and digital production line bases.

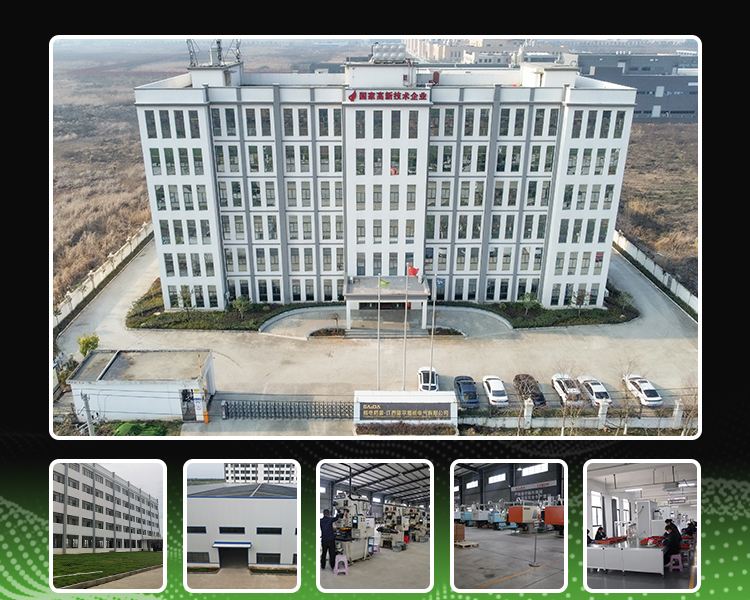

Company overview image
Recommended Products

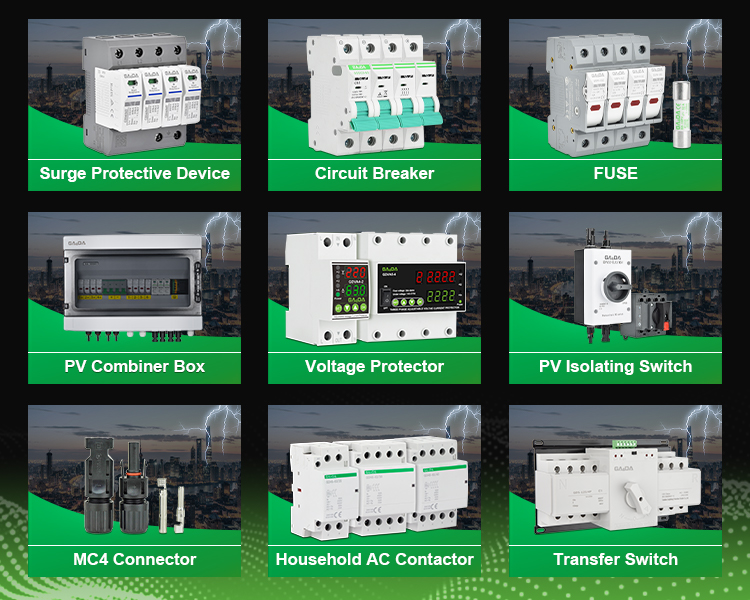

Recommended Products Collection
Exhibitions
Spring Canton Fair
Time: April 15th to 19th every year
Venue: Canton Fair Complex, Guangzhou
Autumn Canton Fair
Time: October 15th to 19th every year
Venue: Canton Fair Complex, Guangzhou
Hannover Messe
Time: April or May each year
Venue: Hanover Exhibition Center, Germany
Middle East Energy Dubai
Time: March or April each year
Venue: Dubai World Trade Center, UAE
Munich Electronics Exhibition
Time: Once every two years
Venue: New Munich Exhibition Center, Germany
Brazil Power Show FIEE
Time: Once every two years
Venue: São Paulo, Brazil
Exhibition booth Exhibition interaction Exhibition hall
Dubai Exhibition Munich Exhibition Brazil Exhibition
Gallery Photo 1 Gallery Photo 2 Gallery Photo 3
Gallery Photo 4 Gallery Photo 5 Gallery Photo 6
Gallery Photo 7 Gallery Photo 8 Gallery Photo 9
Gallery Photo 10 Gallery Photo 11 Gallery Photo 12
Frequently Asked Questions
How do you ensure product quality?
We maintain a low 0.03% defect rate (1/3 of the industry average). This is achieved through a rigorous 100% triple inspection system: Raw materials → Semi-finished → Finished products, backed by a proprietary testing system exceeding IEC standards and a 90% automated production line.
What makes your pricing competitive?
For the same price tier, we supply superior materials that offer a 15% longer service life as verified by TUV laboratory reports. Our low defect rate also dramatically reduces after-sales and replacement costs.
Can I request product samples?
Yes, we provide free standard samples where you cover the shipping fee. Customized samples are subject to a refundable fee. Standard samples prepare in 3-5 days, while customized options take 7-15 days.
What are your customization capabilities?
Over 80% of our orders are tailored solutions. With an experienced R&D engineering team, we have a maximum 60-day development cycle and a proprietary database featuring over 200 surge protector designs.
What certifications do your products carry?
Our manufacturing facilities are ISO 9001/14001/45001 certified. Our core product series are certified under major international standards, including TUV, CE, CB, RoHS, and comply with IEC61643.
What is your warranty policy?
We offer a solid 1-year replacement warranty. If product defects are reported and confirmed within 72 hours of arrival, we will supply replacements promptly.
