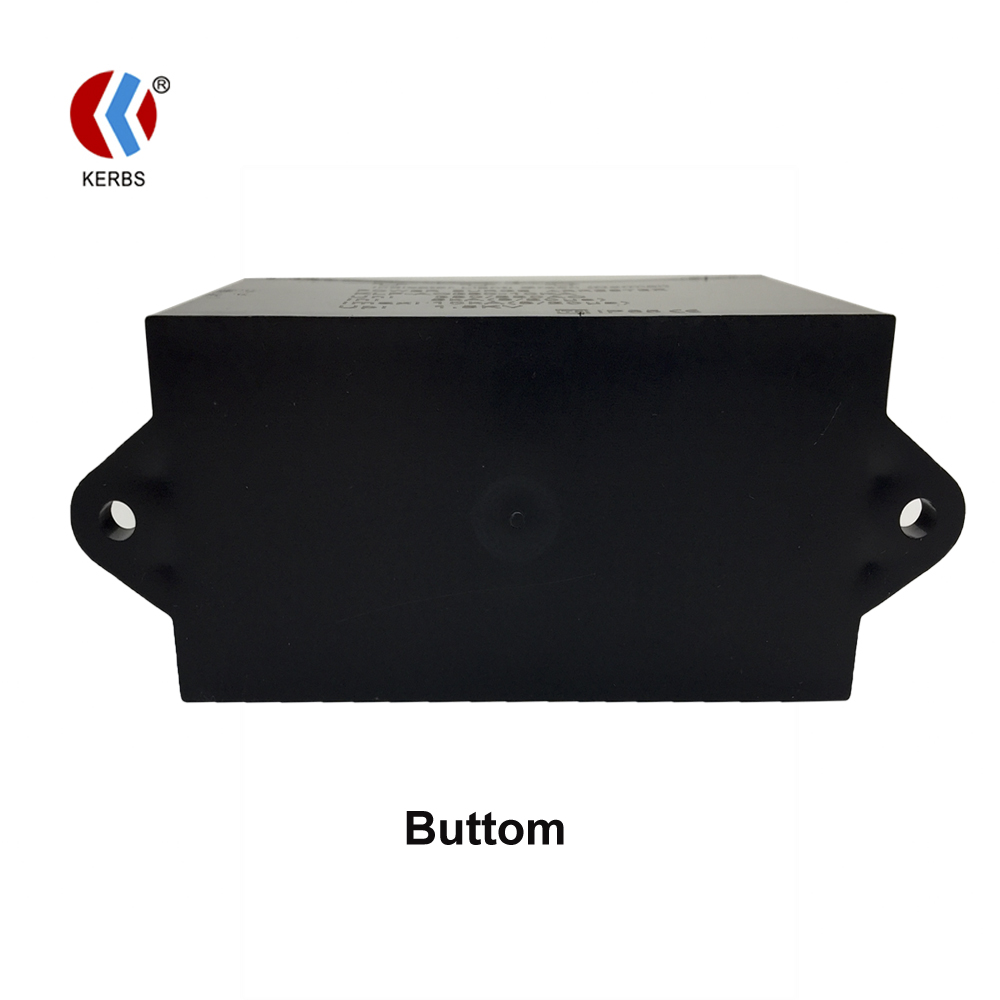

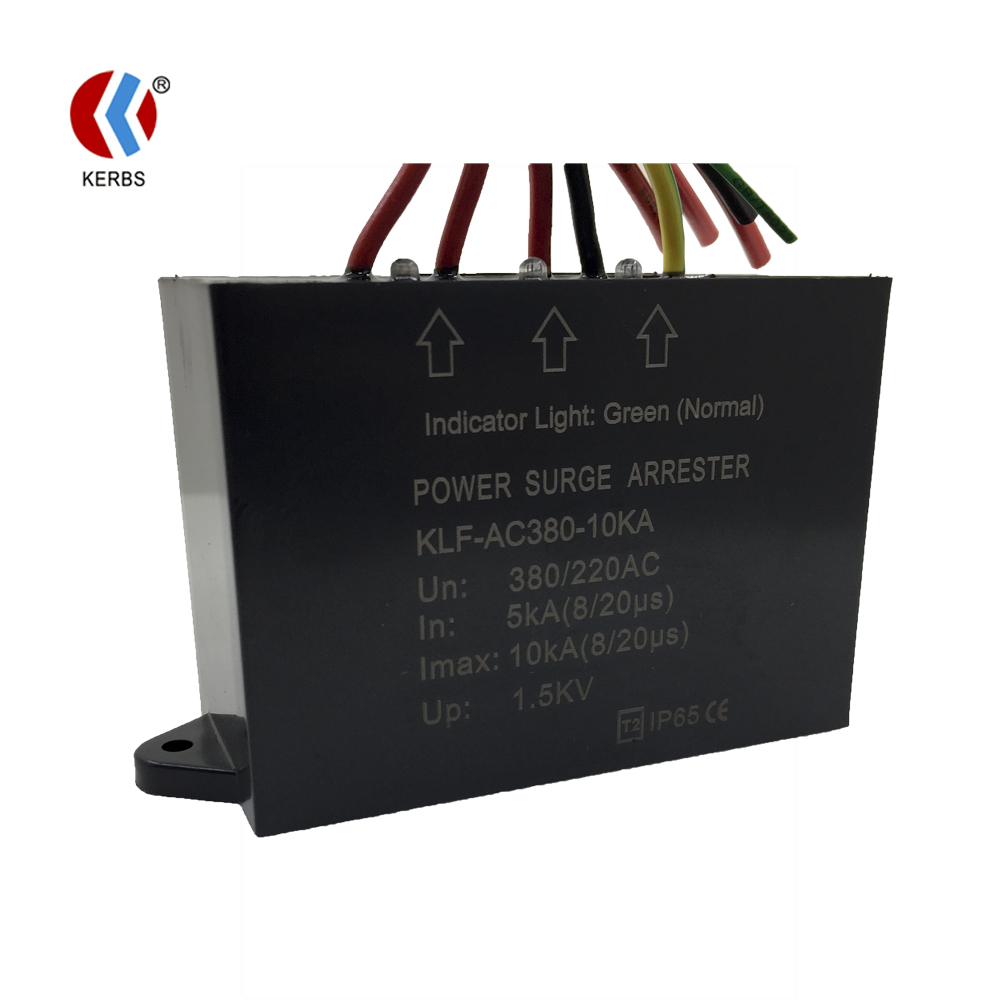

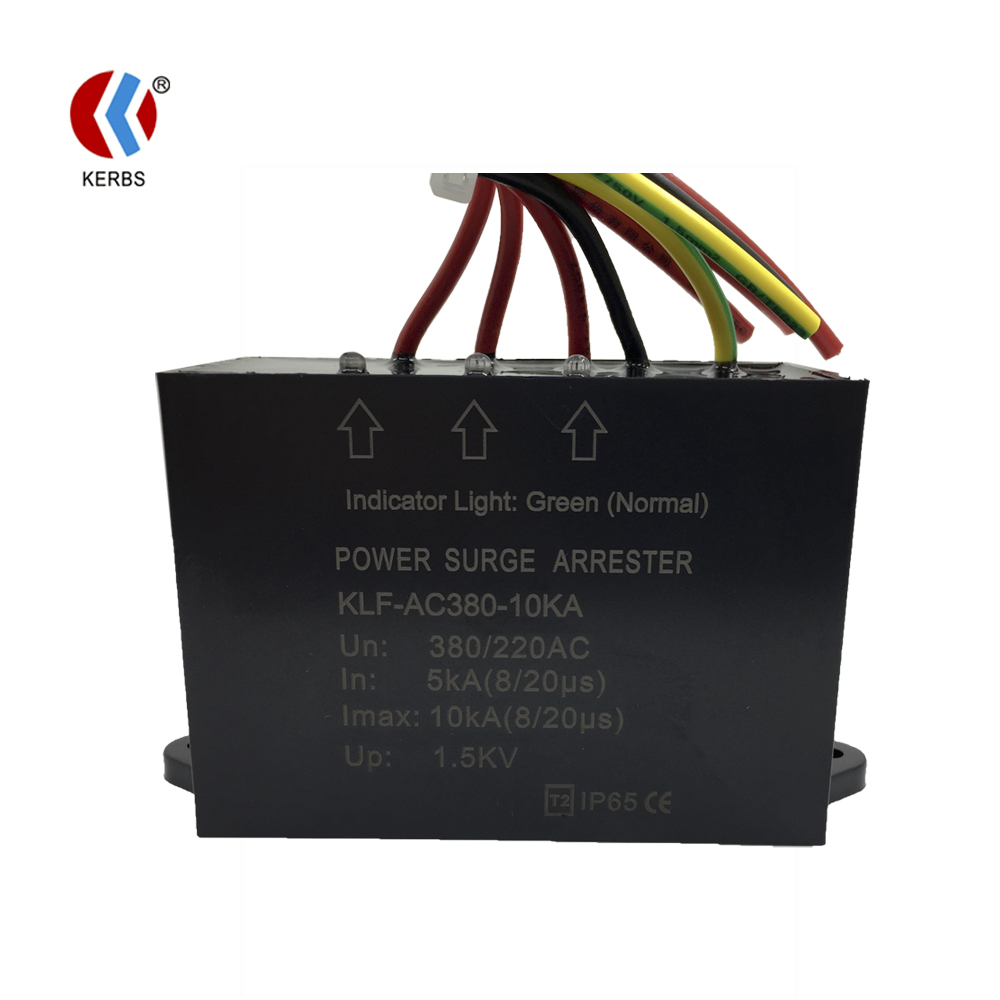

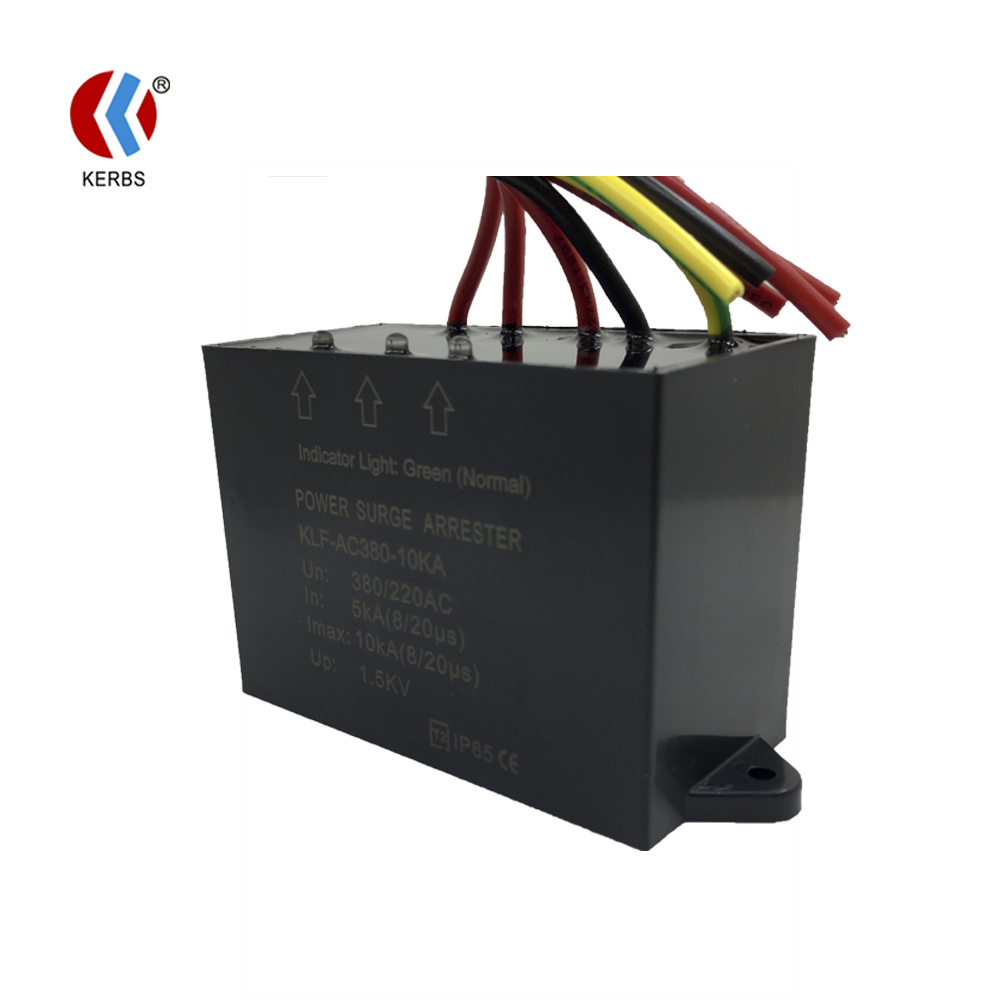

| LED Lighting Surge Protector Module Type | KLF-AC380-10KA | KLF-AC220-20KA |
|---|---|---|
| Protection Class | C | C |
| Working Voltage(Un) | 380V | 220V |
| Max. Continuous Operating Voltage (Uc) | 385V | 275V |
| Nominal Discharge Current (8/20μs) (In) | 5KA | 5KA |
| Max. Discharge Current (8/20μs) (Imax.) | 10KA | 10KA |
| Voltage Protection Level (Up) | ≤1.0KV | ≤1.2KV |
| Response Time | < 25ns | |
| Leakage Current | ≤20μA | |
| Working Environment | Temperature -40°C~+80°C; Relative humidity <95% | |

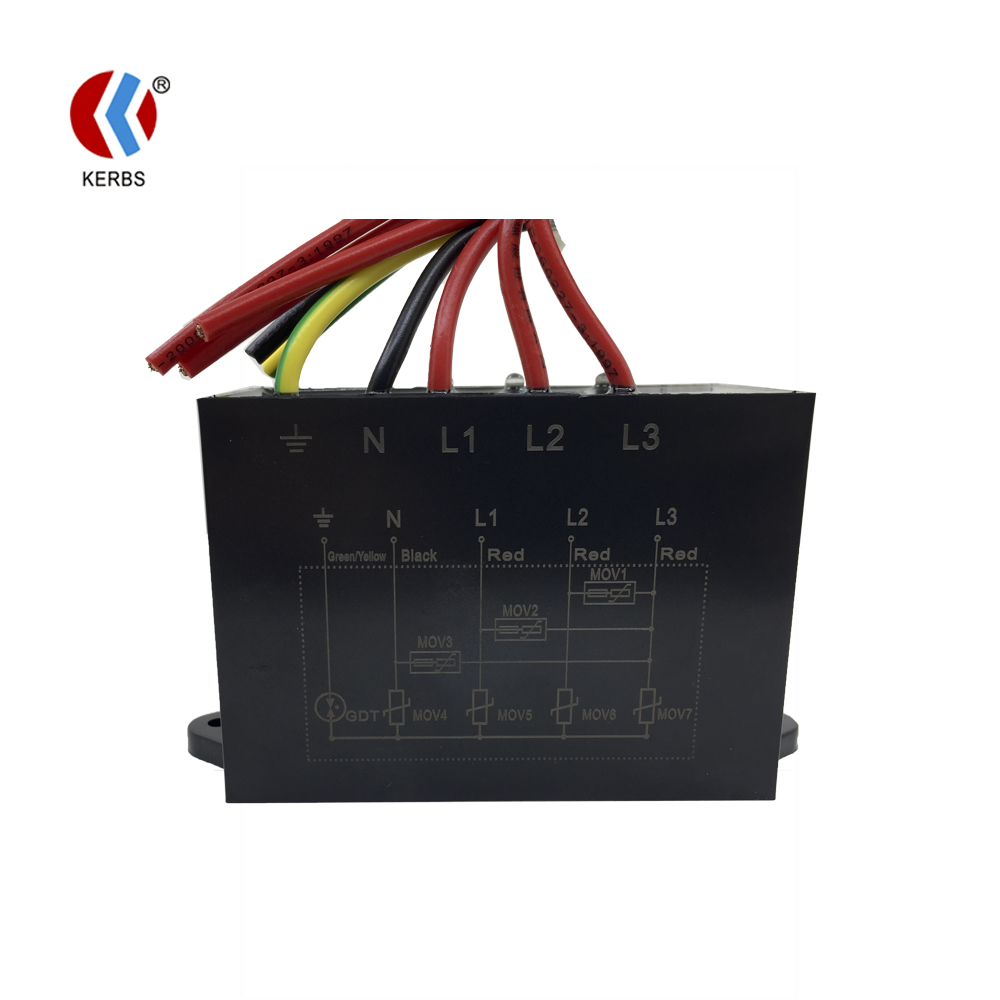

| Protection Mode | L-L, L-N, L-G, N-G | |
| LED Surge Protector Module Dimension (L×W×H) | 78×38×56mm | |

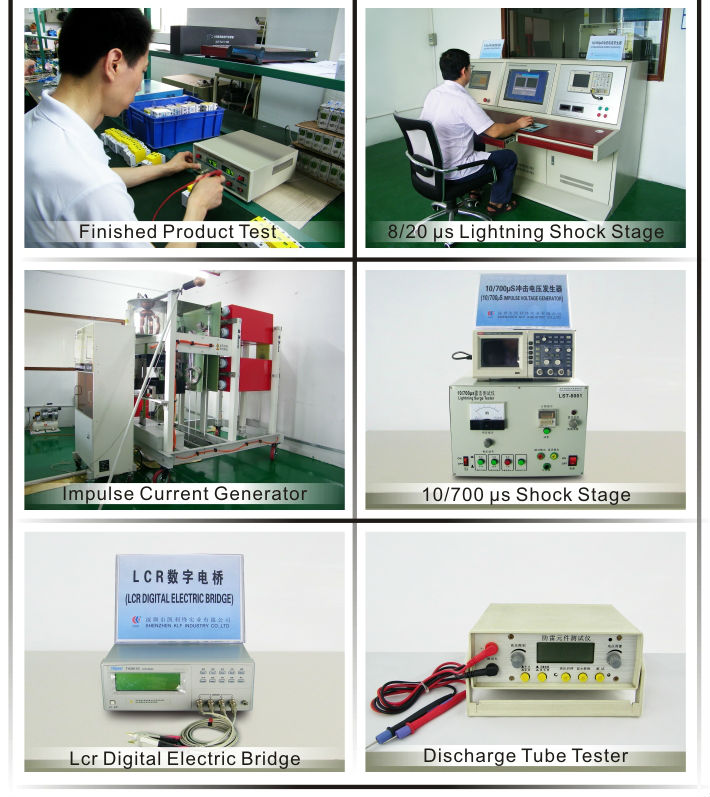

Established in April of 2004, our company is a high-technology enterprise specializing in surge protective device products' R&D, manufacturing, and sales. It is one of the domestic market's most prominent factories for producing and selling SPDs. The existing product line includes the power series SPD, signal series SPD, video monitoring series SPD, lightning rod, and more.

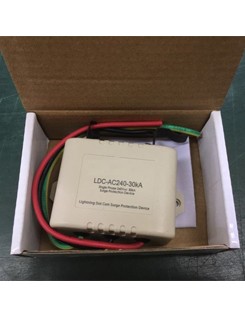

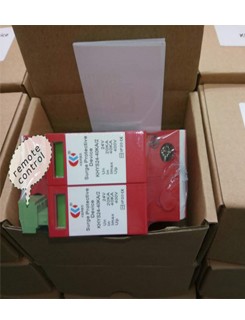

All the goods are packed in white boxes and cartons. OEM packaging is fully accepted upon request.
