| Description | Features |
|---|---|

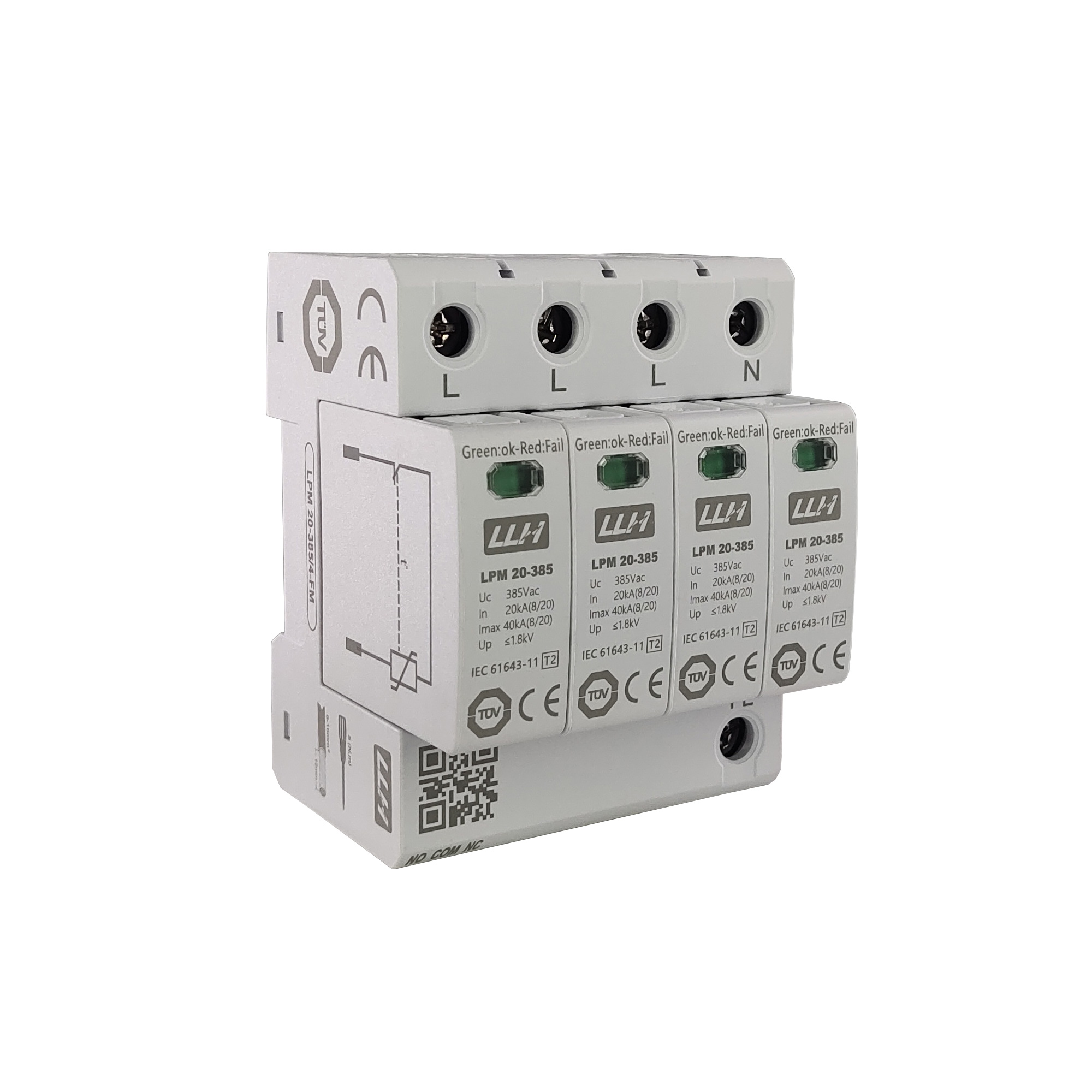

| Suitable for installation in LPZ 0B-1 and subsequent lightning protection zones, used as a lightning arrester for three-phase power supply systems. |
• Module pluggable and anti vibration design • Built-in ultra-low temperature release mechanism |
| Standards | IEC 61643-11 |
| SPD type | T2 |
| Models |
2P: LPM 20-275/2, LPM 20-320/2, LPM 20-385/2, LPM 20-440/2 1+N(2P): LPM 20-275/1+NPE, LPM 20-320/1+NPE, LPM 20-385/1+NPE, LPM 20-440/1+NPE 4P: LPM 20-275/4, LPM 20-320/4, LPM 20-385/4, LPM 20-440/4 3+N(4P): LPM 20-275/3+NPE, LPM 20-320/3+NPE, LPM 20-385/3+NPE, LPM 20-440/3+NPE |
| Electrical parameters | |
| Nominal operating voltage Un | 220Vac (50Hz) |
| Maximum continuous operating voltage Uc | 275Vac(50Hz), 320Vac(50Hz), 385Vac(50Hz), 440Vac(50Hz) |
| Nominal discharge current (8/20μs) In | 20kA |
| Maximum discharge current (8/20μs) Imax | 40kA |
| Response time tA | L-N: ≤ 25ns N-PE: ≤ 100ns |
| Protection Circuit |
2P: L, N-E 1+N: L-N, N-E 4P: L1, L2, L3, N-E 3+N: L1, L2, L3-N, N-E |
| Mechanical parameters | |
| Installation method | DIN Rail 35mm |
| Screw torque | 5N*m |
| Strip length | 12mm |
| Wiring cross-sectional area | 2.5mm²-32mm² |

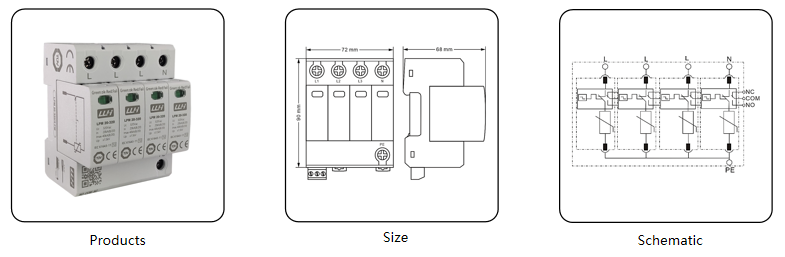

| Product size |
2P: 90mm x 36mm x 68mm 4P: 90mm x 72mm x 68mm |
| Shell material and flame retardant grade | Mineral nylon PA6, V0 |
| Alarm system | |

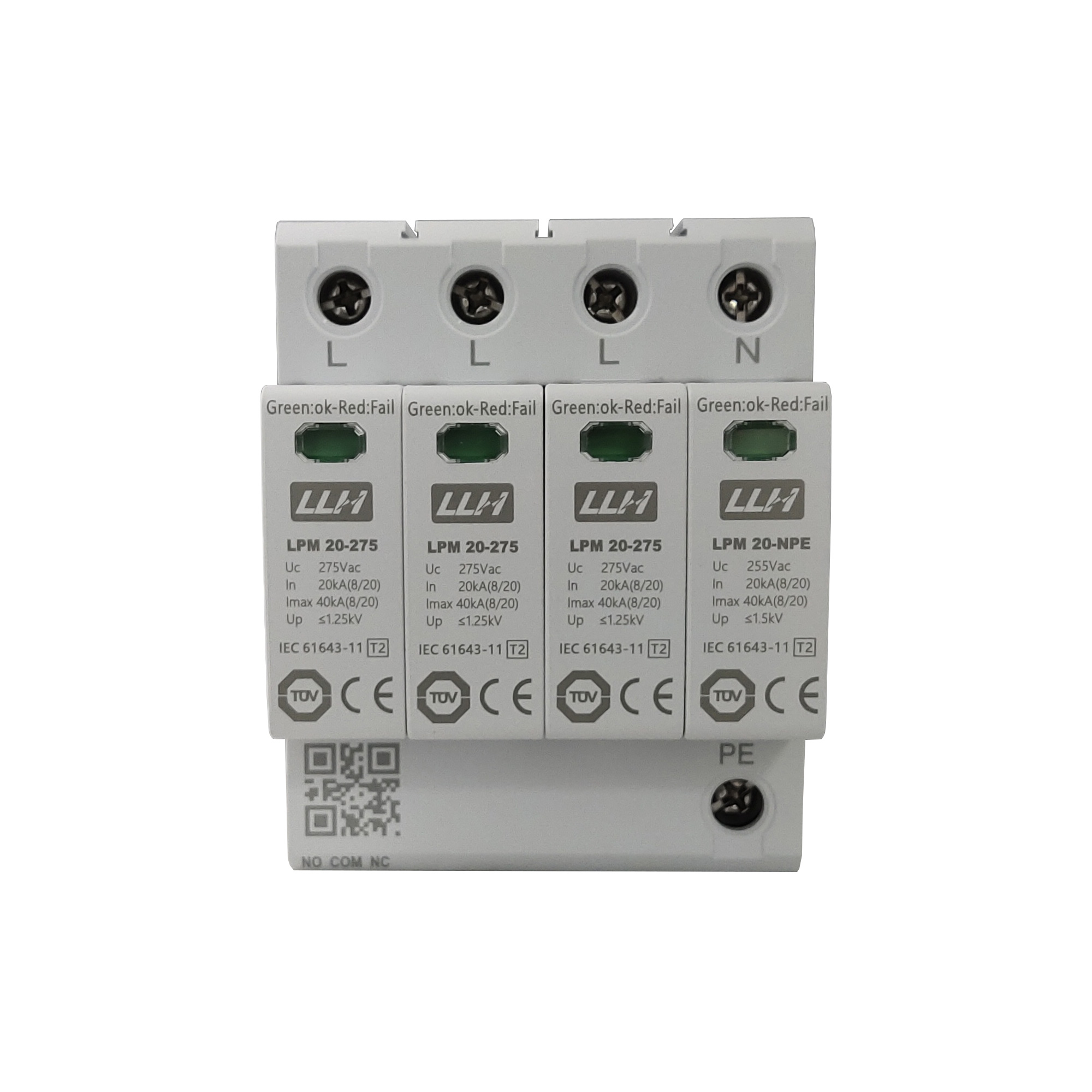

| Deterioration indication | Window green: OK; Window red: Fail |
| Remote signaling contact type | Normally closed and normally open switching contacts |
| Remote signaling contact switching ability | 125Vac/1A, 125Vdc/0.2A |
| Maximum connection capacity of remote signaling | 2.5mm² |
| Work environment | |
| Installation position | Indoor |
| Degrees of protection provided by enclosure | IP20 |
| Temperature range | -40°C ... +70°C |
| Humidity range | Relative humidity ≤ 95% (max 40°C) |
| Certification | TUV, CE |

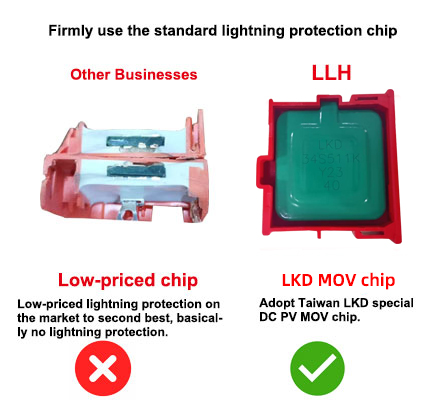

Our lightning protection products insist on using standard lightning protection chips that can withstand high lightning strikes. The unloading voltage is rapid.

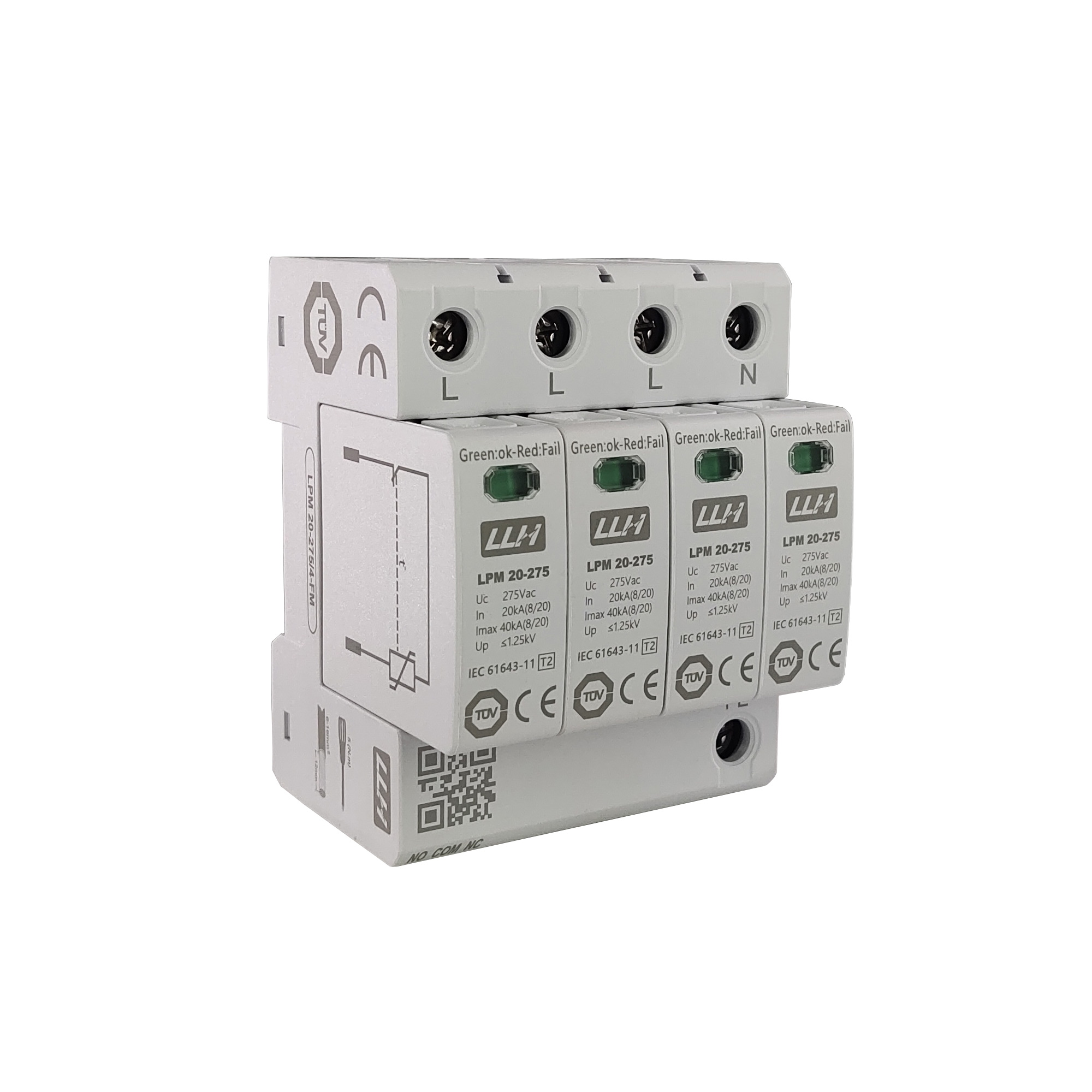

Flame Retardant Material, Insulating Shell, Safe to Use.
Failure indication function, maintenance personnel can easily and quickly judge the quality of the product.

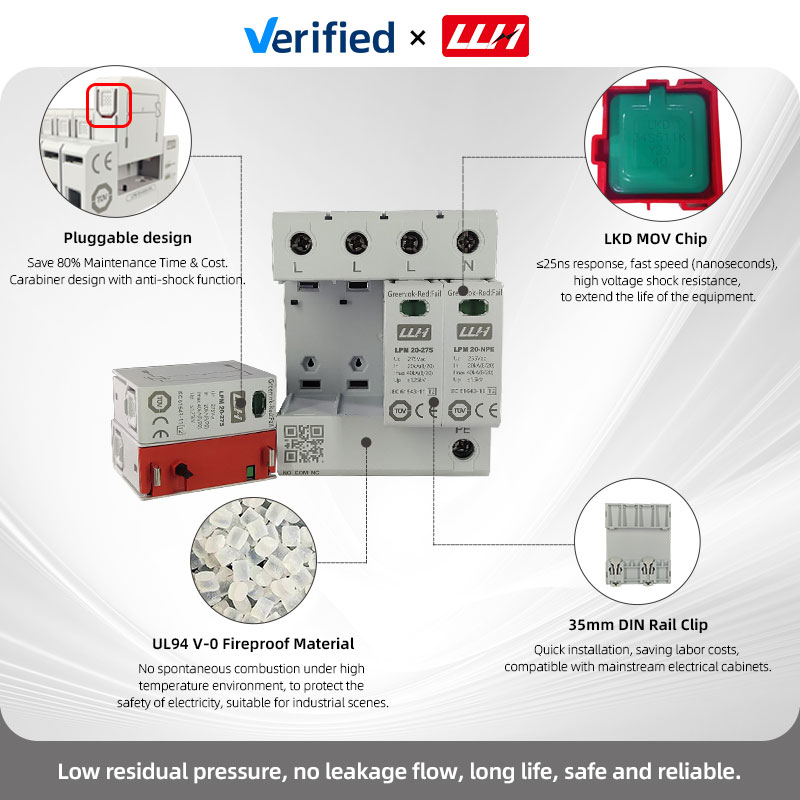

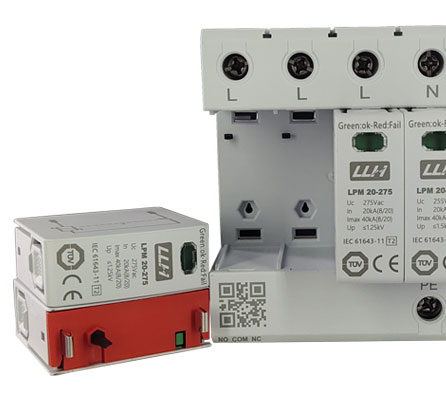

The Pluggable design can be replaced without interrupting the operation of the system. Press the contacts on both sides of the module to easily plug and unplug. Foolproof design, self-locking function, and easy maintenance.

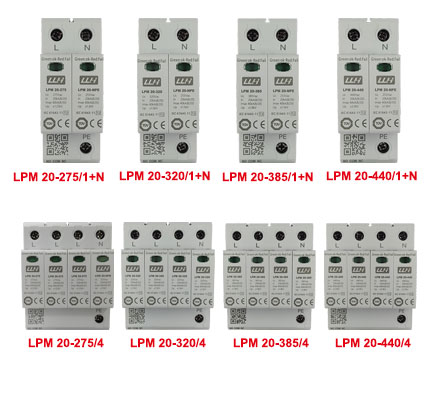

Multiple choices, small size, and can also provide four-line products, which can be used as two second-line products to meet different installation environments.
? What is our main specialization?
We are a high-tech enterprise specializing in the research, development, manufacturing, sales, and installation services of lightning arresters and related products.
? What products do we offer?
Our product range includes ultra-low residual voltage lightning arresters, lightning protection boxes, modules, composite lightning arresters, signal lightning arresters, and more.
? Which industries do our products apply to?
Our products are widely used in industries such as telecommunications, power, petroleum, transportation, and security.
? Do we accept OEM and ODM orders?
Yes, we welcome OEM and ODM cooperation to provide customized solutions.
? How do we ensure product quality and after-sales service?
We prioritize product quality and customer satisfaction, offering excellent after-sales service and ensuring our products meet the highest standards.
? What international standards do your Surge Protective Devices (SPDs) meet?
Our Surge Protective Devices are designed, manufactured, and certified in strict compliance with the international standard IEC 61643-11.
