📋Overview

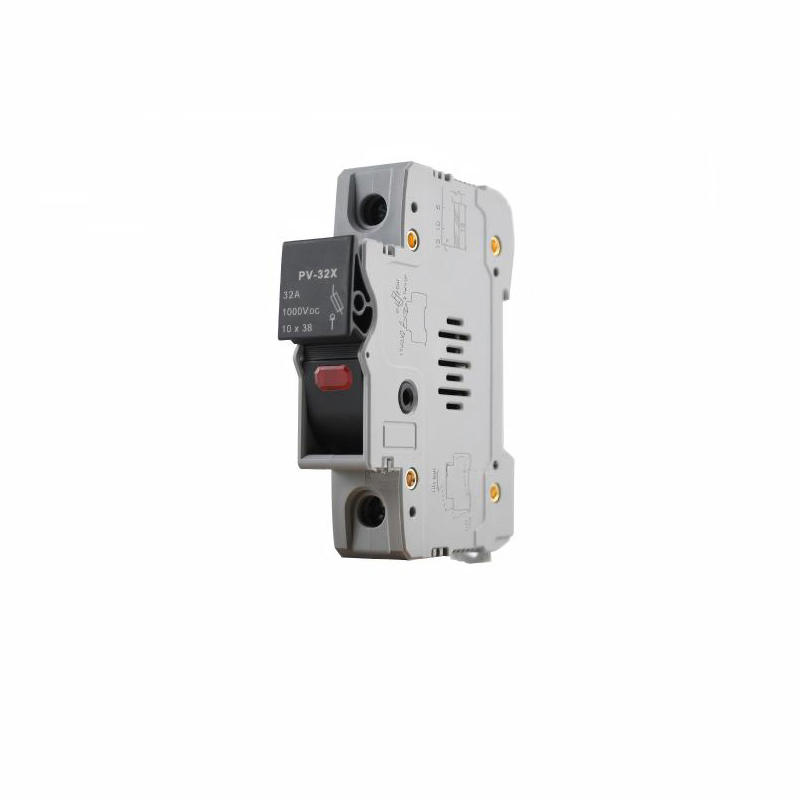

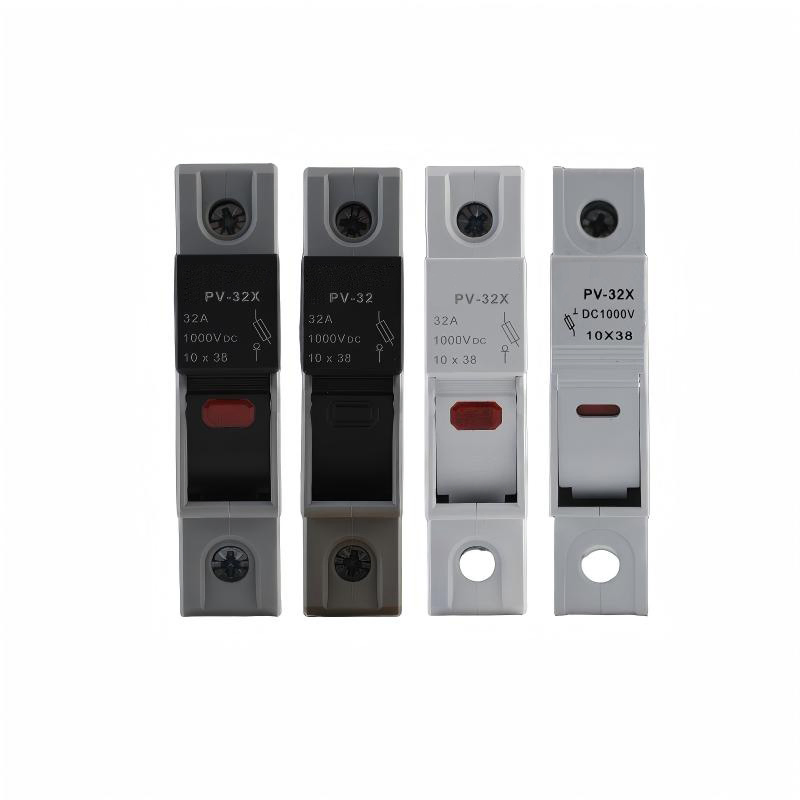

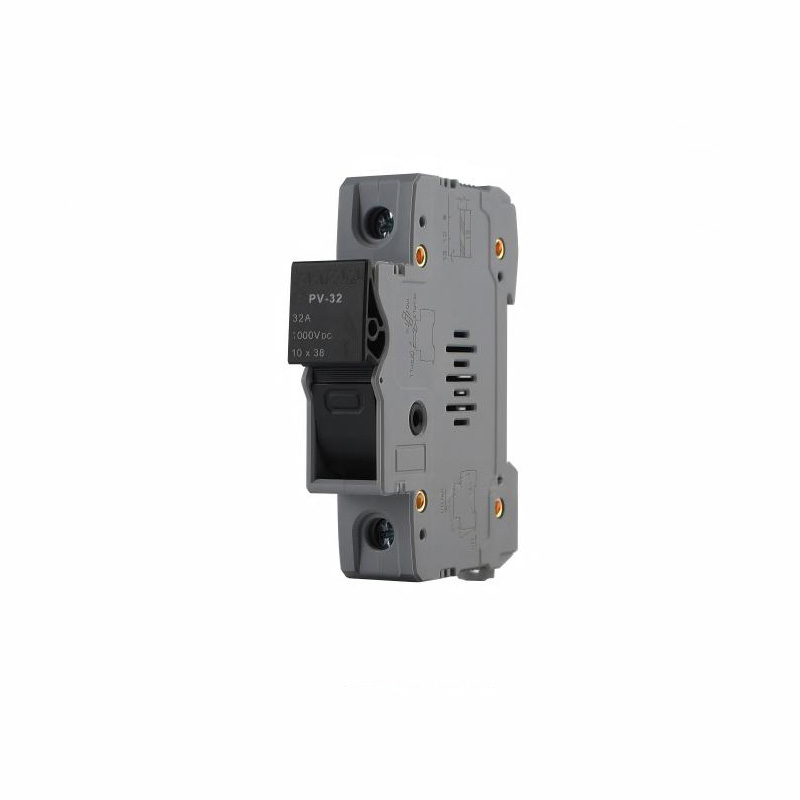

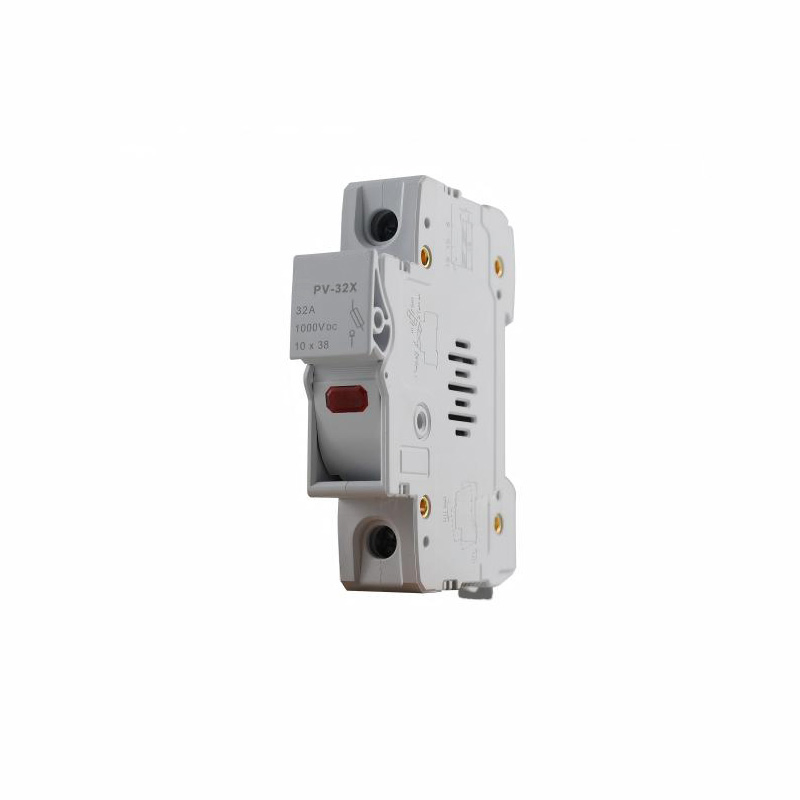

Solar Photovoltaic Fuse Connectors are specifically designed to provide fast-acting protection against overcurrent conditions in photovoltaic systems. The cylindrical fuse link with standardized dimensions can safely protect photovoltaic (PV) systems at the rated DC voltage. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays.
⚙️Basic Info
Model NO.RCF
UsageLow Voltage
ShapeInsert
Fusing SpeedF
Fusing DevicePop-up Solid
StandardIEC
Warranty2 Years
Rated Voltage1000VDC / 1500VDC
Rated Current32A
Internal AccessoriesCopper
Model NumberRcf
ColorCustomers' Requirements
Size of FuseMedium Fuse Holder
CustomizeYes
OEM & ODMAccept
ApplicationSolar Energy System
SizeMedium
Protection DegreeIP20
Mechanical Life20000 times
Transport PackageCarton
Specificationpcs
OriginChina
🏭Production & Quality
Specialized in the R&D, production and sales of industrial electrical products. Adhering to the business philosophy of "technology-driven, quality-oriented, customer-centric", we are committed to continuous product innovation and technological upgrading.

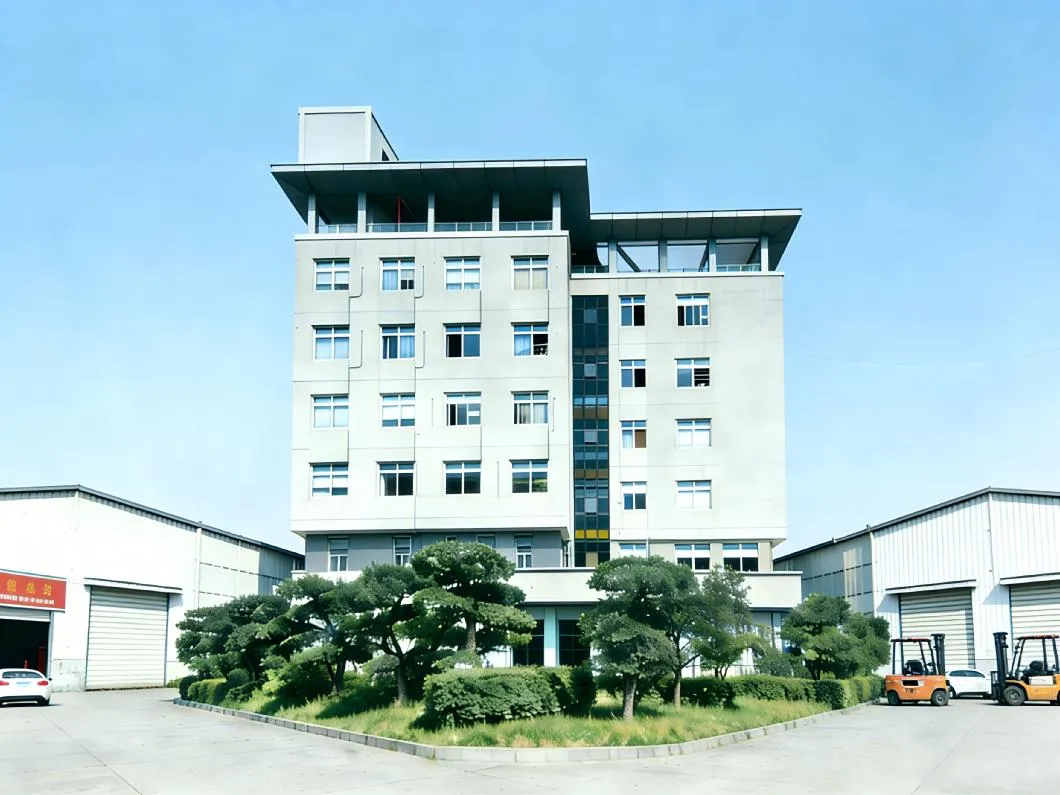

Equipped with advanced production technology, sophisticated testing equipment and a team of professional technical and management personnel, a one-stop operation system covering product design, R&D, manufacturing, quality inspection and after-sales service is fully implemented. High-grade raw materials and strict quality control procedures form the solid foundation of the quality assurance system.
The products have passed multiple tests and certifications issued by relevant authoritative institutions, with all performance indicators fully complying with national and industry technical standards. Backed by reliable product quality and efficient after-sales service, the products have been widely recognized in the global market.
💡Frequently Asked Questions (FAQ)
❓ What is the primary function of these Solar Photovoltaic Fuse Connectors?
They are designed to provide fast-acting protection against overcurrent conditions in solar photovoltaic (PV) string arrays systems, preventing damage caused by faulted circuits.
❓ What are the voltage and current ratings for the RCF fuse?

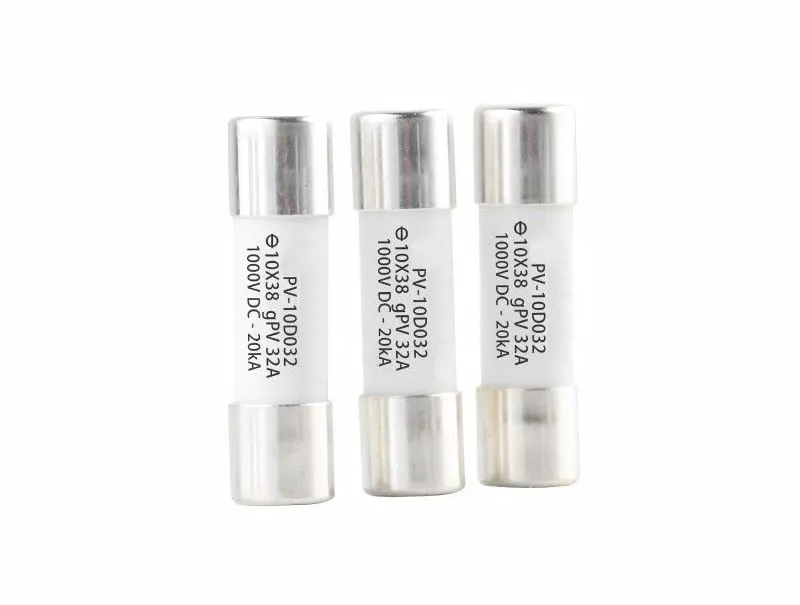

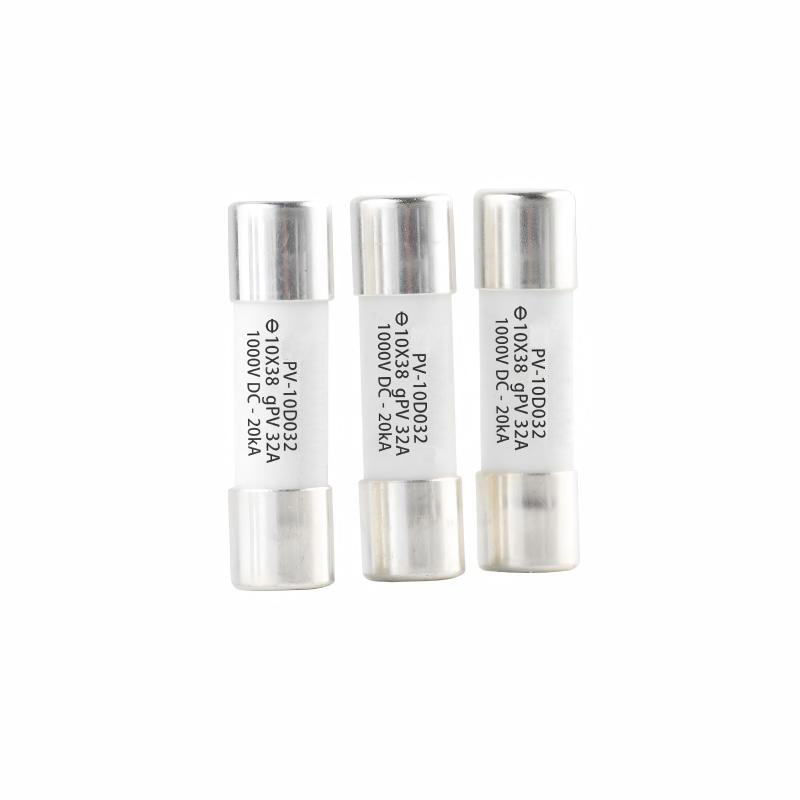

The RCF series supports rated voltages of 1000VDC and 1500VDC, with a rated operating current of 32A. Available fuse link ratings include 10A, 16A, 20A, 25A, and 32A.
❓ Does the product comply with international safety standards?
Yes, the fuse connectors comply with standard IEC regulations and carry an IP20 (IP40 inside enclosure) protection degree rating.
❓ What is the mechanical lifespan and durability of this PV fuse holder?
The fuse holder is designed for long-term industrial durability, boasting a mechanical life of up to 20,000 operations. It features high-grade copper internal components.
❓ Are OEM and ODM customization services supported?
Yes, we accept both OEM and ODM orders to meet custom design requirements, colors, configurations, and specifications.

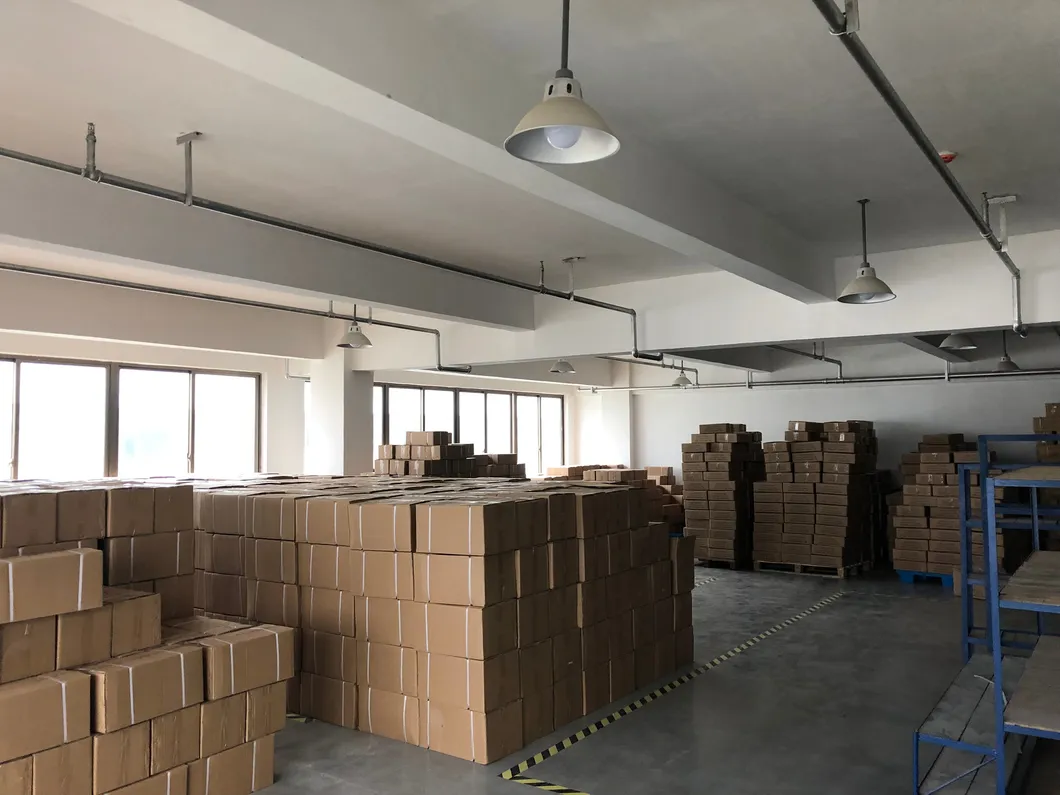

❓ What are the standard packaging and shipping specifications?
The product is packed securely in cartons for transit. Standard package dimensions are 35.00cm * 30.00cm * 40.00cm, with a gross weight of approximately 25.00kg per bulk shipment.
