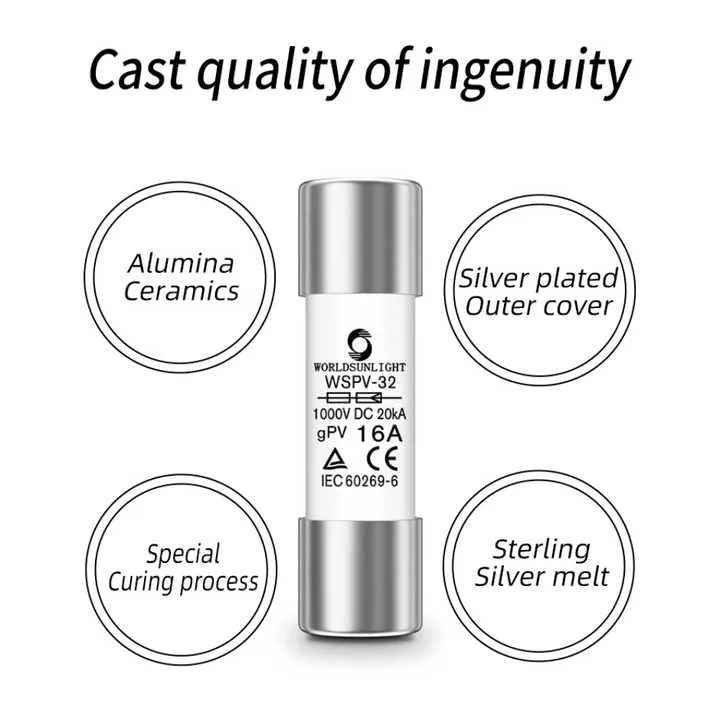

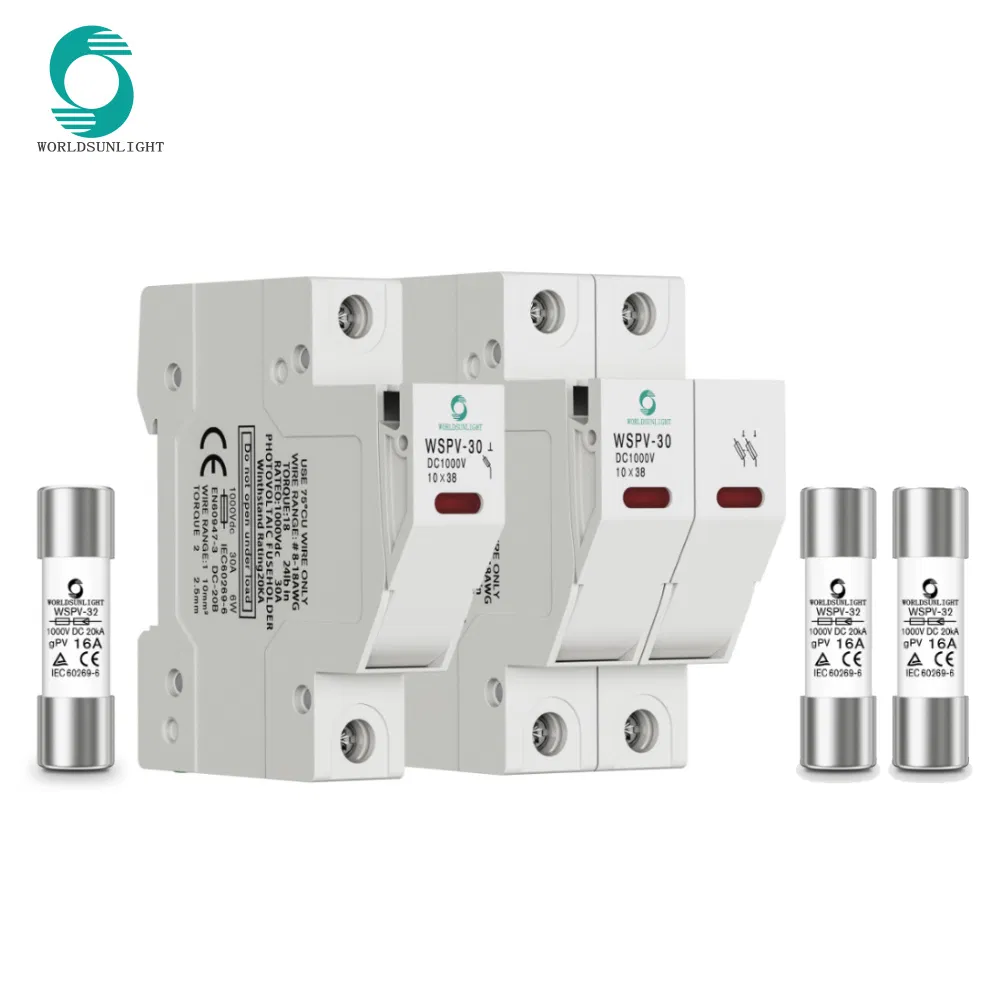

A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
According to IEC60269-1 Rated current: 1-32A Rated voltage: DC 1000V Rated breaking capacity: DC 20KA Operating class gPV for Solar protection.

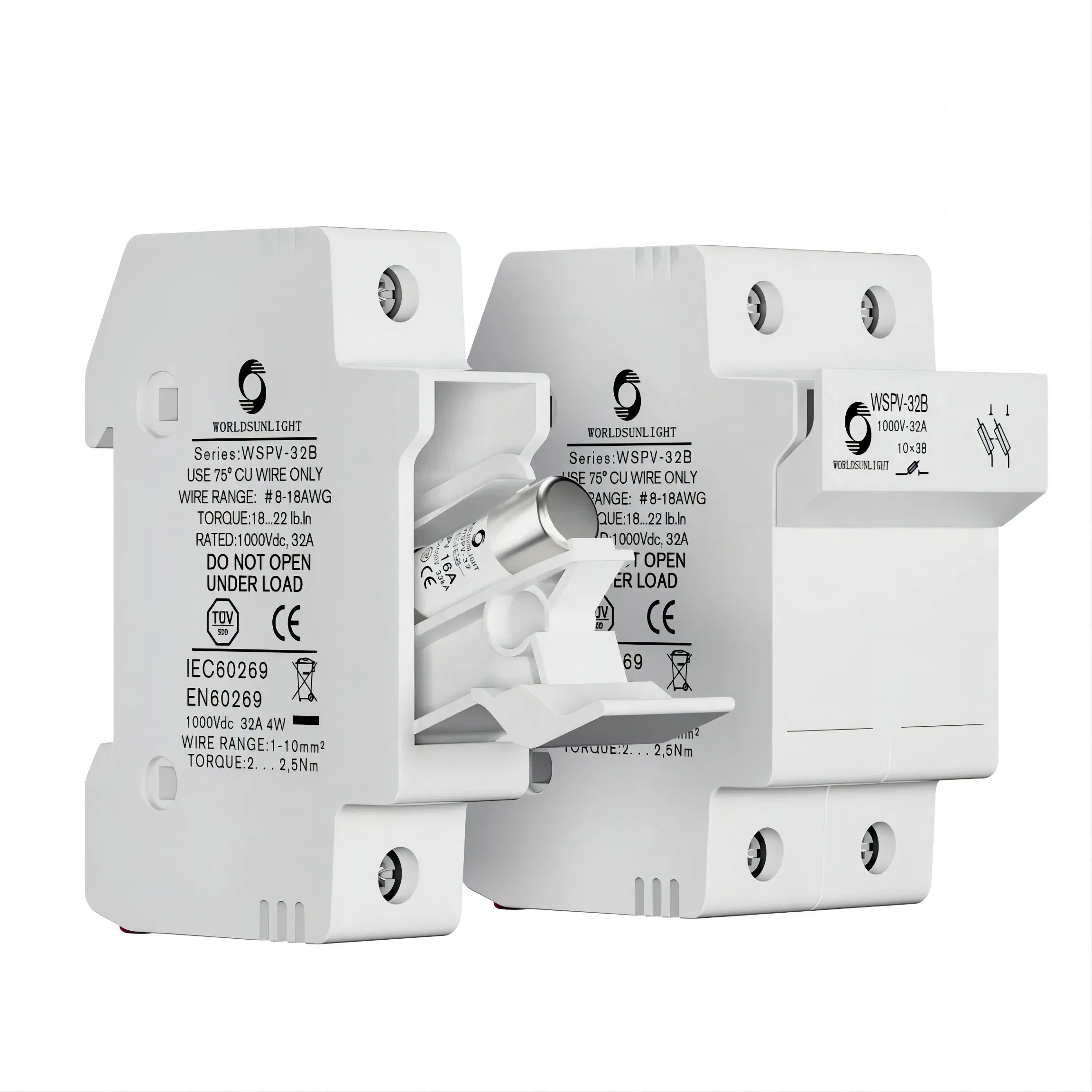

| Item | DC Fuse with fuse holder |
|---|---|
| Model Number | WSPV-32 |

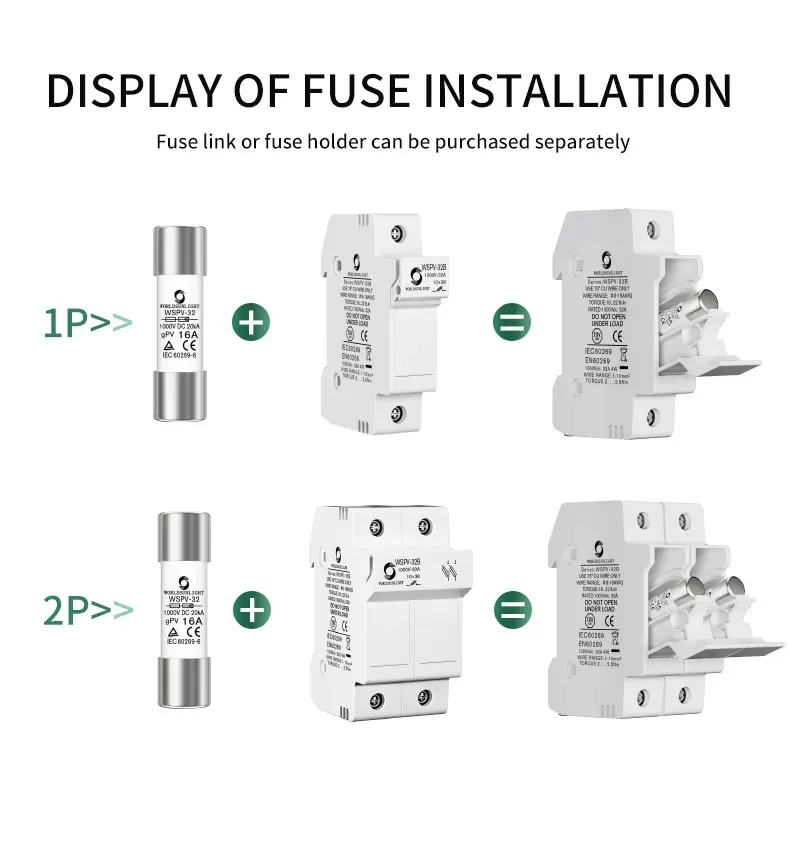

| Pole | 1P 2P |
| Rated Current(In) | 1,2,3,4,5,6,8,10,12,15,20,25,32 |
| Biggest Block Ability(KA) | 20 |
| The Most High Power Consumption(W) | 3.5 |
| Connection(mm2) | 2.5 - 10 |
| Working Temperature(ºC) | -30~+70 |
| Resistance And Damp Hot | Class 2 |
| Altitude(m) | ≤ 2000 |
| Relative Humidity | ≤ 95% |
| Protection Class/Degree | IP20 |
| Pollution | 3 |
| Installation Environment | No obvious shock and vibration |
| Installation Class/Type | Class III/DIN rail |
| Fuse Size | 10x38 |

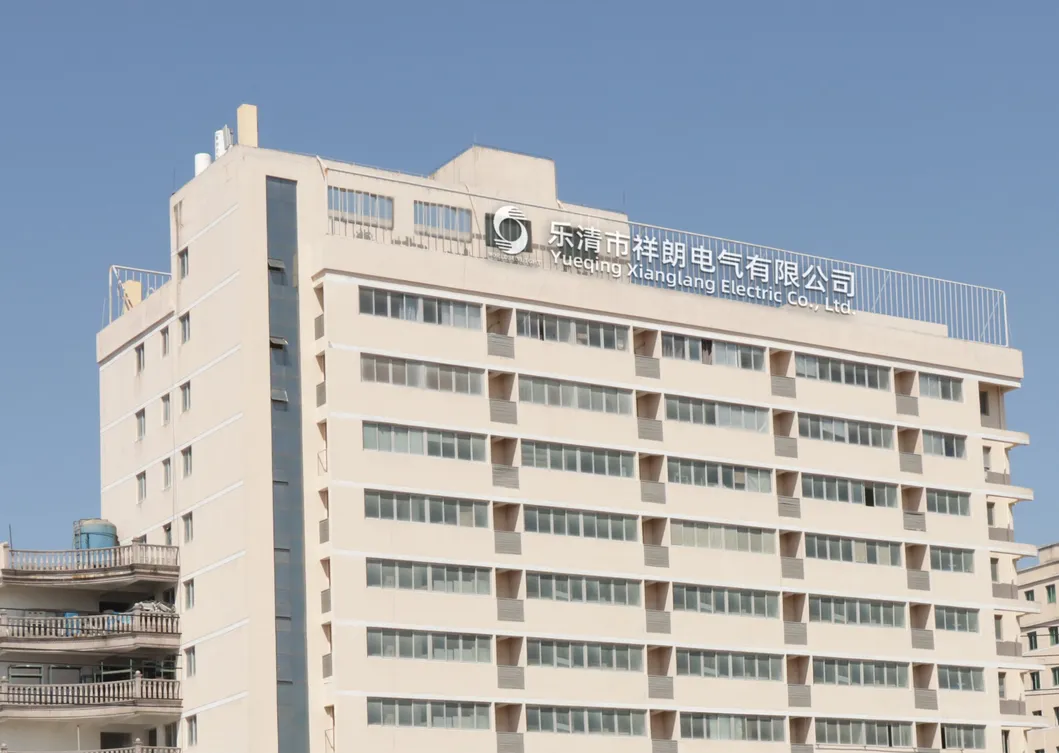

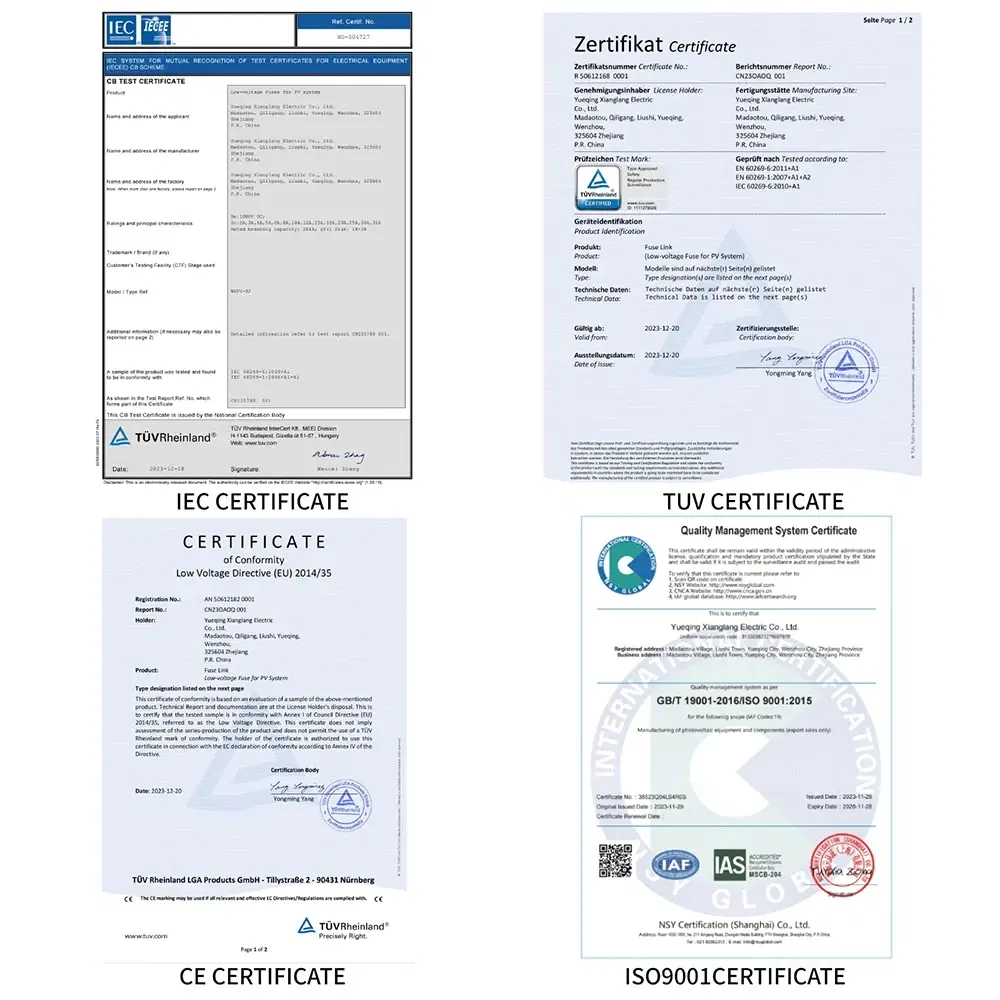

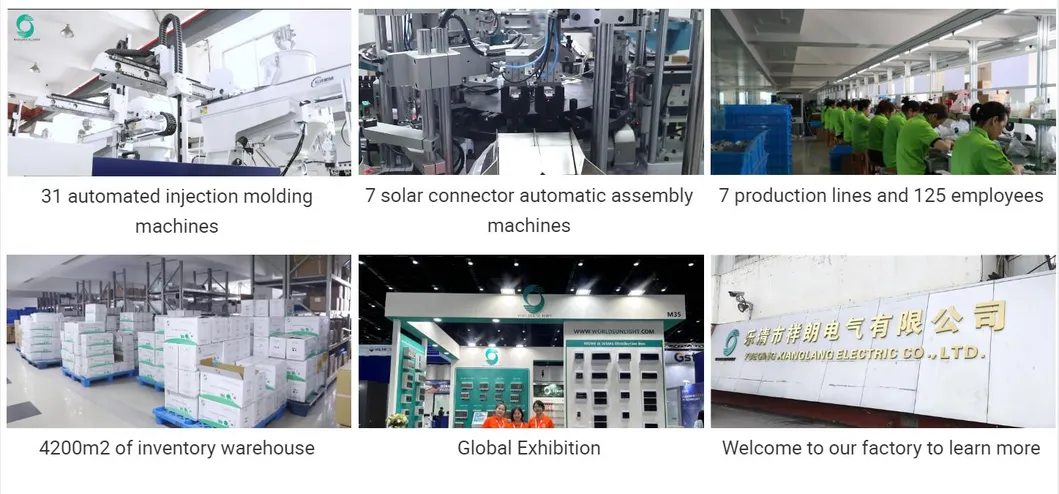

With over a decade of experience in the solar accessories industry, the company has been dedicated to the manufacturing and R&D of solar products. With a factory spanning 10,700 square meters, the company's annual output exceeds US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, solar connectors, distribution boxes, and combiner boxes, the factory boasts CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing. With over 10,000 project experiences, we have earned a reputation for high-quality products, competitive pricing, prompt delivery, and exceptional after-sales service. We look forward to a long-term partnership and mutual growth with you.

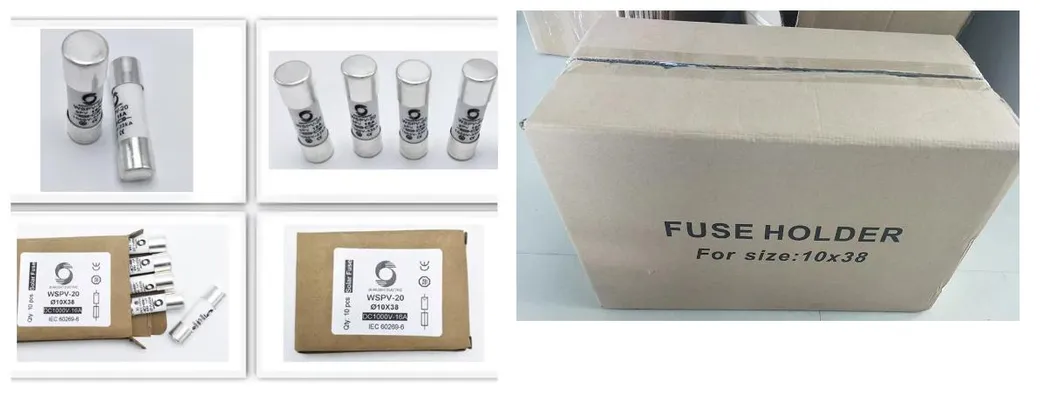

DC FUSE LINK: 2000 PCS PER CARTON / 32*17.5*33cm / 22.5kg
DC FUSE HOLDER: 240 PCS PER CARTON / 44*23*28.3cm / 15.7kg
3-15 days after confirming order, detail delivery date should be decided according to production season and order quantity.
1. Shipment port: SHANGHAI/NINGBO
2. By Air or by Sea for batch goods, Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
