CNC 1500V DC Fuse 10X85 Solar PV

Customization:	Available
Breaking Capacity:	20ka, 20ka
Usage:	Low Voltage

Send Inquiry

Product Description

Basic Info

Model NO.

RT18PV-63 PV FUSE

Standard

IEC 60269-6

Rated Current(10*85mm)

2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A

Rated Voltage

1500VDC

Class of Operation

gPV

Fuse Size

10*85mm, 14*85mm

Safety Standards

IEC

Time Constant

1-3ms

Rated Current(14*85mm)

30A, 32A, 40A, 50A

Transport Package

960 PCS/Carton, 12 Kg/Carton

Production Capacity

800,000 Sets Per Week

Product Description

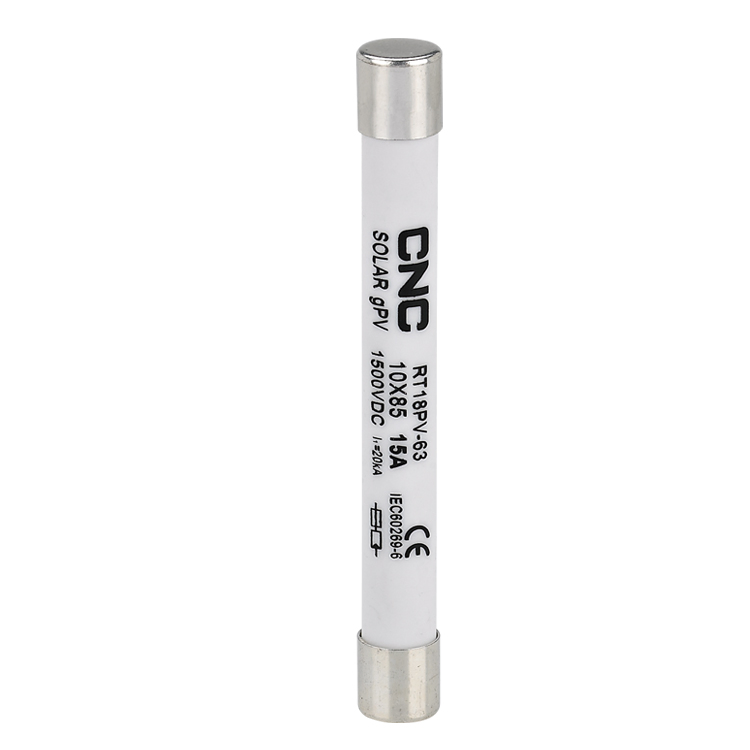

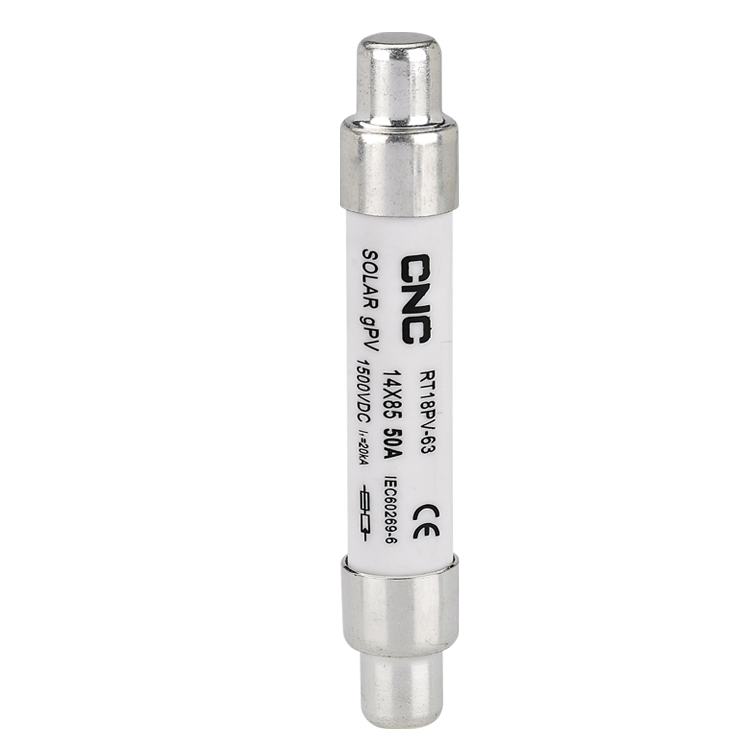

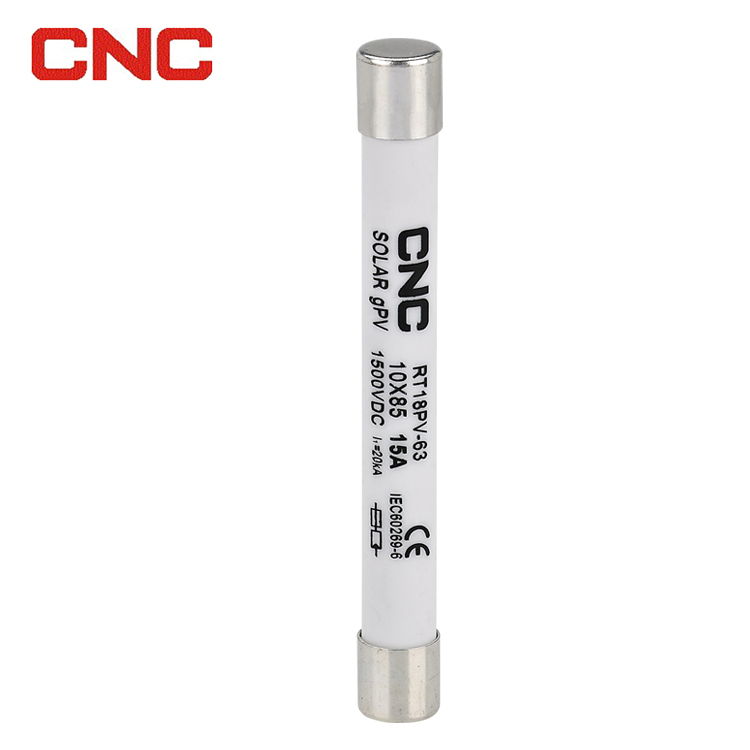

1500V DC Fuse 10x85 Solar PV

High-quality protection for solar power applications, designed to safeguard photovoltaic modules and installations against overcurrents.

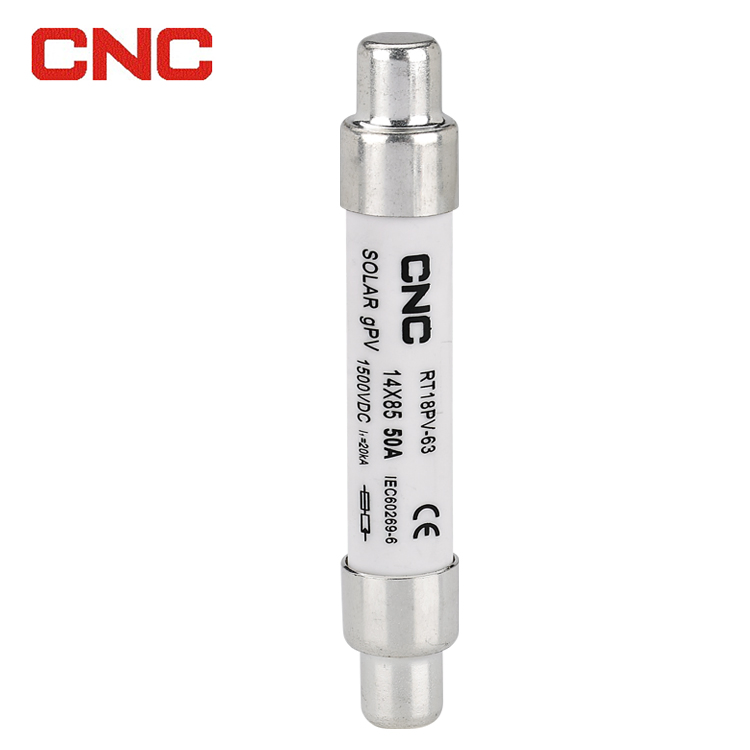

Fuse Size: 10*85mm / 14*85mm

Rated Voltage: 1500VDC

Breaking Capacity: 20KA

Standard: IEC 60269-6

Product Detail

Rated Voltage	1500VDC
Fuse Size	1085mm, 1485mm
Class of Operation	gPV
Standard	IEC 60269-6
Breaking Capacity	20KA
Time Constant	1-3ms
Rated Current(10*85mm)	2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A
Rated Current(14*85mm)	30A, 32A, 40A, 50A
Product Keywords	1500v fuse pv 12a, 20a pv fuse, 14*85mm PV fuse

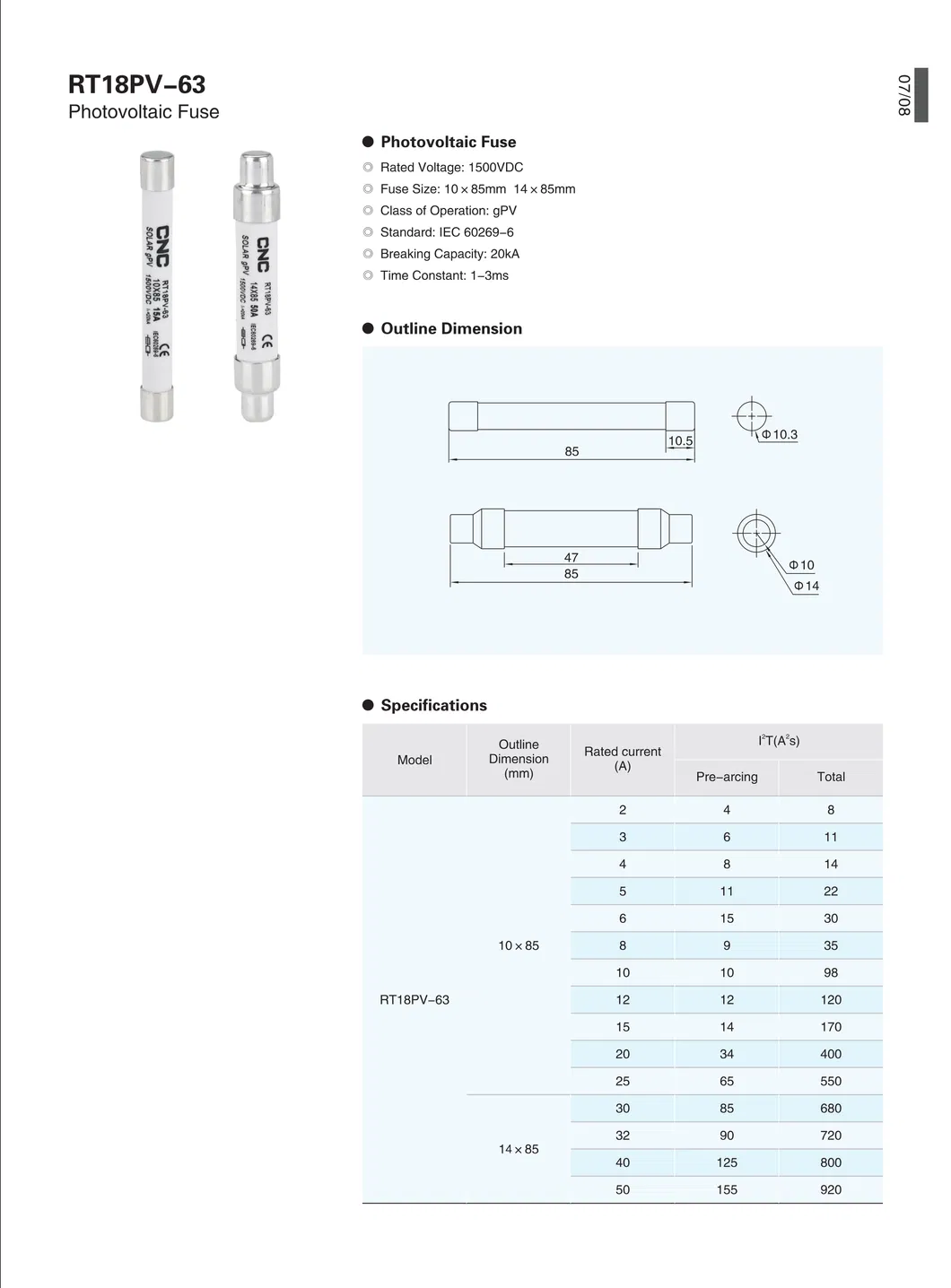

RT18PV-63 Photovoltaic Fuse Specifications:

• Rated Voltage: 1500VDC
• Fuse Size: 10×85mm, 14*85mm
• Class of Operation: gPV
• Standard: IEC 60269-6
• Breaking Capacity: 20kA
• Time Constant: 1-3ms
• Rated Current (10*85mm): 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A
• Rated Current (14*85mm): 30A, 32A, 40A, 50A

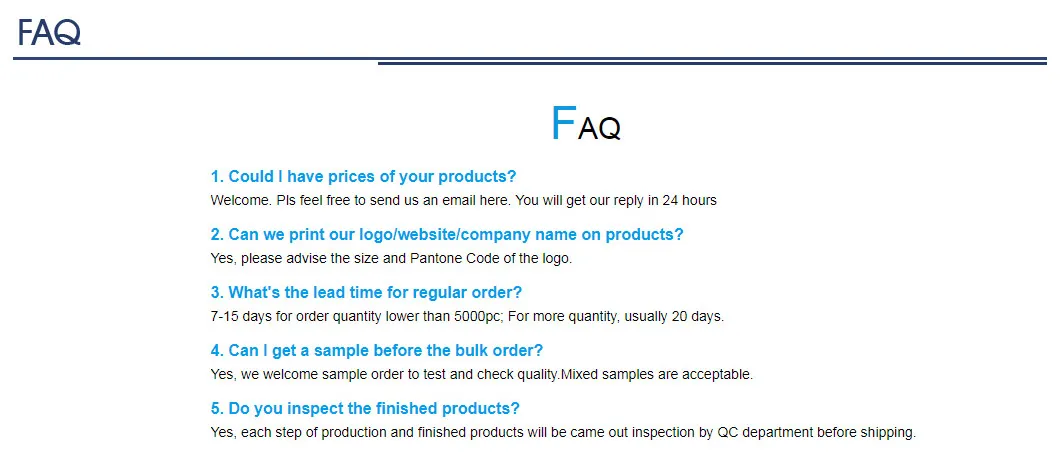

1500V DC Fuse 10X85 Solar PV Detail Image

Frequently Asked Questions

What is the rated voltage of the RT18PV-63 PV fuse?

The rated voltage of the RT18PV-63 PV fuse is 1500VDC, making it ideal for high-voltage solar photovoltaic installations.

What standards does this photovoltaic fuse comply with?

The fuse is manufactured in strict compliance with the IEC 60269-6 standard for safety and performance in solar power circuits.

What are the available sizes and current ratings for this product?

It comes in two sizes: 10*85mm (available in rated currents from 2A to 25A) and 14*85mm (available in rated currents from 30A to 50A).

What is the breaking capacity of this PV fuse?

The fuse has a robust breaking capacity of 20KA, offering reliable safety protection under high fault current conditions.

What is the class of operation and response time for this fuse?

This product is classified under the gPV operational class, featuring a quick-acting time constant of 1-3ms to minimize damage during electrical faults.
