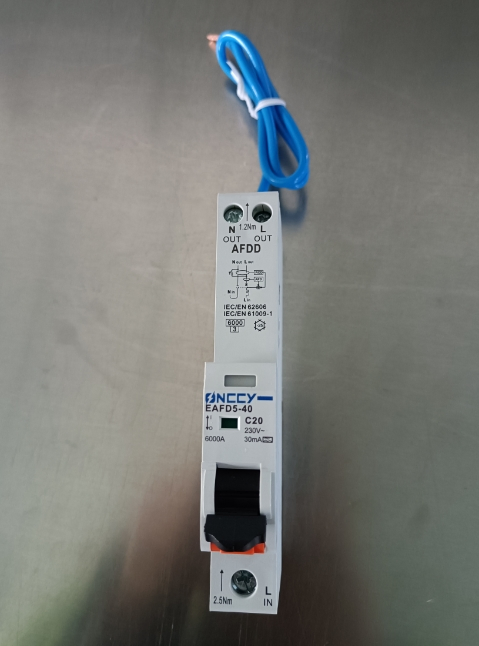

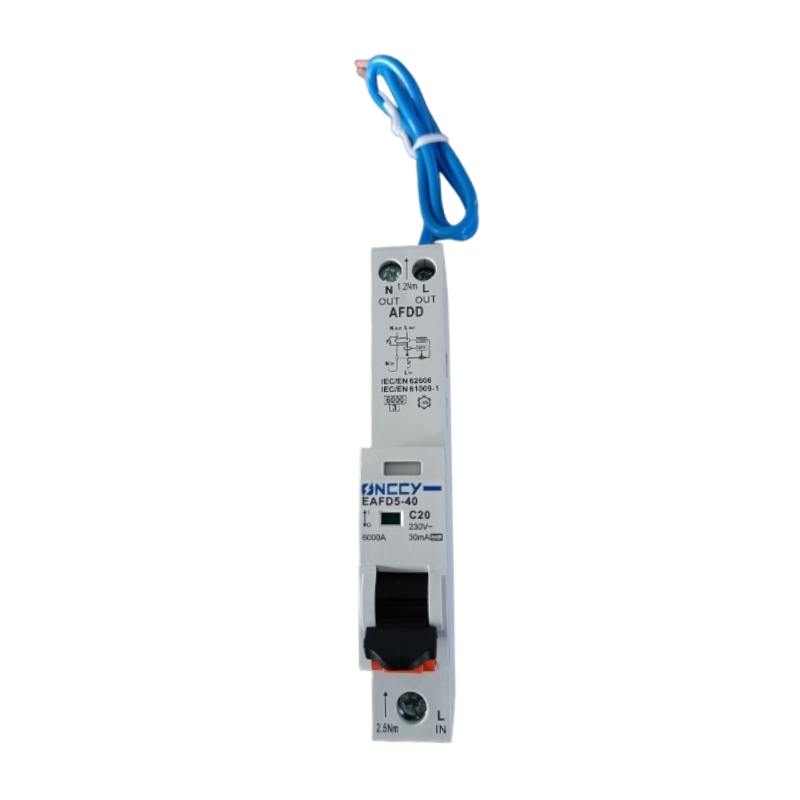

EAFD5-40 is an advanced combined Arc Fault Detection Device (AFDD) and Residual Current Breaker with Overcurrent protection (RCBO), designed to provide comprehensive electrical safety for residential and light commercial installations. Compliant with international standards IEC 62606 (AFDD) and IEC 61009 (RCBO), this 1P+N device integrates five critical protection functions in a single compact unit:
| Parameter | Value / Specification |
|---|---|
| Model | EAFD5-40 |
| Type | AFDD + RCBO (1P+N) |
| Standards | IEC 62606, IEC 61009 |
| Rated Voltage (Ue) | 230 V AC |
| Insulation Voltage (Ui) | 400 V |
| Rated Frequency | 50 Hz |
| Rated Current (In) | 6, 10, 16, 20, 25, 32, 40 A |
| Residual Current (IΔn) | 30 mA (Type A) |
| Tripping Time at IΔn | ≤ 0.1 s |
| Magnetic Tripping Curve | B or C |
| Overvoltage Trip Threshold | 275 V AC ±5% |
| Rated Breaking Capacity | 6,000 A |
| Impulse Withstand Voltage (Uimp) | 4,000 V (1.2/50 μs) |
| Pollution Degree | 2 |
| Protection Degree (Enclosure) | IP40 |
| Mechanical Endurance | 10,000 cycles |
| Electrical Endurance | 4,000 cycles |
| Reference Temperature | 30°C |
| Operating Temperature | -5°C to +40°C (daily avg. ≤35°C) |
| Storage Temperature | -25°C to +55°C |
| Terminal Connection | Cable or Pin-type Busbar |
| Tightening Torque | LINE: 2.5 Nm / LOAD: 1.2 Nm |
| Mounting | DIN rail (EN 60715, 35 mm) |
| Width | 18 mm |
