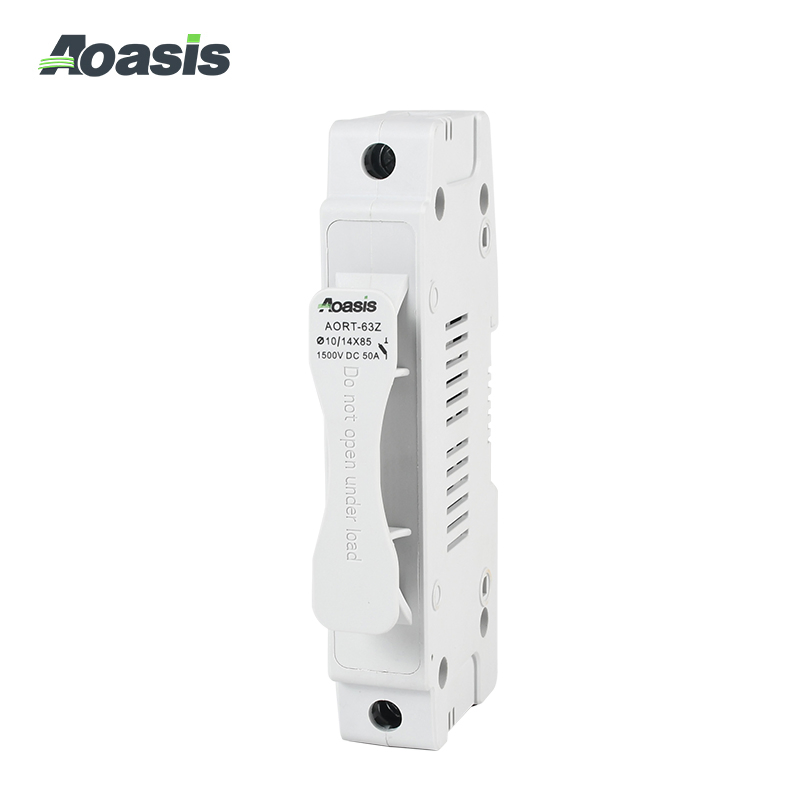

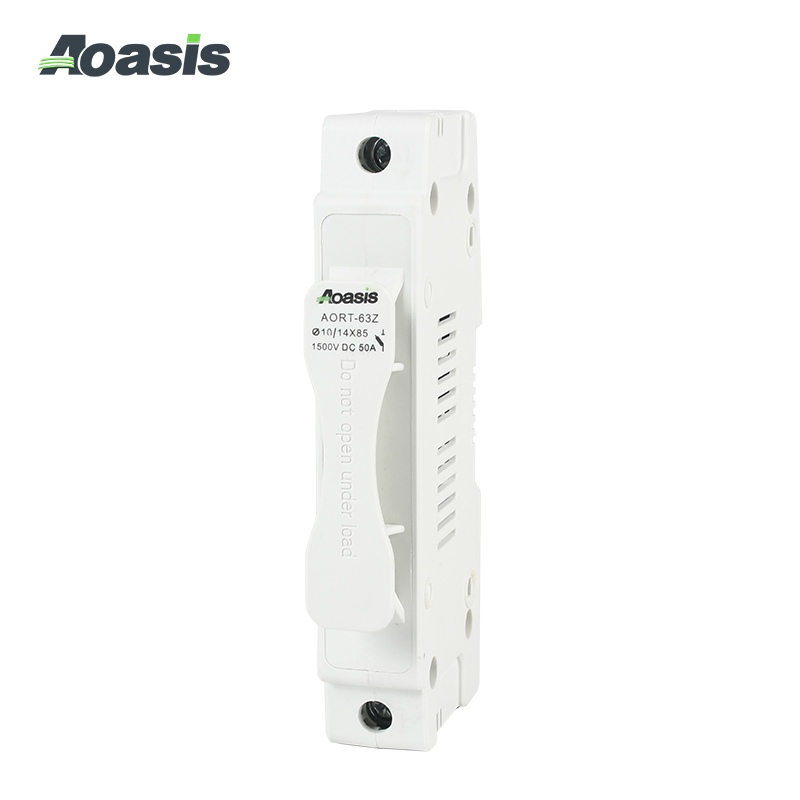

Aoasis Aorz-63 DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder
Aoasis Aorz-63 DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder
Aoasis Aorz-63 DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder
1 / 3
Aoasis Aorz-63 DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder
Aoasis Aorz-63 DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder
Aoasis Aorz-63 DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder

Aoasis Aorz-63 DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder

Send Inquiry

Product Description

Product Description
Product specifications from the supplier

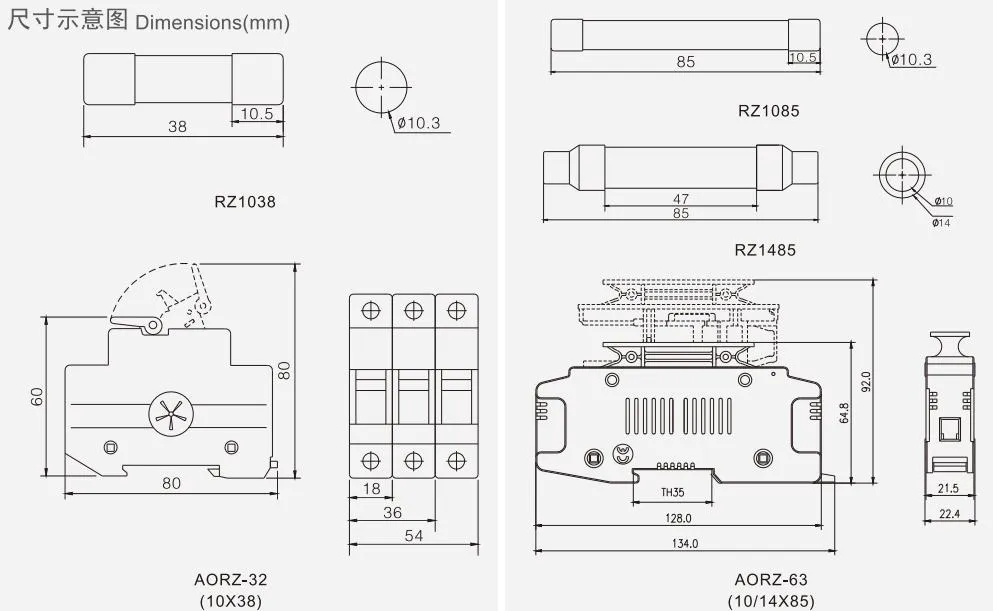

Fuse Base AORZ-32 AORZ-32D AORZ-63 AORZ-63D
Indicator Function NO YES NO YES
Rated Voltage (V) 1000V DC 1500V DC
Fuse Link RZ1038 - RZ1085 RZ1485
Current range (A) 1A 2A 3A 4A 5A 6A 8A 10A 12A 15A 16A 20A 25A 30A 32A 2A 3A 4A 5A 6A 8A 10A 12A 15A 20A 25A 30A 32A 8A 10A 12A 15A 16A 20A 25A 30A 32A 35A 40A 45A 50A
Standard IEC 60269-6
Breaking Capacity 20kA 50kA
Time Constant 1-3 ms
Class of Operation gPV
DC PV Solar Fuse 1500V PV 15A 25A Fuse Holder
Product Catalog
DC PV Solar Fuse Product Catalog
Low Voltage Terminal Distribution Catalog
New Energy DC Products Catalog
Monitoring Measuring and Control Relays Catalog
Motor Control and Protection Catalog
Circuit Breaker Products Catalog
Contactors and Overload Relays Catalog
Frequently Asked Questions
Q What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping.
Q How's the delivery time?
A. We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate.
Q Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q Could you offer Form A or C/O?
A. It's totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.
Q What are the rated voltage options for the fuse holders?
A. The AORZ-32 and AORZ-32D models support up to 1000V DC, while the AORZ-63 and AORZ-63D models support up to 1500V DC rated voltage.
