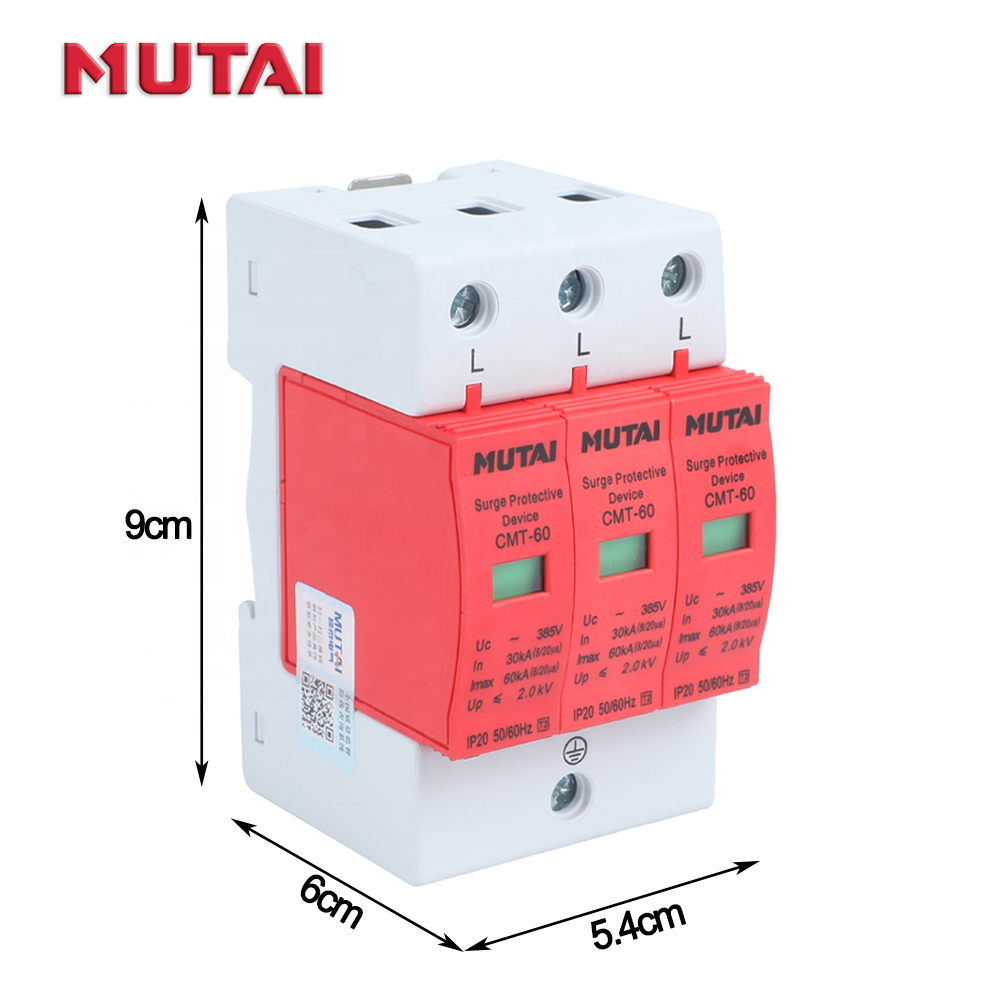

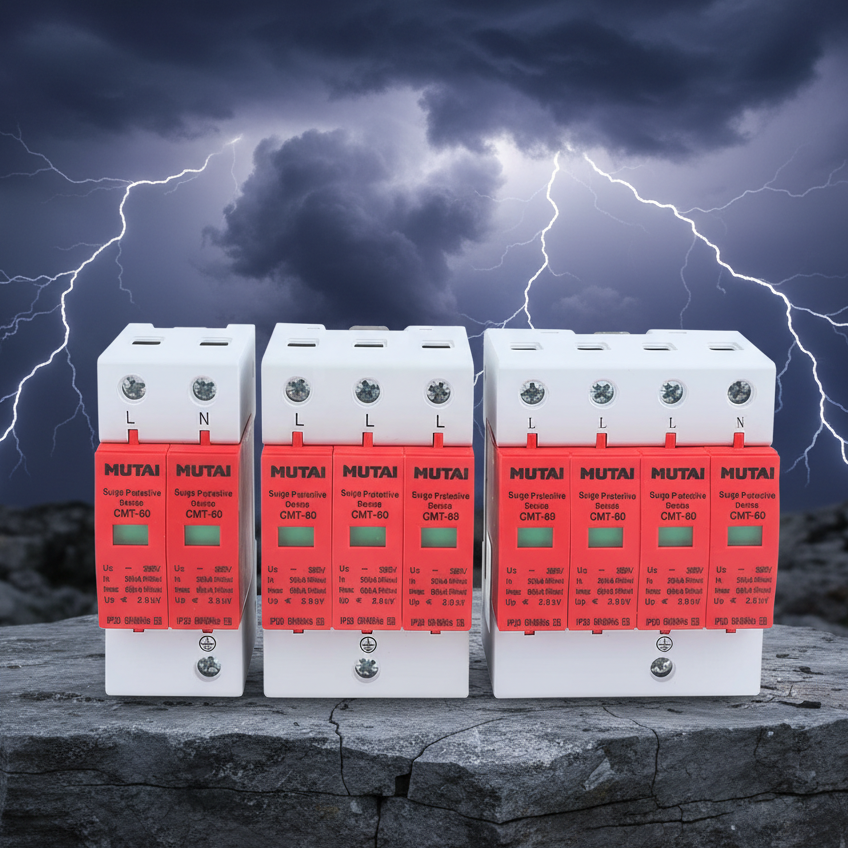

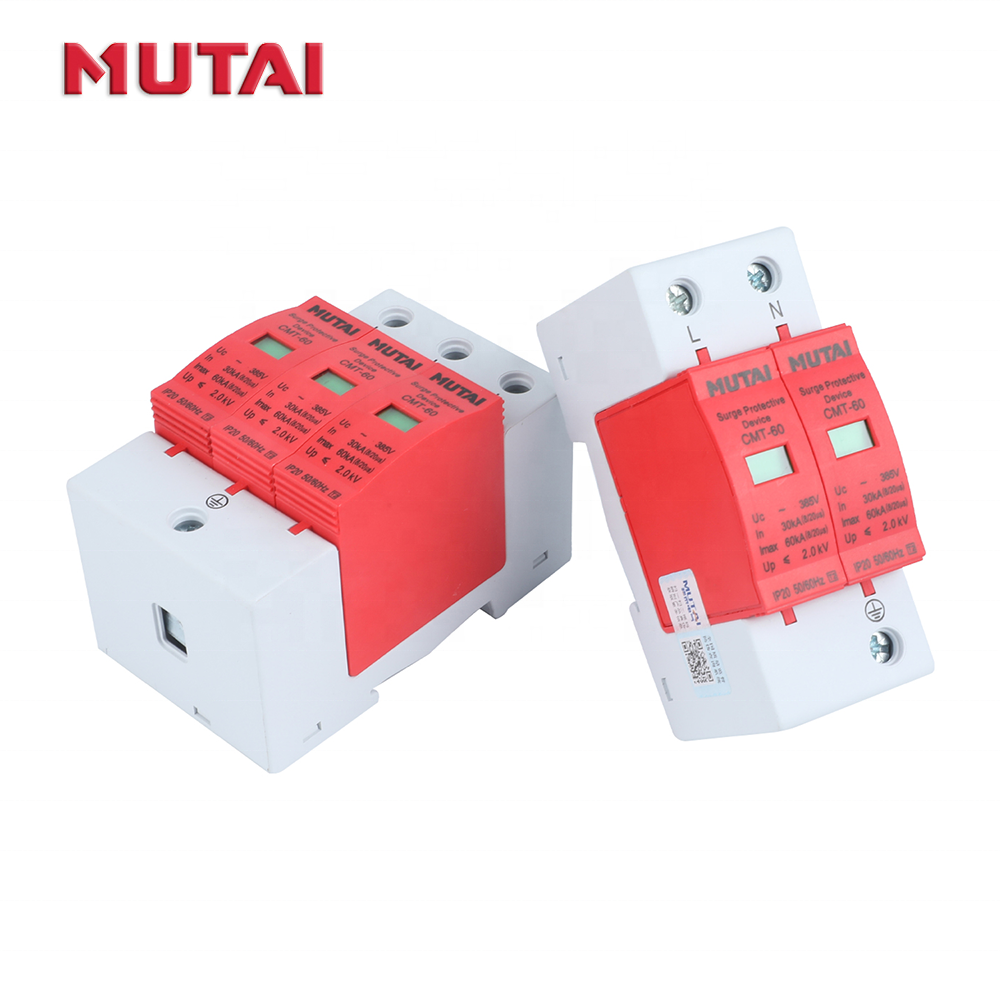

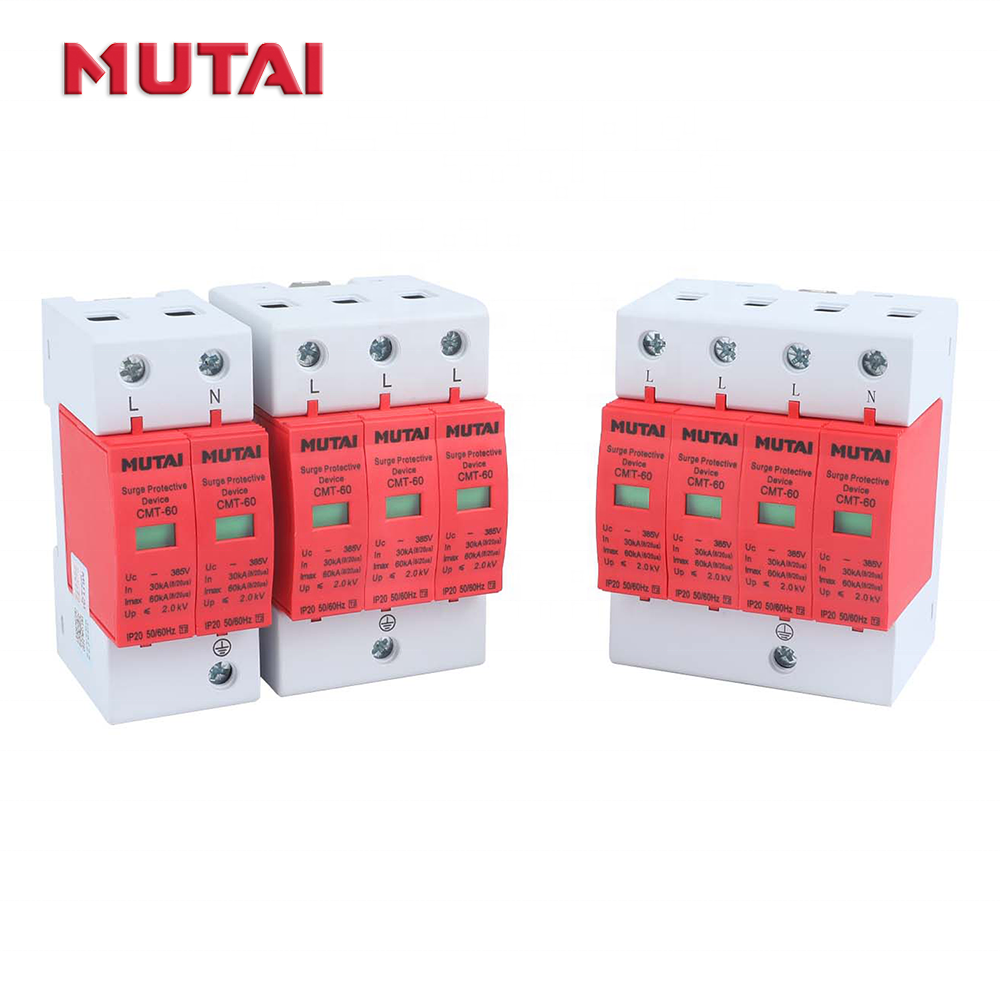

MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
1 / 5
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device
MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device

MUTAI 220V 385V Lightning Type 1 2 Thunder SPD Price 1P 2P 3P 4P AC 10kA 20kA 30kA 40kA 60kA IP20 T1 T2 Surge Protective Device

Send Inquiry

Product Description

Product Information
Product Image 1
Product Image 2
Surge protection device(SPD) is an indispensable device for lightning protection of electronic equipment. It is used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or a powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

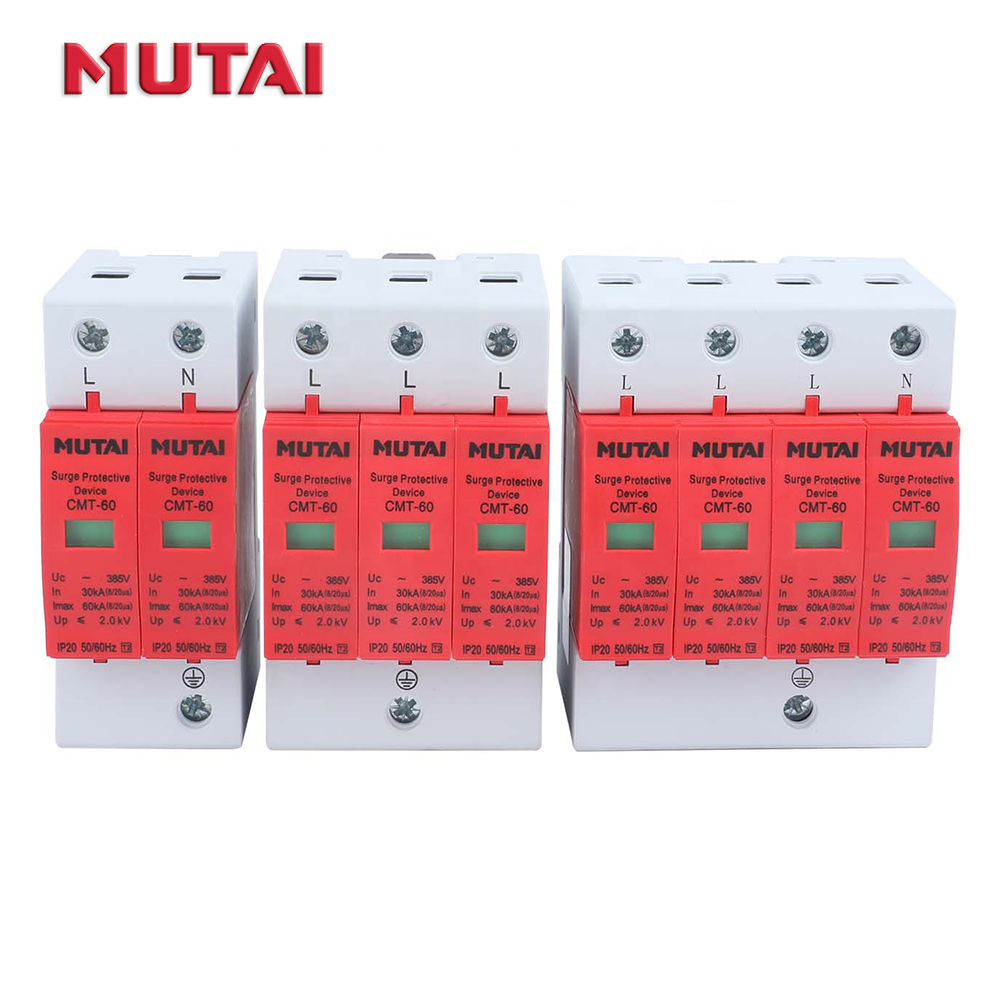

SPD Application
Product Model CMT-20 CMT-30 CMT-40 CMT-60 CMT-80 CMT-100
Operation voltage Un (V) 220 / 380
Maximum continuous operating voltage Uc (V) 385 / 400
Protection level Up (kV) 1.5 1.8 1.8 2 2.2 2.5
Maxium discharge current Imax (Ka) 8/20 μs 20 30 40 60 80 100
Nominal discharge current In (Ka) 8/20 μs 10 15 20 30 40 60
Leakage current Ic < 25
Response time t (ns) < 20 ns
Product Display
Product Display 1

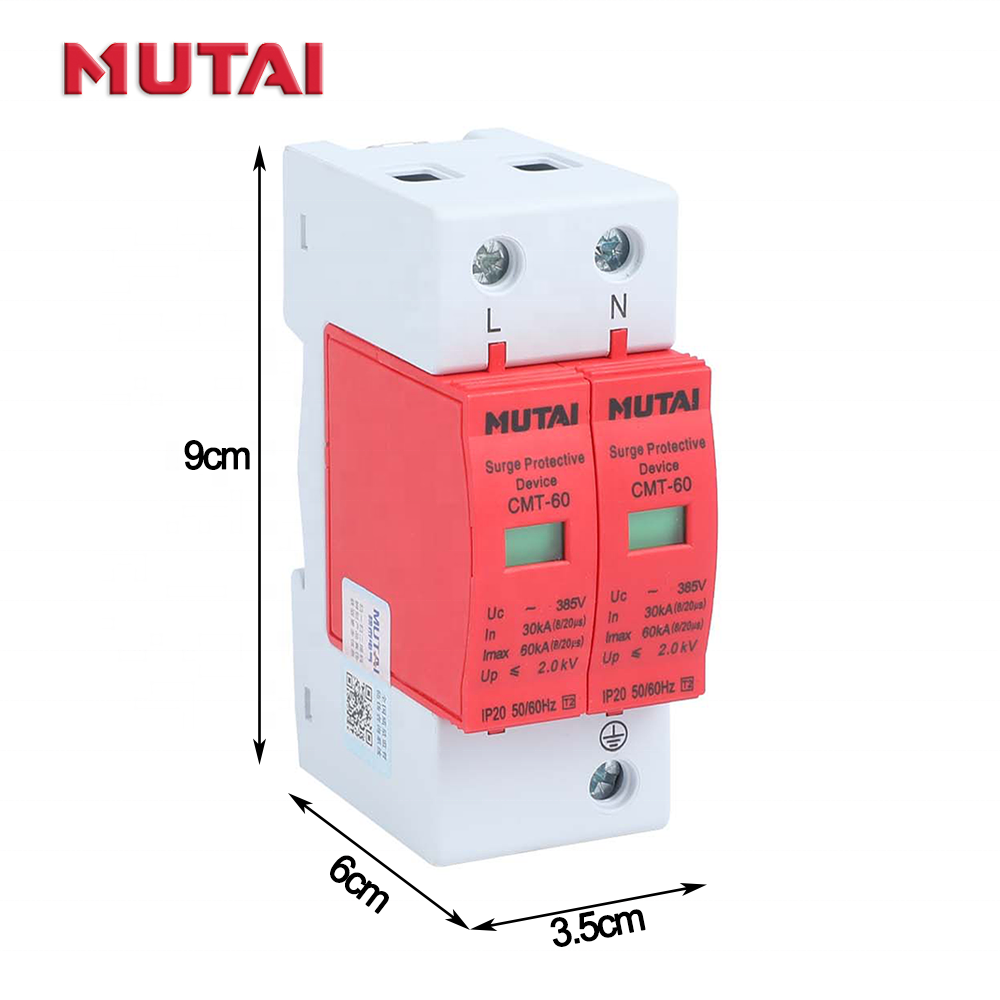

Product Display 2
Gallery 1

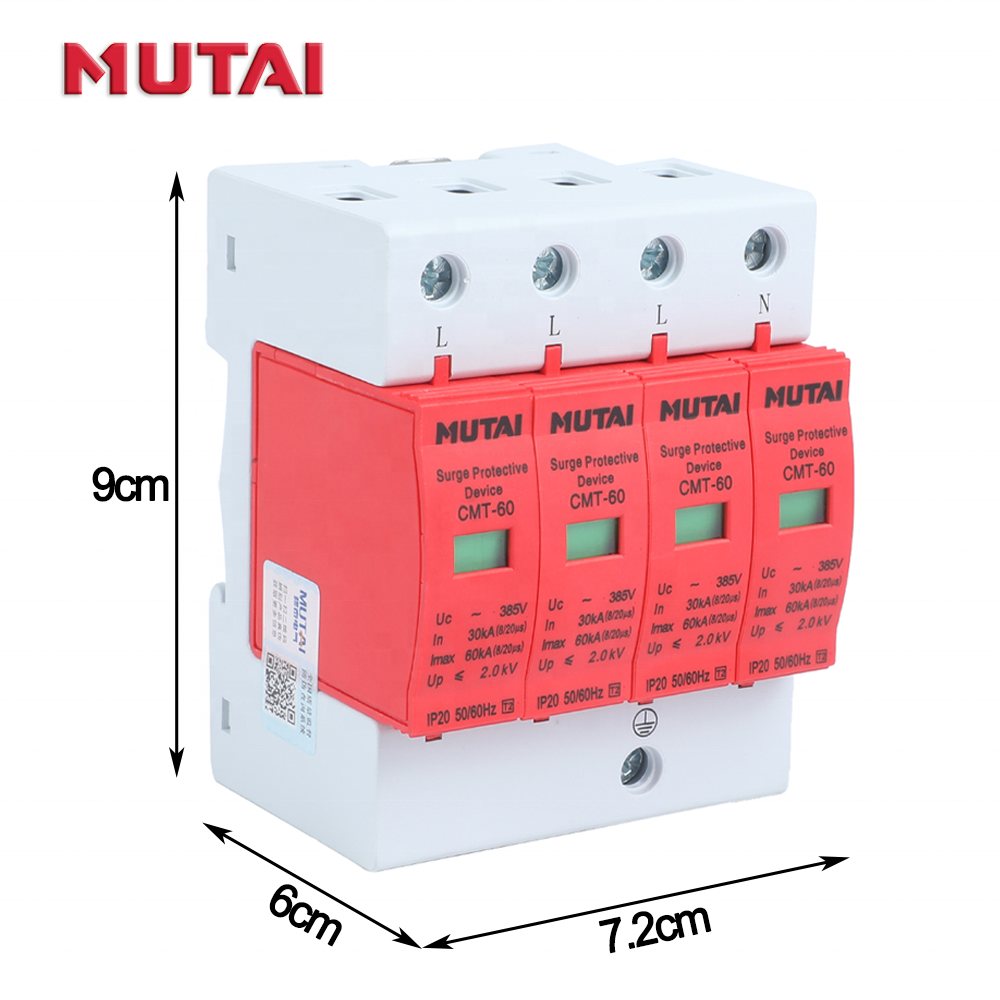

Gallery 2

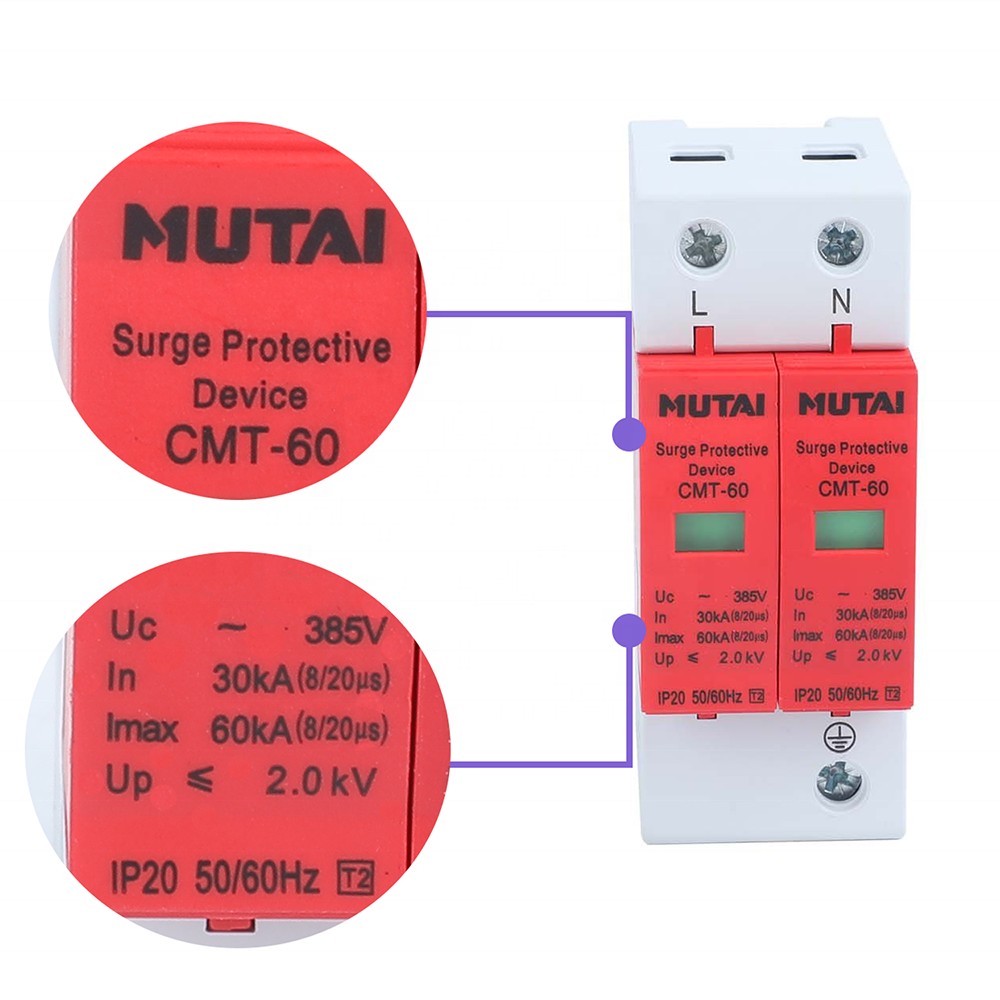

Product Display 3

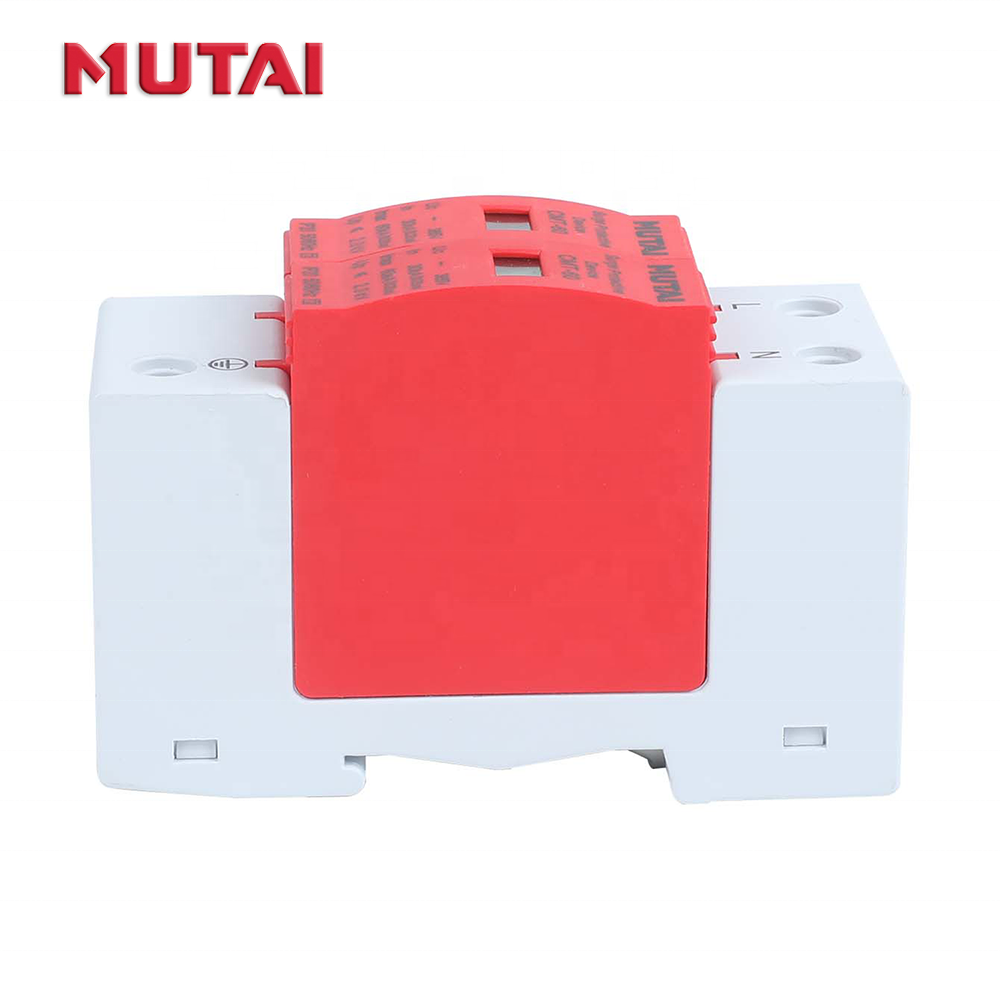

Gallery 3

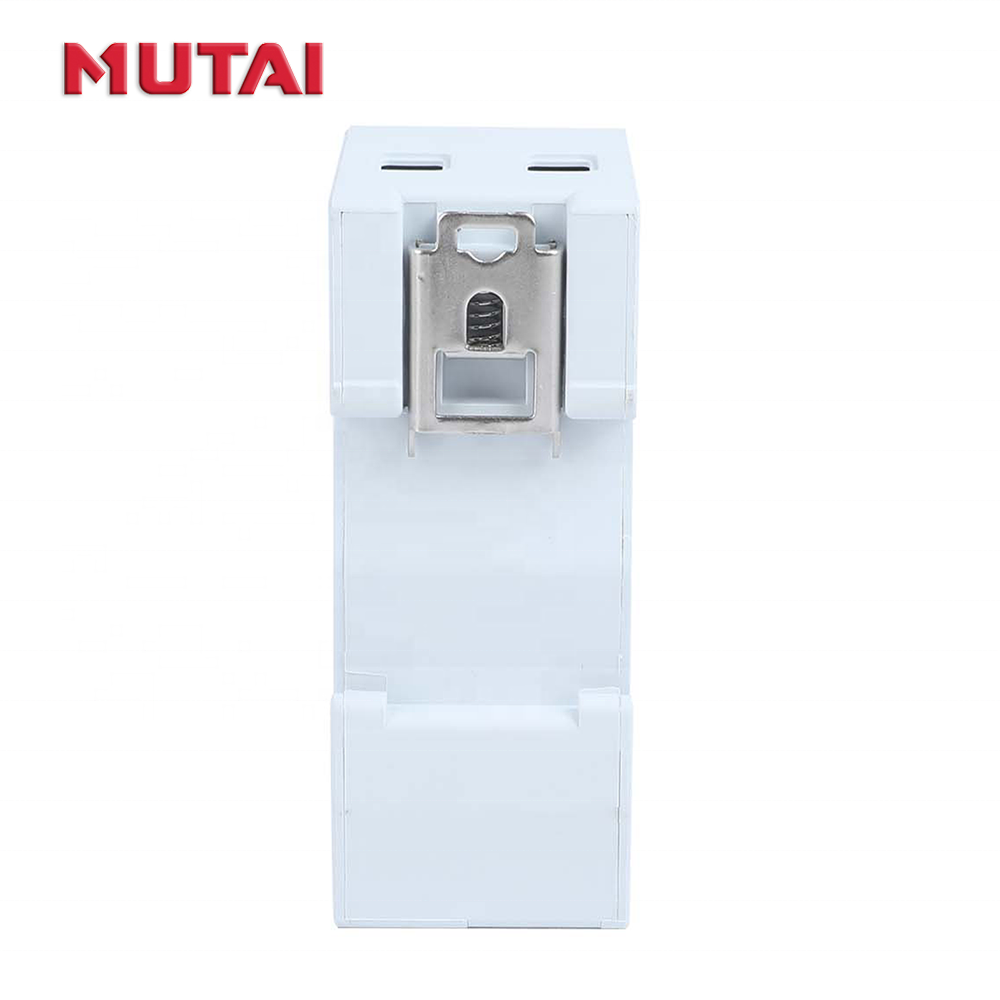

Gallery 4

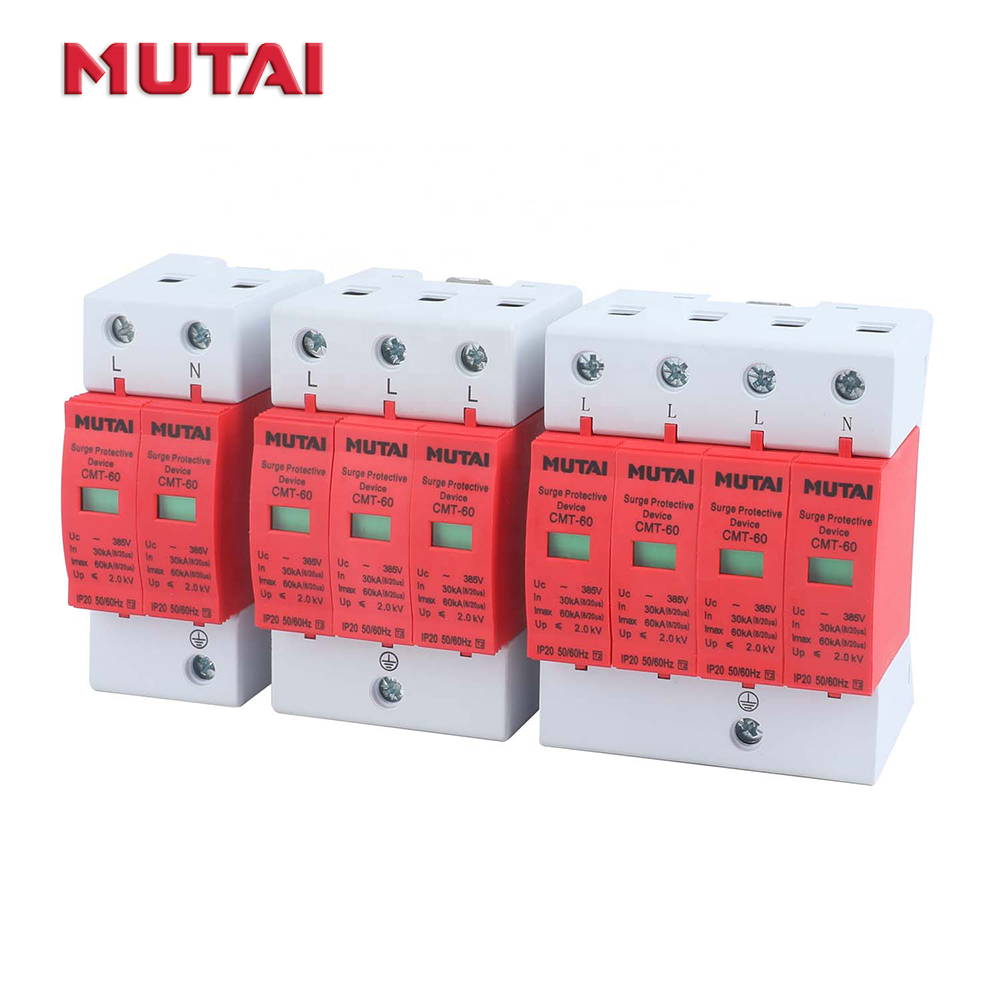

Product Display 4

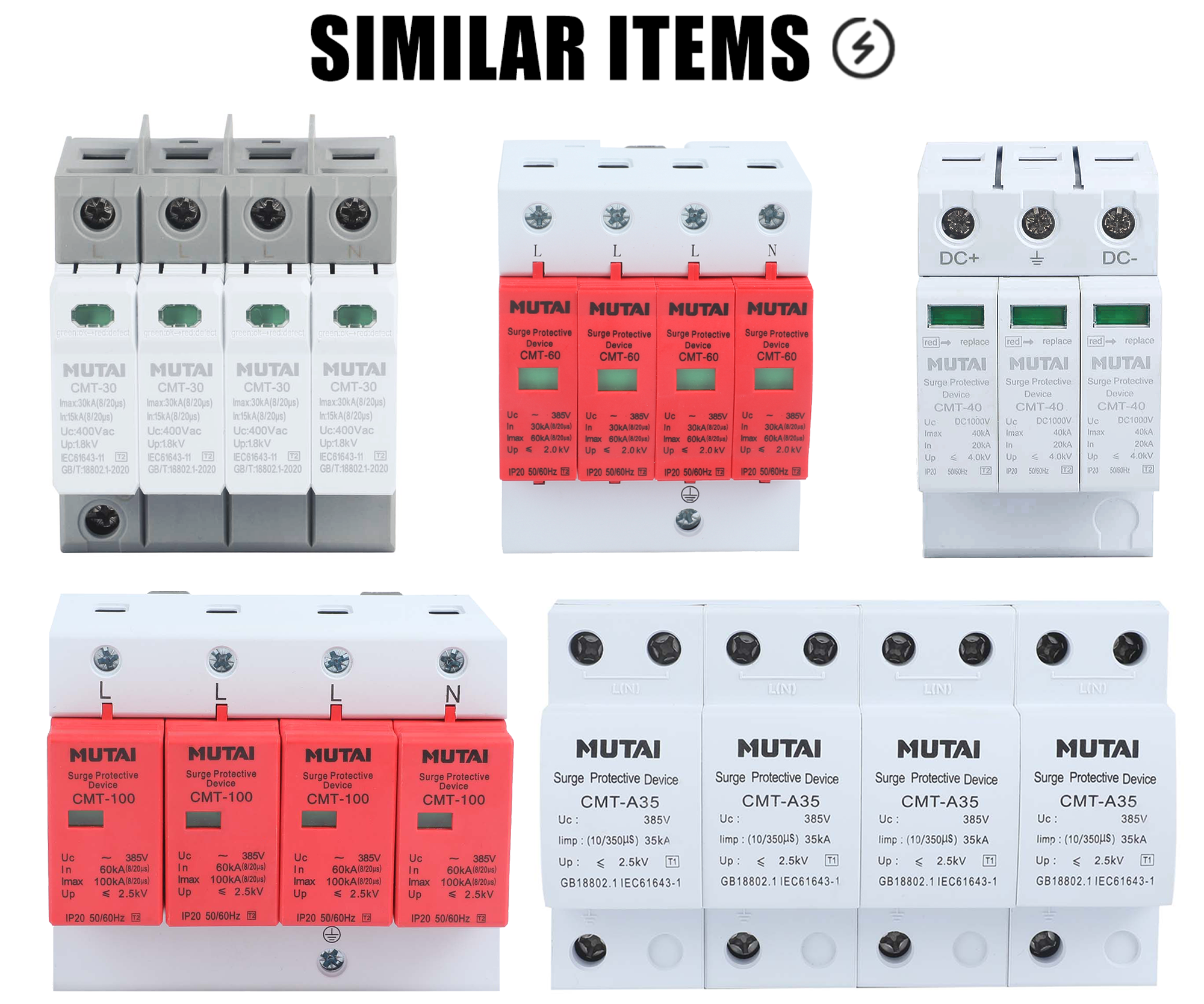

Product Selection Guide
Company Profile
Profile Image 1

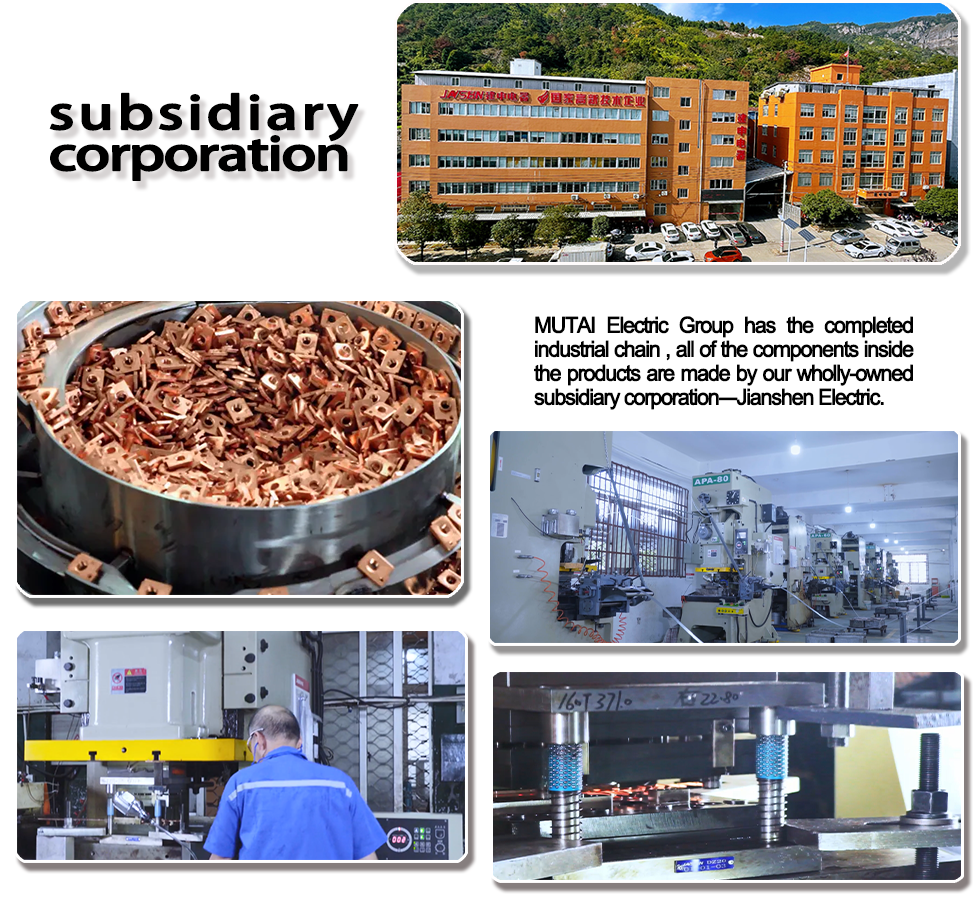

Profile Image 2
Profile Image 3
Profile Image 4
Profile Image 5
Packaging & Shipping
Packaging and Shipping
FAQ
FAQ Banner
Why should you buy from us, not from other suppliers?
We have professional design and production safety guarantees, strict control from raw materials to finished products, appropriate licensing certificates, and the best service.
How to get a quote?
Please contact our sales team with details on the poles, current, quantity, and preferred delivery terms (EXW/FOB or CIF). We will reply to you within 24 hours.
Do you accept OEM business?
Yes, we provide comprehensive OBM, ODM, and OEM services to meet your specific requirements.
What is the lead time for a regular order?
The lead time is typically 7-12 days for order quantities lower than 3,000 pcs.
Can I get a sample before the bulk order?
Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.
How does your factory handle quality control?
We strictly follow the ISO9001 quality control system. All products are thoroughly inspected and tested before delivery.
