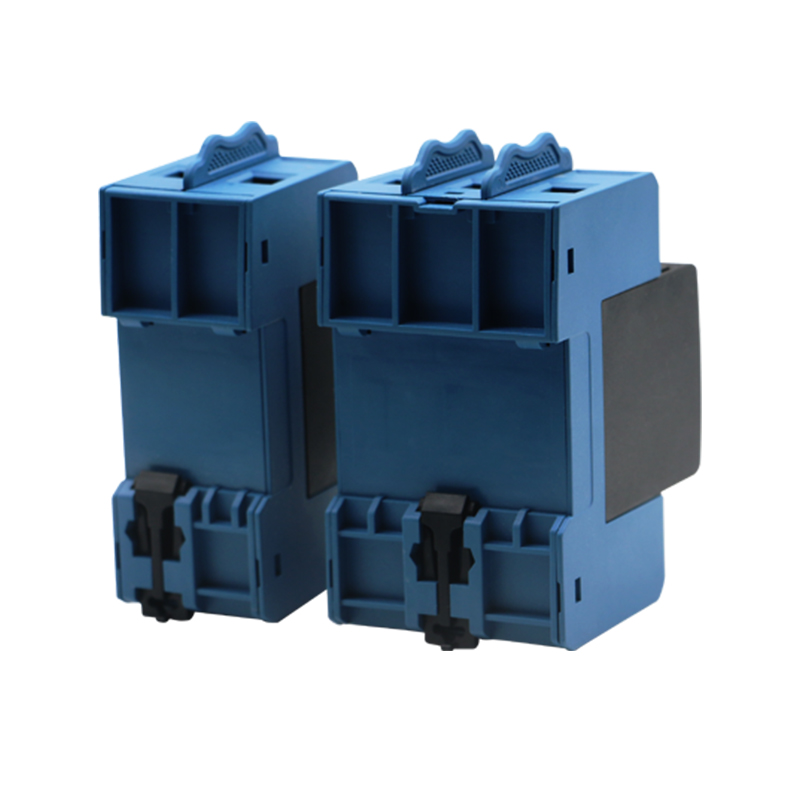

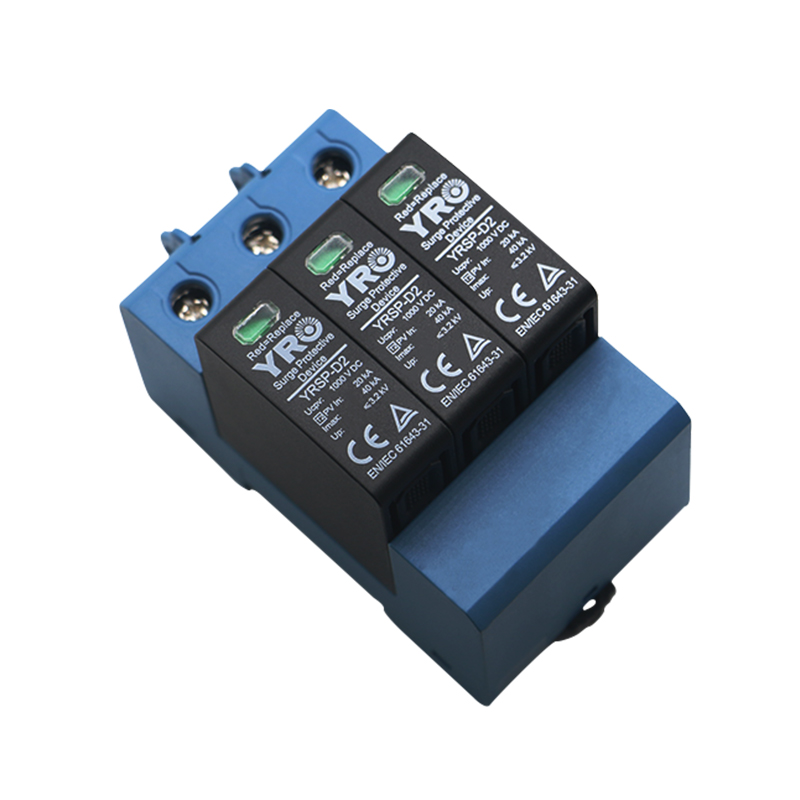

SPD 3phase 40kA/2P surge arrestor type 1 Power dc surge arrester
SPD 3phase 40kA/2P Surge Arrestor Type 1 Power Dc Surge Arrester

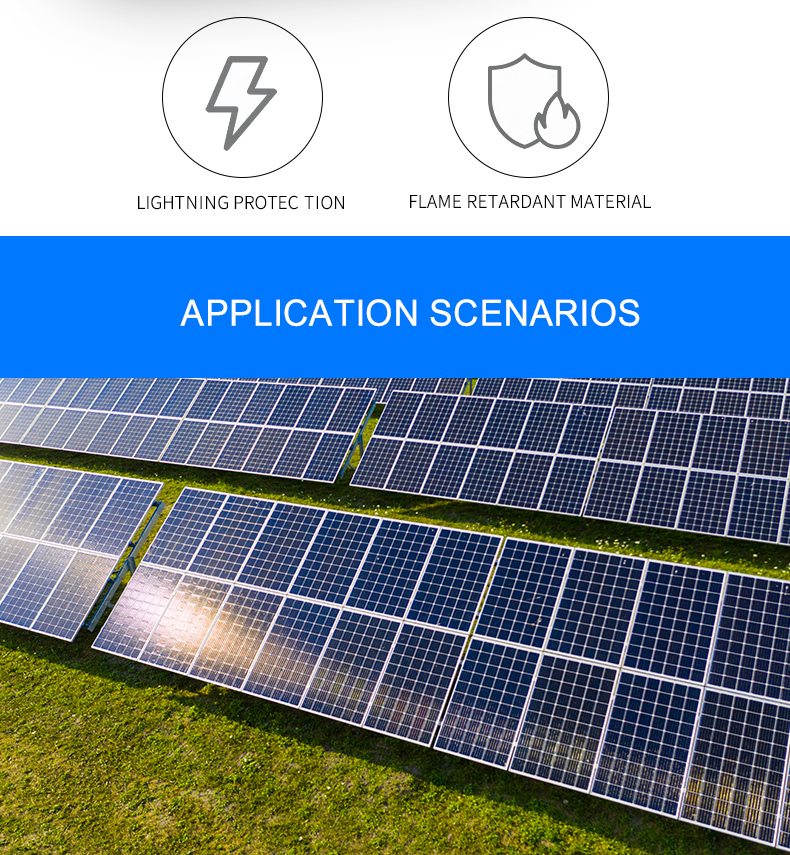

YTTS1-PV Surge protective device protects against lightning surge voltages in solar systems (photovoltaic power supply systems). These units must be installed in parallel on the DC networks to be protected and provide common and differential mode protection. Their installed locations are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. Equipped with high-energy MOVs, specific thermal disconnectors, and related failure indicators.
Key Product Features

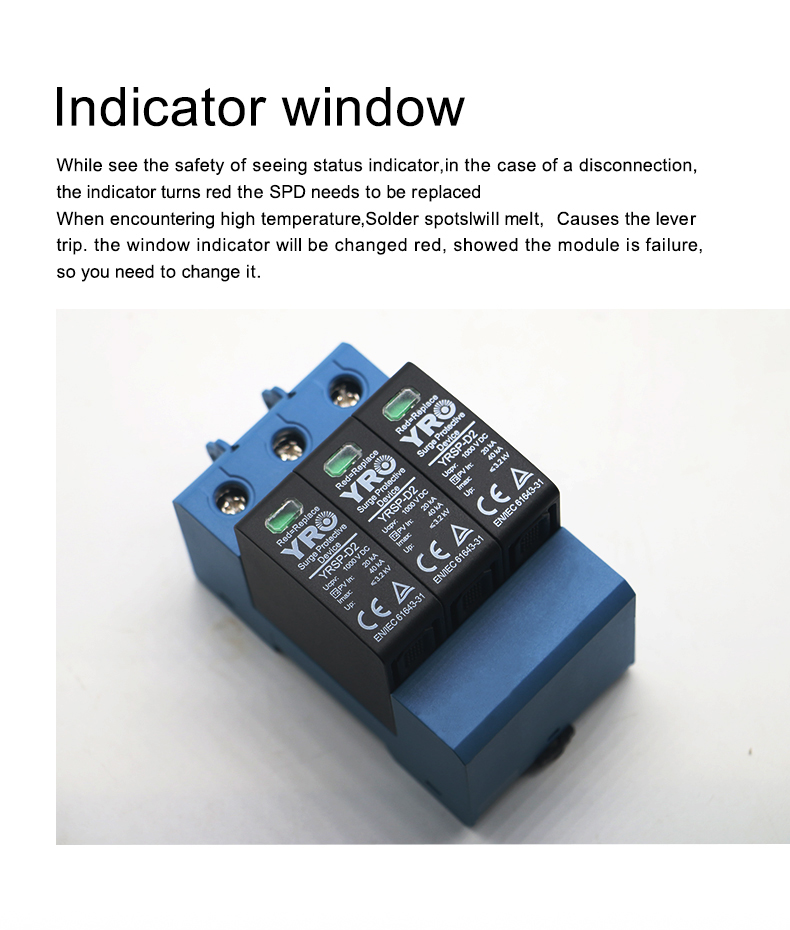

  • Clear visual indicator window (Green indicates operational status, Red indicates failure)
  • Fully enclosed terminal blocks for enhanced safety
  • Shell manufactured from high-quality PC flame retardant material for fire insulation

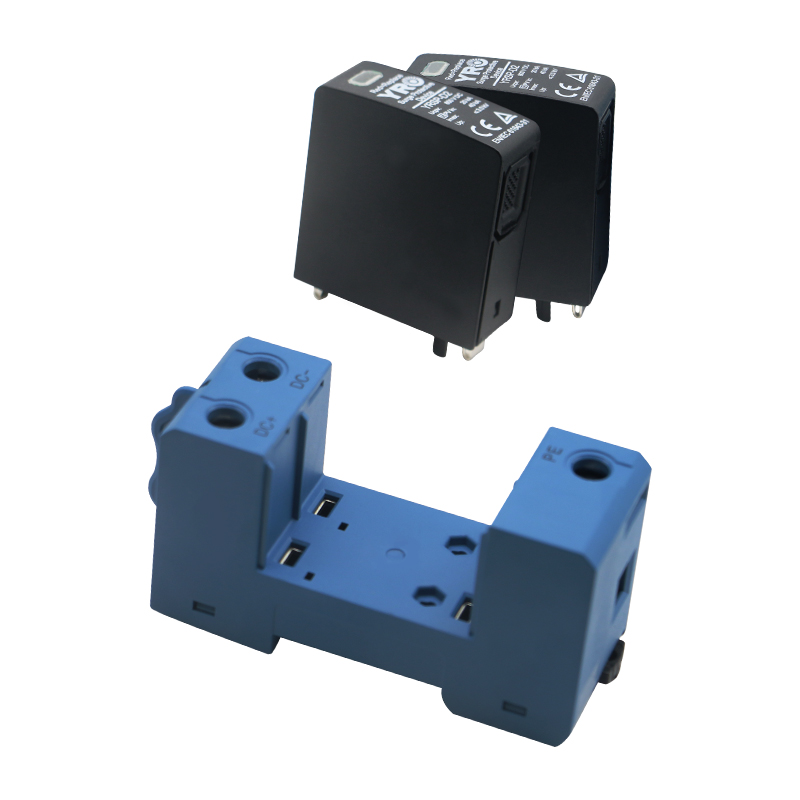

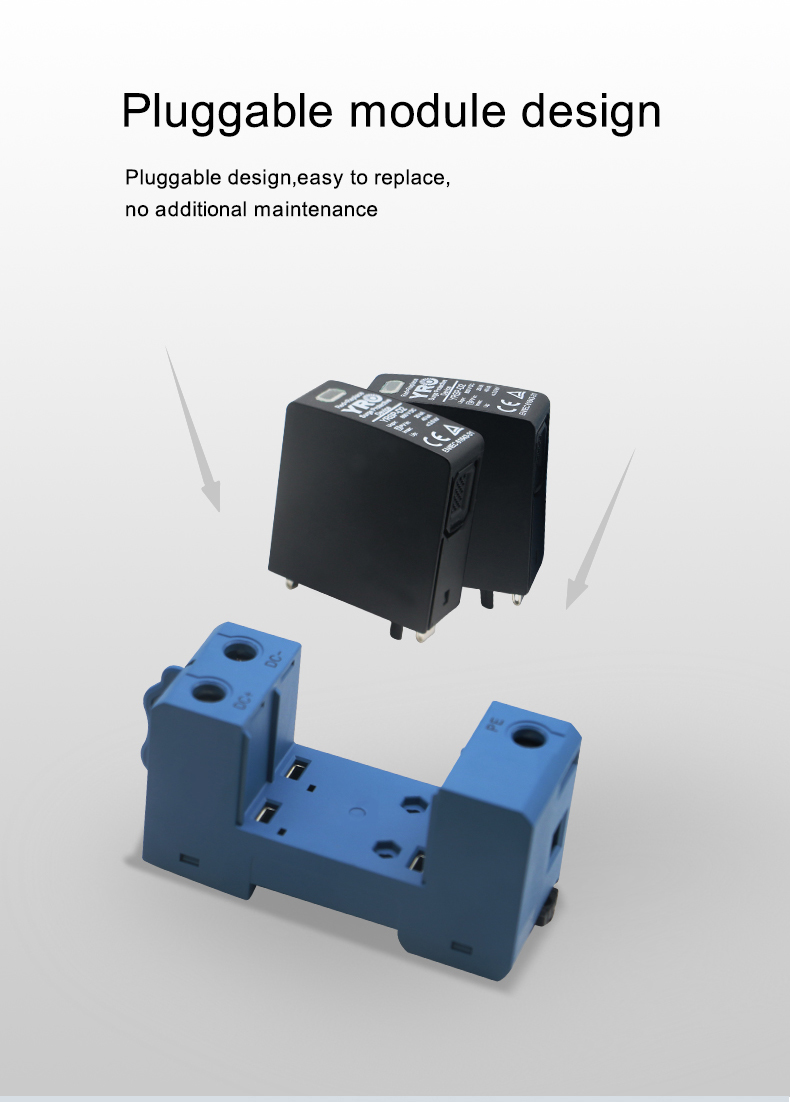

  • Easily replaceable module structure
Technical Data
Parameter Description Symbol Specification Details
Rated Voltage (Max. continuous voltage) Uc 600 - 1200V
Nominal discharge current (8/20µs) In 20kA
Max. discharge current (10/350µs) Imax 40kA
Voltage protection level Up ≤ 3.2kV
Response time tA ≤ 25ns (L-N)
Max. Back up fuse - 125AgL/gG
Operating Temperature range Tu -40 ~ 80℃
Cross-sectional area - 1.5mm² ~ 25mm² solid / 35mm² flexible
Mounting on - 35 DIN rail
Enclosure material - Purple module & light gray, UL94-V0
Dimension - 4 mods
Type of remote signaling capacity - Switching contact
Switching Capacity - AC: 250V/0.5A; DC: 250V/0.1A; 125V/0.2A; 75V/0.5A
Cross sectional area for remote signaling contact - Max. 1.5mm² solid/flexible
Test standards - GB 18802.1; IEC 61643-1
Product Gallery

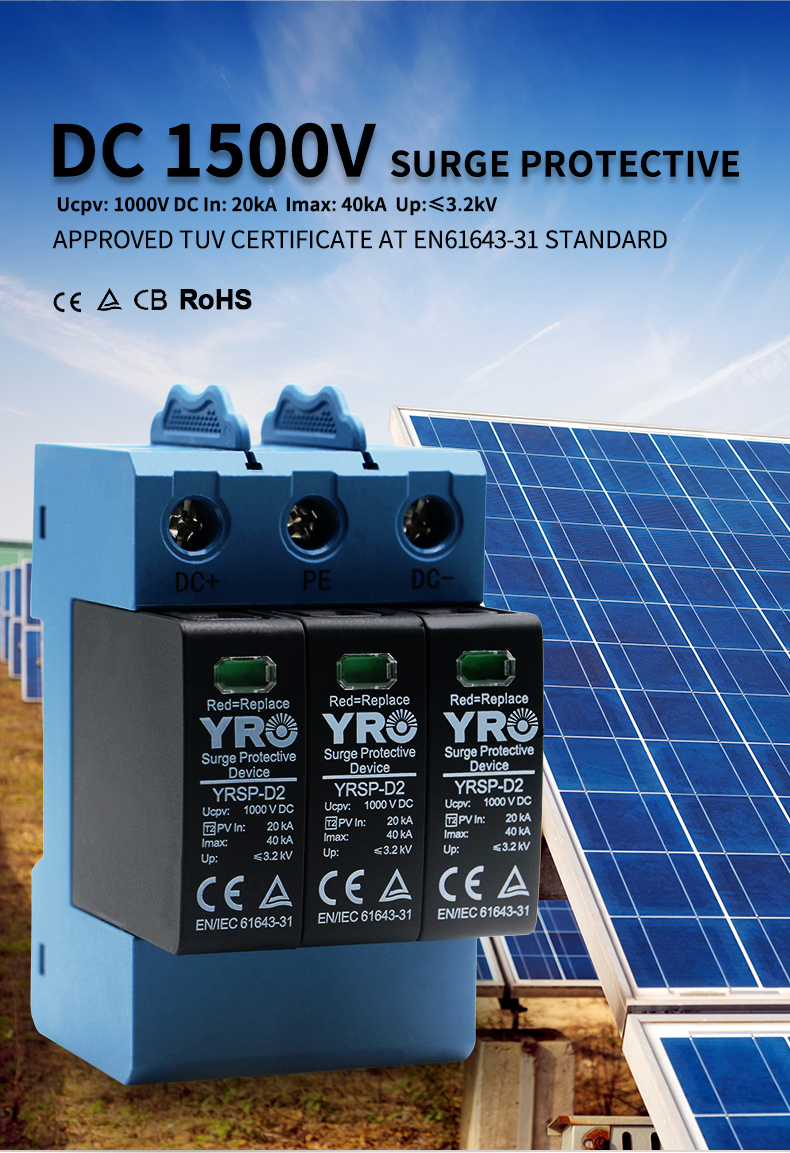

Product View 1
Product View 2

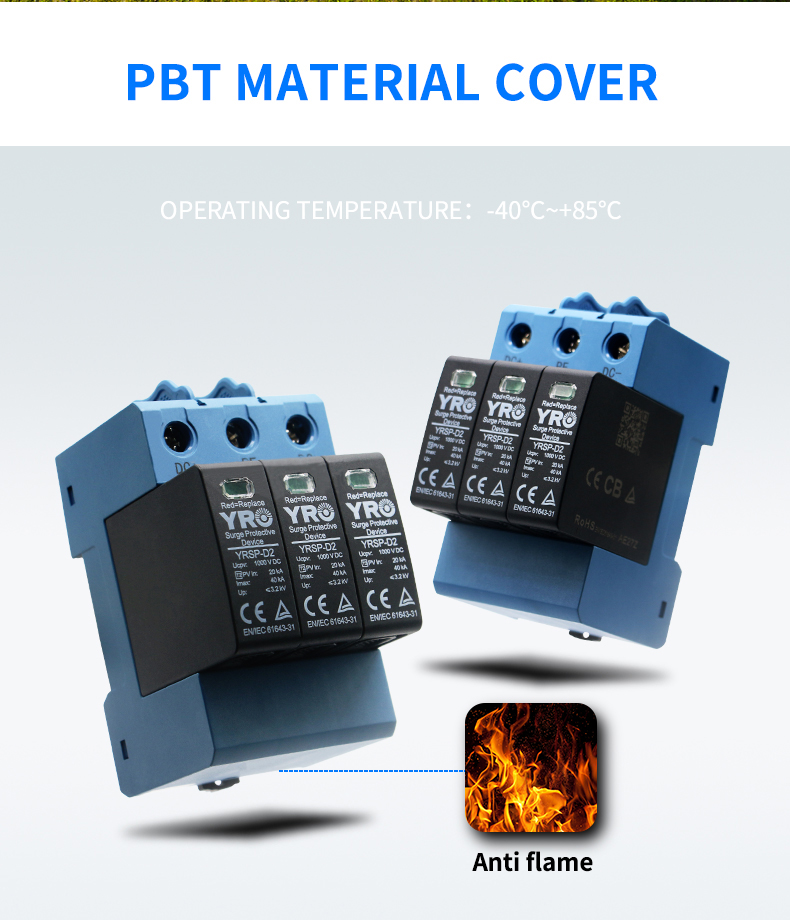

Product View 3

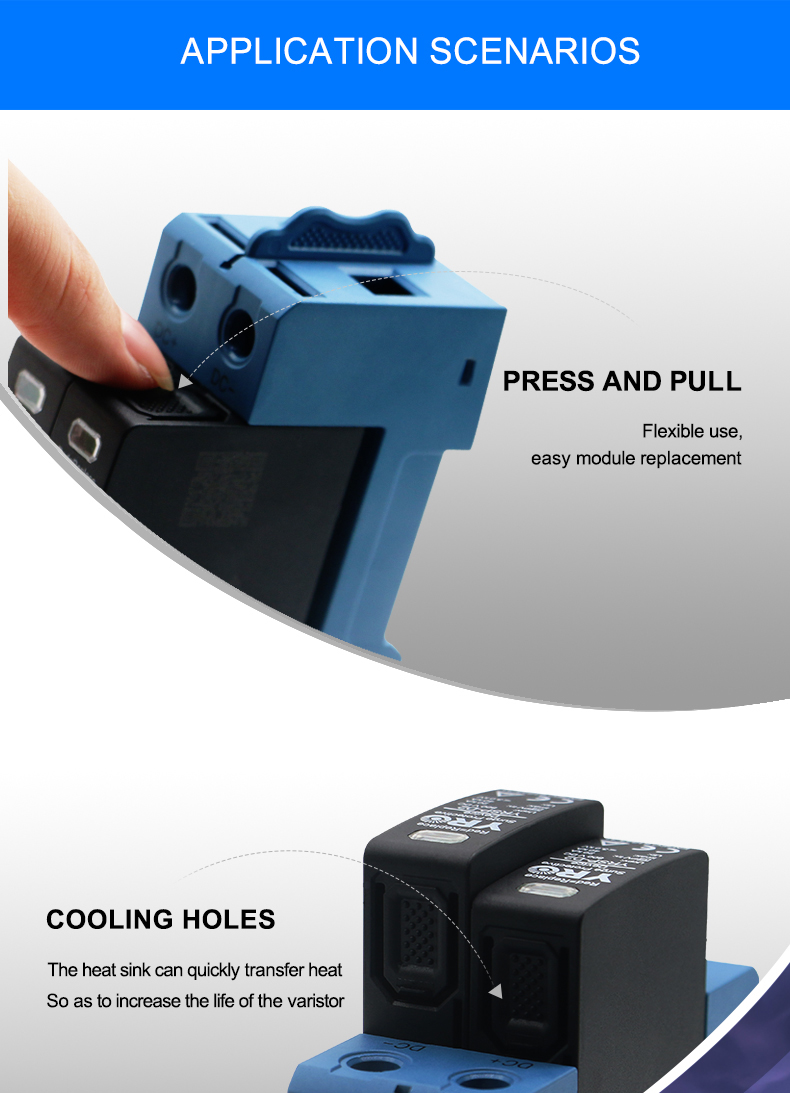

Product View 4

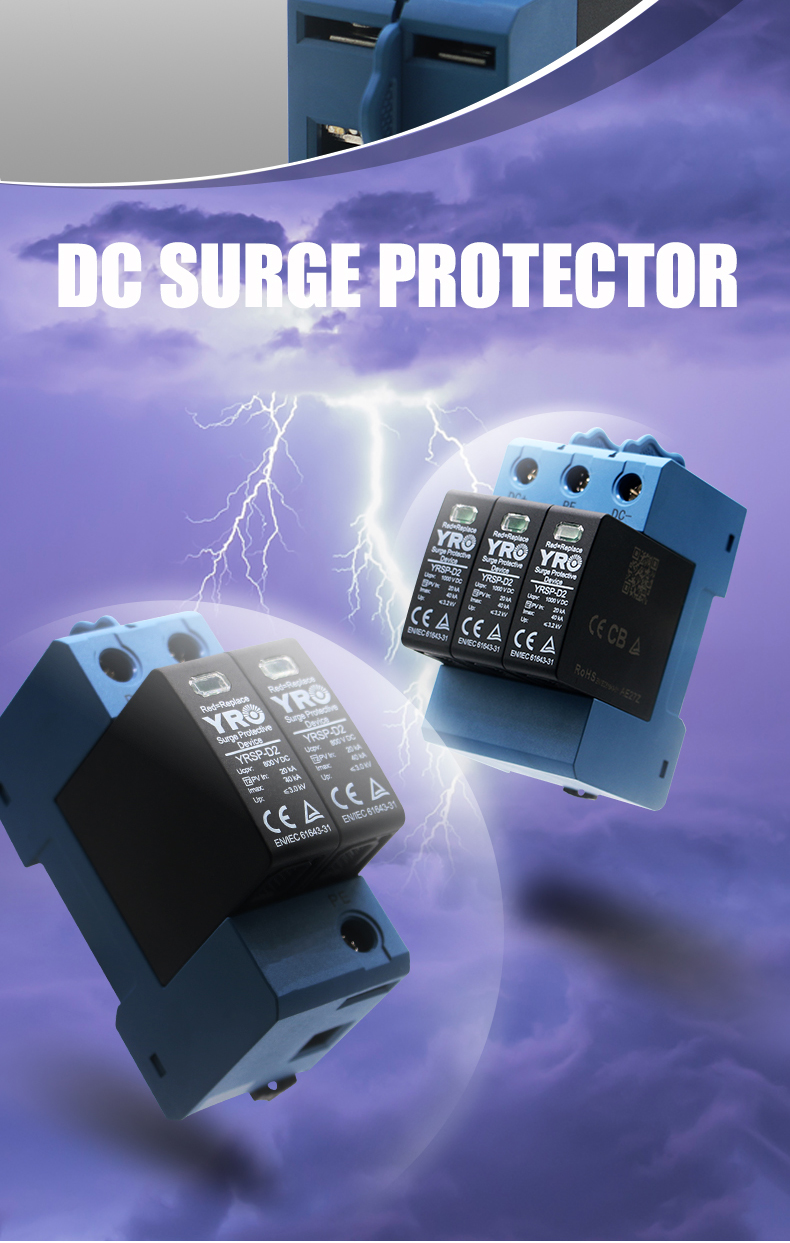

Product View 5
Product View 6
Product View 7

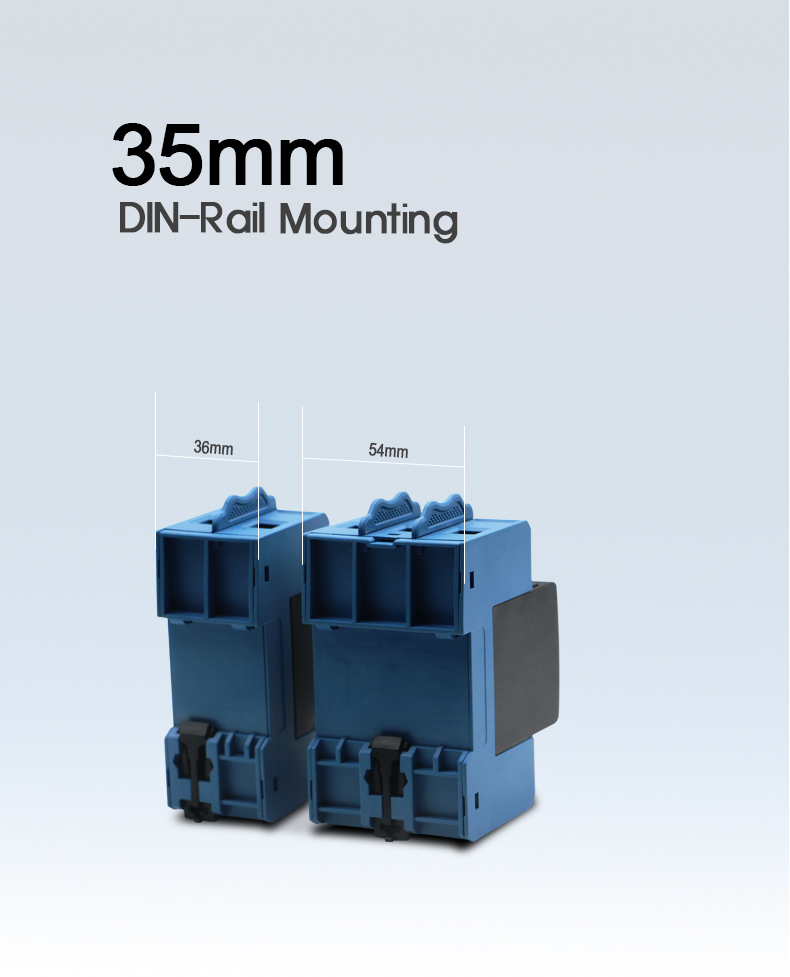

Product View 8
Product View 9
Product View 10
Product View 11
Product View 12
Product View 13
Production Facility & Warehouse

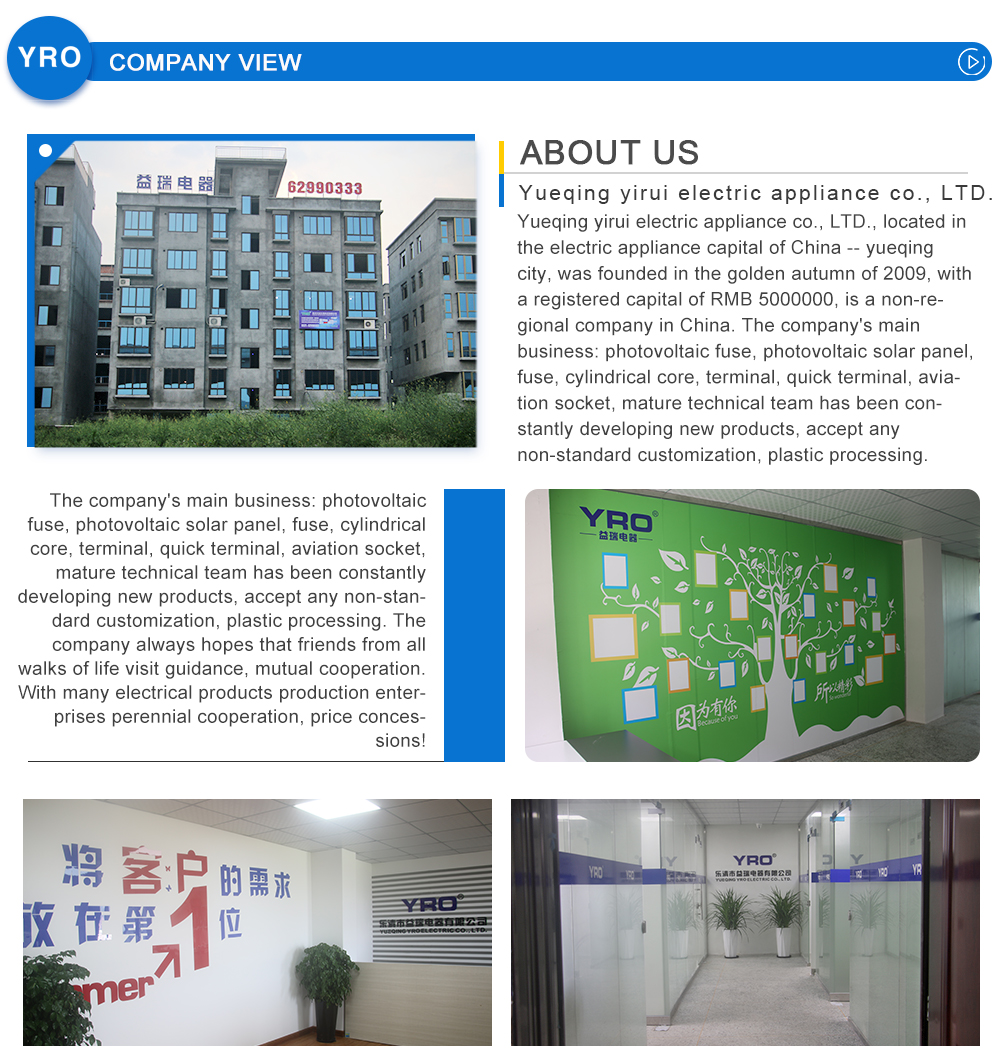

Production Workshop

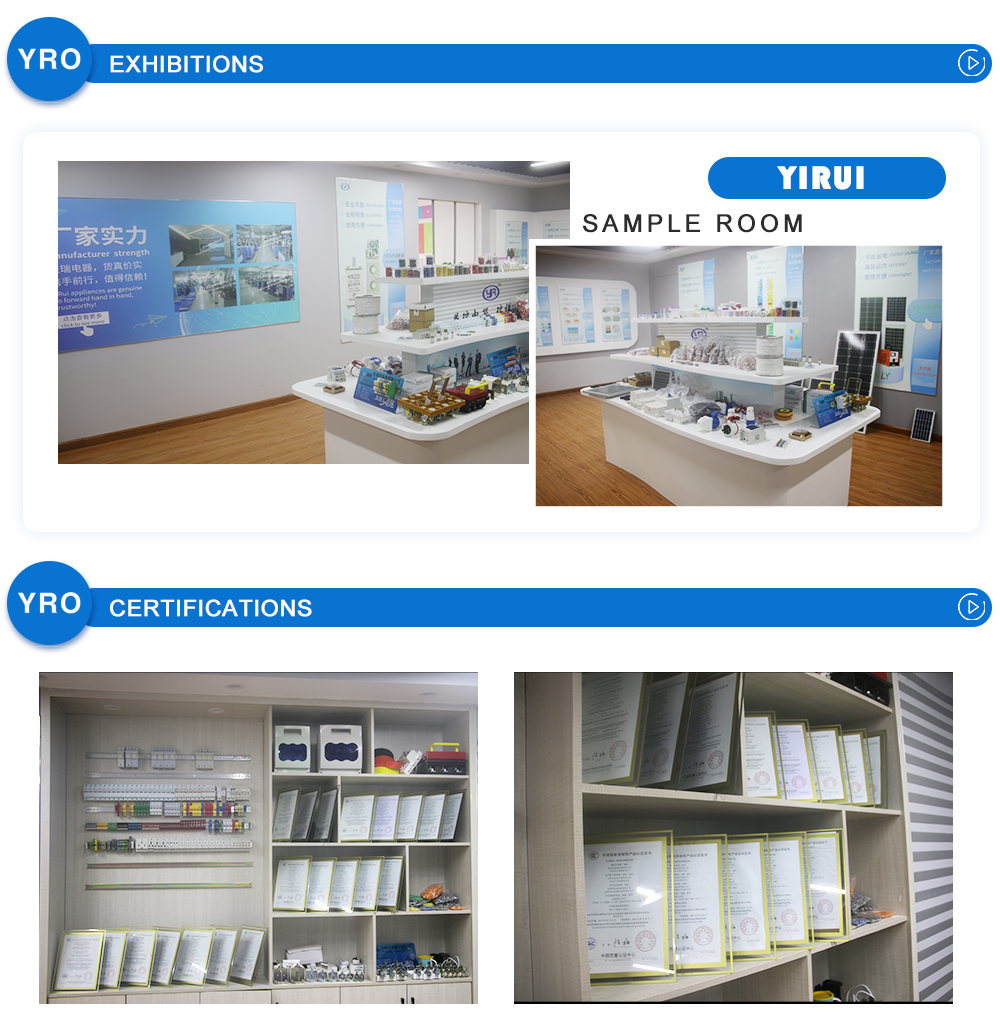

Quality Inspection Line
Packaging & Shipping
Packaging Box & Logistics
Packaging Specifications
Standard durable export box packaging.
Carton Dimensions: 48 * 29.5 * 15.2 cm³
